23

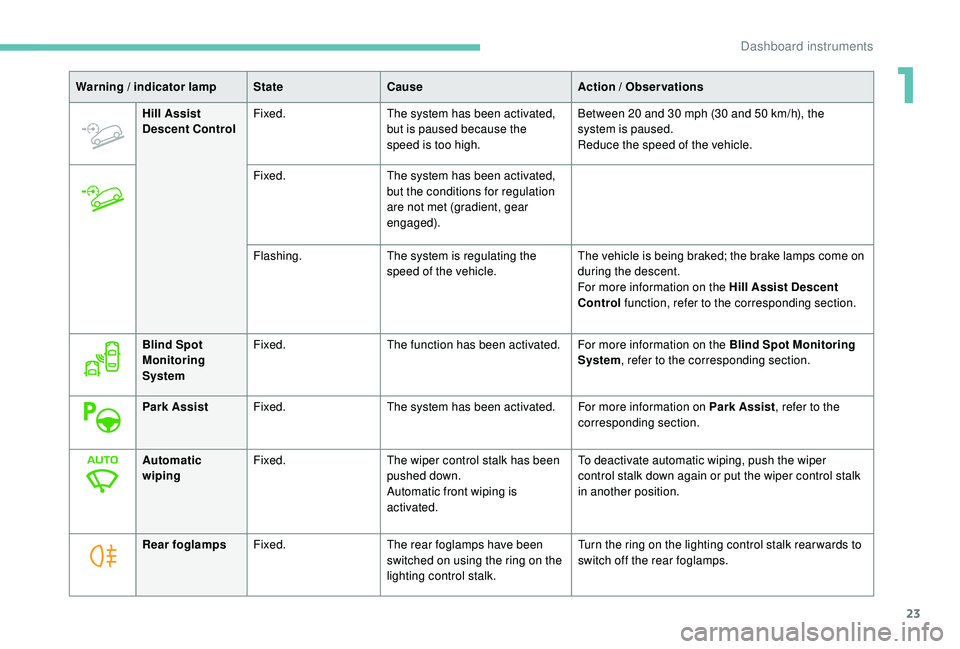

Hill Assist
Descent ControlFixed.
The system has been activated,
but is paused because the
speed is too high. Between 20
and 30 mph (30 and 50 km/h), the
system is paused.
Reduce the speed of the vehicle.
Fixed. The system has been activated,
but the conditions for regulation
are not met (gradient, gear
engaged).
Flashing. The system is regulating the
speed of the vehicle. The vehicle is being braked; the brake lamps come on
during the descent.
For more information on the Hill Assist Descent
Control
function, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Blind Spot
Monitoring
System Fixed.
The function has been activated. For more information on the Blind Spot Monitoring
System, refer to the corresponding section.
Park Assist Fixed. The system has been activated. For more information on Park Assist , refer to the
corresponding section.
Automatic
wiping Fixed.
The wiper control stalk has been
pushed down.
Automatic front wiping is
activated. To deactivate automatic wiping, push the wiper
control stalk down again or put the wiper control stalk
in another position.
Rear foglamps Fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear wards to
switch off the rear foglamps.
1
Dashboard instruments

24

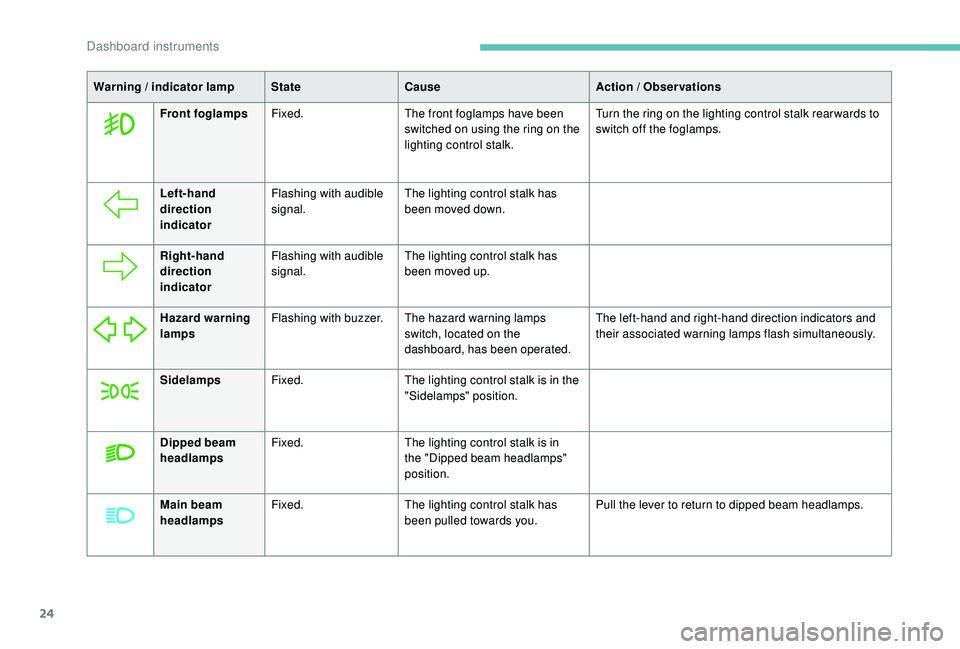

Warning / indicator lampStateCause Action / Observations
Front foglamps Fixed. The front foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear wards to
switch off the foglamps.
Left-hand
direction
indicator Flashing with audible
signal.
The lighting control stalk has
been moved down.
Right-hand
direction
indicator Flashing with audible
signal.
The lighting control stalk has
been moved up.
Hazard warning
lamps Flashing with buzzer. The hazard warning lamps
switch, located on the
dashboard, has been operated. The left-hand and right-hand direction indicators and
their associated warning lamps flash simultaneously.
Sidelamps Fixed. The lighting control stalk is in the
"Sidelamps" position.
Dipped beam
headlamps Fixed.
The lighting control stalk is in
the "Dipped beam headlamps"
position.
Main beam
headlamps Fixed.
The lighting control stalk has
been pulled towards you. Pull the lever to return to dipped beam headlamps.
Dashboard instruments

25
Warning / indicator lampStateCause Action / Observations
+
or Automatic
headlamp
dipping
Fixed.
The function has been activated
via the Vehicle / Driving menu
of the touch screen.
The lighting control stalk is in the
"AUTO" position. The camera, placed at the top of the windscreen,
manages the main beam headlamps or dipped
headlamps operation, according to the outside
lighting and the driving conditions.
For more information on Automatic headlamp
dipping
, refer to the corresponding section.
For more information on the Lighting control stalk , refer to the corresponding section.
1
Dashboard instruments

26

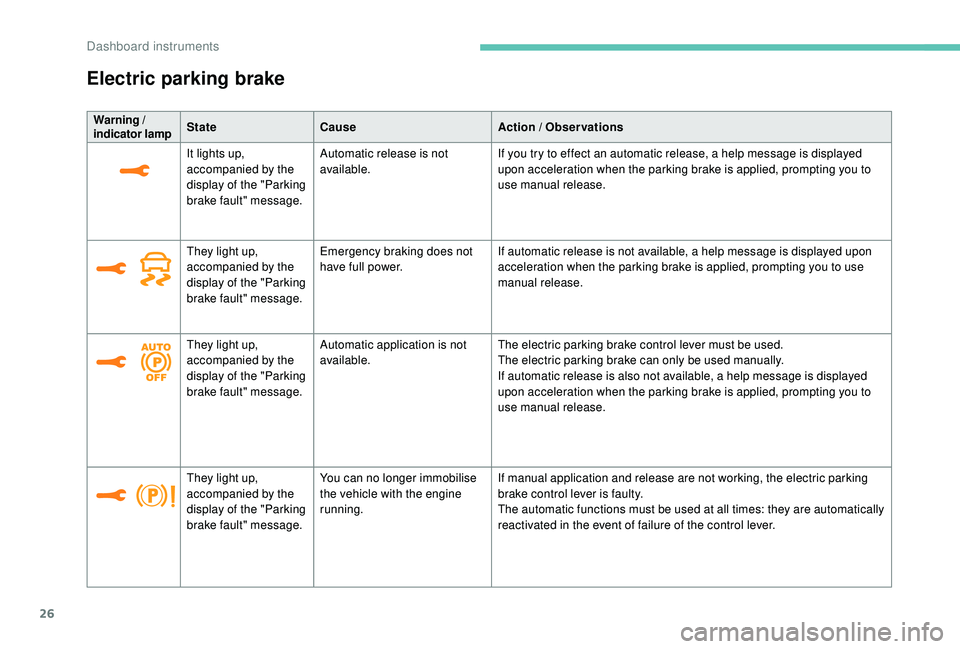

Electric parking brake
Warning /
indicator lampState
Cause Action / Observations
It lights up,
accompanied by the
display of the "Parking
brake fault" message. Automatic release is not
available.
If you try to effect an automatic release, a help message is displayed
upon acceleration when the parking brake is applied, prompting you to
use manual release.
They light up,
accompanied by the
display of the "Parking
brake fault" message. Emergency braking does not
have full power.
If automatic release is not available, a help message is displayed upon
acceleration when the parking brake is applied, prompting you to use
manual release.
They light up,
accompanied by the
display of the "Parking
brake fault" message. Automatic application is not
available.
The electric parking brake control lever must be used.
The electric parking brake can only be used manually.
If automatic release is also not available, a help message is displayed
upon acceleration when the parking brake is applied, prompting you to
use manual release.
They light up,
accompanied by the
display of the "Parking
brake fault" message. You can no longer immobilise
the vehicle with the engine
running.
If manual application and release are not working, the electric parking
brake control lever is faulty.
The automatic functions must be used at all times: they are automatically
reactivated in the event of failure of the control lever.
Dashboard instruments

27
Warning /
indicator lampState
Cause Action / Observations
They light up,
accompanied by the
display of the "Parking
brake fault" message. The parking brake is faulty:
manual and automatic
functions may not be working.
When stationary, to immobilise your vehicle:
F

P
ull and hold the control lever for approximately 7 to 15 seconds, until
the warning lamp comes on in the instrument panel.
If this procedure does not work, you should secure your vehicle as
follows:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select mode P, then put the supplied
chocks against one of the wheels.
Call a PEUGEOT dealer or a qualified workshop.
They light up,
accompanied by the
display of the "Parking
brake fault" message. The parking brake is not
operating at maximum
efficiency and cannot secure
the vehicle in every situation. You should secure your vehicle as follows:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select mode P, then put the supplied
chocks against one of the wheels.
Call a PEUGEOT dealer or a qualified workshop.
They flash when the
vehicle has been
started. The parking brake has not
been properly released.
As soon as possible, stop the vehicle and try to completely release the
parking brake using the control lever, with your foot on the brake pedal.
If the problem persists, call a PEUGEOT dealer or a qualified workshop.
For more information on the use of the Electric parking brake , refer to the corresponding section.
1
Dashboard instruments

28

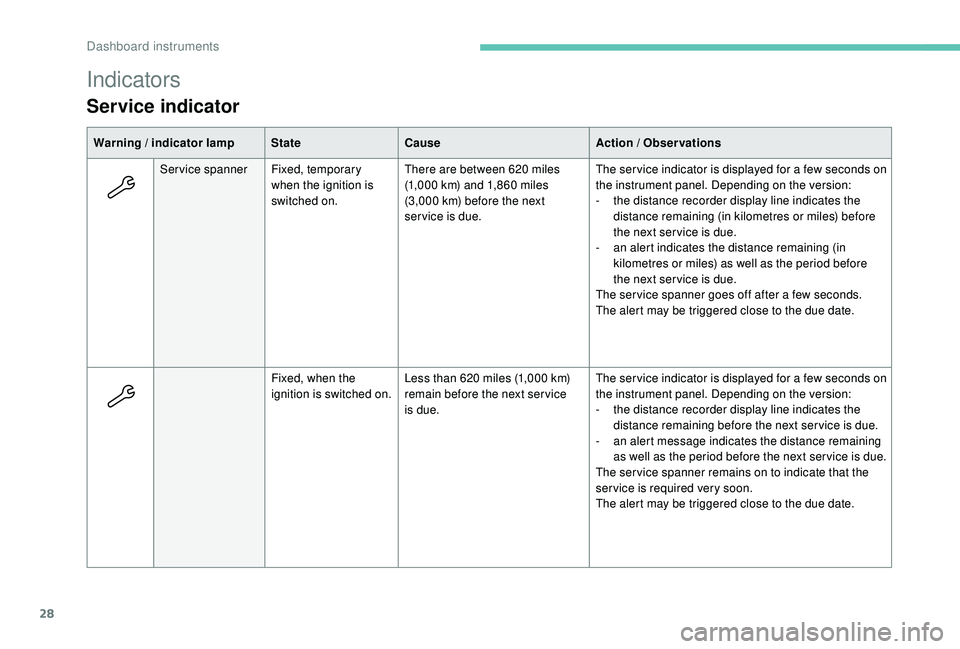

Indicators
Service indicator
Warning / indicator lampStateCause Action / Observations
Service spanner Fixed, temporary
when the ignition is
switched on. There are between 620
miles
(1,000
km) and 1,860 miles
(3,000
km) before the next
service is due. The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on the version:
-

t
he distance recorder display line indicates the
distance remaining (in kilometres or miles) before
the next ser vice is due.
-

a
n alert indicates the distance remaining (in
kilometres or miles) as well as the period before
the next ser vice is due.
The ser vice spanner goes off after a few seconds.
The alert may be triggered close to the due date.
Fixed, when the
ignition is switched on. Less than 620
miles (1,000 km)
remain before the next ser vice
is due. The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on the version:
-

t
he distance recorder display line indicates the
distance remaining before the next ser vice is due.
-

a
n alert message indicates the distance remaining
as well as the period before the next ser vice is due.
The ser vice spanner remains on to indicate that the
ser vice is required very soon.
The alert may be triggered close to the due date.
Dashboard instruments

29

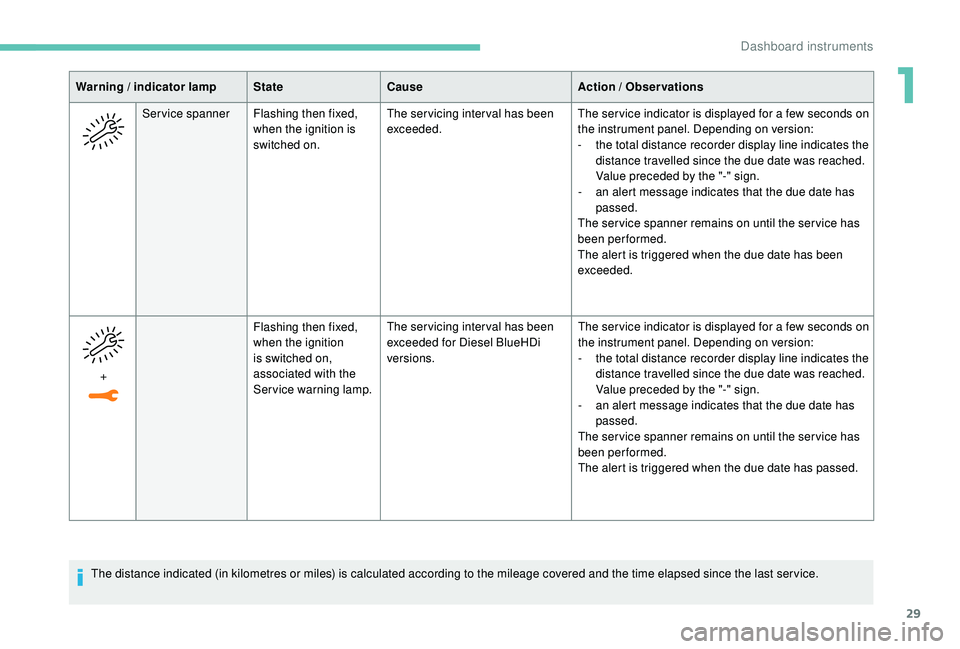

Warning / indicator lampStateCause Action / Observations
Service spanner Flashing then fixed,
when the ignition is
switched on. The servicing interval has been
exceeded.
The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

t
he total distance recorder display line indicates the
distance travelled since the due date was reached.
Value preceded by the "-" sign.
-

a
n alert message indicates that the due date has
passed.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has been
exceeded.
+ Flashing then fixed,
when the ignition
is switched on,
associated with the
Service warning lamp.The servicing interval has been
exceeded for Diesel BlueHDi
versions.
The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

t
he total distance recorder display line indicates the
distance travelled since the due date was reached.
Value preceded by the "-" sign.
-

a
n alert message indicates that the due date has
passed.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
The distance indicated (in kilometres or miles) is calculated according to the mileage covered and the time elapsed since the last ser vice.
1
Dashboard instruments

30

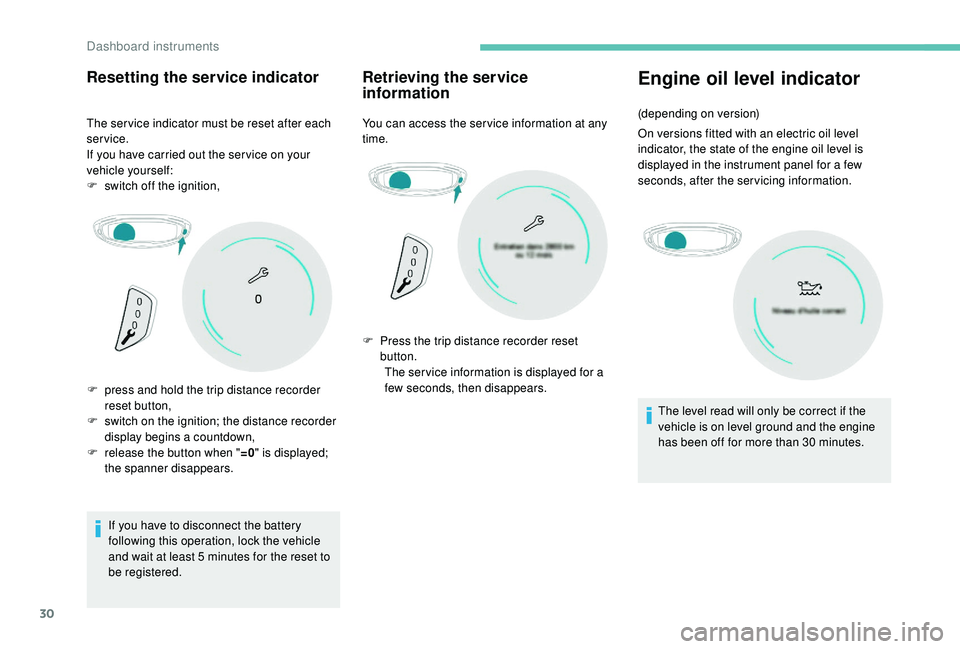

Resetting the service indicator
The ser vice indicator must be reset after each
service.
If you have carried out the ser vice on your
vehicle yourself:
F
s
witch off the ignition,
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5
minutes for the reset to
be registered.
Retrieving the service
information
You can access the ser vice information at any
time.
Engine oil level indicator
F press and hold the trip distance recorder reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

r
elease the button when " =0" is displayed;
the spanner disappears. F

P
ress the trip distance recorder reset
button. The ser vice information is displayed for a
few seconds, then disappears. (depending on version)
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.
The level read will only be correct if the
vehicle is on level ground and the engine
has been off for more than 30 minutes.
