2017 PEUGEOT 5008 Owners Manual

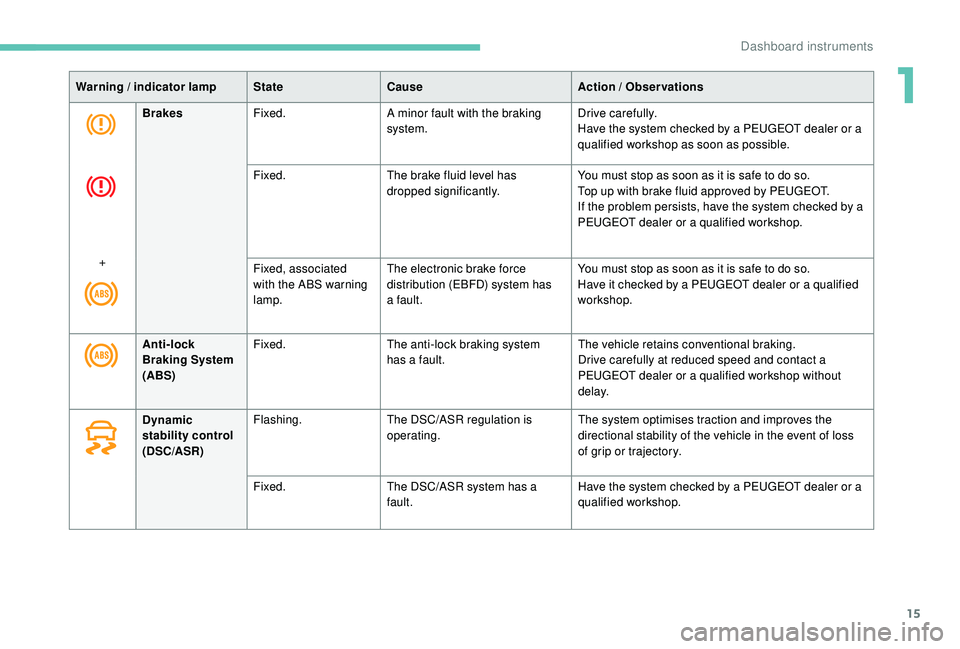

15
Warning / indicator lampStateCause Action / Observations
Brakes Fixed. A minor fault with the braking
system. Drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop as soon as possible.
Fixed. The brake fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid approved by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.
+ Fixed, associated
with the ABS warning
lamp.The electronic brake force
distribution (EBFD) system has
a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Anti-lock
Braking System
(ABS) Fixed.
The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
d e l ay.
Dynamic
stability control
(DSC/ASR) Flashing.
The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle in the event of loss
of grip or trajectory.
Fixed. The DSC/ASR system has a
fault. Have the system checked by a PEUGEOT dealer or a
qualified workshop.
1

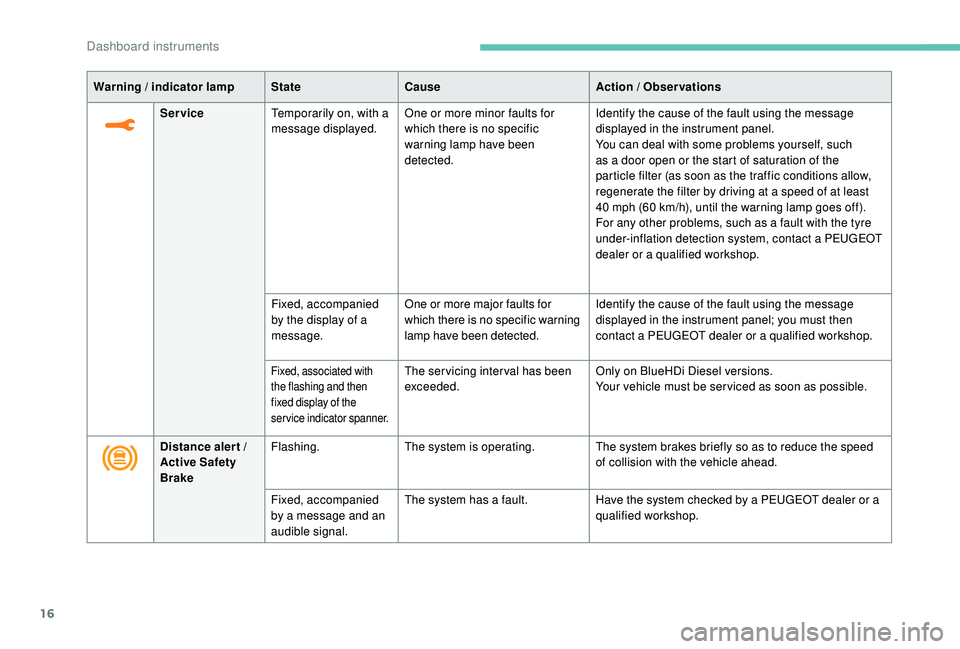

Dashboard instruments

16
Warning / indicator lampStateCause Action / Observations
Service Temporarily on, with a
message displayed. One or more minor faults for
which there is no specific
warning lamp have been
detected. Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such
as a door open or the start of saturation of the
particle filter (as soon as the traffic conditions allow,
regenerate the filter by driving at a speed of at least
40
mph (60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under-inflation detection system, contact a PEUGEOT
dealer or a qualified workshop.
Fixed, accompanied
by the display of a
message. One or more major faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a PEUGEOT dealer or a qualified workshop.
Fixed, associated with
the flashing and then
fixed display of the
service indicator spanner.The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Distance aler t /
Active Safety
Brake Flashing.
The system is operating. The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
Fixed, accompanied
by a message and an
audible signal. The system has a fault.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

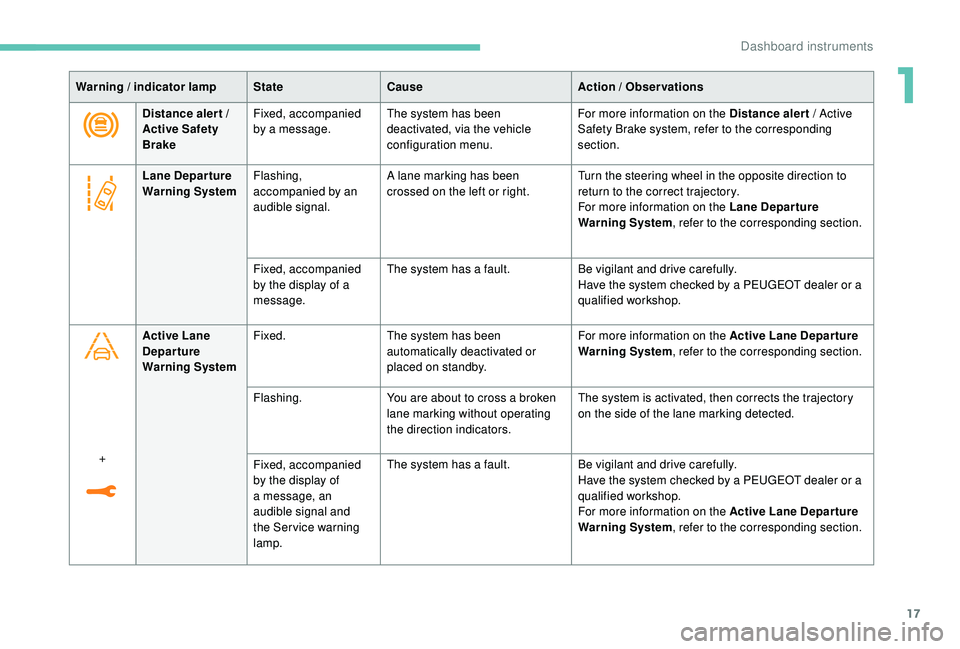

Dashboard instruments

17
Warning / indicator lampStateCause Action / Observations
Distance aler t /
Active Safety
Brake Fixed, accompanied
by a message.
The system has been
deactivated, via the vehicle
configuration menu. For more information on the Distance alert
/ Active
Safety Brake system, refer to the corresponding
section.
Lane Depar ture
Warning System Flashing,
accompanied by an
audible signal. A lane marking has been
crossed on the left or right.
Turn the steering wheel in the opposite direction to
return to the correct trajectory.
For more information on the Lane Depar ture
Warning System
, refer to the corresponding section.
Fixed, accompanied
by the display of a
message. The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Active Lane
Departure
Warning System Fixed.
The system has been
automatically deactivated or
placed on standby. For more information on the Active Lane Depar ture
Warning System
, refer to the corresponding section.
Flashing. You are about to cross a broken
lane marking without operating
the direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Fixed, accompanied
by the display of
a message, an
audible signal and
the Ser vice warning
lamp.The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
For more information on the Active Lane Depar ture
Warning System, refer to the corresponding section.
1

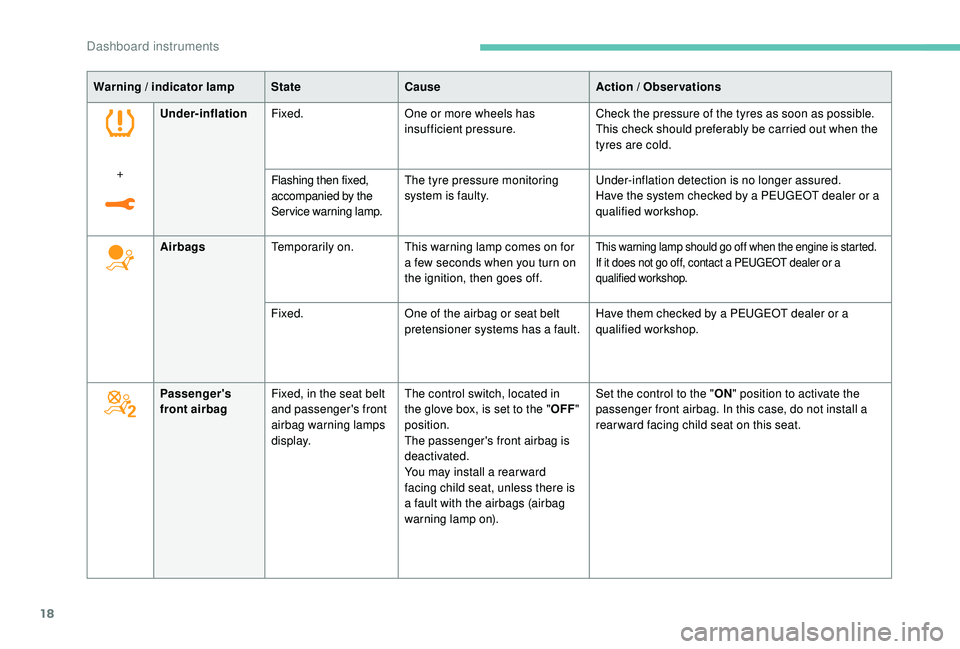

Dashboard instruments

18
Warning / indicator lampStateCause Action / Observations
Airbags Temporarily on. This warning lamp comes on for
a few seconds when you turn on
the ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
Fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a PEUGEOT dealer or a
qualified workshop.
Under-inflation
Fixed. One or more wheels has
insufficient pressure. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ Flashing then fixed,
accompanied by the
Service warning lamp.The tyre pressure monitoring
system is faulty.
Under-inflation detection is no longer assured.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Passenger's
front airbag Fixed, in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in
the glove box, is set to the "
OFF"
position.
The passenger's front airbag is
deactivated.
You may install a rear ward
facing child seat, unless there is
a fault with the airbags (airbag
warning lamp on). Set the control to the "
ON" position to activate the
passenger front airbag. In this case, do not install a
rear ward facing child seat on this seat.

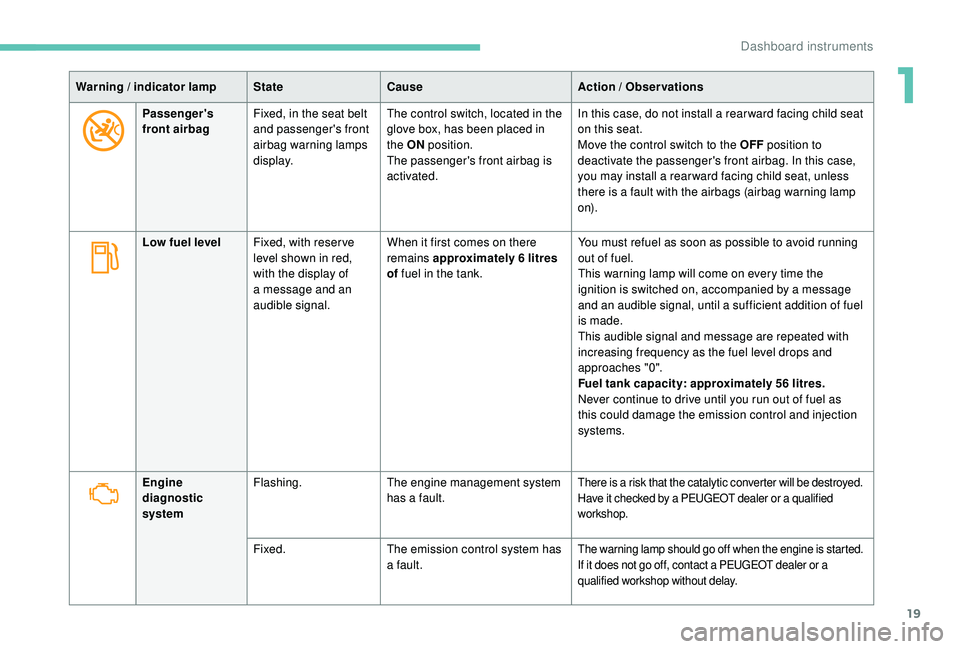

Dashboard instruments

19
Warning / indicator lampStateCause Action / Observations
Passenger's
front airbag Fixed, in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in the
glove box, has been placed in
the ON
position.
The passenger's front airbag is
activated. In this case, do not install a rear ward facing child seat
on this seat.
Move the control switch to the OFF
position to
deactivate the passenger's front airbag. In this case,
you may install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning lamp
o n).
Low fuel level Fixed, with reser ve
level shown in red,
with the display of
a message and an
audible signal. When it first comes on there
remains approximately 6
litres
of fuel in the tank. You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the
ignition is switched on, accompanied by a message
and an audible signal, until a sufficient addition of fuel
is made.
This audible signal and message are repeated with
increasing frequency as the fuel level drops and
approaches "0".
Fuel tank capacity: approximately 56
litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Engine
diagnostic
system Flashing.
The engine management system
has a fault.
There is a risk that the catalytic converter will be destroyed.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Fixed.The emission control system has
a fault.The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop without delay.
1

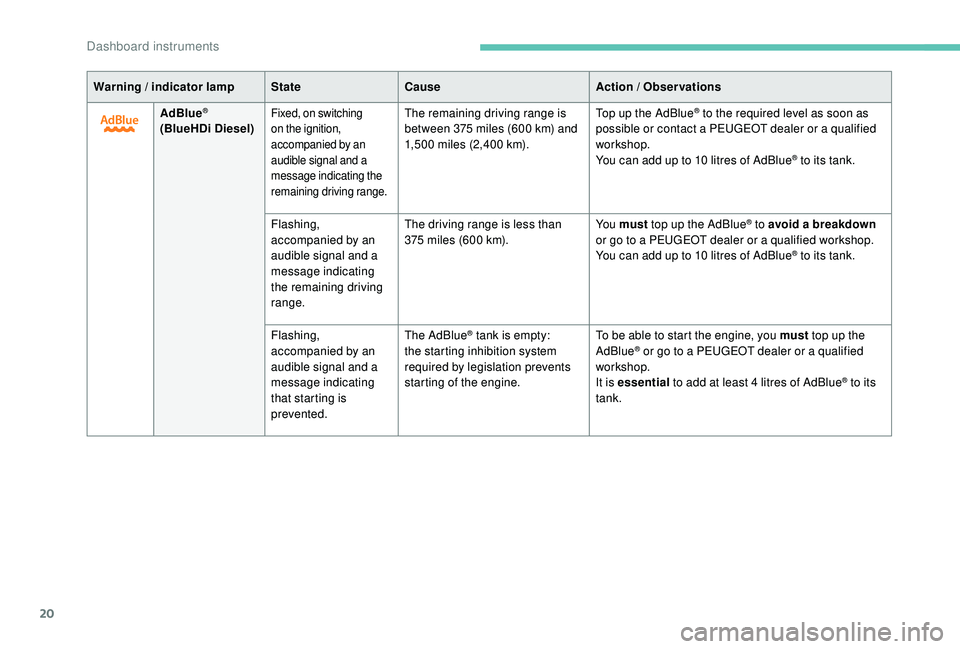

Dashboard instruments

20
Warning / indicator lampStateCause Action / Observations
AdBlue
®
(BlueHDi Diesel)Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.The remaining driving range is
between 375 miles (600 km) and
1,500
miles (2,400 km).Top up the AdBlue® to the required level as soon as
possible or contact a PEUGEOT dealer or a qualified
workshop.
You can add up to 10
litres of AdBlue
® to its tank.
Flashing,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The driving range is less than
375

miles (600

km). Yo u must
top up the AdBlue
® to avoid a breakdown
or go to a PEUGEOT dealer or a qualified workshop.
You can add up to 10

litres of AdBlue
® to its tank.
Flashing,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty:
the starting inhibition system
required by legislation prevents
starting of the engine. To be able to start the engine, you must
top up the
AdBlue® or go to a PEUGEOT dealer or a qualified
workshop.
It is essential to add at least 4
litres of AdBlue
® to its
tank.

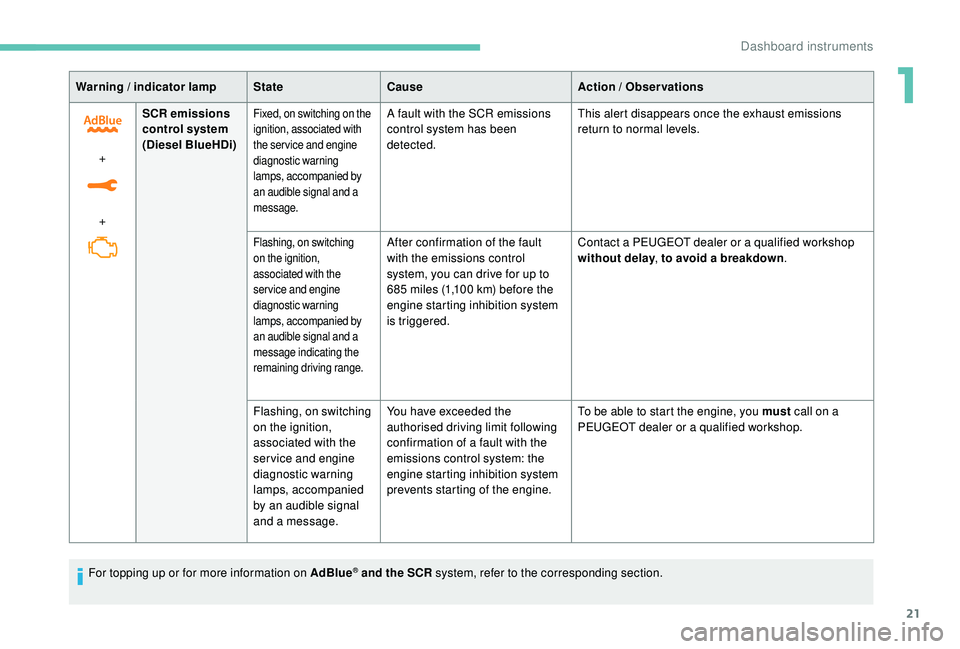

Dashboard instruments

21
Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system
(Diesel BlueHDi)
Fixed, on switching on the
ignition, associated with
the service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message.A fault with the SCR emissions
control system has been
detected.
This alert disappears once the exhaust emissions
return to normal levels.
Flashing, on switching
on the ignition,
associated with the
service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range.After confirmation of the fault
with the emissions control
system, you can drive for up to
685
miles (1,100 km) before the
engine starting inhibition system
is triggered. Contact a PEUGEOT dealer or a qualified workshop
without delay
, to avoid a breakdown .
Flashing, on switching
on the ignition,
associated with the
service and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. You have exceeded the
authorised driving limit following
confirmation of a fault with the
emissions control system: the
engine starting inhibition system
prevents starting of the engine.
To be able to start the engine, you must
call on a
PEUGEOT dealer or a qualified workshop.
For topping up or for more information on AdBlue
® and the SCR system, refer to the corresponding section.
1
Dashboard instruments

22
Diesel engine
pre-heatingFixed.
When the ignition is switched
on with a key in the ignition
switch or a starting instruction is
made using the "START/STOP"
button, the engine temperature
makes engine pre-heating
necessary. The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
With an ignition switch and key, wait until the indicator
lamp goes off before starting.
With

K
eyless Entry and Starting, once it goes off,
starting is immediate, on the condition that the brake
pedal remains pressed with an automatic gearbox.
With

K
eyless Entry and Starting, once it goes off,
starting is immediate, on the condition that the clutch
pedal remains pressed with a manual gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Warning / indicator lamp
StateCause Action / Observations
Stop & Star t Fixed, accompanied
by the display of a
message. The Stop & Start system is
deactivated.
The engine will not switch off at the next traffic stop.
Reactivate the system by pressing the button again.
For more information on Stop & Star t
, refer to the
corresponding section.
Stop & Star t Fixed.
When the vehicle stops (red lights, traffic
jams, etc.), the Stop & Start system puts
the engine into STOP mode.The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
Flashes for a few
seconds, then goes
of f.
STOP mode is temporarily
unavailable.
or
START mode is invoked automatically.For more information on Stop & Star t , refer to the
corresponding section.
Dashboard instruments
