2017 NISSAN LEAF Owners Manual

SOLAR CELL MODULE (IF SO
EQUIPPED)
This vehicle uses a solar cell module to provide
power to the 12-volt battery. The solar cell mod-
ule only provides power to help maintain the
charge of the 12-volt battery; it will not recharge
a discharged 12-volt battery.
The solar cell module does not provide power to
the Li-ion battery.
For additional information, refer to “Cleaning ex-
terior” in the “Appearance and care” section of
this manual.
NOTE:
The solar cell may not provide full charging
power in the following situations:
•When the intensity of sunlight is weak.
• When the solar cell module is in the
shade.
• When the solar cell module is covered by
leaves or dirt.
DRIVING RANGE (IF SO EQUIPPED)
On the navigation system screen, you can check
the estimated distance the vehicle may be driven
with the available Li-ion battery charge. For addi-
tional information, refer to the LEAF Navigation
System Owner’s Manual.
Solar cell module on the rear spoiler
EV-30EV Overview

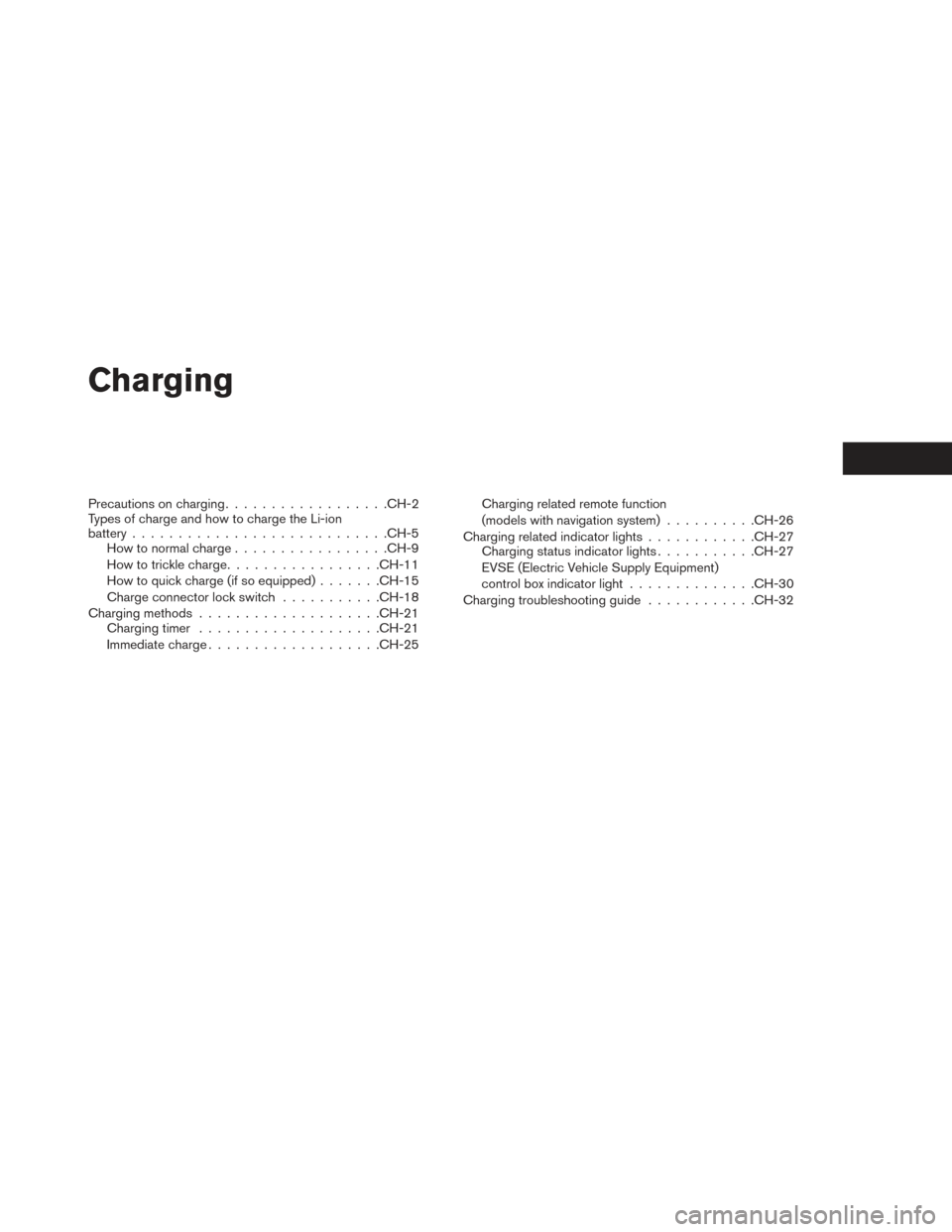

Charging
Precautions on charging................. .CH-2
Types of charge and how to charge the Li-ion
battery ........................... .CH-5
How to normal charge ................ .CH-9
How to trickle charge ................ .CH-11
How to quick charge (if so equipped) .......CH-15
Charge connector lock switch ...........CH-18
Charging methods ................... .CH-21
Charging timer ................... .CH-21
Immediate charge .................. .CH-25Charging related remote function
(models with navigation system)
..........CH-26
Charging related indicator lights ............CH-27
Charging status indicator lights ...........CH-27
EVSE (Electric Vehicle Supply Equipment)
control box indicator light ..............CH-30
Charging troubleshooting guide ............CH-32

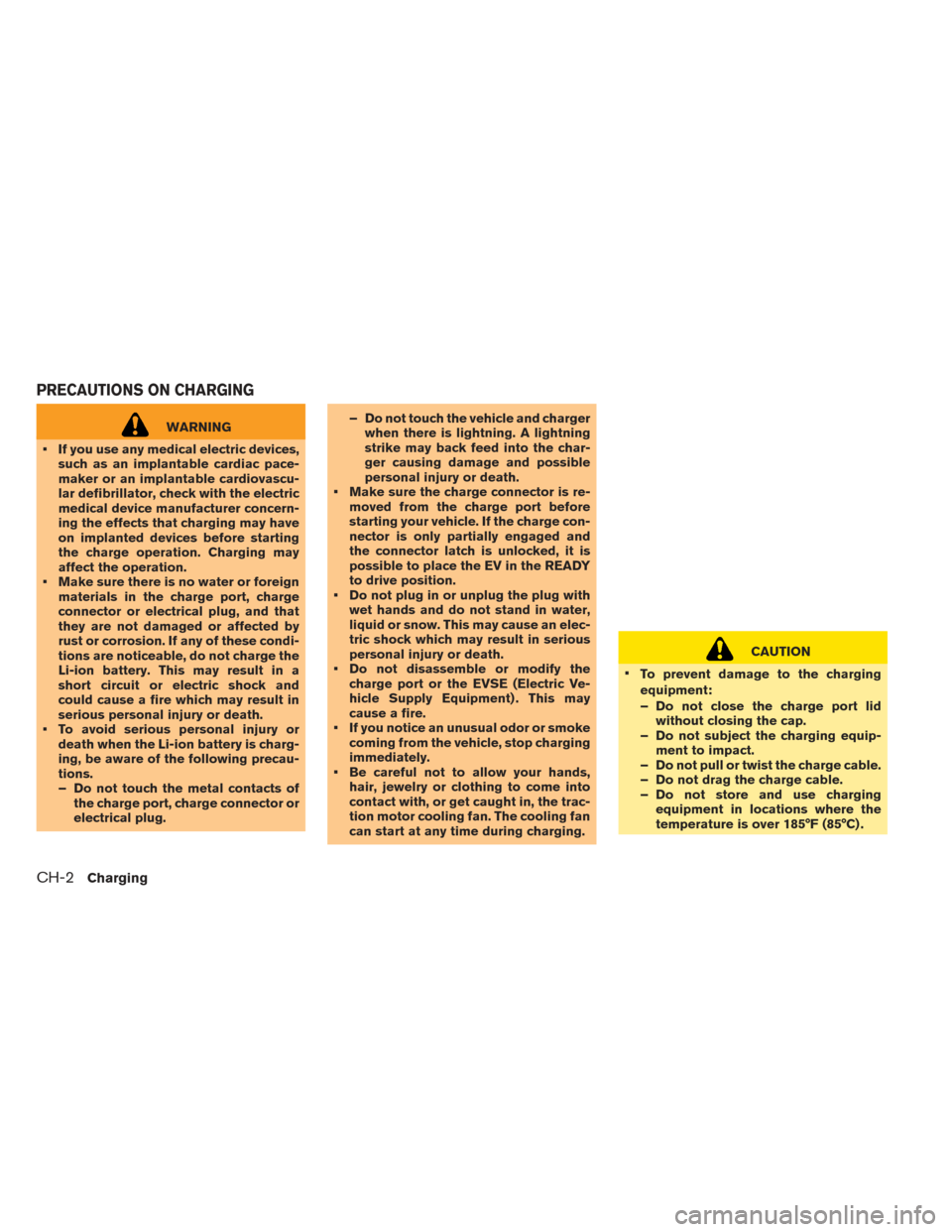

WARNING
• If you use any medical electric devices, such as an implantable cardiac pace-
maker or an implantable cardiovascu-
lar defibrillator, check with the electric
medical device manufacturer concern-
ing the effects that charging may have
on implanted devices before starting
the charge operation. Charging may
affect the operation.
• Make sure there is no water or foreign materials in the charge port, charge
connector or electrical plug, and that
they are not damaged or affected by
rust or corrosion. If any of these condi-
tions are noticeable, do not charge the
Li-ion battery. This may result in a
short circuit or electric shock and
could cause a fire which may result in
serious personal injury or death.
• To avoid serious personal injury or death when the Li-ion battery is charg-
ing, be aware of the following precau-
tions.
– Do not touch the metal contacts ofthe charge port, charge connector or
electrical plug. – Do not touch the vehicle and charger
when there is lightning. A lightning
strike may back feed into the char-
ger causing damage and possible
personal injury or death.
• Make sure the charge connector is re- moved from the charge port before
starting your vehicle. If the charge con-
nector is only partially engaged and
the connector latch is unlocked, it is
possible to place the EV in the READY
to drive position.
• Do not plug in or unplug the plug with wet hands and do not stand in water,
liquid or snow. This may cause an elec-
tric shock which may result in serious
personal injury or death.
• Do not disassemble or modify the charge port or the EVSE (Electric Ve-
hicle Supply Equipment) . This may
cause a fire.
• If you notice an unusual odor or smoke coming from the vehicle, stop charging
immediately.
• Be careful not to allow your hands, hair, jewelry or clothing to come into
contact with, or get caught in, the trac-
tion motor cooling fan. The cooling fan
can start at any time during charging.
CAUTION
• To prevent damage to the charging
equipment:
– Do not close the charge port lid
without closing the cap.
– Do not subject the charging equip- ment to impact.
– Do not pull or twist the charge cable.
– Do not drag the charge cable.
– Do not store and use charging equipment in locations where the
temperature is over 185°F (85°C) .
PRECAUTIONS ON CHARGING
CH-2Charging

– Do not place the charging equip-ment close to a heater or other heat
source.
• Make sure the cap is closed on the charge port when charging is finished.
If the charge port lid is closed when the
cap is open, water or foreign materials
may enter the charge port.
• Do not charge when a vehicle body cover is in use. This may cause damage
to the charge connector.
• Do not attempt to perform a jump start on the 12-volt battery at the same time
that the Li-ion battery is being
charged. Doing so may damage the
vehicle or charging equipment and
could cause an injury. For additional
information, refer to “Jump starting” in
the “In case of emergency” section of
this manual. • Trickle charging is performed using the
EVSE (Electric Vehicle Supply Equip-
ment) provided with the vehicle.
NISSAN recommends using an AC 110
- 120 volt, 15A, dedicated electrical cir-
cuit and outlet. The dedicated circuit is
used to help prevent circuit damage or
the circuit breaker from tripping due to
the high draw of charging the Li-ion
battery. If the dedicated circuit is not
used, the circuit may cause adverse
interference on MCB (Moulded Circuit
Board) and household electrical appli-
ances such as televisions and audio
systems. If the circuit is shared, and
another electrical device is being used
at the same time the vehicle is charg-
ing, the breaker may trip. A licensed
professional electrician should install
a dedicated circuit if one is not already
available.
NOTE:
•When charging the Li-ion battery, place
the power switch in the OFF position.
When the power switch is in the ON posi-
tion, the Li-ion battery will not start charg-
ing. •
If the charger is connected to the vehicle
when it is in the READY to drive position,
the power switch automatically changes
to the ON position. Place the power switch
in the OFF position to begin charging.
• For your safety, if the charger is connected
to the vehicle while the power switch is in
the READY to drive position, the vehicle
will automatically switch to the ON posi-
tion. Because charging will not be started
while the power switch is in this position,
be sure to place the power switch in the
OFF position.
• When the ambient temperature is 32°F
(0°C) or less, charging time may be longer
than normal and the level to which the
Li-ion battery can be charged may be less
than at higher temperatures.
• Do not operate the charging timer repeat-
edly while the charge connector is con-
nected to the vehicle after the Li-ion bat-
tery charging is completed. Doing so may
discharge the 12-volt battery. For addi-
tional information, refer to “Charging
timer” in this section. If the Li-ion battery
becomes discharged, charge it immedi-
ately.
ChargingCH-3

•The power switch can be set to the ON
position and the climate control and navi-
gation system (if so equipped) can be
used while the Li-ion battery is charging.
However, because these operations con-
sume Li-ion battery power, it will take
longer for the Li-ion battery to become
fully charged. Place the power switch in
the OFF position to help reduce Li-ion
battery charge time.
• If electrical power is interrupted while
charging, charging restarts automatically
when the electrical power is restored.
• It is recommended to keep the charge
cable connected to save Li-ion battery
power, when the heater and air condi-
tioner are operating with remote opera-
tion (models with navigation system) .
• If the charge port is frozen, melt the ice
using a hair dryer. After the ice has
melted, charge the Li-ion battery. Forcing
the charge connector to connect may
cause a malfunction. •
If foreign materials have entered the
charge connector and charge port and it is
not possible to connect it, do not attempt
to force the connection. It is recom-
mended that you visit a NISSAN certified
LEAF dealer. Forcing the charge connec-
tor to connect may cause damage to the
charging equipment and vehicle.
• There is a hole on the charge port for
water drainage. If the water drainage hole
becomes blocked, or if water gets trapped
inside the charge port, do not charge. It is
recommended that you visit a NISSAN
certified LEAF dealer.
CH-4Charging

TYPES OF CHARGE AND HOW TO
CHARGE THE LI-ION BATTERY
ChargingCH-5

CH-6Charging

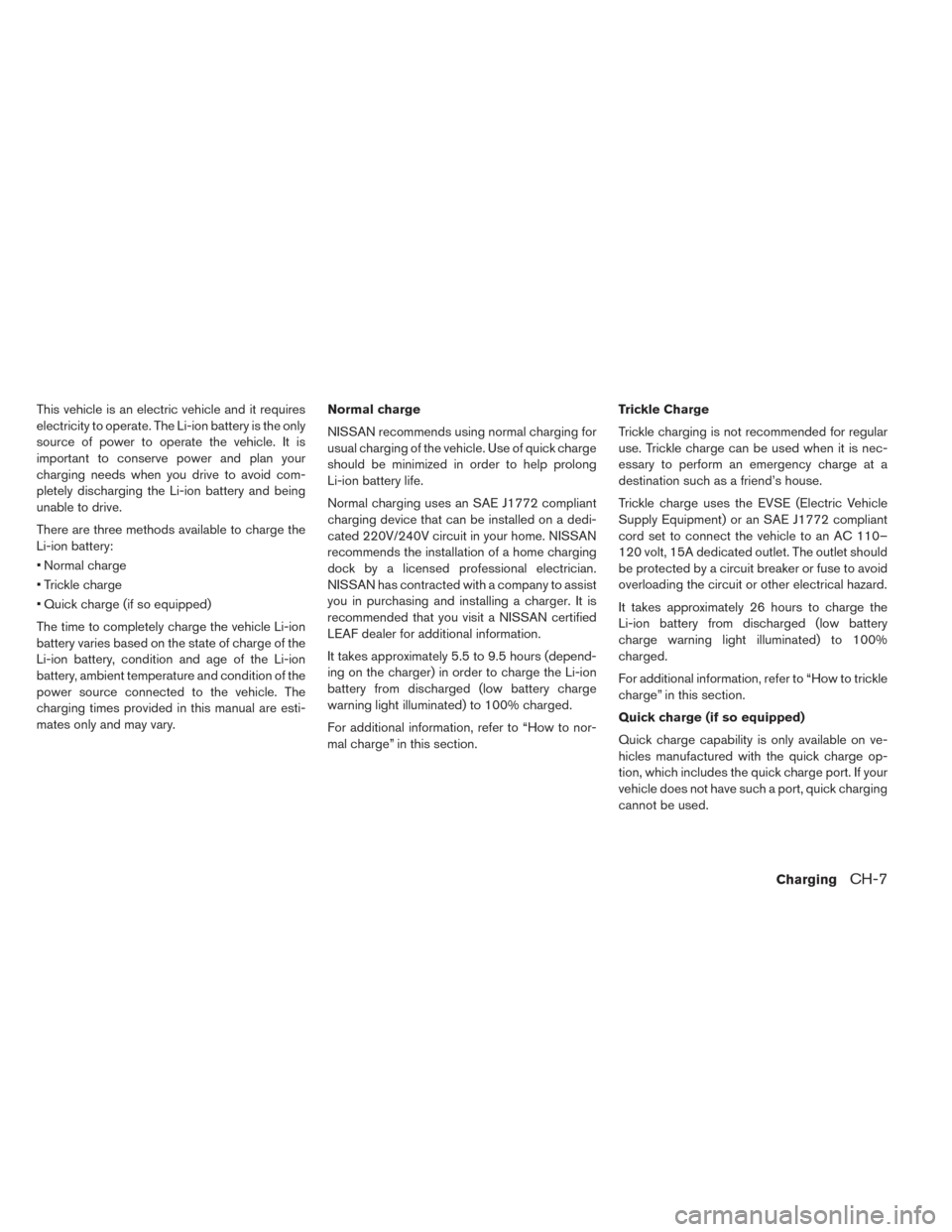

This vehicle is an electric vehicle and it requires
electricity to operate. The Li-ion battery is the only
source of power to operate the vehicle. It is
important to conserve power and plan your
charging needs when you drive to avoid com-
pletely discharging the Li-ion battery and being
unable to drive.
There are three methods available to charge the
Li-ion battery:
• Normal charge
• Trickle charge
• Quick charge (if so equipped)
The time to completely charge the vehicle Li-ion
battery varies based on the state of charge of the
Li-ion battery, condition and age of the Li-ion
battery, ambient temperature and condition of the
power source connected to the vehicle. The
charging times provided in this manual are esti-
mates only and may vary.Normal charge
NISSAN recommends using normal charging for
usual charging of the vehicle. Use of quick charge
should be minimized in order to help prolong
Li-ion battery life.
Normal charging uses an SAE J1772 compliant
charging device that can be installed on a dedi-
cated 220V/240V circuit in your home. NISSAN
recommends the installation of a home charging
dock by a licensed professional electrician.
NISSAN has contracted with a company to assist
you in purchasing and installing a charger. It is
recommended that you visit a NISSAN certified
LEAF dealer for additional information.
It takes approximately 5.5 to 9.5 hours (depend-
ing on the charger) in order to charge the Li-ion
battery from discharged (low battery charge
warning light illuminated) to 100% charged.
For additional information, refer to “How to nor-
mal charge” in this section.Trickle Charge
Trickle charging is not recommended for regular
use. Trickle charge can be used when it is nec-
essary to perform an emergency charge at a
destination such as a friend’s house.
Trickle charge uses the EVSE (Electric Vehicle
Supply Equipment) or an SAE J1772 compliant
cord set to connect the vehicle to an AC 110–
120 volt, 15A dedicated outlet. The outlet should
be protected by a circuit breaker or fuse to avoid
overloading the circuit or other electrical hazard.
It takes approximately 26 hours to charge the
Li-ion battery from discharged (low battery
charge warning light illuminated) to 100%
charged.
For additional information, refer to “How to trickle
charge” in this section.
Quick charge (if so equipped)
Quick charge capability is only available on ve-
hicles manufactured with the quick charge op-
tion, which includes the quick charge port. If your
vehicle does not have such a port, quick charging
cannot be used.
