2017 NISSAN LEAF Owners Manual

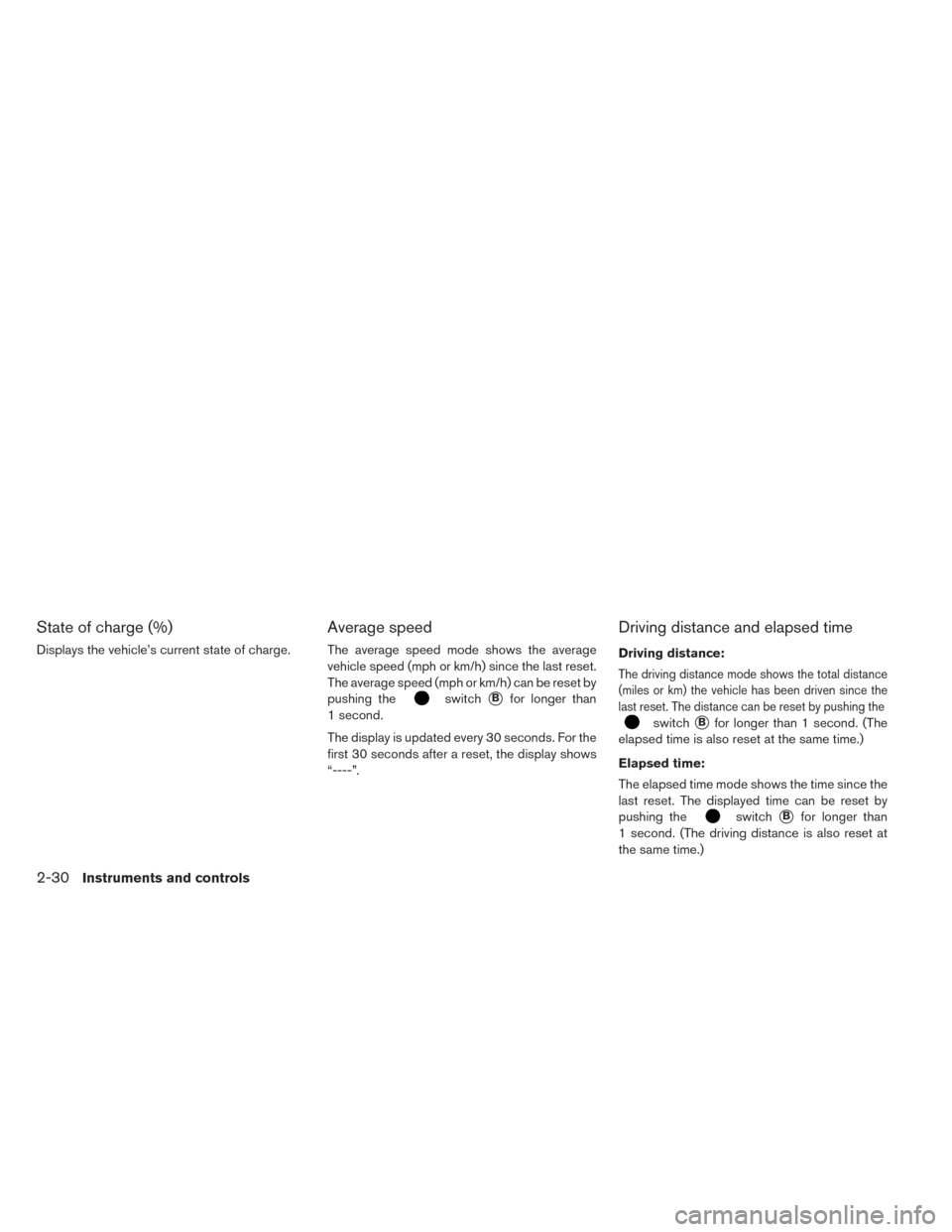

State of charge (%)
Displays the vehicle’s current state of charge.
Average speed
The average speed mode shows the average
vehicle speed (mph or km/h) since the last reset.
The average speed (mph or km/h) can be reset by
pushing the
switchBfor longer than
1 second.
The display is updated every 30 seconds. For the
first 30 seconds after a reset, the display shows
“----”.
Driving distance and elapsed time
Driving distance:
The driving distance mode shows the total distance
(miles or km) the vehicle has been driven since the
last reset. The distance can be reset by pushing the
switchBfor longer than 1 second. (The
elapsed time is also reset at the same time.)
Elapsed time:
The elapsed time mode shows the time since the
last reset. The displayed time can be reset by
pushing the
switchBfor longer than
1 second. (The driving distance is also reset at
the same time.)
2-30Instruments and controls

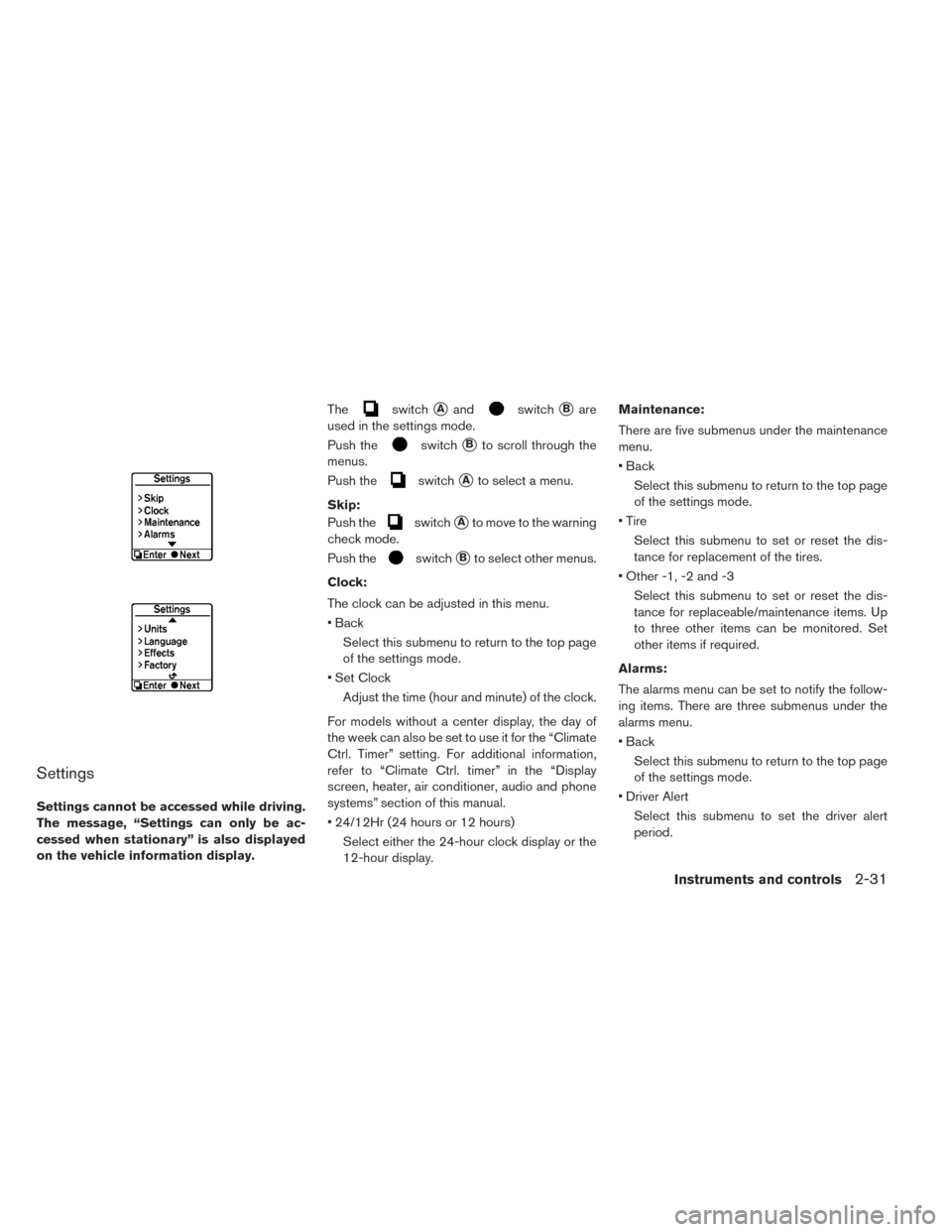

Settings
Settings cannot be accessed while driving.
The message, “Settings can only be ac-
cessed when stationary” is also displayed
on the vehicle information display.The
switchAandswitchBare
used in the settings mode.
Push the
switchBto scroll through the
menus.
Push the
switchAto select a menu.
Skip:
Push the
switchAto move to the warning
check mode.
Push the
switchBto select other menus.
Clock:
The clock can be adjusted in this menu.
• Back Select this submenu to return to the top page
of the settings mode.
• Set Clock Adjust the time (hour and minute) of the clock.
For models without a center display, the day of
the week can also be set to use it for the “Climate
Ctrl. Timer” setting. For additional information,
refer to “Climate Ctrl. timer” in the “Display
screen, heater, air conditioner, audio and phone
systems” section of this manual.
• 24/12Hr (24 hours or 12 hours) Select either the 24-hour clock display or the
12-hour display. Maintenance:
There are five submenus under the maintenance
menu.
• Back
Select this submenu to return to the top page
of the settings mode.
• Tire Select this submenu to set or reset the dis-
tance for replacement of the tires.
• Other -1, -2 and -3 Select this submenu to set or reset the dis-
tance for replaceable/maintenance items. Up
to three other items can be monitored. Set
other items if required.
Alarms:
The alarms menu can be set to notify the follow-
ing items. There are three submenus under the
alarms menu.
• Back Select this submenu to return to the top page
of the settings mode.
• Driver Alert Select this submenu to set the driver alert
period.
Instruments and controls2-31

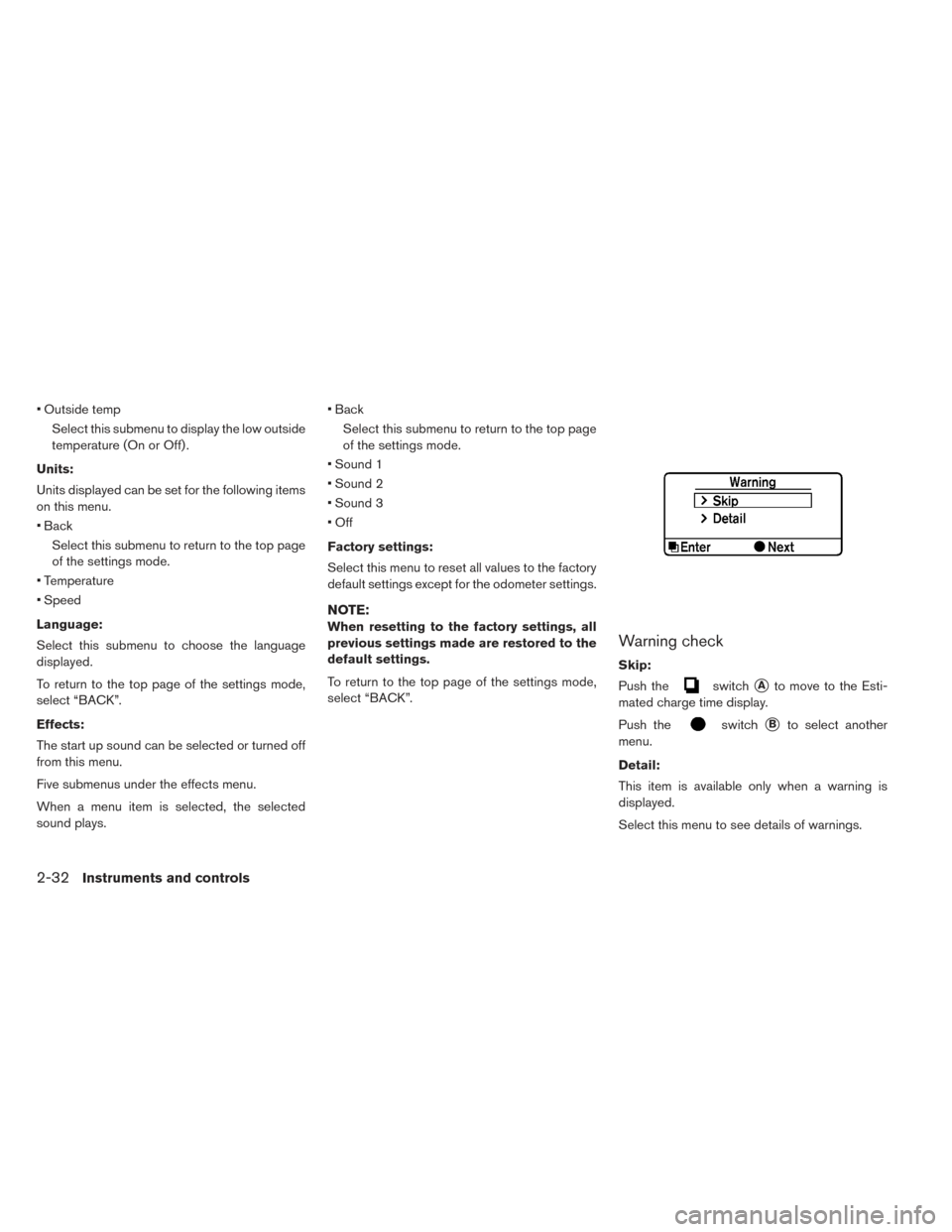

• Outside tempSelect this submenu to display the low outside
temperature (On or Off) .
Units:
Units displayed can be set for the following items
on this menu.
• Back Select this submenu to return to the top page
of the settings mode.
• Temperature
• Speed
Language:
Select this submenu to choose the language
displayed.
To return to the top page of the settings mode,
select “BACK”.
Effects:
The start up sound can be selected or turned off
from this menu.
Five submenus under the effects menu.
When a menu item is selected, the selected
sound plays. • Back
Select this submenu to return to the top page
of the settings mode.
• Sound 1
• Sound 2
• Sound 3
• Off
Factory settings:
Select this menu to reset all values to the factory
default settings except for the odometer settings.
NOTE:
When resetting to the factory settings, all
previous settings made are restored to the
default settings.
To return to the top page of the settings mode,
select “BACK”.Warning check
Skip:
Push the
switchAto move to the Esti-
mated charge time display.
Push the
switchBto select another
menu.
Detail:
This item is available only when a warning is
displayed.
Select this menu to see details of warnings.
2-32Instruments and controls

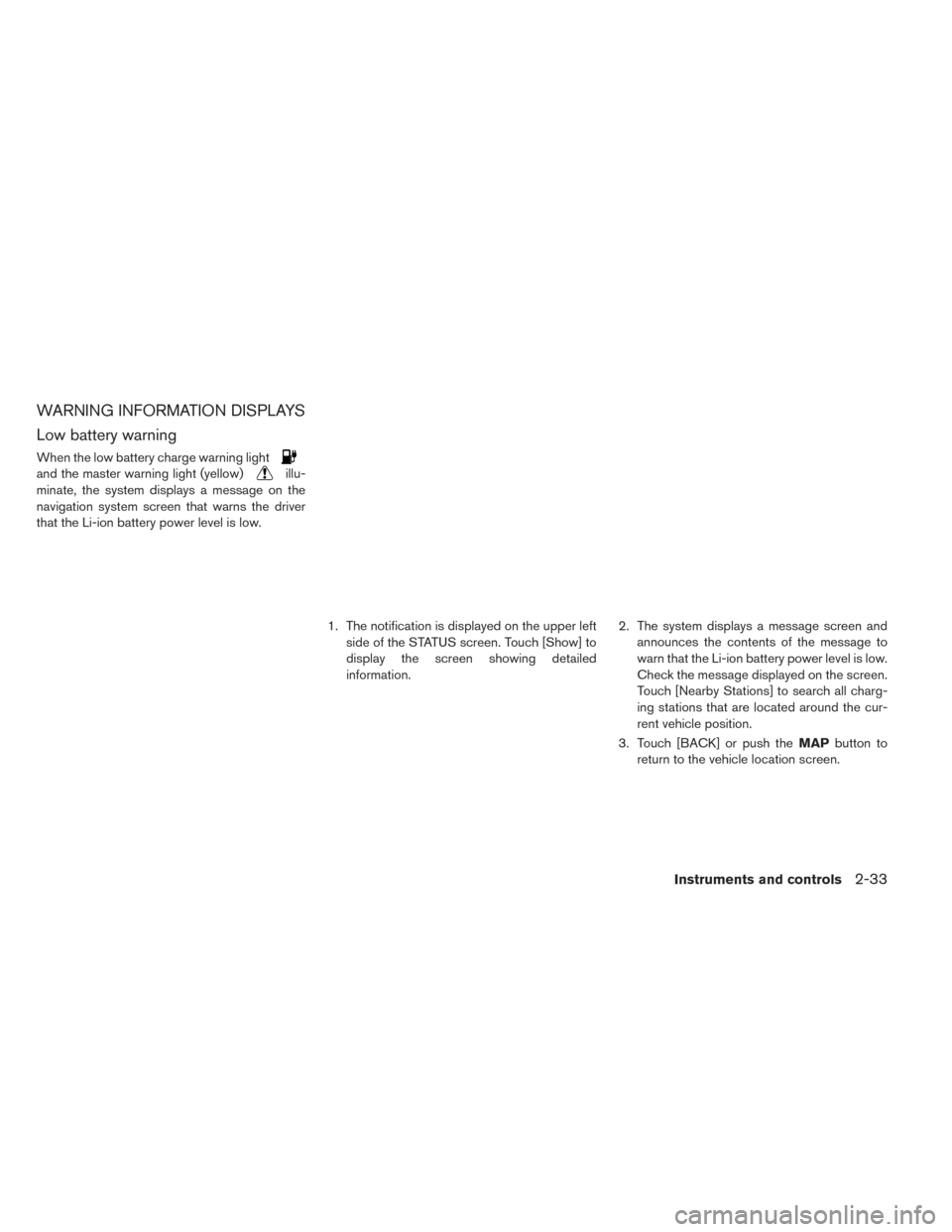

WARNING INFORMATION DISPLAYS
Low battery warning
When the low battery charge warning light
and the master warning light (yellow)illu-
minate, the system displays a message on the
navigation system screen that warns the driver
that the Li-ion battery power level is low.
1. The notification is displayed on the upper leftside of the STATUS screen. Touch [Show] to
display the screen showing detailed
information. 2. The system displays a message screen and
announces the contents of the message to
warn that the Li-ion battery power level is low.
Check the message displayed on the screen.
Touch [Nearby Stations] to search all charg-
ing stations that are located around the cur-
rent vehicle position.
3. Touch [BACK] or push the MAPbutton to
return to the vehicle location screen.
Instruments and controls2-33

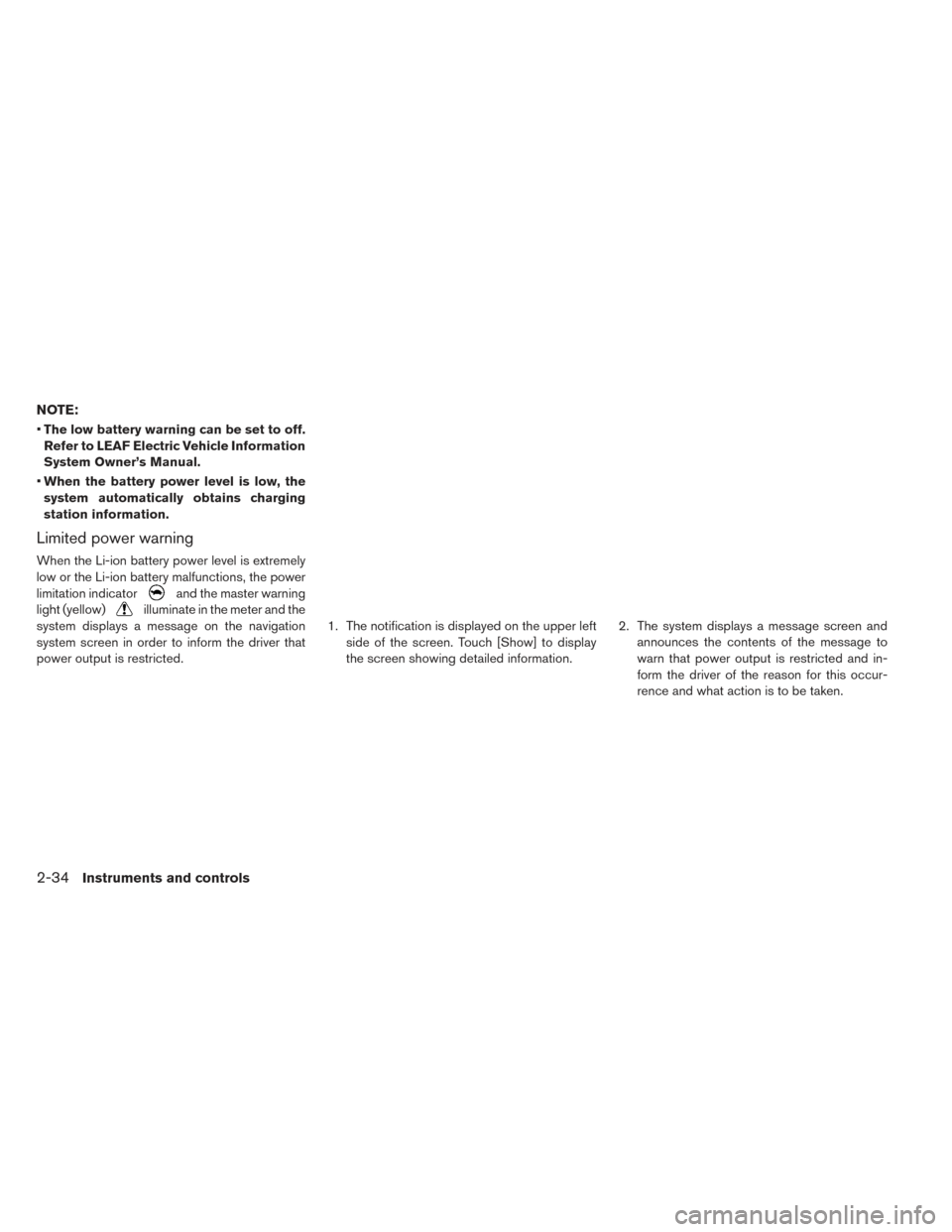

NOTE:
•The low battery warning can be set to off.
Refer to LEAF Electric Vehicle Information
System Owner’s Manual.
• When the battery power level is low, the
system automatically obtains charging
station information.
Limited power warning
When the Li-ion battery power level is extremely
low or the Li-ion battery malfunctions, the power
limitation indicator
and the master warning
light (yellow)
illuminate in the meter and the
system displays a message on the navigation
system screen in order to inform the driver that
power output is restricted. 1. The notification is displayed on the upper left
side of the screen. Touch [Show] to display
the screen showing detailed information. 2. The system displays a message screen and
announces the contents of the message to
warn that power output is restricted and in-
form the driver of the reason for this occur-
rence and what action is to be taken.
2-34Instruments and controls

INDICATORS FOR MAINTENANCE
1. Tire replacement indicator
This indicator appears when the customer set
distance comes for replacing tires. You can set or
reset the distance for replacing tires. For addi-tional information, refer to “Trip computer” in this
section.
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. For additional
information, refer to “Changing wheels
and tires” in the “Maintenance and do-it-
yourself” section of this manual. Many
factors including tire inflation, alignment,
driving habits and road conditions affect
tire wear and when tires should be re-
placed. Setting the tire replacement indi-
cator for a certain driving distance does
not mean your tires will last that long.
Use the tire replacement indicator as a
guide only and always perform regular
tire checks. Failure to perform regular
tire checks, including tire pressure
checks could result in tire failure. Serious
vehicle damage could occur and may lead
to a collision, which could result in seri-
ous personal injury or death.
2. 3. 4. “Other” indicators
These indicators appear when the customer set
distance comes for checking or replacing main-
tenance items other than the tires. Other mainte-
nance items can include such things as the tire
rotation. You can set or reset the distance for
checking or replacing the items. For additional
information, refer to “Trip computer” in this sec-
tion. For scheduled maintenance items and inter-
vals, refer to the NISSAN Service and Mainte-
nance Guide.
Instruments and controls2-35

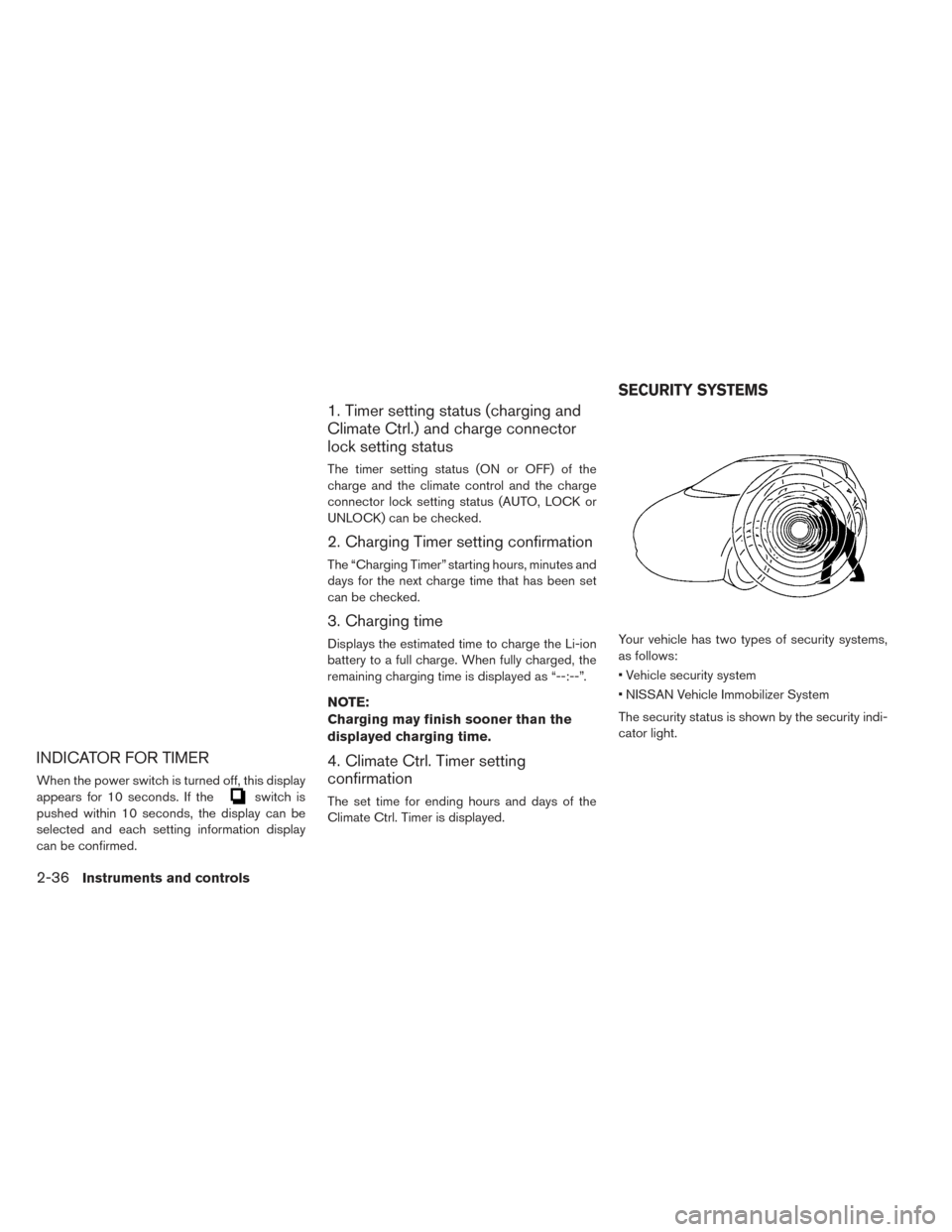

INDICATOR FOR TIMER
When the power switch is turned off, this display
appears for 10 seconds. If the
switch is
pushed within 10 seconds, the display can be
selected and each setting information display
can be confirmed.
1. Timer setting status (charging and
Climate Ctrl.) and charge connector
lock setting status
The timer setting status (ON or OFF) of the
charge and the climate control and the charge
connector lock setting status (AUTO, LOCK or
UNLOCK) can be checked.
2. Charging Timer setting confirmation
The “Charging Timer” starting hours, minutes and
days for the next charge time that has been set
can be checked.
3. Charging time
Displays the estimated time to charge the Li-ion
battery to a full charge. When fully charged, the
remaining charging time is displayed as “--:--”.
NOTE:
Charging may finish sooner than the
displayed charging time.
4. Climate Ctrl. Timer setting
confirmation
The set time for ending hours and days of the
Climate Ctrl. Timer is displayed. Your vehicle has two types of security systems,
as follows:
• Vehicle security system
• NISSAN Vehicle Immobilizer System
The security status is shown by the security indi-
cator light.
SECURITY SYSTEMS
2-36Instruments and controls

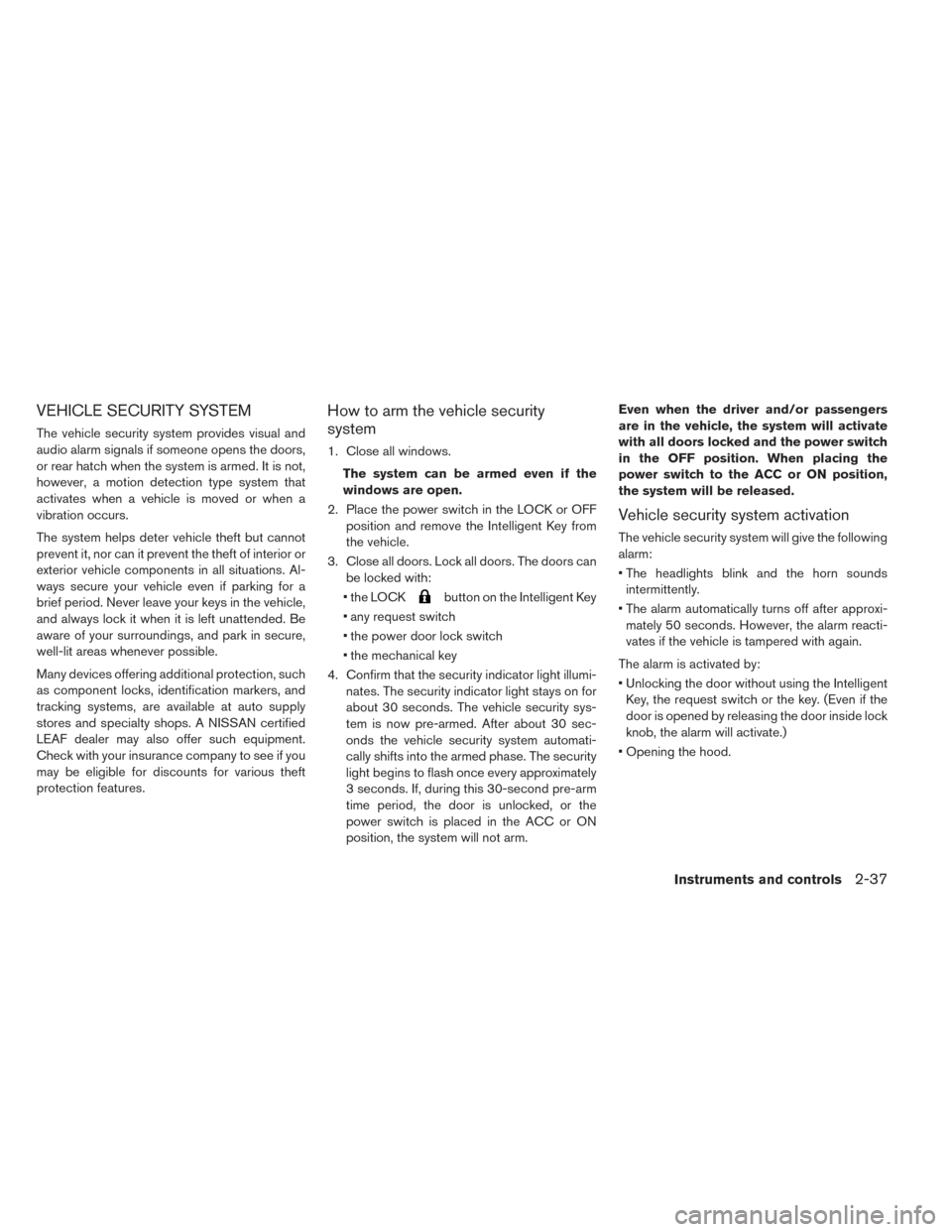

VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the doors,
or rear hatch when the system is armed. It is not,
however, a motion detection type system that
activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior or
exterior vehicle components in all situations. Al-
ways secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when it is left unattended. Be
aware of your surroundings, and park in secure,
well-lit areas whenever possible.
Many devices offering additional protection, such
as component locks, identification markers, and
tracking systems, are available at auto supply
stores and specialty shops. A NISSAN certified
LEAF dealer may also offer such equipment.
Check with your insurance company to see if you
may be eligible for discounts for various theft
protection features.
How to arm the vehicle security
system
1. Close all windows.The system can be armed even if the
windows are open.
2. Place the power switch in the LOCK or OFF position and remove the Intelligent Key from
the vehicle.
3. Close all doors. Lock all doors. The doors can be locked with:
• the LOCK
button on the Intelligent Key
• any request switch
• the power door lock switch
• the mechanical key
4. Confirm that the security indicator light illumi- nates. The security indicator light stays on for
about 30 seconds. The vehicle security sys-
tem is now pre-armed. After about 30 sec-
onds the vehicle security system automati-
cally shifts into the armed phase. The security
light begins to flash once every approximately
3 seconds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
power switch is placed in the ACC or ON
position, the system will not arm. Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked and the power switch
in the OFF position. When placing the
power switch to the ACC or ON position,
the system will be released.
Vehicle security system activation
The vehicle security system will give the following
alarm:
• The headlights blink and the horn sounds
intermittently.
• The alarm automatically turns off after approxi- mately 50 seconds. However, the alarm reacti-
vates if the vehicle is tampered with again.
The alarm is activated by:
• Unlocking the door without using the Intelligent Key, the request switch or the key. (Even if the
door is opened by releasing the door inside lock
knob, the alarm will activate.)
• Opening the hood.
Instruments and controls2-37
