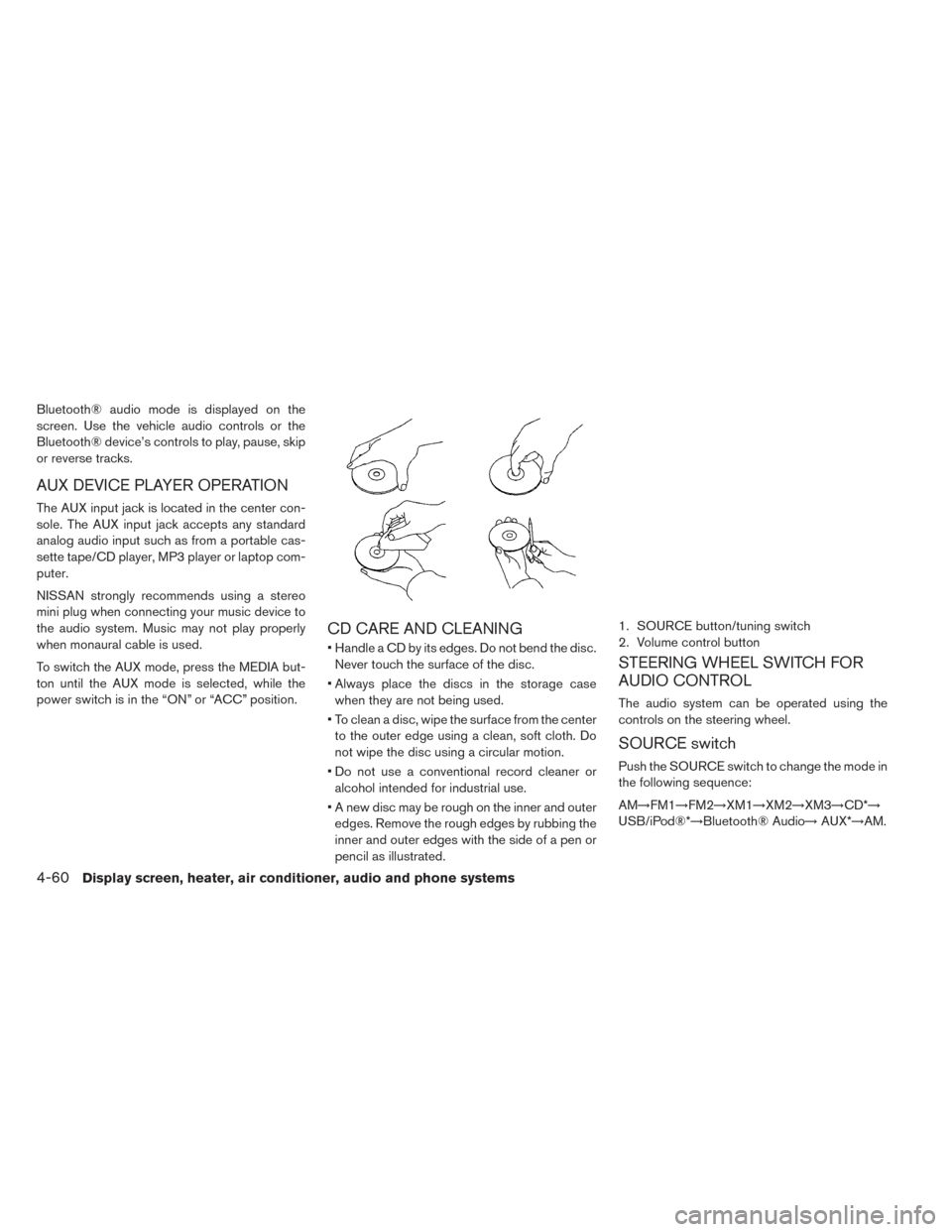

Page 289 of 424

Bluetooth® audio mode is displayed on the
screen. Use the vehicle audio controls or the
Bluetooth® device’s controls to play, pause, skip
or reverse tracks.
AUX DEVICE PLAYER OPERATION
The AUX input jack is located in the center con-
sole. The AUX input jack accepts any standard
analog audio input such as from a portable cas-
sette tape/CD player, MP3 player or laptop com-
puter.
NISSAN strongly recommends using a stereo
mini plug when connecting your music device to
the audio system. Music may not play properly
when monaural cable is used.
To switch the AUX mode, press the MEDIA but-
ton until the AUX mode is selected, while the
power switch is in the “ON” or “ACC” position.
CD CARE AND CLEANING
• Handle a CD by its edges. Do not bend the disc.Never touch the surface of the disc.
• Always place the discs in the storage case when they are not being used.
• To clean a disc, wipe the surface from the center to the outer edge using a clean, soft cloth. Do
not wipe the disc using a circular motion.
• Do not use a conventional record cleaner or alcohol intended for industrial use.
• A new disc may be rough on the inner and outer edges. Remove the rough edges by rubbing the
inner and outer edges with the side of a pen or
pencil as illustrated.
STEERING WHEEL SWITCH FOR
AUDIO CONTROL
The audio system can be operated using the
controls on the steering wheel.
SOURCE switch
Push the SOURCE switch to change the mode in
the following sequence:
AM→FM1→FM2→XM1→XM2→XM3→CD*→
USB/iPod®*→Bluetooth® Audio→ AUX*→AM.
1. SOURCE button/tuning switch
2. Volume control button
4-60Display screen, heater, air conditioner, audio and phone systems
Page 290 of 424

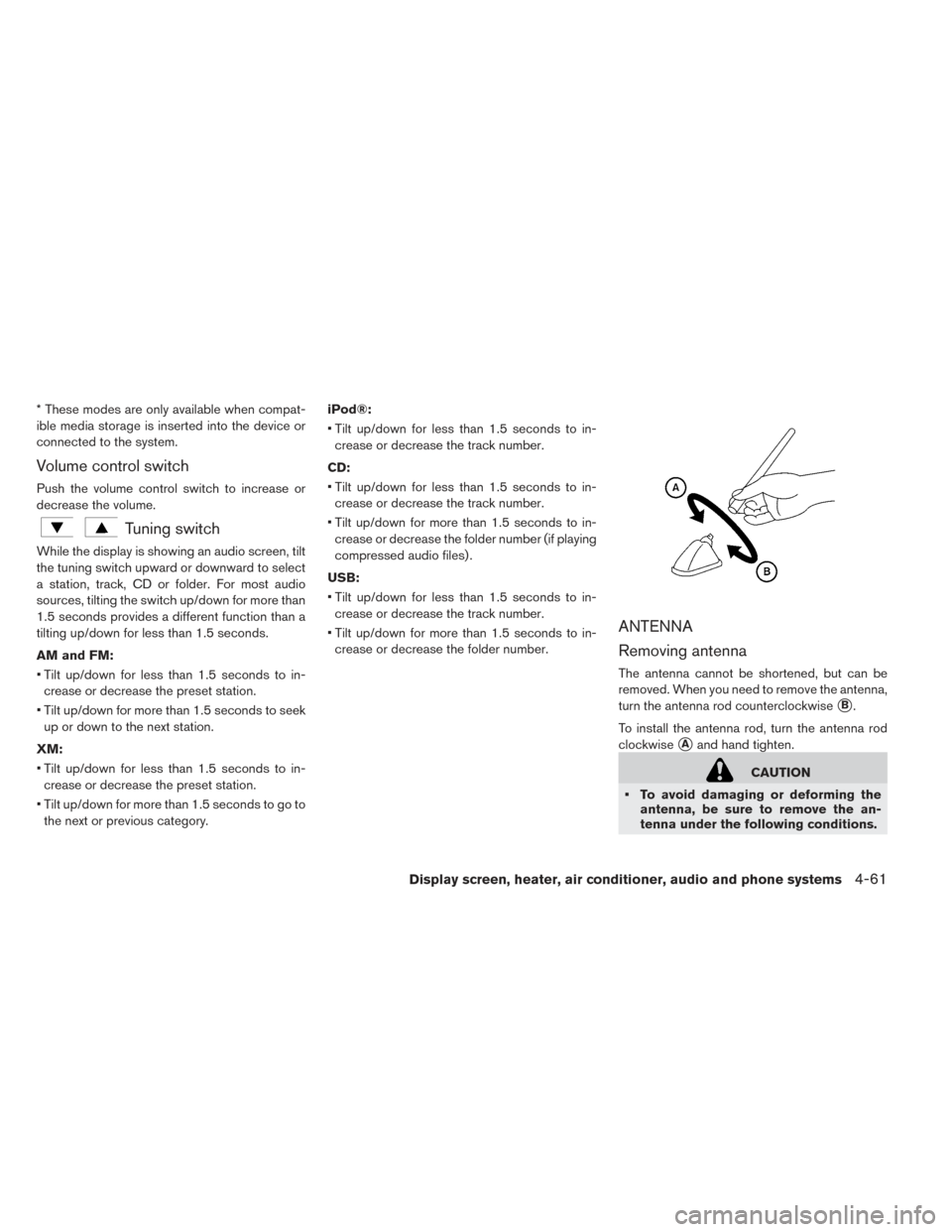

* These modes are only available when compat-
ible media storage is inserted into the device or
connected to the system.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Tuning switch
While the display is showing an audio screen, tilt
the tuning switch upward or downward to select
a station, track, CD or folder. For most audio
sources, tilting the switch up/down for more than
1.5 seconds provides a different function than a
tilting up/down for less than 1.5 seconds.
AM and FM:
• Tilt up/down for less than 1.5 seconds to in-crease or decrease the preset station.
• Tilt up/down for more than 1.5 seconds to seek up or down to the next station.
XM:
• Tilt up/down for less than 1.5 seconds to in- crease or decrease the preset station.
• Tilt up/down for more than 1.5 seconds to go to the next or previous category. iPod®:
• Tilt up/down for less than 1.5 seconds to in-
crease or decrease the track number.
CD:
• Tilt up/down for less than 1.5 seconds to in- crease or decrease the track number.
• Tilt up/down for more than 1.5 seconds to in- crease or decrease the folder number (if playing
compressed audio files) .
USB:
• Tilt up/down for less than 1.5 seconds to in- crease or decrease the track number.
• Tilt up/down for more than 1.5 seconds to in- crease or decrease the folder number.
ANTENNA
Removing antenna
The antenna cannot be shortened, but can be
removed. When you need to remove the antenna,
turn the antenna rod counterclockwise
B.
To install the antenna rod, turn the antenna rod
clockwise
Aand hand tighten.
CAUTION
• To avoid damaging or deforming the antenna, be sure to remove the an-
tenna under the following conditions.
Display screen, heater, air conditioner, audio and phone systems4-61
Page 291 of 424

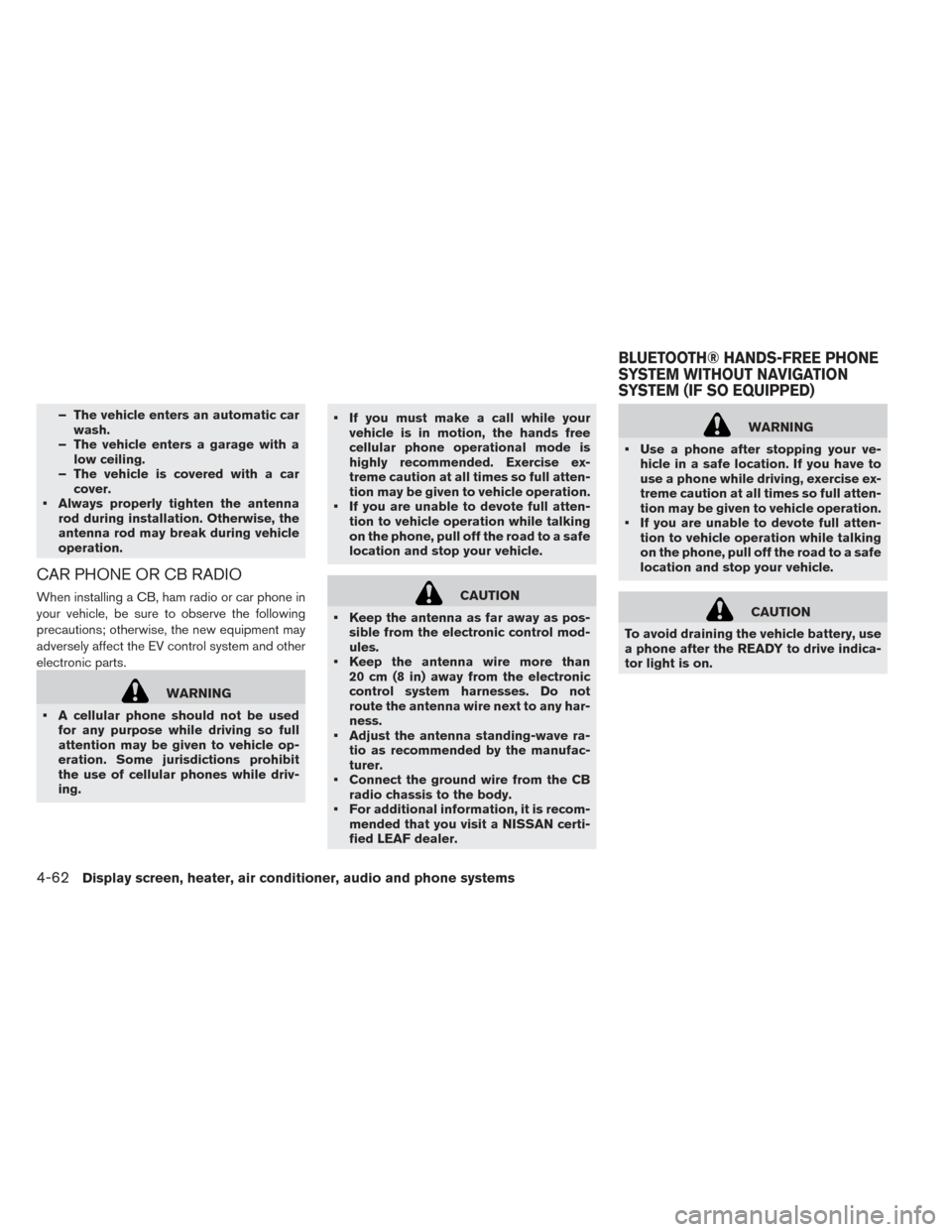

– The vehicle enters an automatic carwash.
– The vehicle enters a garage with a low ceiling.
– The vehicle is covered with a car cover.
• Always properly tighten the antenna rod during installation. Otherwise, the
antenna rod may break during vehicle
operation.
CAR PHONE OR CB RADIO
When installing a CB, ham radio or car phone in
your vehicle, be sure to observe the following
precautions; otherwise, the new equipment may
adversely affect the EV control system and other
electronic parts.
WARNING
• A cellular phone should not be used for any purpose while driving so full
attention may be given to vehicle op-
eration. Some jurisdictions prohibit
the use of cellular phones while driv-
ing. • If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode is
highly recommended. Exercise ex-
treme caution at all times so full atten-
tion may be given to vehicle operation.
• If you are unable to devote full atten- tion to vehicle operation while talking
on the phone, pull off the road to a safe
location and stop your vehicle.
CAUTION
• Keep the antenna as far away as pos- sible from the electronic control mod-
ules.
• Keep the antenna wire more than 20 cm (8 in) away from the electronic
control system harnesses. Do not
route the antenna wire next to any har-
ness.
• Adjust the antenna standing-wave ra- tio as recommended by the manufac-
turer.
• Connect the ground wire from the CB radio chassis to the body.
• For additional information, it is recom- mended that you visit a NISSAN certi-
fied LEAF dealer.
WARNING
• Use a phone after stopping your ve- hicle in a safe location. If you have to
use a phone while driving, exercise ex-
treme caution at all times so full atten-
tion may be given to vehicle operation.
• If you are unable to devote full atten- tion to vehicle operation while talking
on the phone, pull off the road to a safe
location and stop your vehicle.
CAUTION
To avoid draining the vehicle battery, use
a phone after the READY to drive indica-
tor light is on.
BLUETOOTH® HANDS-FREE PHONE
SYSTEM WITHOUT NAVIGATION
SYSTEM (IF SO EQUIPPED)
4-62Display screen, heater, air conditioner, audio and phone systems
Page 292 of 424

Your NISSAN is equipped with the Bluetooth®
Hands-Free Phone System. If you have a com-
patible Bluetooth® enabled cellular phone, you
can set up the wireless connection between your
cellular phone and the in-vehicle phone module.
With Bluetooth® wireless technology, you canmake or receive a hands-free telephone call with
your cellular phone in the vehicle.
Once your cellular phone is connected to the in-
vehicle phone module, no other phone connecting
procedure is required. Your phone is automatically
connected with the in-vehicle phone module when the power switch is placed in the ON position with
the previously connected cellular phone turned on
and carried in the vehicle.
NOTE:
Some devices require the user to accept
specific connections for certain features
(such as phonebook download) . If your
phone does not connect automatically to
the system, consult the phone’s Owner’s
Manual for details on device operation.
You can connect up to five different Bluetooth®
cellular phones to the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.
Before using the Bluetooth® Hands-Free Phone
System, refer to the following notes:
• Set up the wireless connection between a com-
patible cellular phone and the in-vehicle phone
module before using the hands-free phone
system.
• Some Bluetooth® enabled cellular phones may not be recognized or work properly. Please
visit www.nissanusa.com/bluetooth or
www.nissan.ca/bluetooth for a recommended
phone list and connecting instructions.
Display screen, heater, air conditioner, audio and phone systems4-63
Page 293 of 424

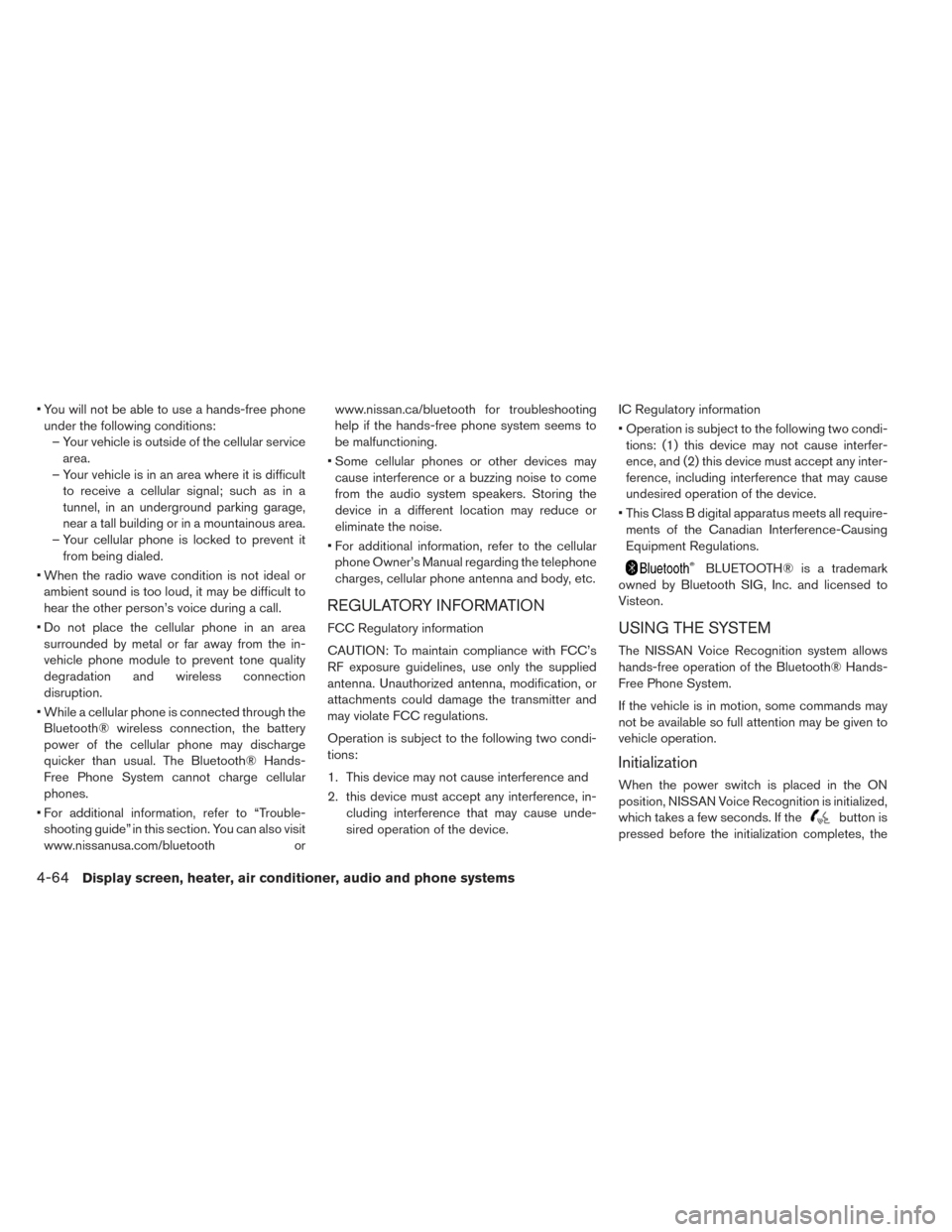

• You will not be able to use a hands-free phoneunder the following conditions: – Your vehicle is outside of the cellular service area.
– Your vehicle is in an area where it is difficult to receive a cellular signal; such as in a
tunnel, in an underground parking garage,
near a tall building or in a mountainous area.
– Your cellular phone is locked to prevent it from being dialed.
• When the radio wave condition is not ideal or ambient sound is too loud, it may be difficult to
hear the other person’s voice during a call.
• Do not place the cellular phone in an area surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection
disruption.
• While a cellular phone is connected through the Bluetooth® wireless connection, the battery
power of the cellular phone may discharge
quicker than usual. The Bluetooth® Hands-
Free Phone System cannot charge cellular
phones.
• For additional information, refer to “Trouble- shooting guide” in this section. You can also visit
www.nissanusa.com/bluetooth orwww.nissan.ca/bluetooth for troubleshooting
help if the hands-free phone system seems to
be malfunctioning.
• Some cellular phones or other devices may cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
• For additional information, refer to the cellular phone Owner’s Manual regarding the telephone
charges, cellular phone antenna and body, etc.
REGULATORY INFORMATION
FCC Regulatory information
CAUTION: To maintain compliance with FCC’s
RF exposure guidelines, use only the supplied
antenna. Unauthorized antenna, modification, or
attachments could damage the transmitter and
may violate FCC regulations.
Operation is subject to the following two condi-
tions:
1. This device may not cause interference and
2. this device must accept any interference, in- cluding interference that may cause unde-
sired operation of the device. IC Regulatory information
• Operation is subject to the following two condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
• This Class B digital apparatus meets all require- ments of the Canadian Interference-Causing
Equipment Regulations.
BLUETOOTH® is a trademark
owned by Bluetooth SIG, Inc. and licensed to
Visteon.
USING THE SYSTEM
The NISSAN Voice Recognition system allows
hands-free operation of the Bluetooth® Hands-
Free Phone System.
If the vehicle is in motion, some commands may
not be available so full attention may be given to
vehicle operation.
Initialization
When the power switch is placed in the ON
position, NISSAN Voice Recognition is initialized,
which takes a few seconds. If the
button is
pressed before the initialization completes, the
4-64Display screen, heater, air conditioner, audio and phone systems
Page 294 of 424

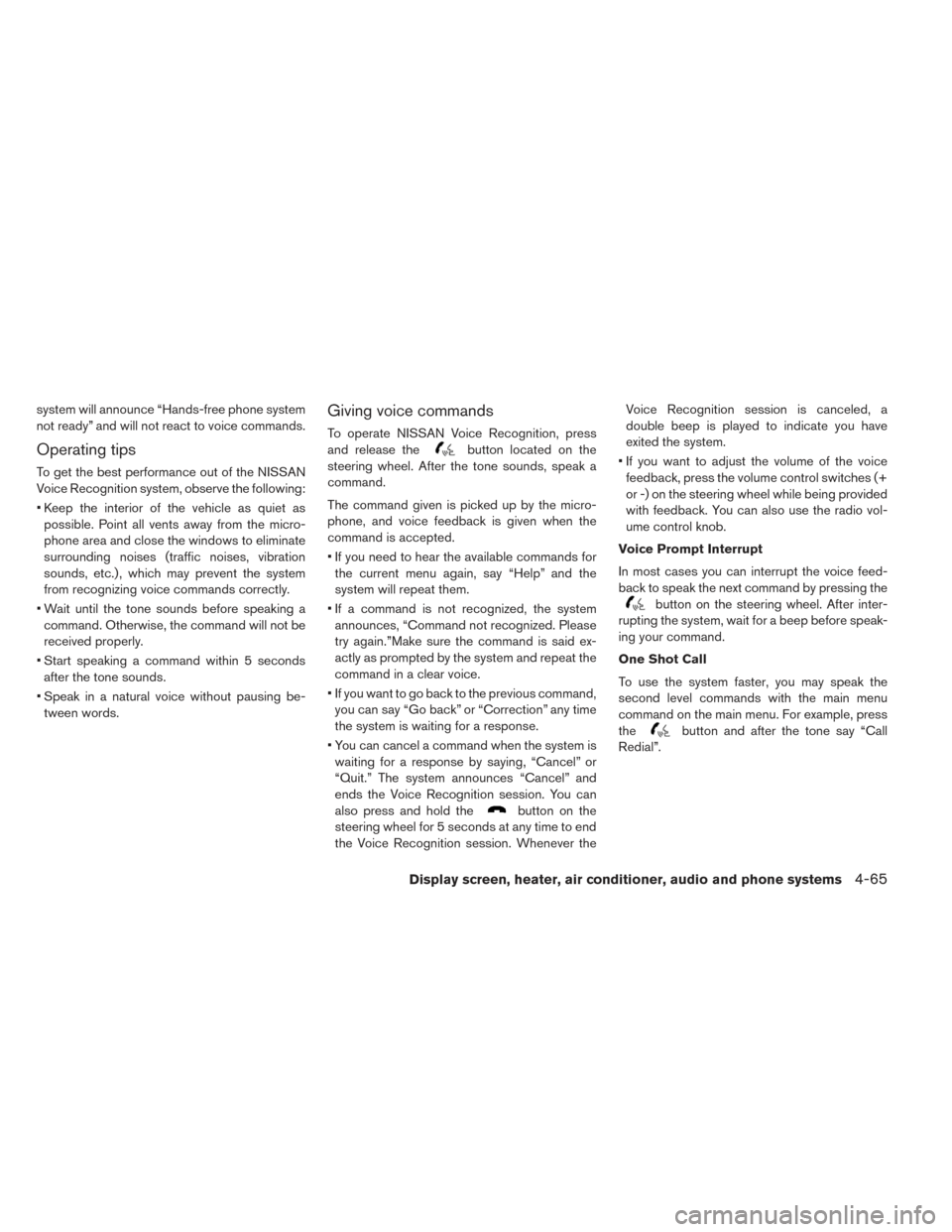

system will announce “Hands-free phone system
not ready” and will not react to voice commands.
Operating tips
To get the best performance out of the NISSAN
Voice Recognition system, observe the following:
• Keep the interior of the vehicle as quiet aspossible. Point all vents away from the micro-
phone area and close the windows to eliminate
surrounding noises (traffic noises, vibration
sounds, etc.) , which may prevent the system
from recognizing voice commands correctly.
• Wait until the tone sounds before speaking a command. Otherwise, the command will not be
received properly.
• Start speaking a command within 5 seconds after the tone sounds.
• Speak in a natural voice without pausing be- tween words.
Giving voice commands
To operate NISSAN Voice Recognition, press
and release the
button located on the
steering wheel. After the tone sounds, speak a
command.
The command given is picked up by the micro-
phone, and voice feedback is given when the
command is accepted.
• If you need to hear the available commands for the current menu again, say “Help” and the
system will repeat them.
• If a command is not recognized, the system announces, “Command not recognized. Please
try again.”Make sure the command is said ex-
actly as prompted by the system and repeat the
command in a clear voice.
• If you want to go back to the previous command, you can say “Go back” or “Correction” any time
the system is waiting for a response.
• You can cancel a command when the system is waiting for a response by saying, “Cancel” or
“Quit.” The system announces “Cancel” and
ends the Voice Recognition session. You can
also press and hold the
button on the
steering wheel for 5 seconds at any time to end
the Voice Recognition session. Whenever the Voice Recognition session is canceled, a
double beep is played to indicate you have
exited the system.
• If you want to adjust the volume of the voice feedback, press the volume control switches (+
or -) on the steering wheel while being provided
with feedback. You can also use the radio vol-
ume control knob.
Voice Prompt Interrupt
In most cases you can interrupt the voice feed-
back to speak the next command by pressing the
button on the steering wheel. After inter-
rupting the system, wait for a beep before speak-
ing your command.
One Shot Call
To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example, press
the
button and after the tone say “Call
Redial”.
Display screen, heater, air conditioner, audio and phone systems4-65
Page 295 of 424
CONTROL BUTTONS
The control buttons for the Bluetooth® Hands-
Free Phone System are located on the steering
wheel.
Phone/send
Press thebutton to initiate a Voice Recog-
nition session or answer an incoming call.
You can also use the
button to interrupt the
system feedback and give a command at once.
For additional information, refer to “Voice com-
mands” and “During a call” in this section.
Phone/end
While the Voice Recognition system is active,
press and hold the
button for 5 seconds to
quit the Voice Recognition system at any time.
Tuning switch
While using the Voice Recognition system, tilt the
tuning switch up or down to manually control the
phone system.
1.Phone/send button
2.
Phone/end button
3. Tuning switch
4-66Display screen, heater, air conditioner, audio and phone systems
Page 296 of 424
CONNECTING PROCEDURE
NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If the
vehicle starts moving during the procedure,
the procedure will be canceled.
1. Press the ENTER/SETTING button.
2. Use the TUNE/SCROLL knob to select“Bluetooth” and then press the ENTER/
SETTING button.
Display screen, heater, air conditioner, audio and phone systems4-67
