Page 185 of 424

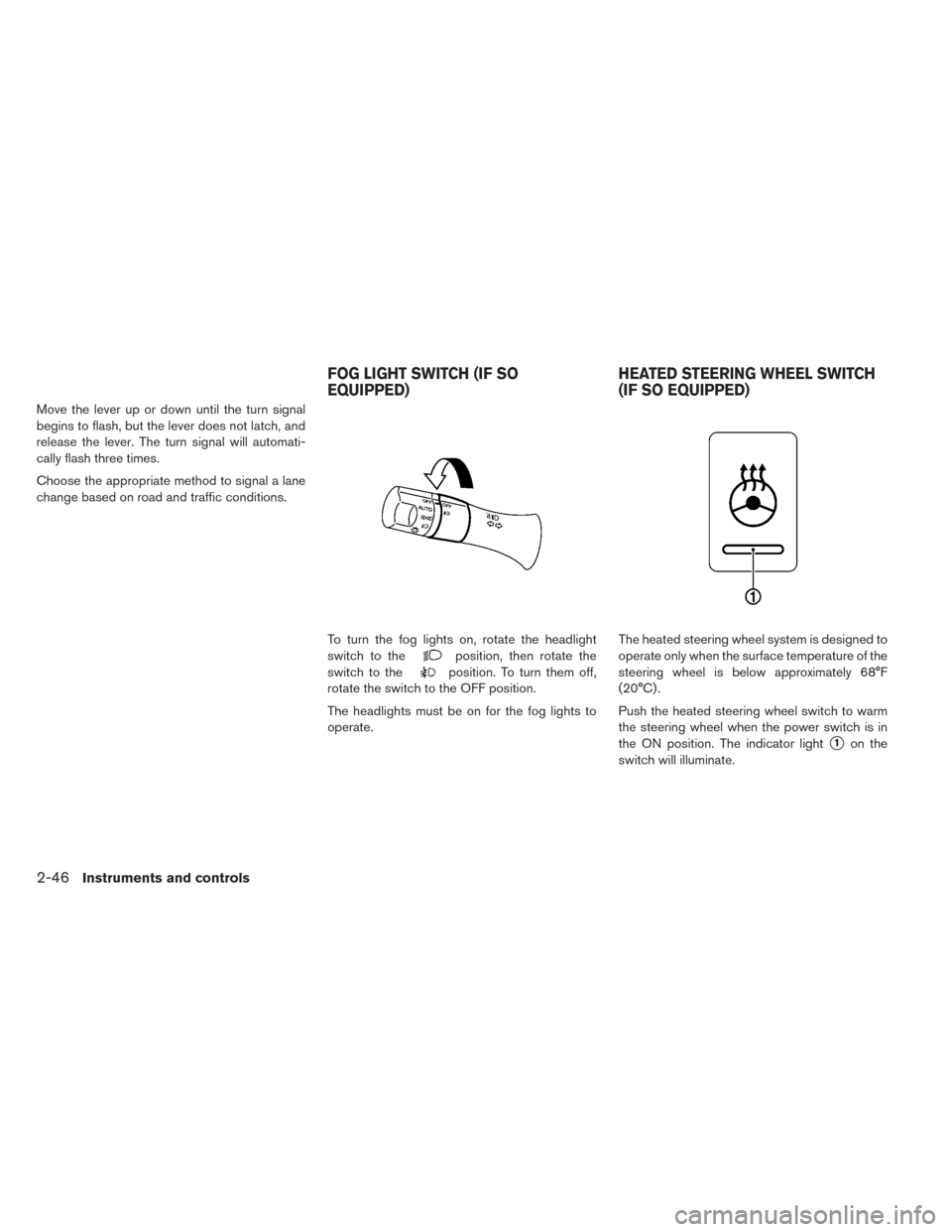

Move the lever up or down until the turn signal
begins to flash, but the lever does not latch, and
release the lever. The turn signal will automati-
cally flash three times.
Choose the appropriate method to signal a lane
change based on road and traffic conditions.To turn the fog lights on, rotate the headlight
switch to the
position, then rotate the
switch to the
position. To turn them off,
rotate the switch to the OFF position.
The headlights must be on for the fog lights to
operate. The heated steering wheel system is designed to
operate only when the surface temperature of the
steering wheel is below approximately 68°F
(20°C) .
Push the heated steering wheel switch to warm
the steering wheel when the power switch is in
the ON position. The indicator light
1on the
switch will illuminate.
FOG LIGHT SWITCH (IF SO
EQUIPPED) HEATED STEERING WHEEL SWITCH
(IF SO EQUIPPED)
2-46Instruments and controls
Page 186 of 424

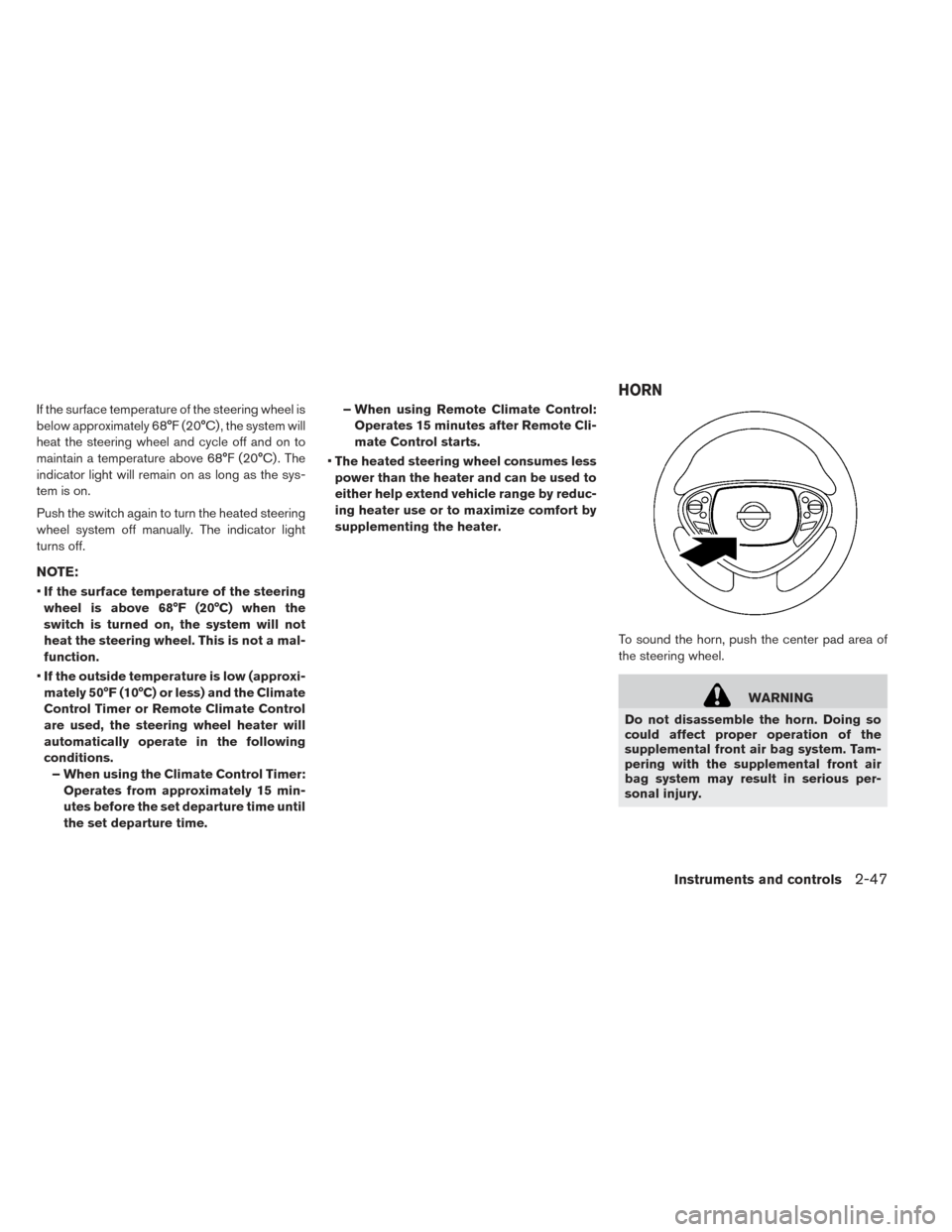

If the surface temperature of the steering wheel is
below approximately 68°F (20°C) , the system will
heat the steering wheel and cycle off and on to
maintain a temperature above 68°F (20°C) . The
indicator light will remain on as long as the sys-
tem is on.
Push the switch again to turn the heated steering
wheel system off manually. The indicator light
turns off.
NOTE:
•If the surface temperature of the steering
wheel is above 68°F (20°C) when the
switch is turned on, the system will not
heat the steering wheel. This is not a mal-
function.
• If the outside temperature is low (approxi-
mately 50°F (10°C) or less) and the Climate
Control Timer or Remote Climate Control
are used, the steering wheel heater will
automatically operate in the following
conditions. – When using the Climate Control Timer: Operates from approximately 15 min-
utes before the set departure time until
the set departure time. – When using Remote Climate Control:
Operates 15 minutes after Remote Cli-
mate Control starts.
• The heated steering wheel consumes less
power than the heater and can be used to
either help extend vehicle range by reduc-
ing heater use or to maximize comfort by
supplementing the heater.
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air
bag system may result in serious per-
sonal injury.
HORN
Instruments and controls2-47
Page 187 of 424

To activate the ECO mode, push the ECO switch
1on the right side of the steering wheel. The
“ECO indicator” on the instrument cluster will
illuminate.
To deactivate the ECO mode, push the ECO
switch
1again. The “ECO indicator” on the
instrument cluster will go out.
For additional information, refer to “Electric shift
control system” in the “Starting and driving” sec-
tion of this manual The front seats and the rear outboard seats (if so
equipped) can be warmed by built-in heaters.
The switches, located on the center console and
at the side of the front passenger seatback, can
be operated independently of each other.
1. Place the power switch in the ON position.
2. Push the LO or HI position of the switch, as
desired, depending on the temperature. The
indicator light in the switch will illuminate.
3. To turn off the heater, return the switch to the level position. Make sure the indicator light
goes off.
Rear (if so equipped)
ECO SWITCH HEATED SEAT SWITCH
2-48Instruments and controls
Page 188 of 424

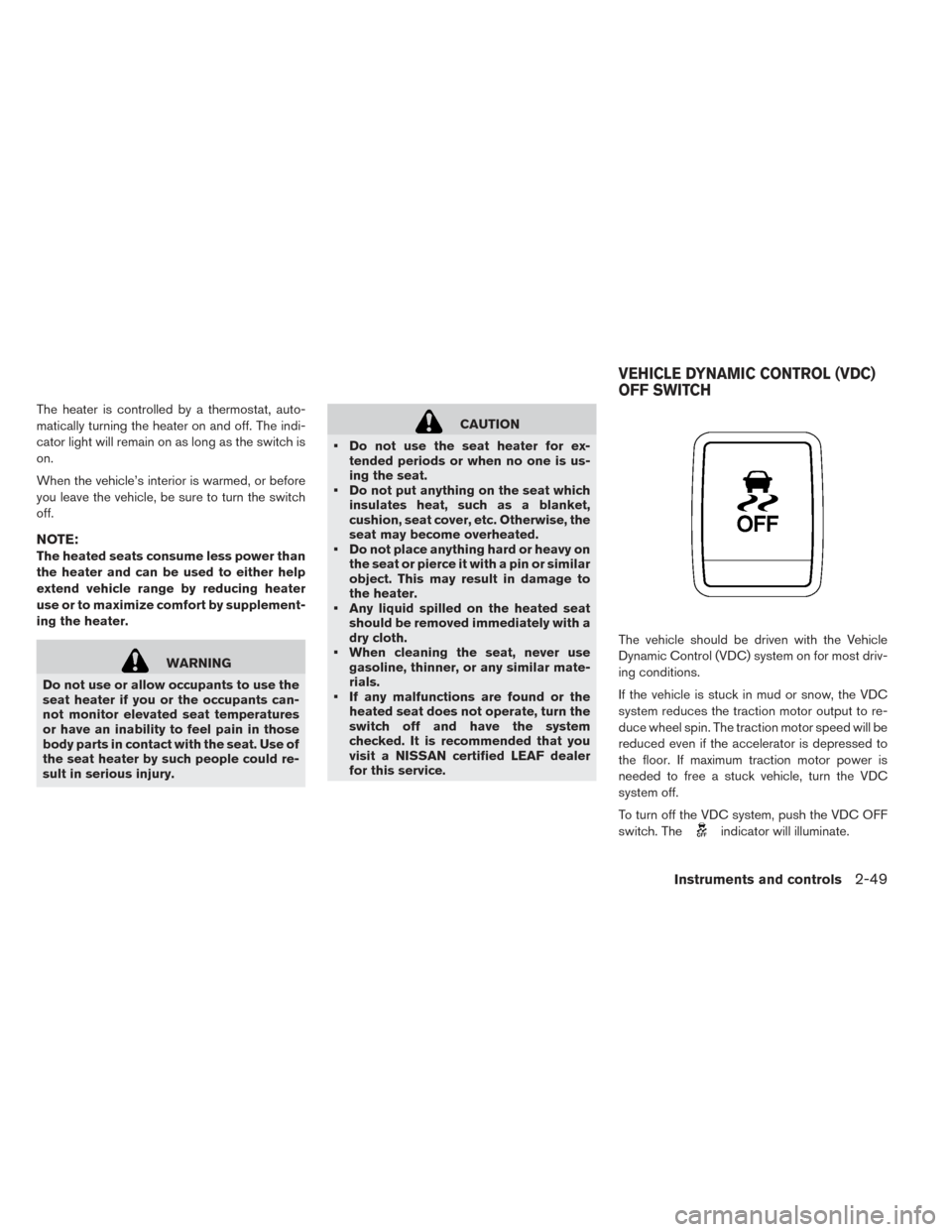

The heater is controlled by a thermostat, auto-
matically turning the heater on and off. The indi-
cator light will remain on as long as the switch is
on.
When the vehicle’s interior is warmed, or before
you leave the vehicle, be sure to turn the switch
off.
NOTE:
The heated seats consume less power than
the heater and can be used to either help
extend vehicle range by reducing heater
use or to maximize comfort by supplement-
ing the heater.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants can-
not monitor elevated seat temperatures
or have an inability to feel pain in those
body parts in contact with the seat. Use of
the seat heater by such people could re-
sult in serious injury.
CAUTION
• Do not use the seat heater for ex- tended periods or when no one is us-
ing the seat.
• Do not put anything on the seat which insulates heat, such as a blanket,
cushion, seat cover, etc. Otherwise, the
seat may become overheated.
• Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to
the heater.
• Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
• When cleaning the seat, never use gasoline, thinner, or any similar mate-
rials.
• If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer
for this service. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most driv-
ing conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the traction motor output to re-
duce wheel spin. The traction motor speed will be
reduced even if the accelerator is depressed to
the floor. If maximum traction motor power is
needed to free a stuck vehicle, turn the VDC
system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH
Instruments and controls2-49
Page 189 of 424

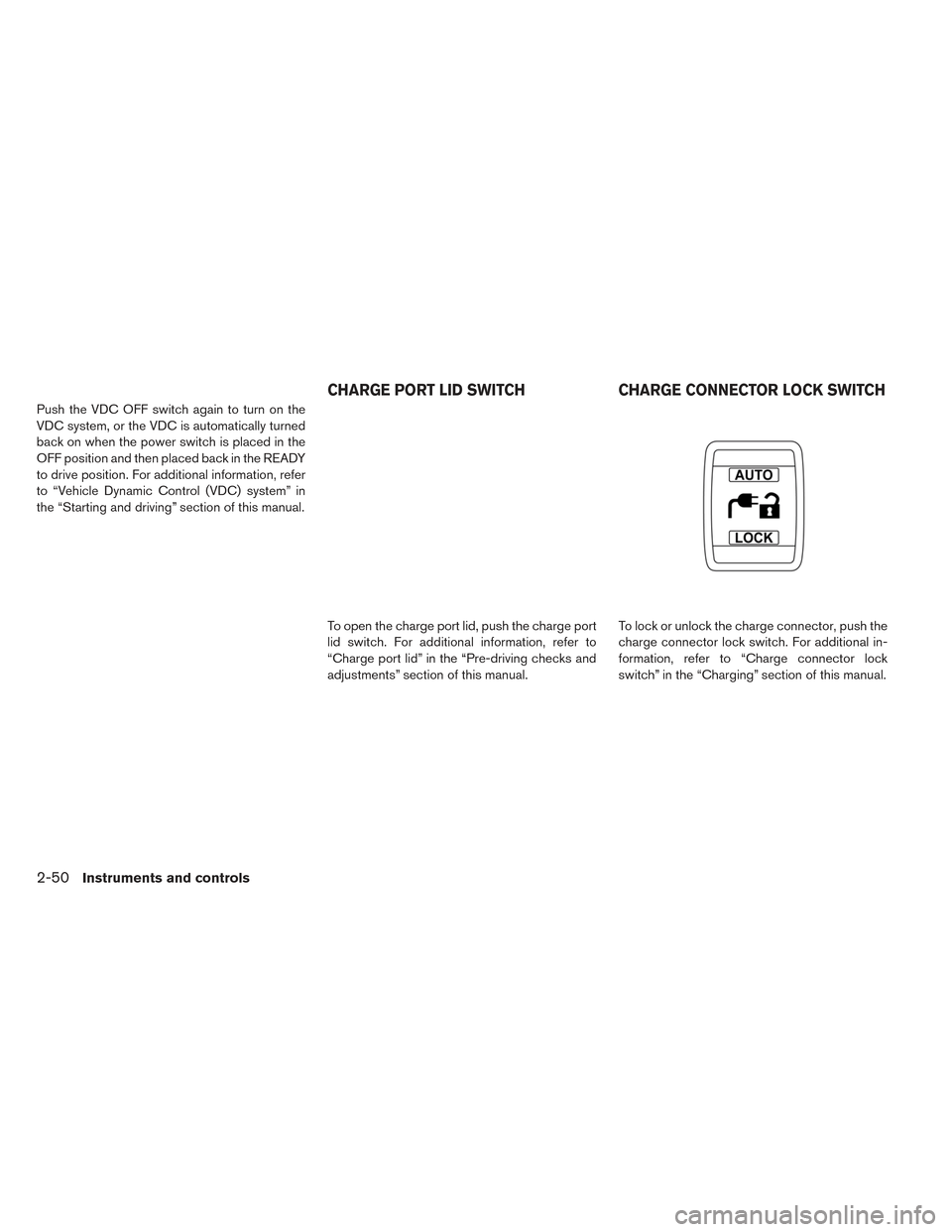

Push the VDC OFF switch again to turn on the
VDC system, or the VDC is automatically turned
back on when the power switch is placed in the
OFF position and then placed back in the READY
to drive position. For additional information, refer
to “Vehicle Dynamic Control (VDC) system” in
the “Starting and driving” section of this manual.To open the charge port lid, push the charge port
lid switch. For additional information, refer to
“Charge port lid” in the “Pre-driving checks and
adjustments” section of this manual.To lock or unlock the charge connector, push the
charge connector lock switch. For additional in-
formation, refer to “Charge connector lock
switch” in the “Charging” section of this manual.
CHARGE PORT LID SWITCH
CHARGE CONNECTOR LOCK SWITCH
2-50Instruments and controls
Page 190 of 424

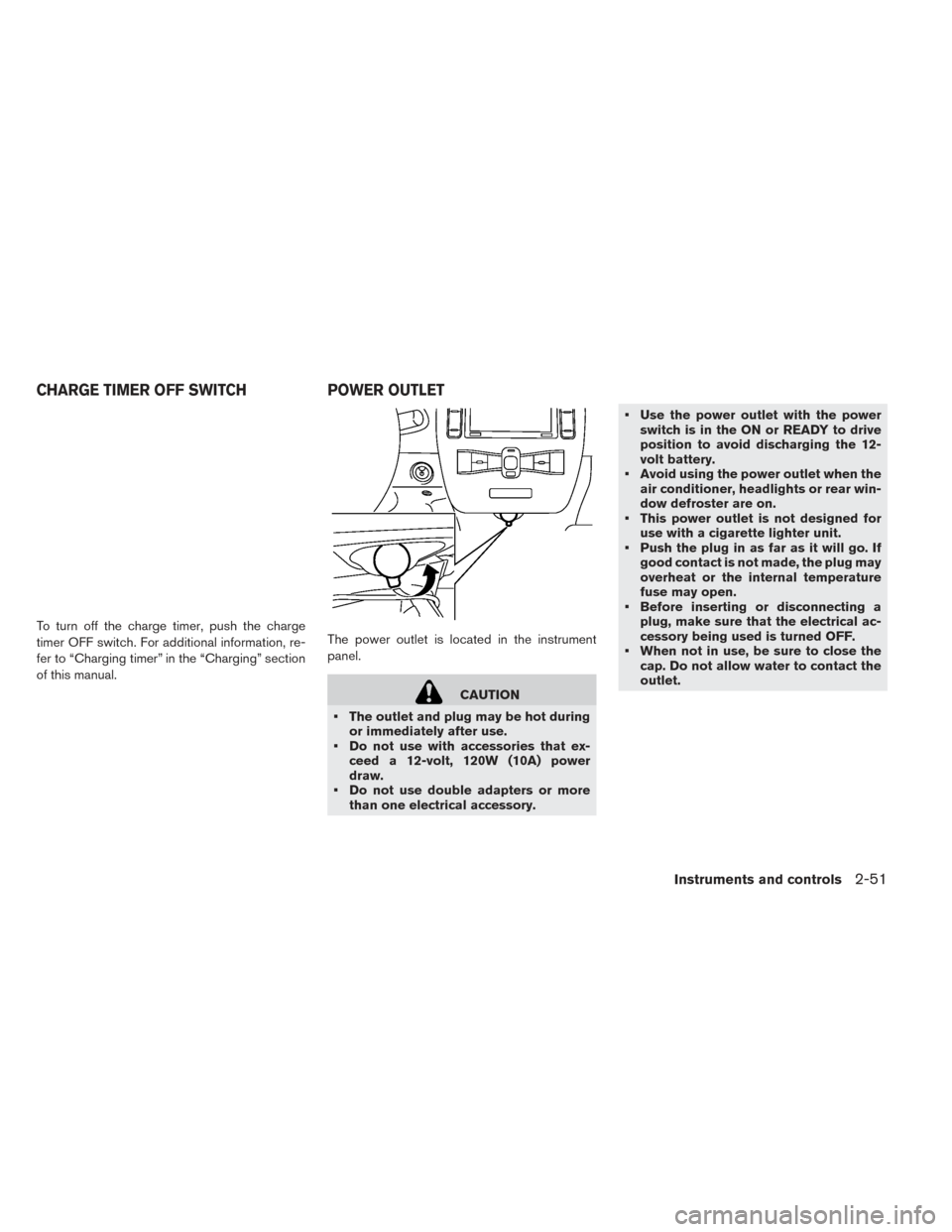

To turn off the charge timer, push the charge
timer OFF switch. For additional information, re-
fer to “Charging timer” in the “Charging” section
of this manual.The power outlet is located in the instrument
panel.
CAUTION
• The outlet and plug may be hot during or immediately after use.
• Do not use with accessories that ex- ceed a 12-volt, 120W (10A) power
draw.
• Do not use double adapters or more than one electrical accessory. • Use the power outlet with the power
switch is in the ON or READY to drive
position to avoid discharging the 12-
volt battery.
• Avoid using the power outlet when the air conditioner, headlights or rear win-
dow defroster are on.
• This power outlet is not designed for use with a cigarette lighter unit.
• Push the plug in as far as it will go. If good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
• Before inserting or disconnecting a plug, make sure that the electrical ac-
cessory being used is turned OFF.
• When not in use, be sure to close the cap. Do not allow water to contact the
outlet.
CHARGE TIMER OFF SWITCH POWER OUTLET
Instruments and controls2-51
Page 191 of 424

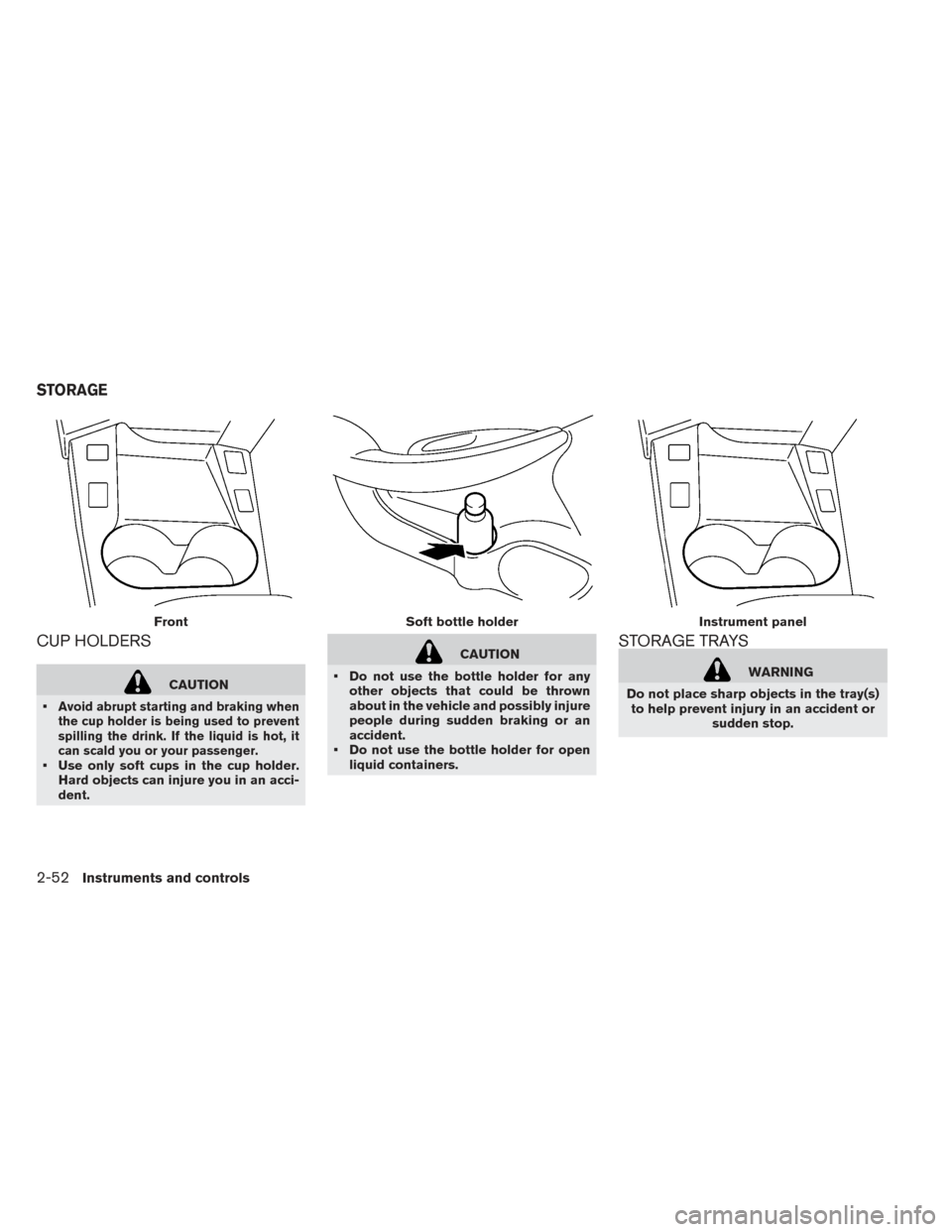

CUP HOLDERS
CAUTION
•
Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
• Use only soft cups in the cup holder. Hard objects can injure you in an acci-
dent.
CAUTION
• Do not use the bottle holder for any other objects that could be thrown
about in the vehicle and possibly injure
people during sudden braking or an
accident.
• Do not use the bottle holder for open liquid containers.STORAGE TRAYS
WARNING
Do not place sharp objects in the tray(s) to help prevent injury in an accident or sudden stop.
FrontSoft bottle holderInstrument panel
STORAGE
2-52Instruments and controls
Page 192 of 424
SEATBACK POCKET (IF SO
EQUIPPED)
The seatback pocket is located on the back of the
passenger’s seat. The pocket can be used to
store maps.
WARNING
To ensure proper operation of the pas-
senger’s NISSAN Advanced Air Bag Sys-
tem, please observe the following
items:
• Do not allow a passenger in the rear seat to push or pull on the seatback
pocket or head restraint.
• Do not place heavy loads heavier than 2.2 lbs. (1 kg) on the seatback, head
restraint, or in the seatback pocket.
Center console
Instruments and controls2-53
