2017 NISSAN LEAF Owners Manual

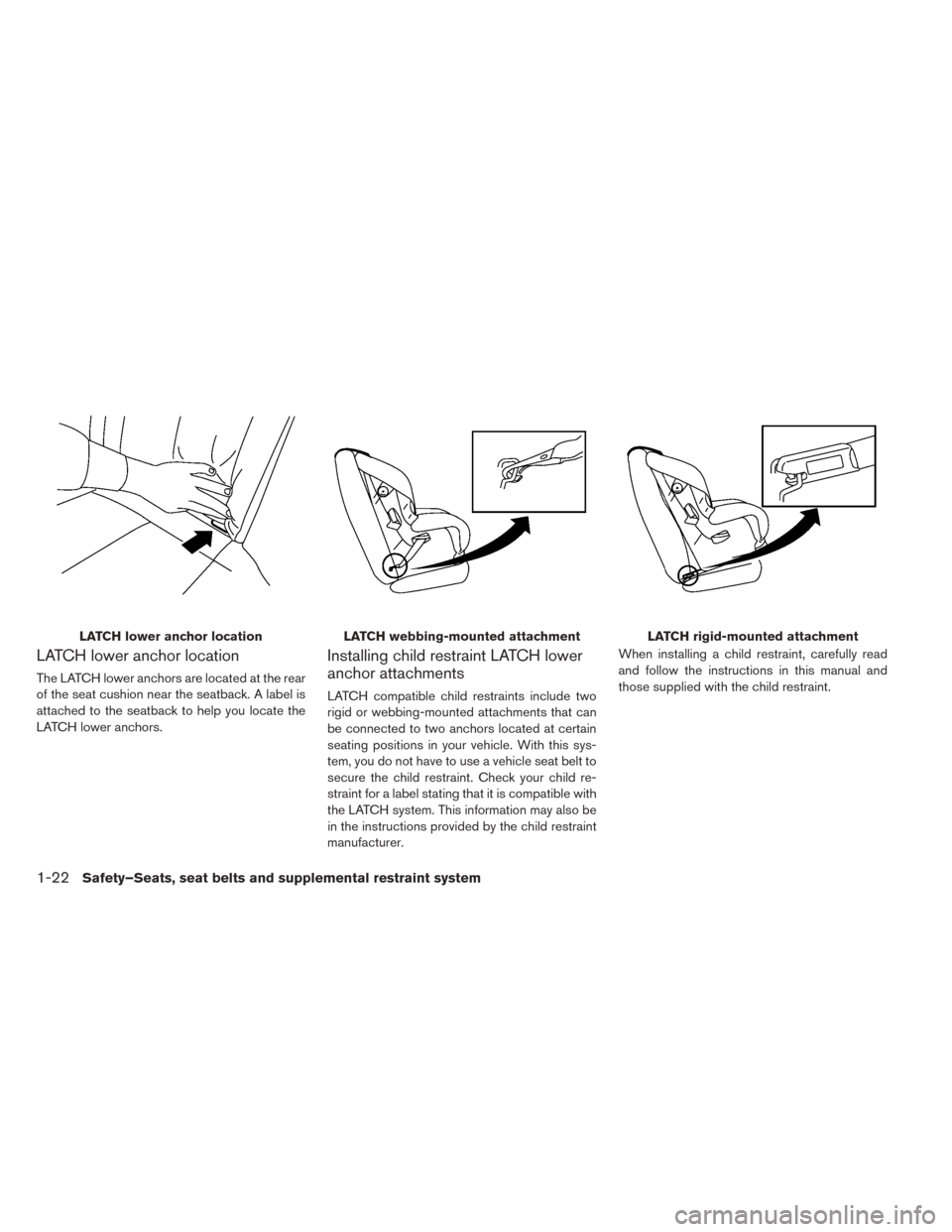

LATCH lower anchor location
The LATCH lower anchors are located at the rear
of the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH lower anchors.
Installing child restraint LATCH lower
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this sys-
tem, you do not have to use a vehicle seat belt to
secure the child restraint. Check your child re-
straint for a label stating that it is compatible with
the LATCH system. This information may also be
in the instructions provided by the child restraint
manufacturer.When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
LATCH lower anchor locationLATCH webbing-mounted attachmentLATCH rigid-mounted attachment
1-22Safety–Seats, seat belts and supplemental restraint system

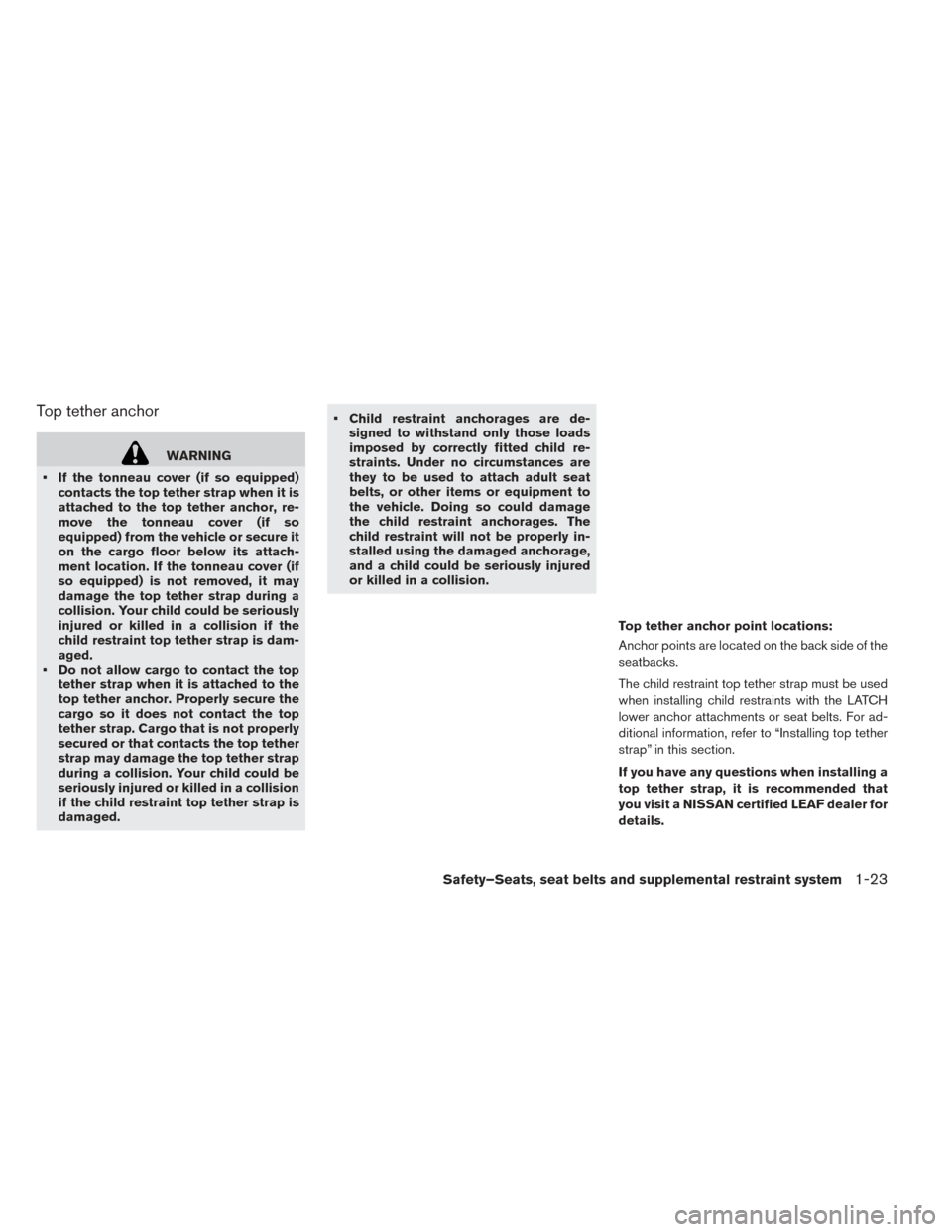

Top tether anchor
WARNING
• If the tonneau cover (if so equipped) contacts the top tether strap when it is
attached to the top tether anchor, re-
move the tonneau cover (if so
equipped) from the vehicle or secure it
on the cargo floor below its attach-
ment location. If the tonneau cover (if
so equipped) is not removed, it may
damage the top tether strap during a
collision. Your child could be seriously
injured or killed in a collision if the
child restraint top tether strap is dam-
aged.
• Do not allow cargo to contact the top tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or that contacts the top tether
strap may damage the top tether strap
during a collision. Your child could be
seriously injured or killed in a collision
if the child restraint top tether strap is
damaged. • Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.
Top tether anchor point locations:
Anchor points are located on the back side of the
seatbacks.
The child restraint top tether strap must be used
when installing child restraints with the LATCH
lower anchor attachments or seat belts. For ad-
ditional information, refer to “Installing top tether
strap” in this section.
If you have any questions when installing a
top tether strap, it is recommended that
you visit a NISSAN certified LEAF dealer for
details.
Safety–Seats, seat belts and supplemental restraint system1-23

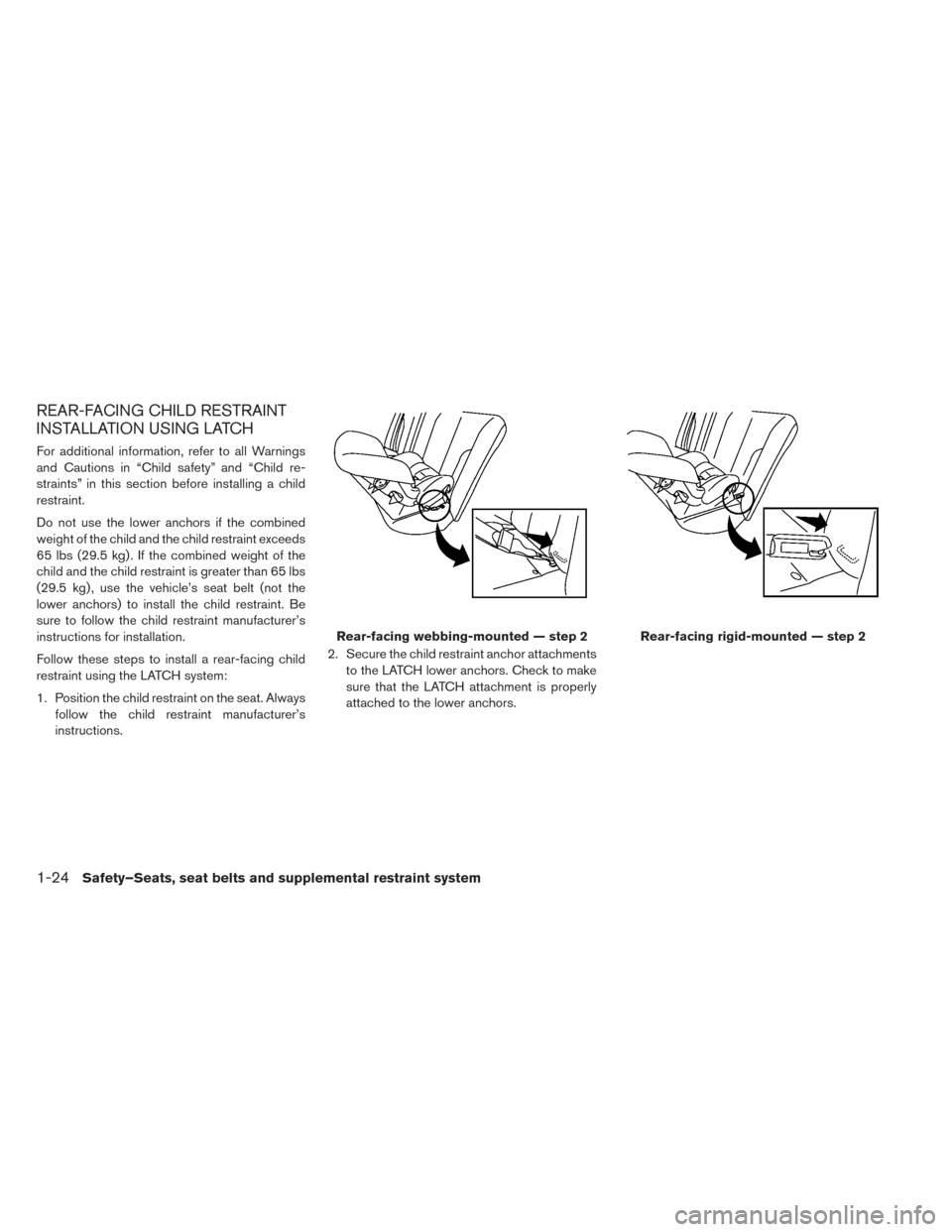

REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH
For additional information, refer to all Warnings
and Cautions in “Child safety” and “Child re-
straints” in this section before installing a child
restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint exceeds
65 lbs (29.5 kg) . If the combined weight of the
child and the child restraint is greater than 65 lbs
(29.5 kg) , use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a rear-facing child
restraint using the LATCH system:
1. Position the child restraint on the seat. Alwaysfollow the child restraint manufacturer’s
instructions. 2. Secure the child restraint anchor attachments
to the LATCH lower anchors. Check to make
sure that the LATCH attachment is properly
attached to the lower anchors.
Rear-facing webbing-mounted — step 2Rear-facing rigid-mounted — step 2
1-24Safety–Seats, seat belts and supplemental restraint system

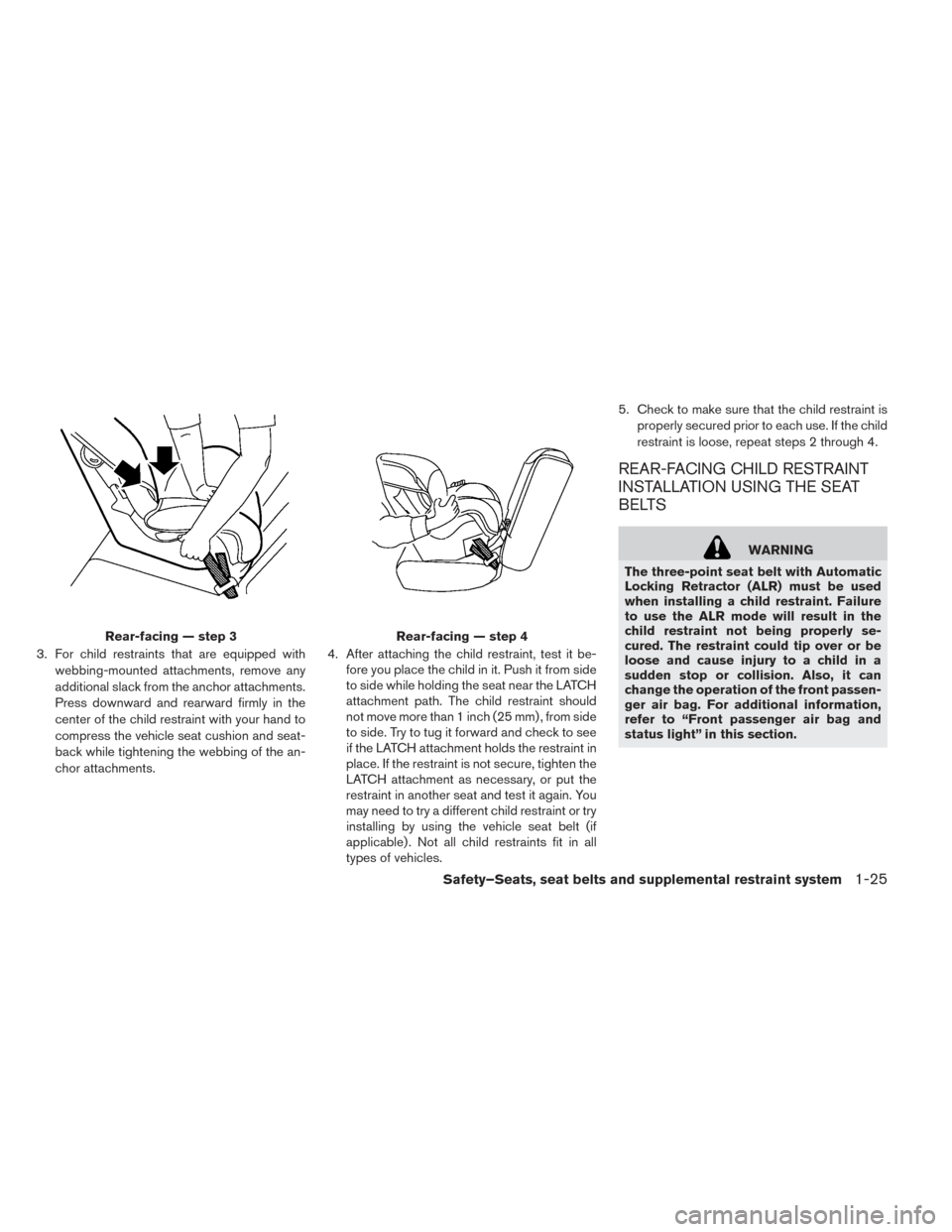

3. For child restraints that are equipped withwebbing-mounted attachments, remove any
additional slack from the anchor attachments.
Press downward and rearward firmly in the
center of the child restraint with your hand to
compress the vehicle seat cushion and seat-
back while tightening the webbing of the an-
chor attachments. 4. After attaching the child restraint, test it be-
fore you place the child in it. Push it from side
to side while holding the seat near the LATCH
attachment path. The child restraint should
not move more than 1 inch (25 mm) , from side
to side. Try to tug it forward and check to see
if the LATCH attachment holds the restraint in
place. If the restraint is not secure, tighten the
LATCH attachment as necessary, or put the
restraint in another seat and test it again. You
may need to try a different child restraint or try
installing by using the vehicle seat belt (if
applicable) . Not all child restraints fit in all
types of vehicles. 5. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 2 through 4.
REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure
to use the ALR mode will result in the
child restraint not being properly se-
cured. The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front passen-
ger air bag. For additional information,
refer to “Front passenger air bag and
status light” in this section.
Rear-facing — step 3Rear-facing — step 4
Safety–Seats, seat belts and supplemental restraint system1-25

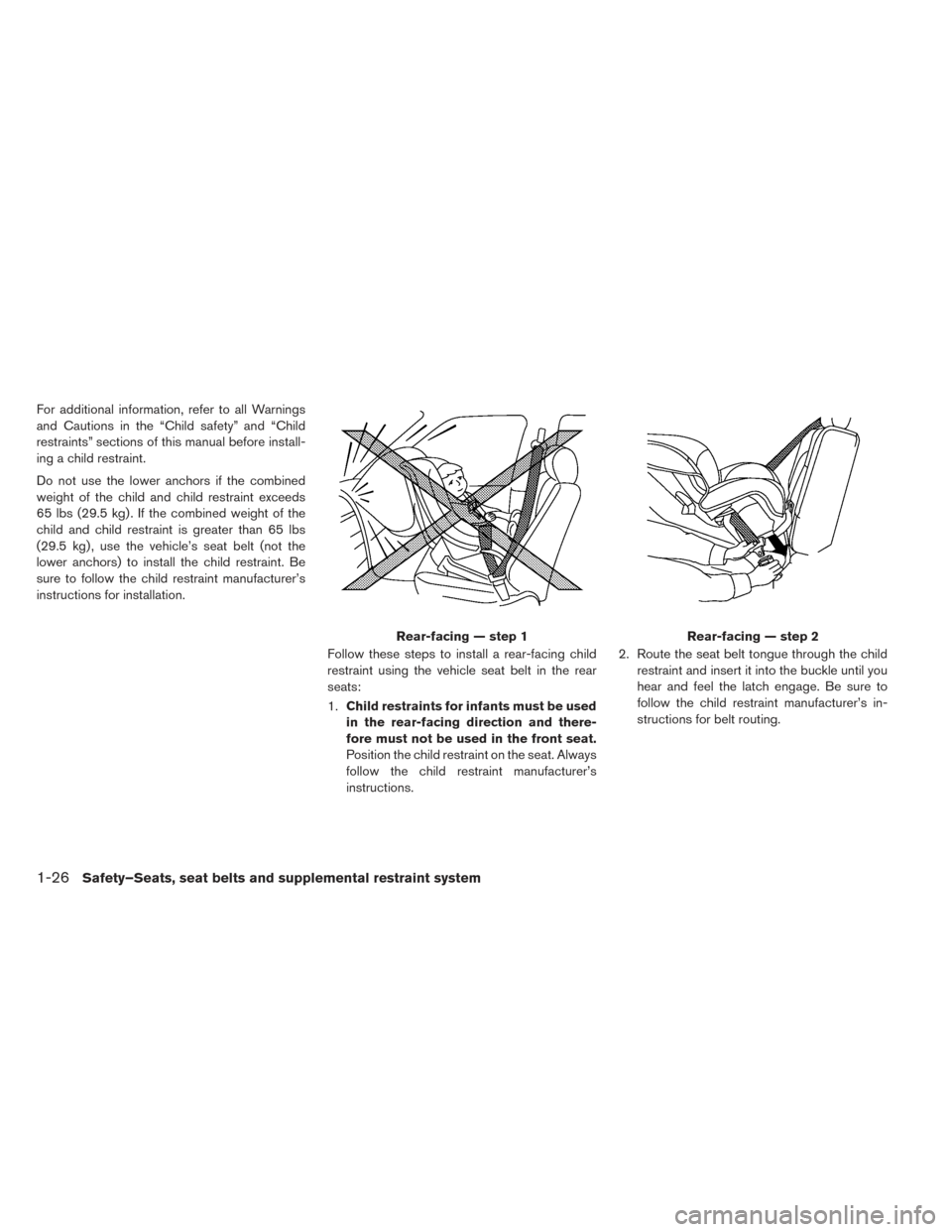

For additional information, refer to all Warnings
and Cautions in the “Child safety” and “Child
restraints” sections of this manual before install-
ing a child restraint.
Do not use the lower anchors if the combined
weight of the child and child restraint exceeds
65 lbs (29.5 kg) . If the combined weight of the
child and child restraint is greater than 65 lbs
(29.5 kg) , use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufacturer’s
instructions for installation.Follow these steps to install a rear-facing child
restraint using the vehicle seat belt in the rear
seats:
1.Child restraints for infants must be used
in the rear-facing direction and there-
fore must not be used in the front seat.
Position the child restraint on the seat. Always
follow the child restraint manufacturer’s
instructions. 2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.
Rear-facing — step 1Rear-facing — step 2
1-26Safety–Seats, seat belts and supplemental restraint system

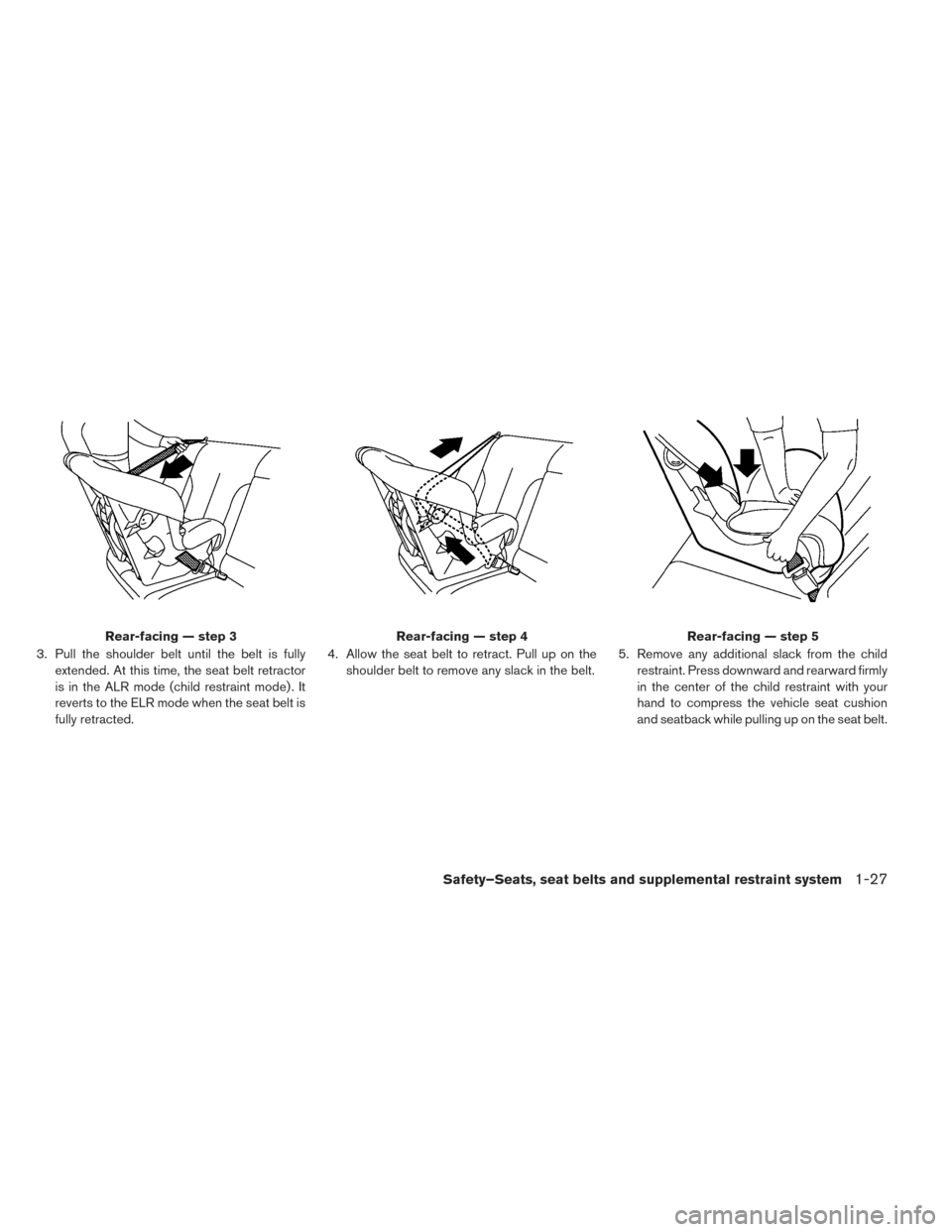

3. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt retractor
is in the ALR mode (child restraint mode) . It
reverts to the ELR mode when the seat belt is
fully retracted. 4. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt. 5. Remove any additional slack from the child
restraint. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while pulling up on the seat belt.
Rear-facing — step 3Rear-facing — step 4Rear-facing — step 5
Safety–Seats, seat belts and supplemental restraint system1-27

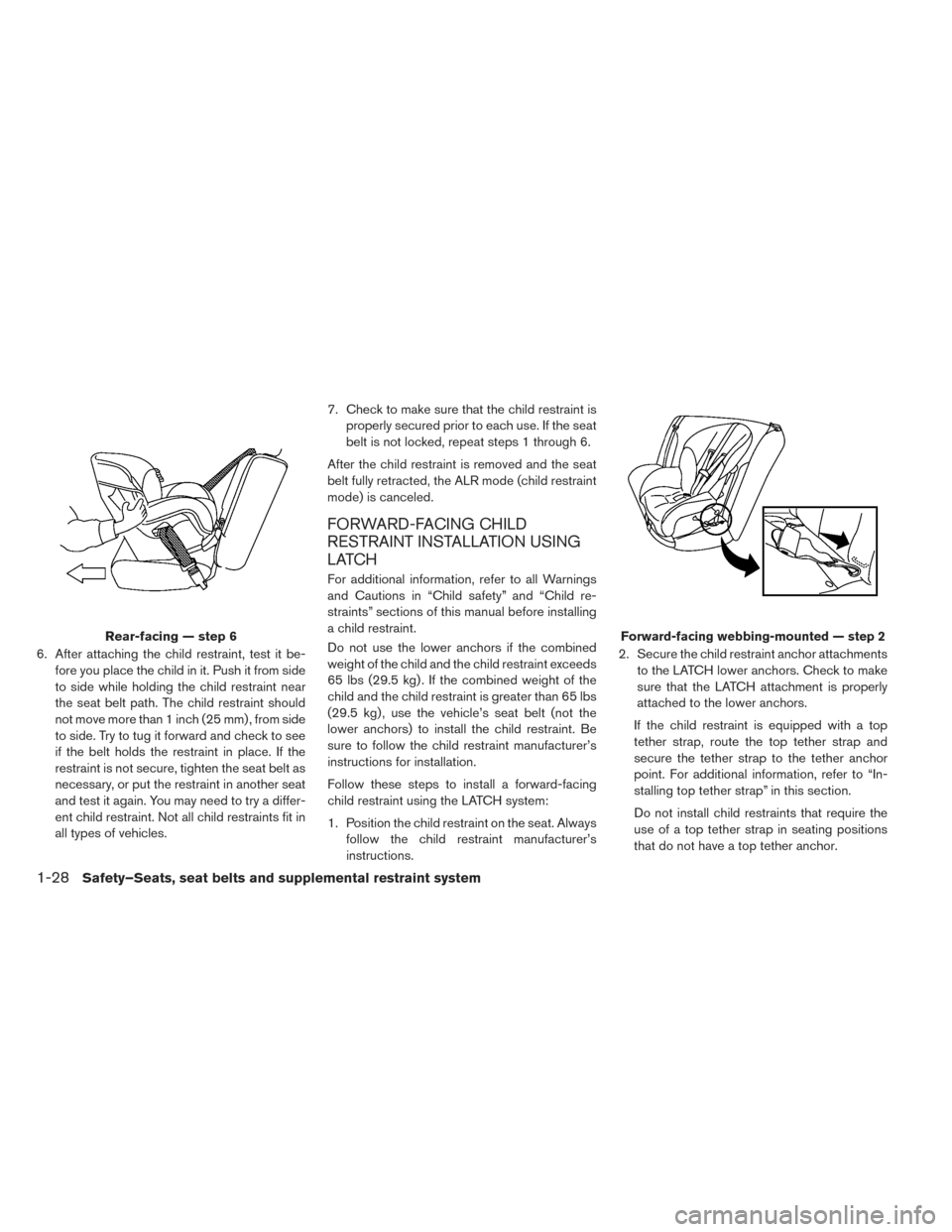

6. After attaching the child restraint, test it be-fore you place the child in it. Push it from side
to side while holding the child restraint near
the seat belt path. The child restraint should
not move more than 1 inch (25 mm) , from side
to side. Try to tug it forward and check to see
if the belt holds the restraint in place. If the
restraint is not secure, tighten the seat belt as
necessary, or put the restraint in another seat
and test it again. You may need to try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles. 7. Check to make sure that the child restraint is
properly secured prior to each use. If the seat
belt is not locked, repeat steps 1 through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH
For additional information, refer to all Warnings
and Cautions in “Child safety” and “Child re-
straints” sections of this manual before installing
a child restraint.
Do not use the lower anchors if the combined
weight of the child and the child restraint exceeds
65 lbs (29.5 kg) . If the combined weight of the
child and the child restraint is greater than 65 lbs
(29.5 kg) , use the vehicle’s seat belt (not the
lower anchors) to install the child restraint. Be
sure to follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a forward-facing
child restraint using the LATCH system:
1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s
instructions. 2. Secure the child restraint anchor attachments
to the LATCH lower anchors. Check to make
sure that the LATCH attachment is properly
attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. For additional information, refer to “In-
stalling top tether strap” in this section.
Do not install child restraints that require the
use of a top tether strap in seating positions
that do not have a top tether anchor.
Rear-facing — step 6Forward-facing webbing-mounted — step 2
1-28Safety–Seats, seat belts and supplemental restraint system

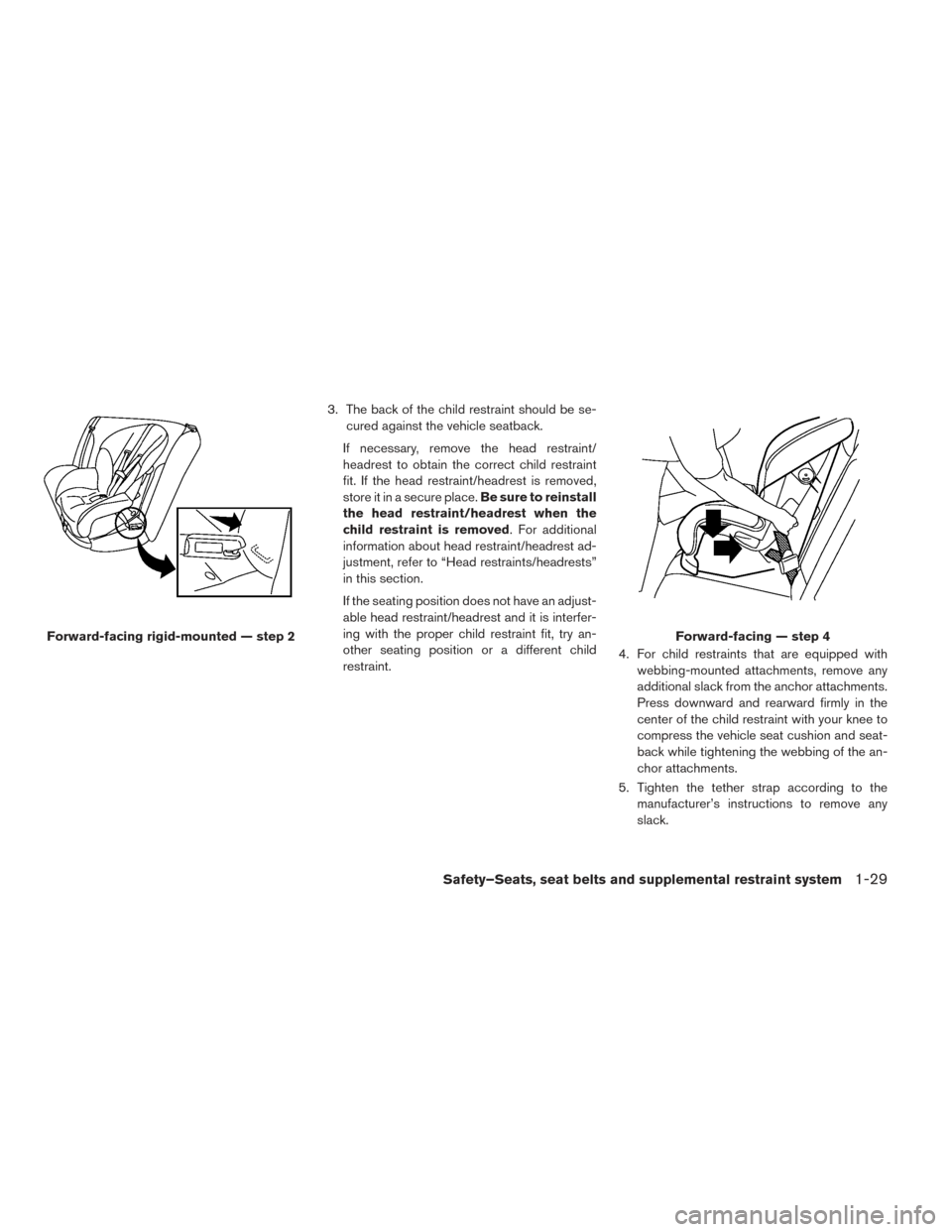

3. The back of the child restraint should be se-cured against the vehicle seatback.
If necessary, remove the head restraint/
headrest to obtain the correct child restraint
fit. If the head restraint/headrest is removed,
store it in a secure place. Be sure to reinstall
the head restraint/headrest when the
child restraint is removed. For additional
information about head restraint/headrest ad-
justment, refer to “Head restraints/headrests”
in this section.
If the seating position does not have an adjust-
able head restraint/headrest and it is interfer-
ing with the proper child restraint fit, try an-
other seating position or a different child
restraint. 4. For child restraints that are equipped with
webbing-mounted attachments, remove any
additional slack from the anchor attachments.
Press downward and rearward firmly in the
center of the child restraint with your knee to
compress the vehicle seat cushion and seat-
back while tightening the webbing of the an-
chor attachments.
5. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack.
Forward-facing rigid-mounted — step 2Forward-facing — step 4
Safety–Seats, seat belts and supplemental restraint system1-29
