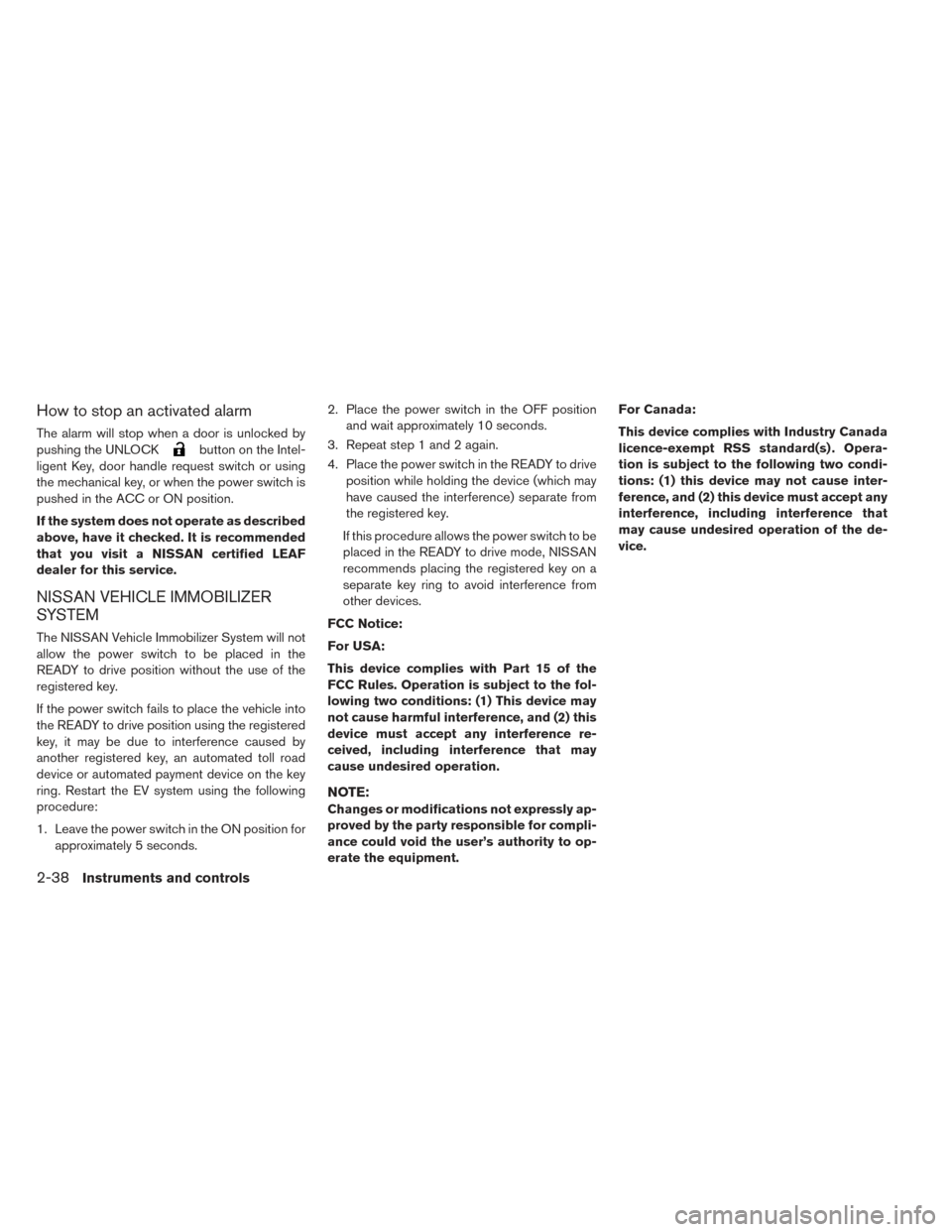

How to stop an activated alarm
The alarm will stop when a door is unlocked by
pushing the UNLOCK
button on the Intel-
ligent Key, door handle request switch or using
the mechanical key, or when the power switch is
pushed in the ACC or ON position.
If the system does not operate as described
above, have it checked. It is recommended
that you visit a NISSAN certified LEAF
dealer for this service.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System will not
allow the power switch to be placed in the
READY to drive position without the use of the
registered key.
If the power switch fails to place the vehicle into
the READY to drive position using the registered
key, it may be due to interference caused by
another registered key, an automated toll road
device or automated payment device on the key
ring. Restart the EV system using the following
procedure:
1. Leave the power switch in the ON position for approximately 5 seconds. 2. Place the power switch in the OFF position
and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Place the power switch in the READY to drive position while holding the device (which may
have caused the interference) separate from
the registered key.
If this procedure allows the power switch to be
placed in the READY to drive mode, NISSAN
recommends placing the registered key on a
separate key ring to avoid interference from
other devices.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment. For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
2-38Instruments and controls

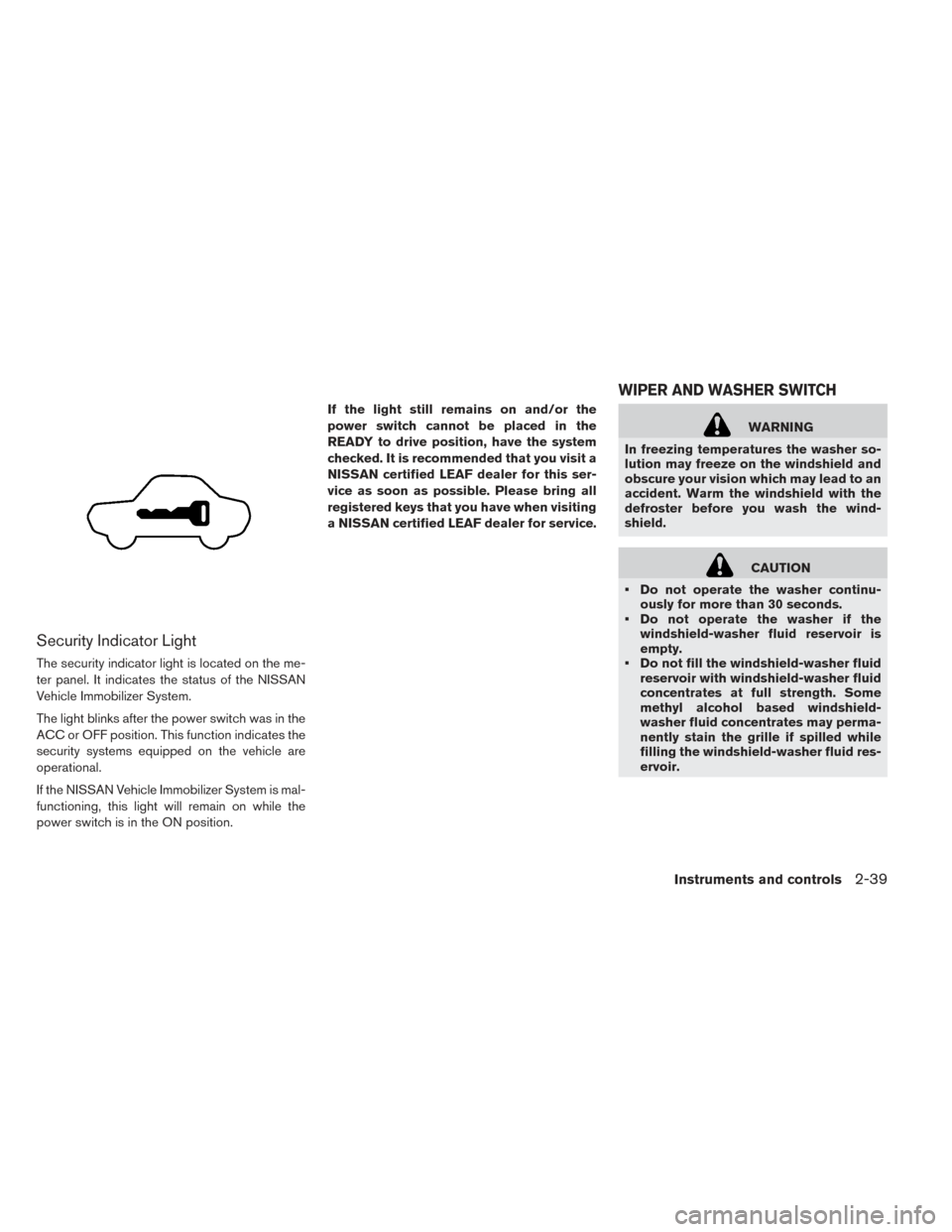

Security Indicator Light
The security indicator light is located on the me-
ter panel. It indicates the status of the NISSAN
Vehicle Immobilizer System.
The light blinks after the power switch was in the
ACC or OFF position. This function indicates the
security systems equipped on the vehicle are
operational.
If the NISSAN Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
power switch is in the ON position.If the light still remains on and/or the
power switch cannot be placed in the
READY to drive position, have the system
checked. It is recommended that you visit a
NISSAN certified LEAF dealer for this ser-
vice as soon as possible. Please bring all
registered keys that you have when visiting
a NISSAN certified LEAF dealer for service.
WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm the windshield with the
defroster before you wash the wind-
shield.
CAUTION
• Do not operate the washer continu- ously for more than 30 seconds.
• Do not operate the washer if the windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-
washer fluid concentrates may perma-
nently stain the grille if spilled while
filling the windshield-washer fluid res-
ervoir.
WIPER AND WASHER SWITCH
Instruments and controls2-39

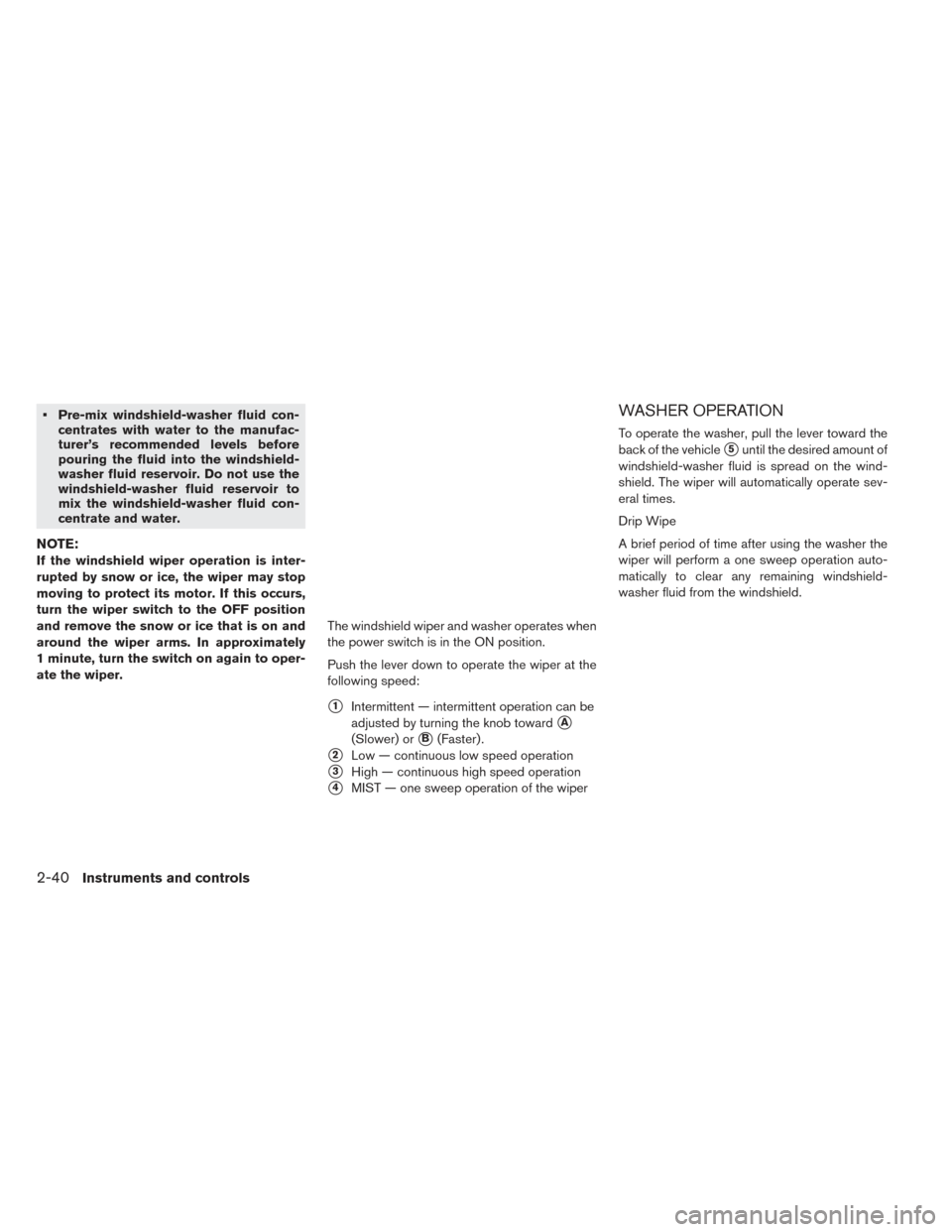

• Pre-mix windshield-washer fluid con-centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.
NOTE:
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately
1 minute, turn the switch on again to oper-
ate the wiper. The windshield wiper and washer operates when
the power switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) orB(Faster) .
2Low — continuous low speed operation
3High — continuous high speed operation
4MIST — one sweep operation of the wiper
WASHER OPERATION
To operate the washer, pull the lever toward the
back of the vehicle
5until the desired amount of
windshield-washer fluid is spread on the wind-
shield. The wiper will automatically operate sev-
eral times.
Drip Wipe
A brief period of time after using the washer the
wiper will perform a one sweep operation auto-
matically to clear any remaining windshield-
washer fluid from the windshield.
2-40Instruments and controls

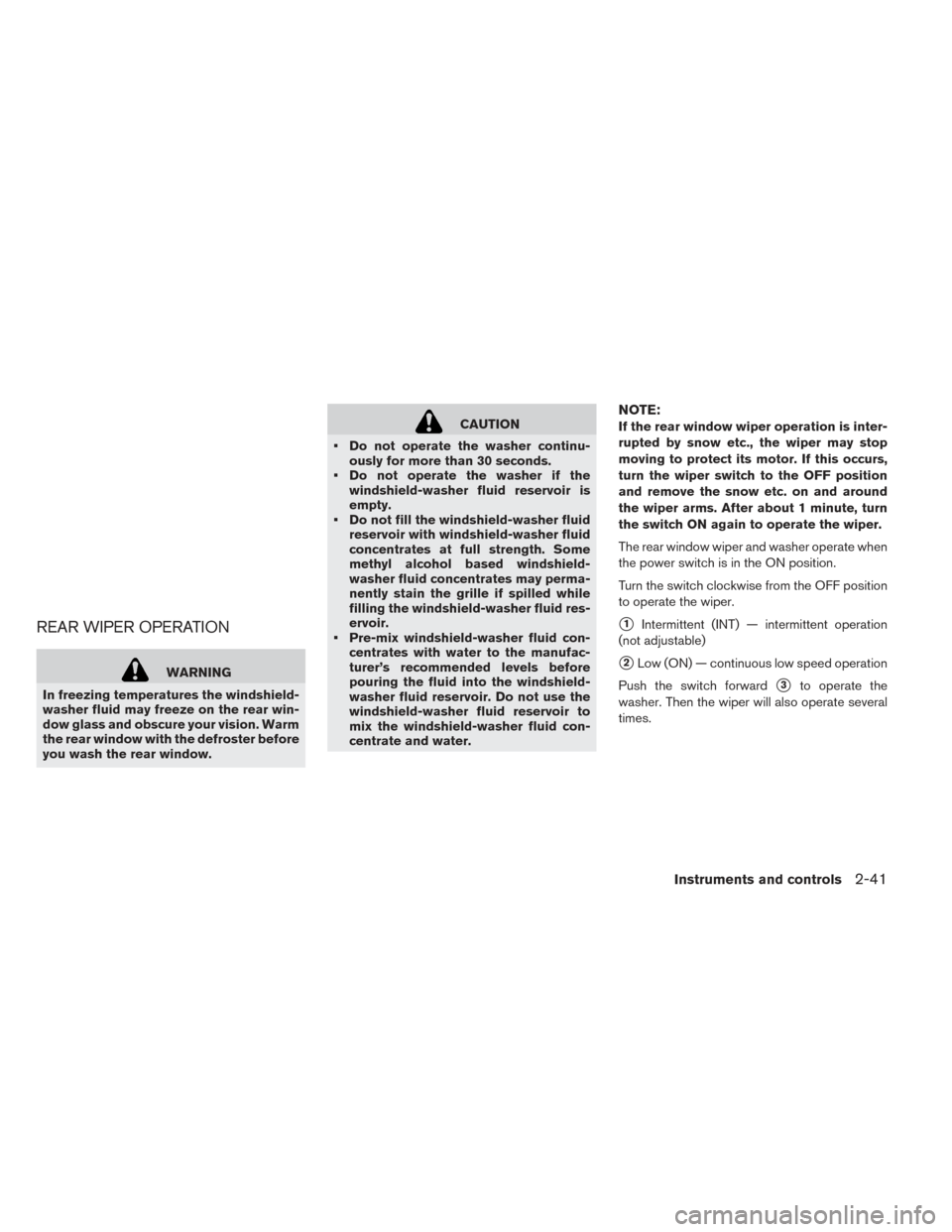

REAR WIPER OPERATION
WARNING
In freezing temperatures the windshield-
washer fluid may freeze on the rear win-
dow glass and obscure your vision. Warm
the rear window with the defroster before
you wash the rear window.
CAUTION
• Do not operate the washer continu- ously for more than 30 seconds.
• Do not operate the washer if the windshield-washer fluid reservoir is
empty.
• Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-
washer fluid concentrates may perma-
nently stain the grille if spilled while
filling the windshield-washer fluid res-
ervoir.
• Pre-mix windshield-washer fluid con- centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.NOTE:
If the rear window wiper operation is inter-
rupted by snow etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow etc. on and around
the wiper arms. After about 1 minute, turn
the switch ON again to operate the wiper.
The rear window wiper and washer operate when
the power switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed operation
Push the switch forward
3to operate the
washer. Then the wiper will also operate several
times.
Instruments and controls2-41

To defrost the rear window glass and outside
mirrors, place the power switch in the ON posi-
tion and push the switch
1on. The indicator
light will illuminate. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately
15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.
The instrument brightness control switch can be
operated when the power switch is in the ON
position. When the switch is operated, the ve-
hicle information display switches to the bright-
ness adjustment mode.
Push the switch
1to display the setting menu of
the brightness control on the vehicle information
display.
Push the
1switch to move the bar to the + side.
If the bar reaches the maximum brightness, a
chime will sound. If the switch
1is pushed again
when the brightness is at the maximum setting,
the instrument lights turn off.
Type A (if so equipped)
Type B (if so equipped)
REAR WINDOW AND OUTSIDE
MIRROR (IF SO EQUIPPED)
DEFROSTER SWITCH INSTRUMENT BRIGHTNESS
CONTROL
2-42Instruments and controls

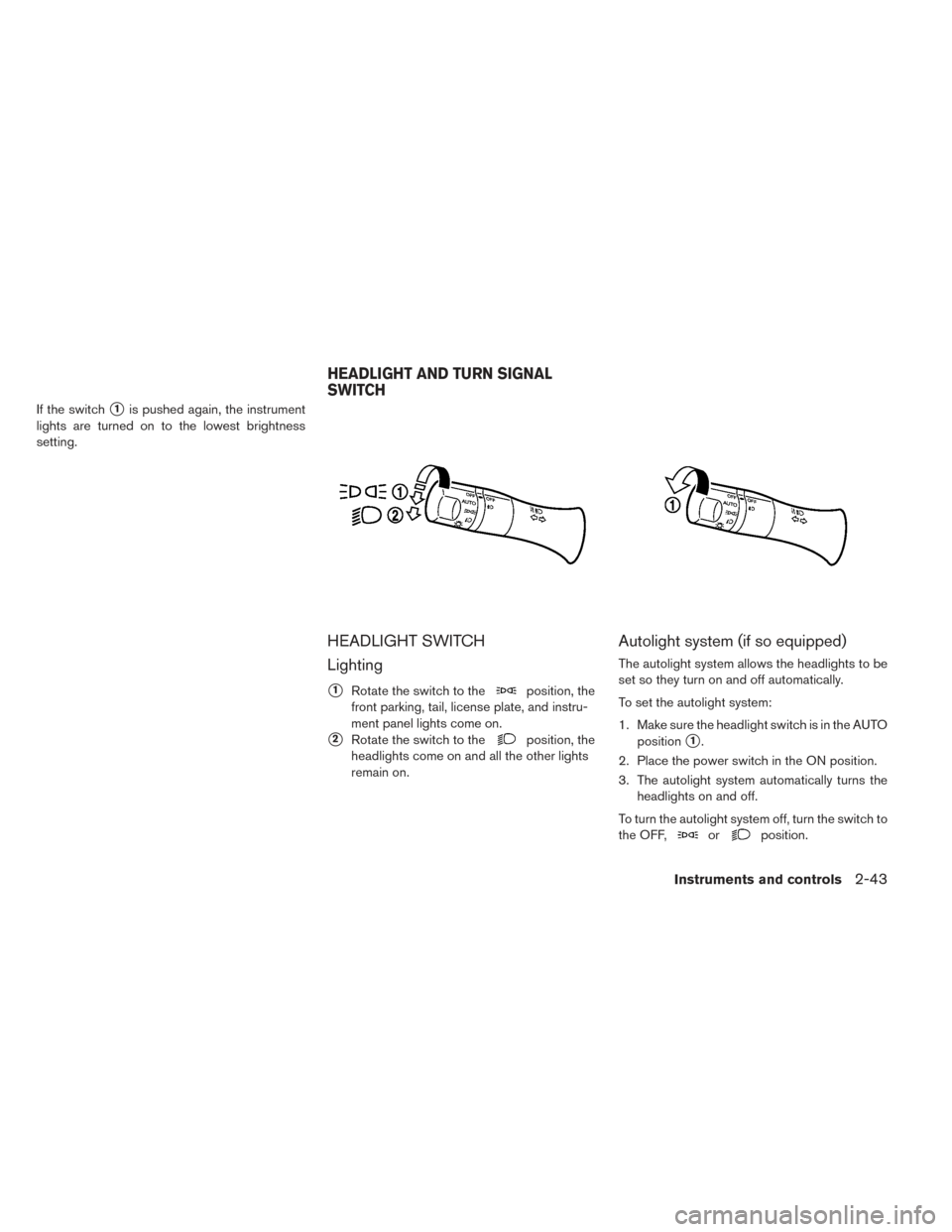

If the switch1is pushed again, the instrument
lights are turned on to the lowest brightness
setting.
HEADLIGHT SWITCH
Lighting
1Rotate the switch to theposition, the
front parking, tail, license plate, and instru-
ment panel lights come on.
2Rotate the switch to theposition, the
headlights come on and all the other lights
remain on.
Autolight system (if so equipped)
The autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
1.
2. Place the power switch in the ON position.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch to
the OFF,
orposition.
HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-43

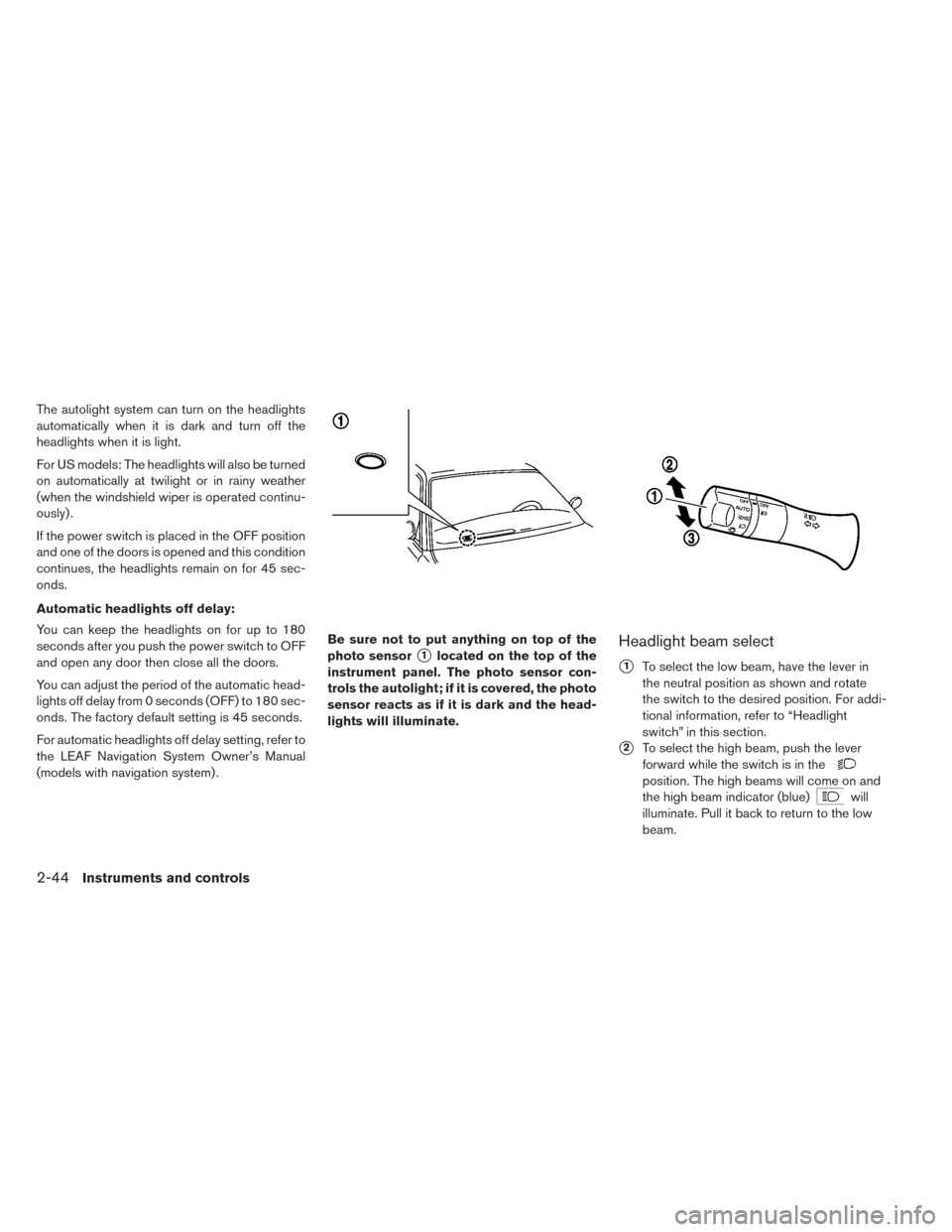

The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
For US models: The headlights will also be turned
on automatically at twilight or in rainy weather
(when the windshield wiper is operated continu-
ously) .
If the power switch is placed in the OFF position
and one of the doors is opened and this condition
continues, the headlights remain on for 45 sec-
onds.
Automatic headlights off delay:
You can keep the headlights on for up to 180
seconds after you push the power switch to OFF
and open any door then close all the doors.
You can adjust the period of the automatic head-
lights off delay from 0 seconds (OFF) to 180 sec-
onds. The factory default setting is 45 seconds.
For automatic headlights off delay setting, refer to
the LEAF Navigation System Owner’s Manual
(models with navigation system) .Be sure not to put anything on top of the
photo sensor
1located on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the photo
sensor reacts as if it is dark and the head-
lights will illuminate.Headlight beam select
1To select the low beam, have the lever in
the neutral position as shown and rotate
the switch to the desired position. For addi-
tional information, refer to “Headlight
switch” in this section.
2To select the high beam, push the lever
forward while the switch is in the
position. The high beams will come on and
the high beam indicator (blue)
will
illuminate. Pull it back to return to the low
beam.
2-44Instruments and controls

3Pulling the lever toward you will flash the
headlight high beam even when the head-
light switch is in the OFF position.
Battery saver system
• When the headlight switch is in theor
position while the power switch is in the
ON position, the lights will automatically turn off
45 seconds after the power switch has been
placed in the OFF position.
• When the headlight switch remains in the
orposition after the lights automatically
turn off, the lights will turn on when the power
switch is placed in the ON position.
CAUTION
•
When you turn on the headlight switch
again after the lights automatically turn
off, the lights will not turn off automati-
cally. Be sure to turn the light switch to
the OFF position when you leave the
vehicle for extended periods of time,
otherwise the battery will be discharged.
• Never leave the light switch on when the power switch is in the OFF, ACC or
ON position for extended periods of
time even if the headlights turn off
automatically.
Daytime running light system (for
Canada)
The daytime running lights automatically illumi-
nate when the power switch is in the READY to
drive position with the parking brake released.
The daytime running lights operate with the head-
light switch in the OFF position. Turn headlight
switch to the
position for full illumination
when driving at night.
If the parking brake is applied before the power
switch is in the READY to drive position, daytime
running lights do not operate. The daytime run-
ning lights illuminate once the parking brake is
released. The daytime running lights will remain
on until the power switch is pushed to the OFF
position.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down until it latches to
signal the turning direction. When the turn is
completed, the turn signal cancels automatically.
Lane change signal
2Move the lever up or down until the turn signal
begins to flash, but the lever does not latch, to
signal a lane change. Hold the lever until the lane
change is completed.
Instruments and controls2-45
