Page 369 of 424

• Keep the 12-volt battery surface clean and dry.Clean the 12-volt battery with a solution of
baking soda and water.
• Make certain the terminal connections are clean and securely tightened.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of elec-
tronic accessories that consume battery
power when the motor is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health
WARNING
• Do not expose the 12-volt battery to flames or electrical sparks. Hydrogen
gas generated by the 12-volt battery is
explosive. Do not allow 12-volt battery
fluid to contact your skin, eyes, fabrics
or painted surfaces. After touching a
12-volt battery or 12-volt battery cap,
do not touch or rub your eyes. Thor-
oughly wash your hands. If the acid
contacts your eyes, skin or clothing,
immediately flush with water for at
least 15 minutes and seek medical at-
tention.
• Do not operate the vehicle if the fluid in the 12-volt battery is low. Low 12-
volt battery fluid can cause a higher
load on the 12-volt battery which can
generate heat, reduce battery life, and
in some cases lead to an explosion.
• When working on or near a 12-volt battery, always wear suitable eye pro-
tection and remove all jewelry.
• 12-volt battery posts, terminals and re- lated accessories contain lead and
lead compounds. Wash hands after
handling.
• Keep the 12-volt battery out of the reach of children. 1. Remove the vent caps with a screwdriver as
shown. Use a cloth to protect the battery
case.
12-VOLT BATTERY
8-12Maintenance and do-it yourself
Page 370 of 424

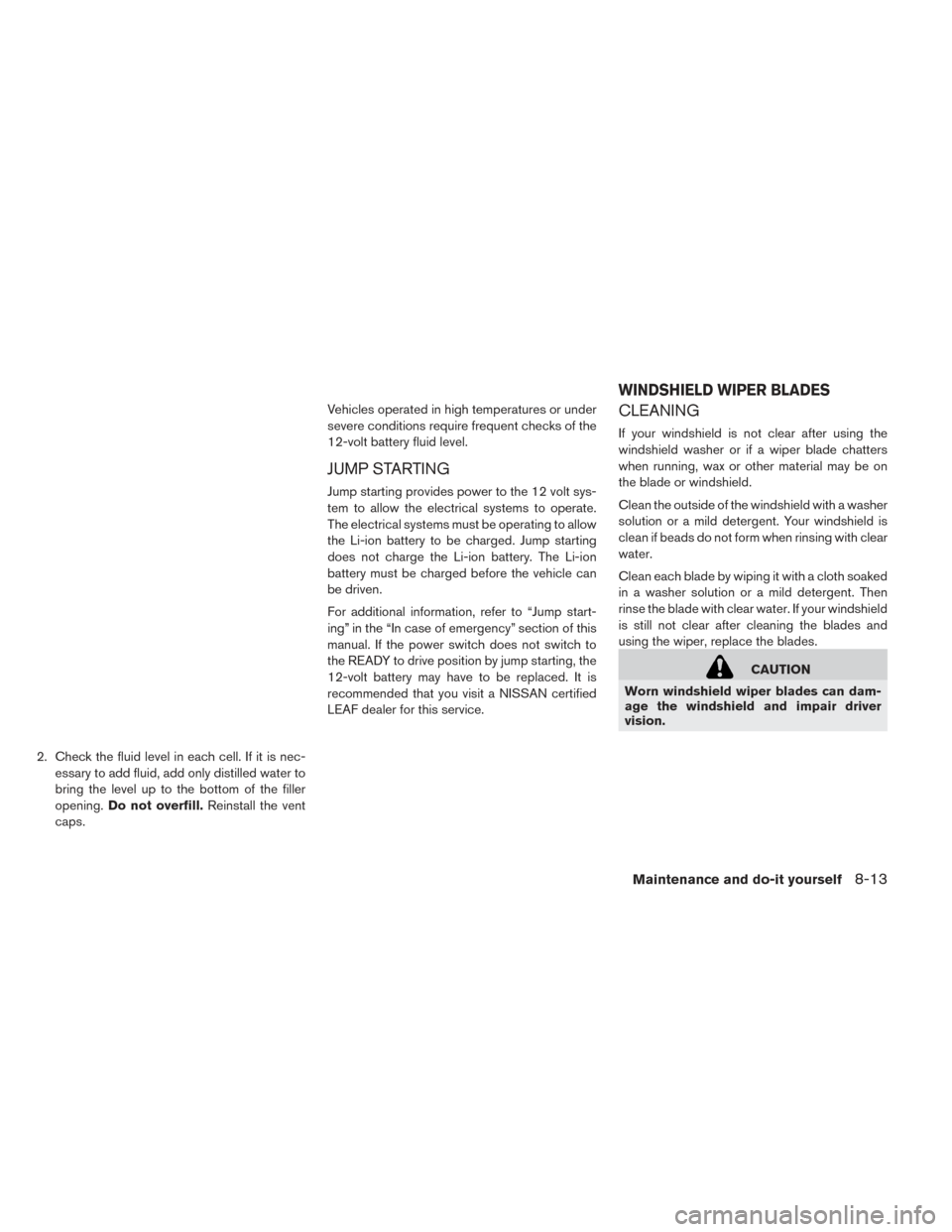

2. Check the fluid level in each cell. If it is nec-essary to add fluid, add only distilled water to
bring the level up to the bottom of the filler
opening. Do not overfill. Reinstall the vent
caps. Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
12-volt battery fluid level.
JUMP STARTING
Jump starting provides power to the 12 volt sys-
tem to allow the electrical systems to operate.
The electrical systems must be operating to allow
the Li-ion battery to be charged. Jump starting
does not charge the Li-ion battery. The Li-ion
battery must be charged before the vehicle can
be driven.
For additional information, refer to “Jump start-
ing” in the “In case of emergency” section of this
manual. If the power switch does not switch to
the READY to drive position by jump starting, the
12-volt battery may have to be replaced. It is
recommended that you visit a NISSAN certified
LEAF dealer for this service.
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a washer
solution or a mild detergent. Your windshield is
clean if beads do not form when rinsing with clear
water.
Clean each blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Then
rinse the blade with clear water. If your windshield
is still not clear after cleaning the blades and
using the wiper, replace the blades.
CAUTION
Worn windshield wiper blades can dam-
age the windshield and impair driver
vision.
WINDSHIELD WIPER BLADES
Maintenance and do-it yourself8-13
Page 371 of 424

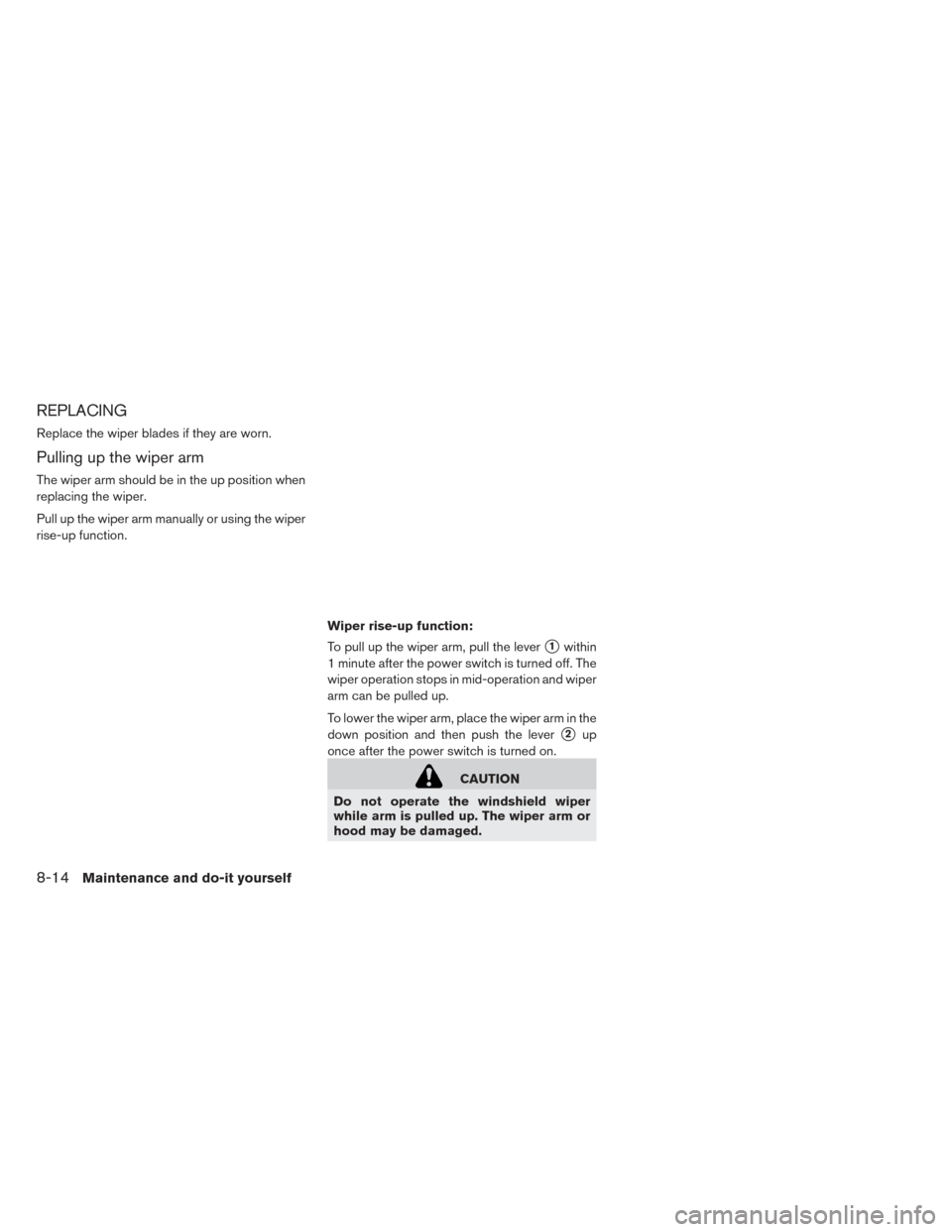

REPLACING
Replace the wiper blades if they are worn.
Pulling up the wiper arm
The wiper arm should be in the up position when
replacing the wiper.
Pull up the wiper arm manually or using the wiper
rise-up function.Wiper rise-up function:
To pull up the wiper arm, pull the lever
1within
1 minute after the power switch is turned off. The
wiper operation stops in mid-operation and wiper
arm can be pulled up.
To lower the wiper arm, place the wiper arm in the
down position and then push the lever
2up
once after the power switch is turned on.
CAUTION
Do not operate the windshield wiper
while arm is pulled up. The wiper arm or
hood may be damaged.
8-14Maintenance and do-it yourself
Page 372 of 424

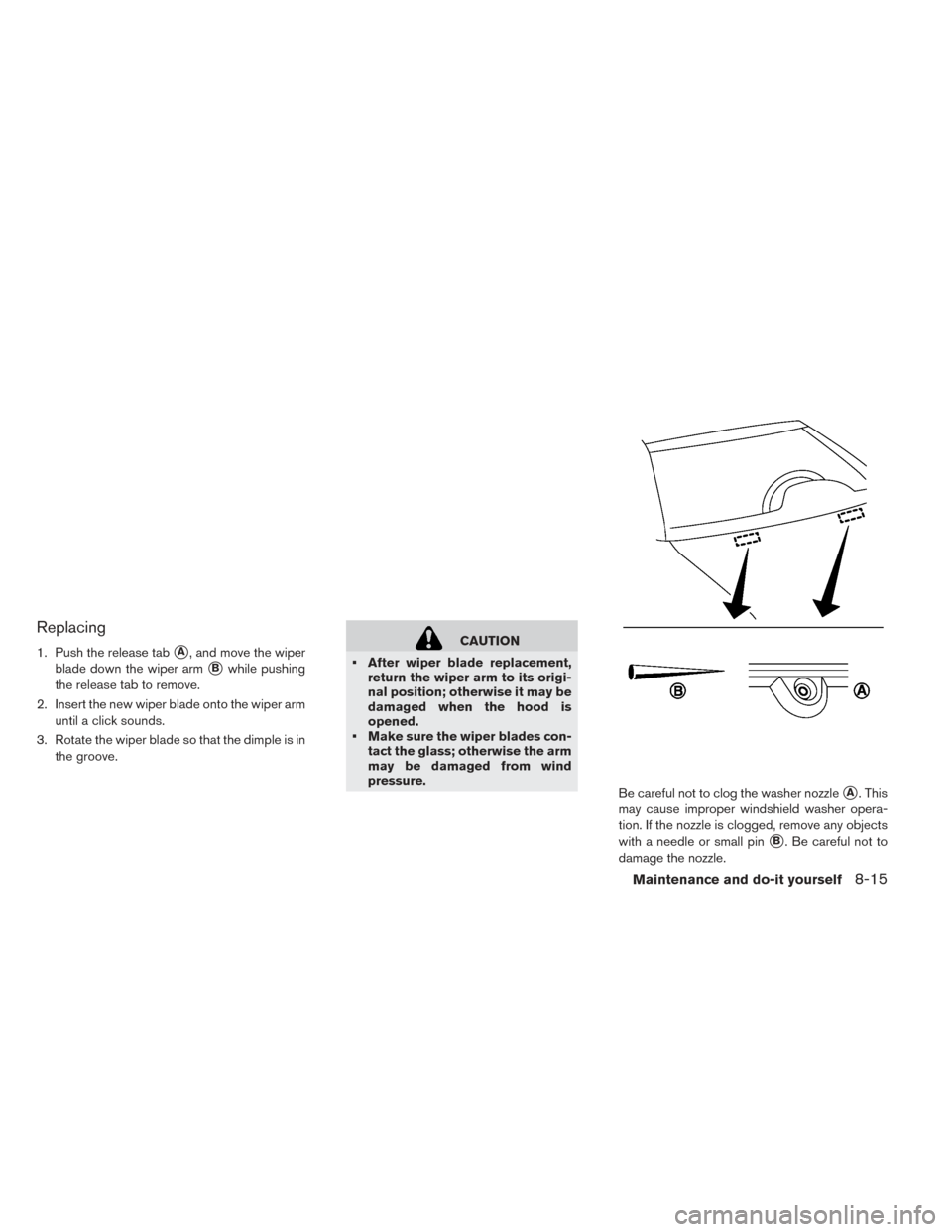

Replacing
1. Push the release tabA, and move the wiper
blade down the wiper arm
Bwhile pushing
the release tab to remove.
2. Insert the new wiper blade onto the wiper arm until a click sounds.
3. Rotate the wiper blade so that the dimple is in the groove.
CAUTION
• After wiper blade replacement, return the wiper arm to its origi-
nal position; otherwise it may be
damaged when the hood is
opened.
• Make sure the wiper blades con- tact the glass; otherwise the arm
may be damaged from wind
pressure. Be careful not to clog the washer nozzle
A. This
may cause improper windshield washer opera-
tion. If the nozzle is clogged, remove any objects
with a needle or small pin
B. Be careful not to
damage the nozzle.
Maintenance and do-it yourself8-15
Page 373 of 424

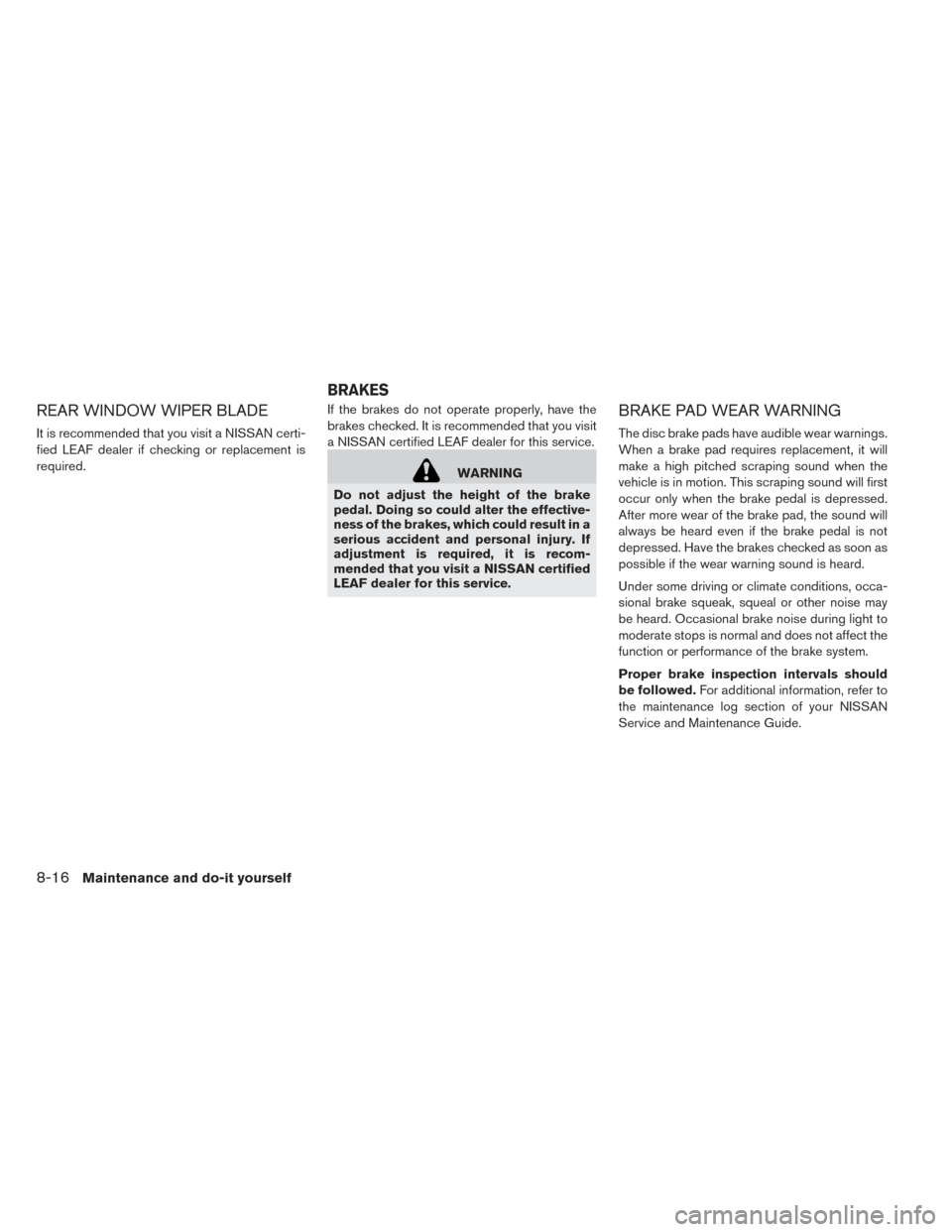

REAR WINDOW WIPER BLADE
It is recommended that you visit a NISSAN certi-
fied LEAF dealer if checking or replacement is
required.If the brakes do not operate properly, have the
brakes checked. It is recommended that you visit
a NISSAN certified LEAF dealer for this service.
WARNING
Do not adjust the height of the brake
pedal. Doing so could alter the effective-
ness of the brakes, which could result in a
serious accident and personal injury. If
adjustment is required, it is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear warnings.
When a brake pad requires replacement, it will
make a high pitched scraping sound when the
vehicle is in motion. This scraping sound will first
occur only when the brake pedal is depressed.
After more wear of the brake pad, the sound will
always be heard even if the brake pedal is not
depressed. Have the brakes checked as soon as
possible if the wear warning sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect the
function or performance of the brake system.
Proper brake inspection intervals should
be followed. For additional information, refer to
the maintenance log section of your NISSAN
Service and Maintenance Guide.
BRAKES
8-16Maintenance and do-it yourself
Page 374 of 424

MOTOR COMPARTMENT
WARNING
• Never touch, disassemble, remove or replace the high-voltage parts and
cables, as well as their connectors.
High-voltage cables are colored or-
ange. Touching, disassembling, re-
moving or replacing those parts and
cables can cause severe burns or elec-
tric shock that may result in serious
injury or death. • Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Confirm that the power switch and the head- light switch are turned off.
2. Open the hood. 3. Remove the fuse/fusible link holder cover by
pushing the tab and lifting the cover from the
right side, and then the left side.
4. Locate the fuse that needs to be replaced.
5. Remove the fuse using the fuse puller located in the passenger compartment fuse box.
FUSES
Maintenance and do-it yourself8-17
Page 375 of 424

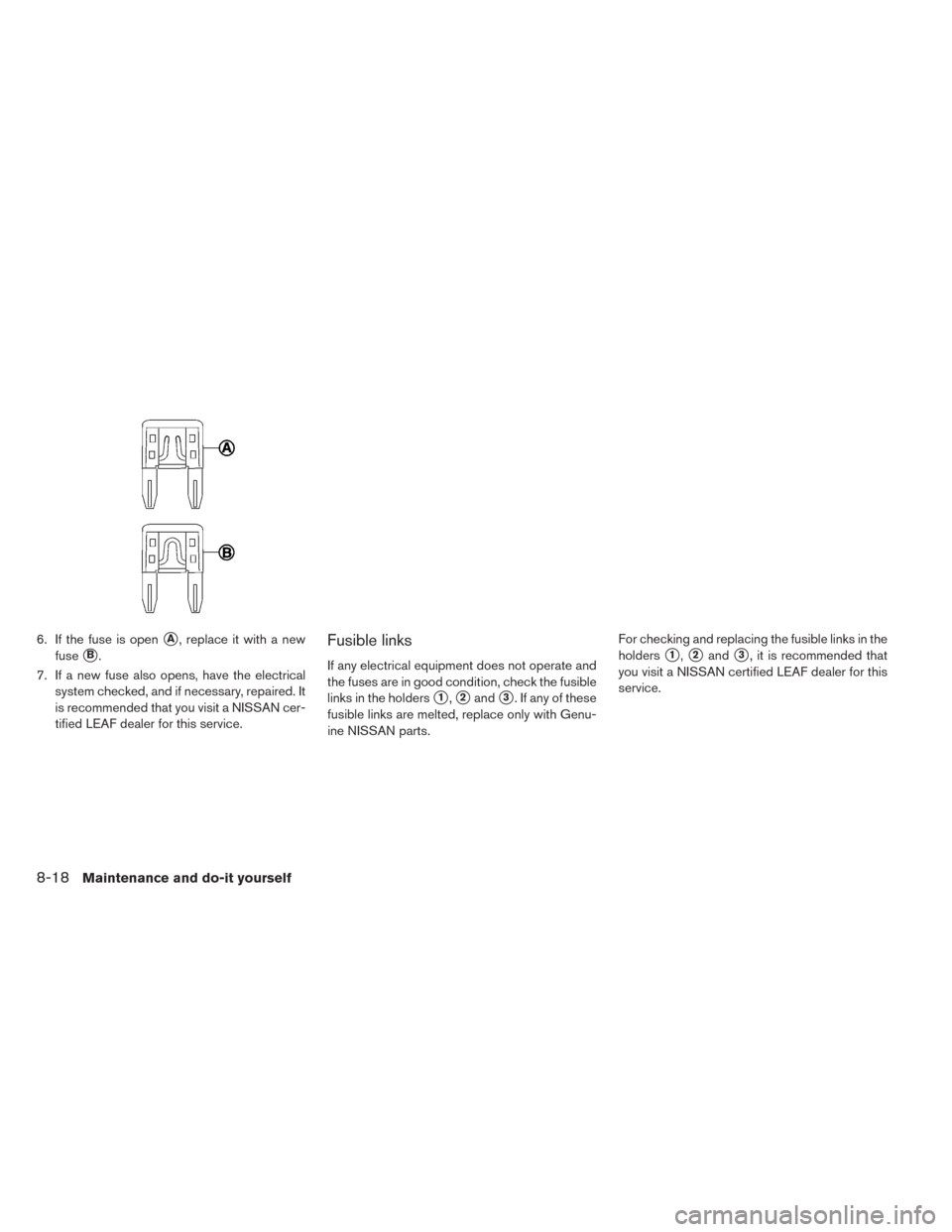

6. If the fuse is openA, replace it with a new
fuse
B.
7. If a new fuse also opens, have the electrical system checked, and if necessary, repaired. It
is recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.Fusible links
If any electrical equipment does not operate and
the fuses are in good condition, check the fusible
links in the holders
1,2and3. If any of these
fusible links are melted, replace only with Genu-
ine NISSAN parts. For checking and replacing the fusible links in the
holders
1,2and3, it is recommended that
you visit a NISSAN certified LEAF dealer for this
service.
8-18Maintenance and do-it yourself
Page 376 of 424
PASSENGER COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic control
units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Make sure that the power switch and the headlight switch are turned off. 2. Insert a screwdriver wrapped with the cloth
Cinto the slit1.
Use a cloth
Cto protect the fuse box cover.
3. Then pull to remove the fuse box cover
2.
4. Remove the fuse with the fuse puller
3. 5. If the fuse is open
A, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical system checked, and if necessary repaired. It
is recommended that you visit a by a NISSAN
certified LEAF dealer for this service.
Maintenance and do-it yourself8-19
