2017 Lexus GX460 Owner's Manual

551-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security

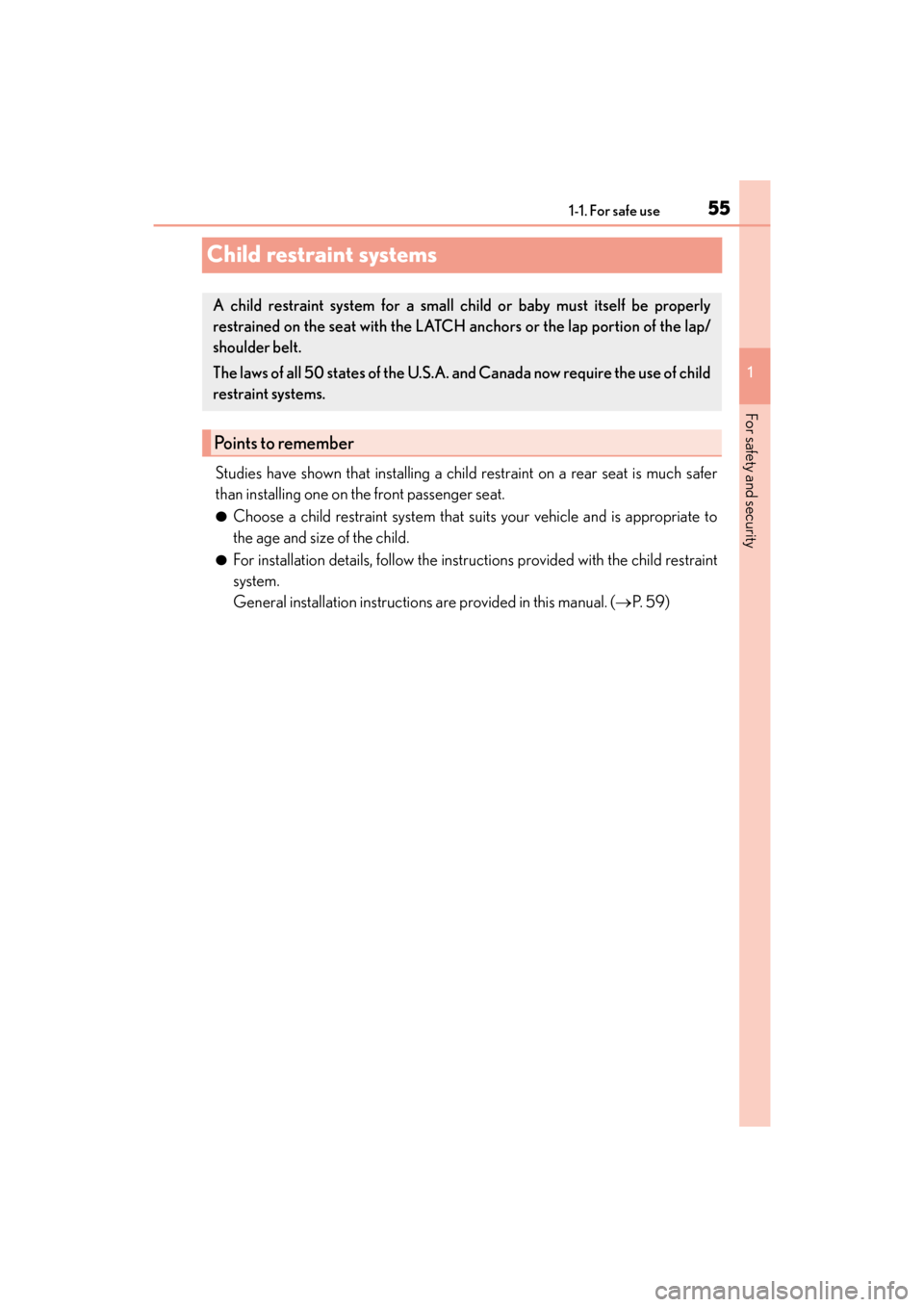

Child restraint systems
Studies have shown that installing a child restraint on a rear seat is much safer
than installing one on the front passenger seat.
●Choose a child restraint system that suits your vehicle and is appropriate to
the age and size of the child.
●For installation details, follow the instructions provided with the child restraint
system.
General installation instructions are provided in this manual. ( →P. 5 9 )
A child restraint system for a small child or baby must itself be properly
restrained on the seat with the LATCH anchors or the lap portion of the lap/
shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of child
restraint systems.
Points to remember
GX460_OM_OM60F68U_(U).book Page 55 Wednesday, June 8, 2016 6:37 PM

561-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )

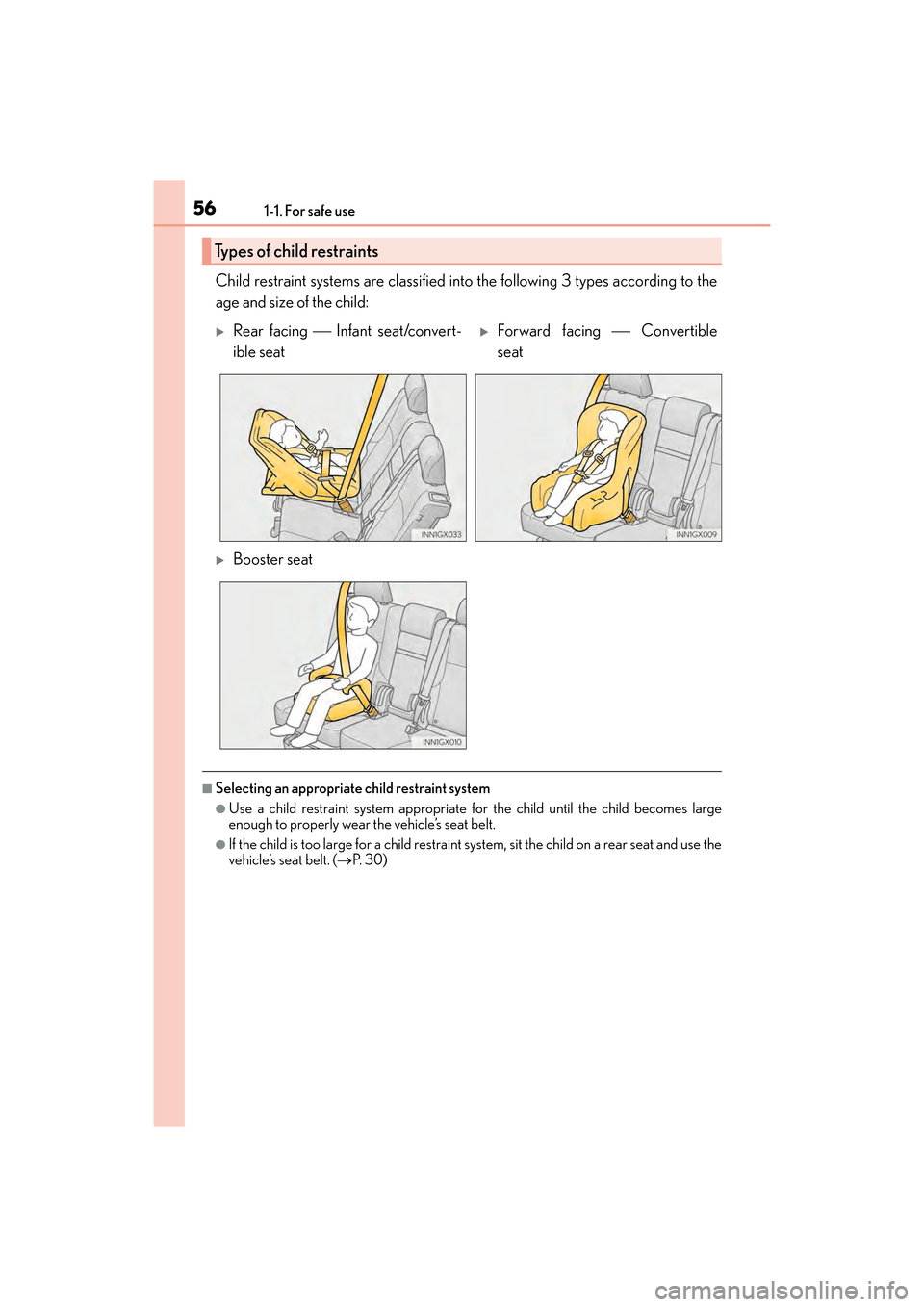

Child restraint systems are classified into the following 3 types according to the
age and size of the child:
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes large
enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint sy stem, sit the child on a rear seat and use the
vehicle’s seat belt. ( →P. 3 0 )
Types of child restraints
XRear facing  Infant seat/convert-
ible seatXForward facing  Convertible
seat
XBooster seat
GX460_OM_OM60F68U_(U).book Page 56 Wednesday, June 8, 2016 6:37 PM

571-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a se at belt or child restraint system depending on the age
and size of the child. Holding a child in your arms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield, or between
you and the vehicle’s interior.
●Lexus strongly urges the use of a proper ch ild restraint system that conforms to the
size of the child, installed on the rear seat . According to accident statistics, the child is
safer when properly restrained in the rear seat than in the front seat.
●Never install a rear-facing child restraint system on the front passenger seat even if
the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front passenger air-
bag can cause death or serious injury to the child if the rear-facing child restraint sys-
tem is installed on th e front passenger seat.
●A forward-facing child restraint system ma y be installed on the front passenger seat
only when it is unavoidable. A child restra int system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat. Adjust the seatback as upright as possible and
always move the seat as far back as possible even if the “AIR BAG OFF” indicator
light is illuminated, because the front passen ger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
●Do not use the seat belt extender when inst alling a child restraint system on the front
or rear passenger seat. If installing a child restraint system with the seat belt extender
connected to the seat belt, the seat belt w ill not securely hold the child restraint sys-
tem, which could cause death or serious injury to the child or other passengers in the
event of a sudden stop, sudden swerve or accident.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front, center an d rear pillars or roof side rails from which
the SRS side airbags or SRS curtain shield ai rbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and curtain shield air-
bags inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all insta llation instructions provided by the child
restraint manufacturer and that the system is properly secured. If it is not secured
properly, it may cause death or serious injury to the child in the event of a sudden
stop, sudden swerve or accident.
GX460_OM_OM60F68U_(U).book Page 57 Wednesday, June 8, 2016 6:37 PM

581-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secure d on the seat even if it is not in use. Do
not store the child restraint system un secured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the luggage compartment. This will prevent it from injuring passen-
gers in the event of a sudden stop, sudden swerve or accident.
GX460_OM_OM60F68U_(U).book Page 58 Wednesday, June 8, 2016 6:37 PM

591-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
Installing child restraints
Child restraint LATCH anchors
X7-passenger models
LATCH anchors are provided for the
right side second seat and between the
center and left side second seats. (But-
tons displaying the location of the
anchors are attached to the seats.)
X6-passenger models
LATCH anchors are provided for both
second seats. (Butto ns displaying the
location of the anchors are attached to
the seats.)
Seat belts equipped with a child
restraint locking mechanism (ALR/
ELR belts except driver’s seat belt)
( → P. 3 2 )
Follow the child restraint system manufacturer’s instructions. Firmly secure
child restraints to the seats using the LATCH anchors or a seat belt. Attach the
top tether strap when installing a child restraint.
The lap/shoulder belt can be used if yo ur child restraint system is not compati-
ble with the LATCH (Lower Anchors and Tethers for Children) system.
GX460_OM_OM60F68U_(U).book Page 59 Wednesday, June 8, 2016 6:37 PM

601-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
Anchor brackets (for top tether strap)
X7-passenger models
An anchor bracket is provided for each
second seat.
X6-passenger models
Anchor brackets are provided for both
second seats and right side third seat.
GX460_OM_OM60F68U_(U).book Page 60 Wednesday, June 8, 2016 6:37 PM

611-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security

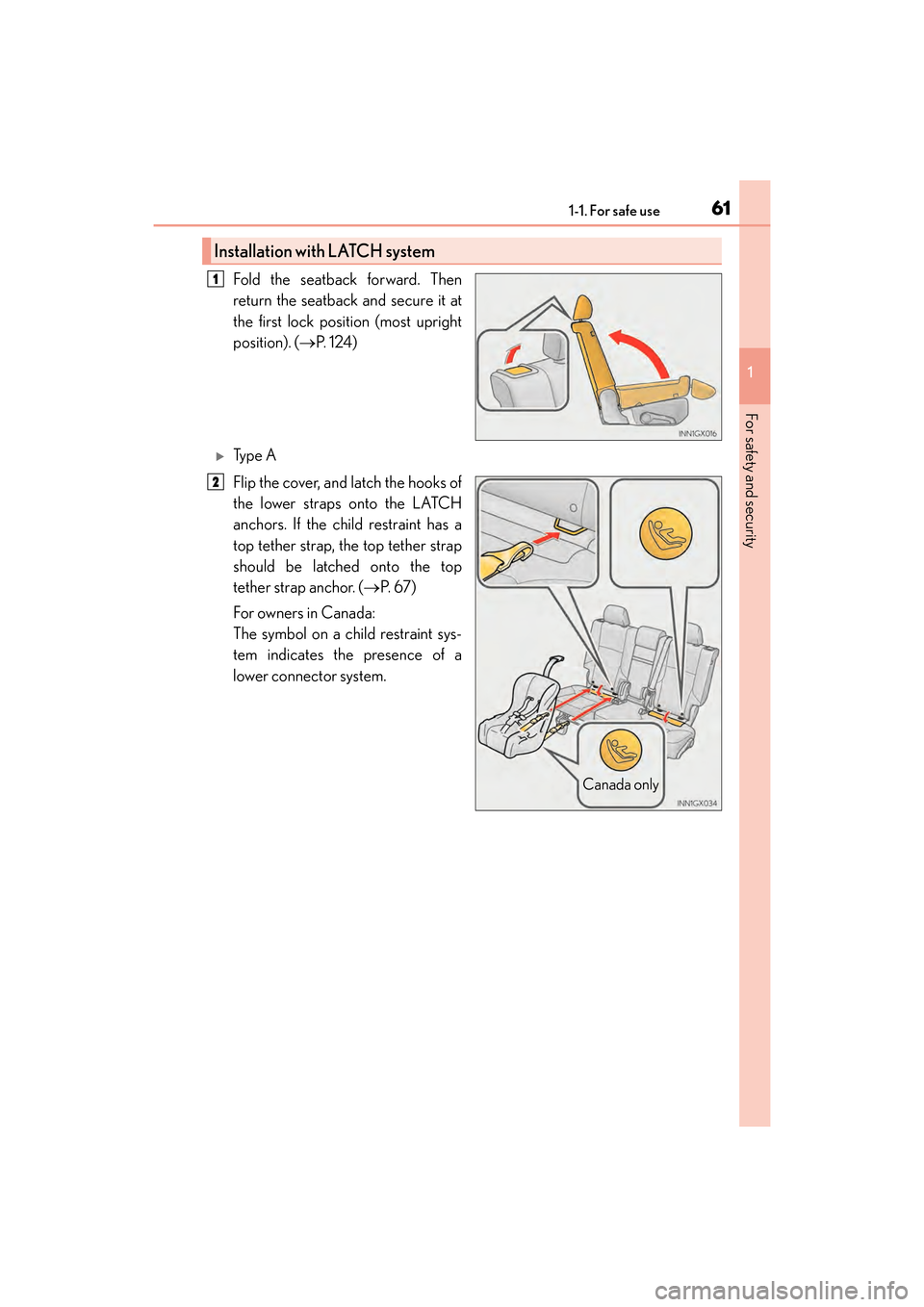

Fold the seatback forward. Then
return the seatback and secure it at
the first lock position (most upright
position). ( →P. 1 2 4 )
XTy p e A
Flip the cover, and latch the hooks of
the lower straps onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether strap
should be latched onto the top
tether strap anchor. ( →P. 6 7 )
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Installation with LATCH system
1
Canada only
2
GX460_OM_OM60F68U_(U).book Page 61 Wednesday, June 8, 2016 6:37 PM

621-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
XTy p e B
Flip the cover, and latch the buckles
onto the LATCH anchors. If the child
restraint has a top tether strap, the
top tether strap should be latched
onto the top tether strap anchor.
(→ P. 6 7 )
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Canada only
2
