2017 Lexus GX460 Owner's Manual

5437-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Jack
Tool box
Spare tire
Location of the spare tire, jack and tools
1
2
3
GX460_OM_OM60F68U_(U).book Page 543 Wednesday, June 8, 2016 6:37 PM

5447-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Be sure to turn off the height control and stop the engine.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle will be injured.
■Using the jack handle
Tighten all the jack handle bolts securely us ing a Phillips-head screwdriver, to prevent
the extension parts from coming apart unexpectedly.
GX460_OM_OM60F68U_(U).book Page 544 Wednesday, June 8, 2016 6:37 PM

5457-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Remove the cover.
Unhook the rubber band and take
out the jack. For loosening
For tightening
Remove the cover.
Take out the tool box.
Taking out the jack
1
2
1
2
Taking out the tool box
1
2
GX460_OM_OM60F68U_(U).book Page 545 Wednesday, June 8, 2016 6:37 PM

5467-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
Assembling the jack handle.
Remove the jack handle and the jack handle extension bar from the tool box
and assemble by following these steps.Loosen the bolt and the screw
using either the jack handle end
or a screwdriver.
Assemble the jack handle exten-
sion bar and the jack handle and
tighten the bolt and the screw.
Check that the bolt and screw are
firmly tightened.
Remove the cover.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body.
Taking out the spare tire
1
1
2
2
GX460_OM_OM60F68U_(U).book Page 546 Wednesday, June 8, 2016 6:37 PM

5477-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Insert the jack handle extension into
the lowering socket. Lower
Raise
Place a rag under the jack handle
extension to protect the rear bumper.
Lower the spare tire completely to
the ground.
If the spare tire becomes caught on the suspension components, raise the tire,
pull it towards the rear of the vehicle, and begin lowering it again. Pull out the spare tire and remove
the holding bracket.
3
1
2
4
5
GX460_OM_OM60F68U_(U).book Page 547 Wednesday, June 8, 2016 6:37 PM

5487-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
Chock the tires.
Pry off the wheel ornament, using
the beveled end of the wheel nut
wrench as shown.
To protect the wheel ornament, place a
rag between the wheel nut wrench and
the wheel ornament.
Slightly loosen the wheel nuts (one
turn).
Replacing a flat tire
1
Flat tireWheel chock position
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
GX460_OM_OM60F68U_(U).book Page 548 Wednesday, June 8, 2016 6:37 PM

5497-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises

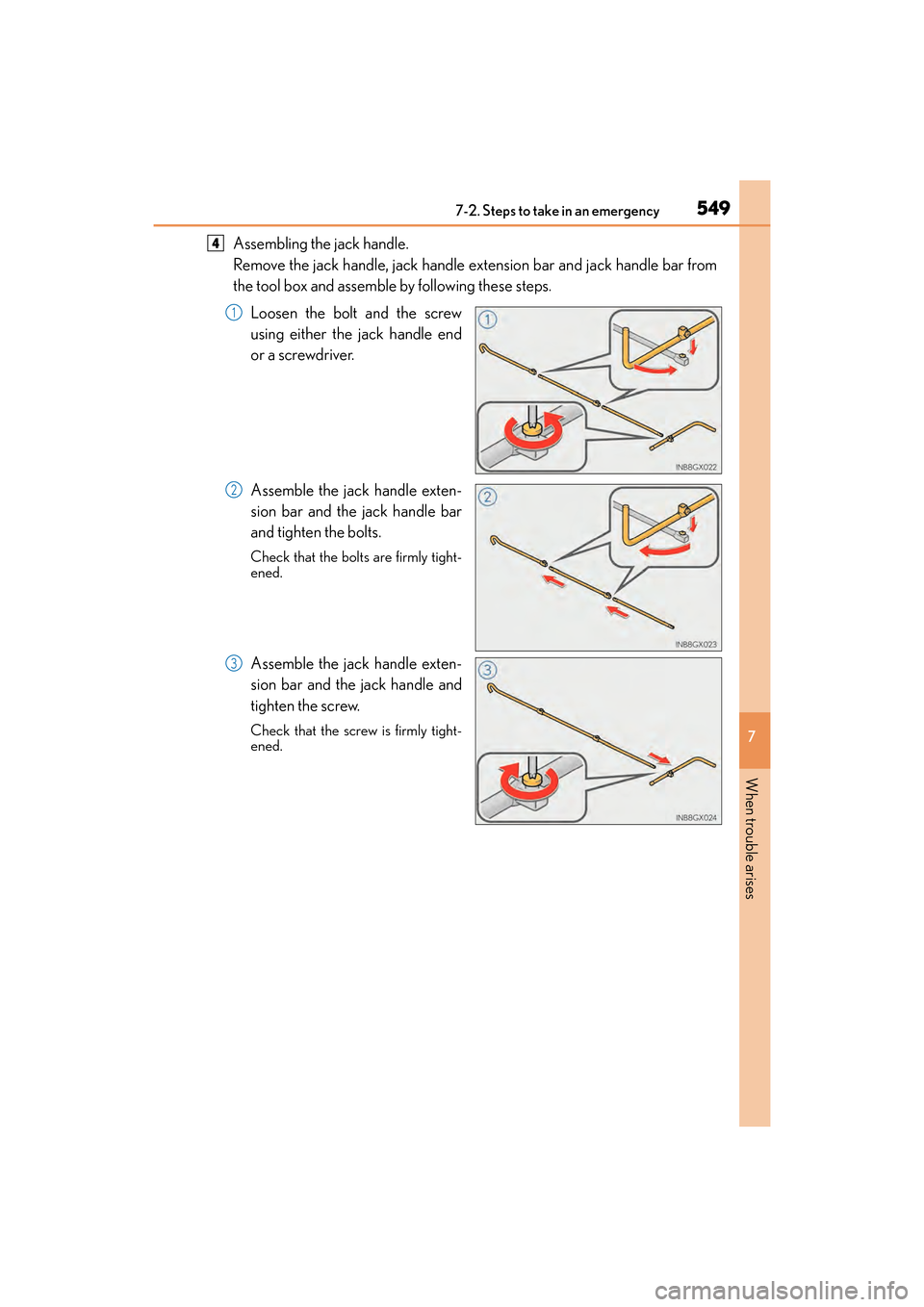

Assembling the jack handle.
Remove the jack handle, jack handle extension bar and jack handle bar from
the tool box and assemble by following these steps.
Loosen the bolt and the screw
using either the jack handle end
or a screwdriver.
Assemble the jack handle exten-
sion bar and the jack handle bar
and tighten the bolts.
Check that the bolts are firmly tight-
ened.
Assemble the jack handle exten-
sion bar and the jack handle and
tighten the screw.
Check that the screw is firmly tight-
ened.
4
1
2
3
GX460_OM_OM60F68U_(U).book Page 549 Wednesday, June 8, 2016 6:37 PM

5507-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
Position the jack at the jack points as
shown.Front
Under the chassis frame side rail
Rear
Under the rear axle housing
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
5
1
2
6
7
