2017 Lexus GX460 Owner's Manual

GX 460 _O M_ OM6 0F 6 8U _(U )
4876-3. Do-it-yourself maintenance
6
Maintenance and care
CAUTION
■Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur which could
lead to an accident resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Air leaking from between tire and wheel
●Wheel deformation and/or tire damage
●Greater possibility of tire damage while driving (due to road hazards, expansion
joints, sharp edges in the road, etc.)
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and cause an air
leak, resulting in decreased tire inflation pressure.
GX460_OM_OM60F68U_(U).book Page 487 Wednesday, June 8, 2016 6:37 PM

488
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Wheels
When replacing wheels, care should be taken to ensure that they are equivalent
to those removed in load capacity, diameter, rim width, and inset
*.
Replacement wheels are available at your Lexus dealer.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
●Use only Lexus wheel nuts and wrenches designed for use with your alumi-
num wheels.
●When rotating, repairing or changing your tires, check that the wheel nuts are
still tight after driving 1000 miles (1600 km).
●Be careful not to damage the aluminum wheels when using tire chains.
●Use only Lexus genuine balance weights or equivalent and a plastic or rubber
hammer when balancing your wheels.
■When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and transmit-
ters that allow the tire pressure warning system to provide advance warning in the event
of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure warning
valves and transmitters must be installed. ( →P. 477)
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss of handling
control.
Wheel selection
Aluminum wheel precautions
GX460_OM_OM60F68U_(U).book Page 488 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
4896-3. Do-it-yourself maintenance
6
Maintenance and care

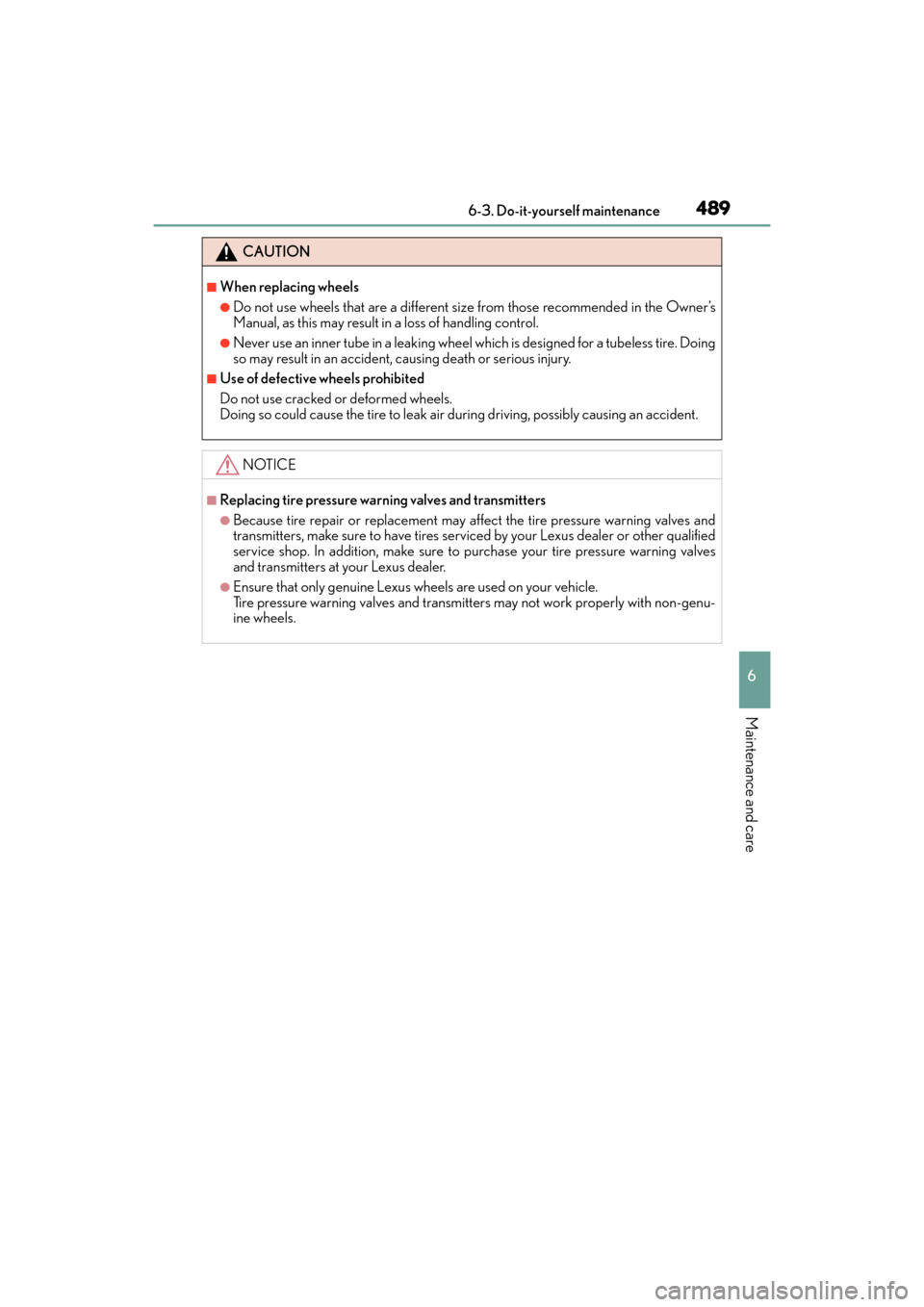

CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the Owner’s
Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel wh ich is designed for a tubeless tire. Doing
so may result in an accident, causing death or serious injury.
■Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an accident.
NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves and
transmitters, make sure to have tires serviced by your Lexus dealer or other qualified
service shop. In addition, make sure to purchase your tire pressure warning valves
and transmitters at your Lexus dealer.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-genu-
ine wheels.
GX460_OM_OM60F68U_(U).book Page 489 Wednesday, June 8, 2016 6:37 PM

490
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Air conditioning filter
Turn the engine switch off.
Open the glove box and remove the
glove box cover.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
Removal method
1
2
3
GX460_OM_OM60F68U_(U).book Page 490 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
4916-3. Do-it-yourself maintenance
6
Maintenance and care
Slide and pull out the filter. Replace
the filter with a new one.
The “↑UP” marks shown on the filter
should be pointing up.
■Changing interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In
dusty areas or areas with heavy traffic flow, early replacement may be required.
(For scheduled maintenance information, please refer to the “Owner’s Manual
Supplement” or “Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
4
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
GX460_OM_OM60F68U_(U).book Page 491 Wednesday, June 8, 2016 6:37 PM

492
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Electronic key battery
●Flathead screwdriver
●Small Phillips-head screwdriver
●Lithium battery (CR1632)
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the
tip of the screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Replace the battery with a new one if it is depleted.
You will need th
e following items:
Replacing the battery
1
2
3
GX460_OM_OM60F68U_(U).book Page 492 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
4936-3. Do-it-yourself maintenance
6
Maintenance and care

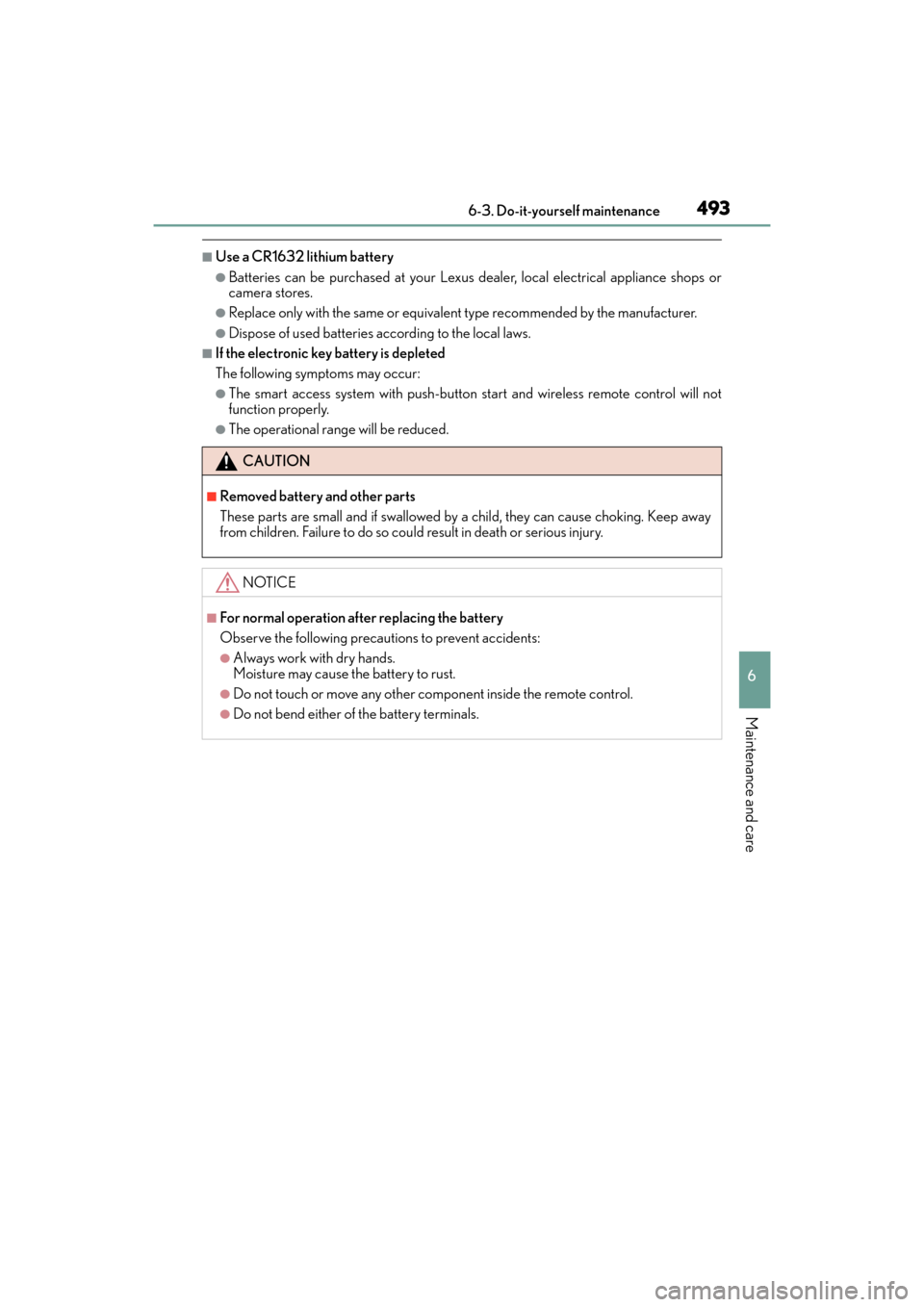

■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will not
function properly.
●The operational range will be reduced.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.
GX460_OM_OM60F68U_(U).book Page 493 Wednesday, June 8, 2016 6:37 PM

494
GX 460 _O M_ OM6 0F 6 8U _(U )6-3. Do-it-yourself maintenance
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
Remove the fuse with the pull-out tool.
Only type A fuse can be removed using
the pull-out tool.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2
XEngine compartmentXDriver’s side instrument panel
Push the tab in and lift the lid off. Remove the lid.
3
GX460_OM_OM60F68U_(U).book Page 494 Wednesday, June 8, 2016 6:37 PM
