2714-5. Using the driving support systems
4
Driving
■Parking operation
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.Shift the shift lever to the R position.
Back up until the parking assist
guide line meets the edge of the
left-hand dividing line of the park-
ing space. Parking assist guide line
Parking space dividing line
Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel with the parking space, straighten the steering
wheel and back up slowly until the vehicle has completely entered the
parking space.
Stop the vehicle in an appropriate place, and finish parking.
1
2
1
2
3
4
5
GX460_OM_OM60F68U_(U).book Page 271 Wednesday, June 8, 2016 6:37 PM

272
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems

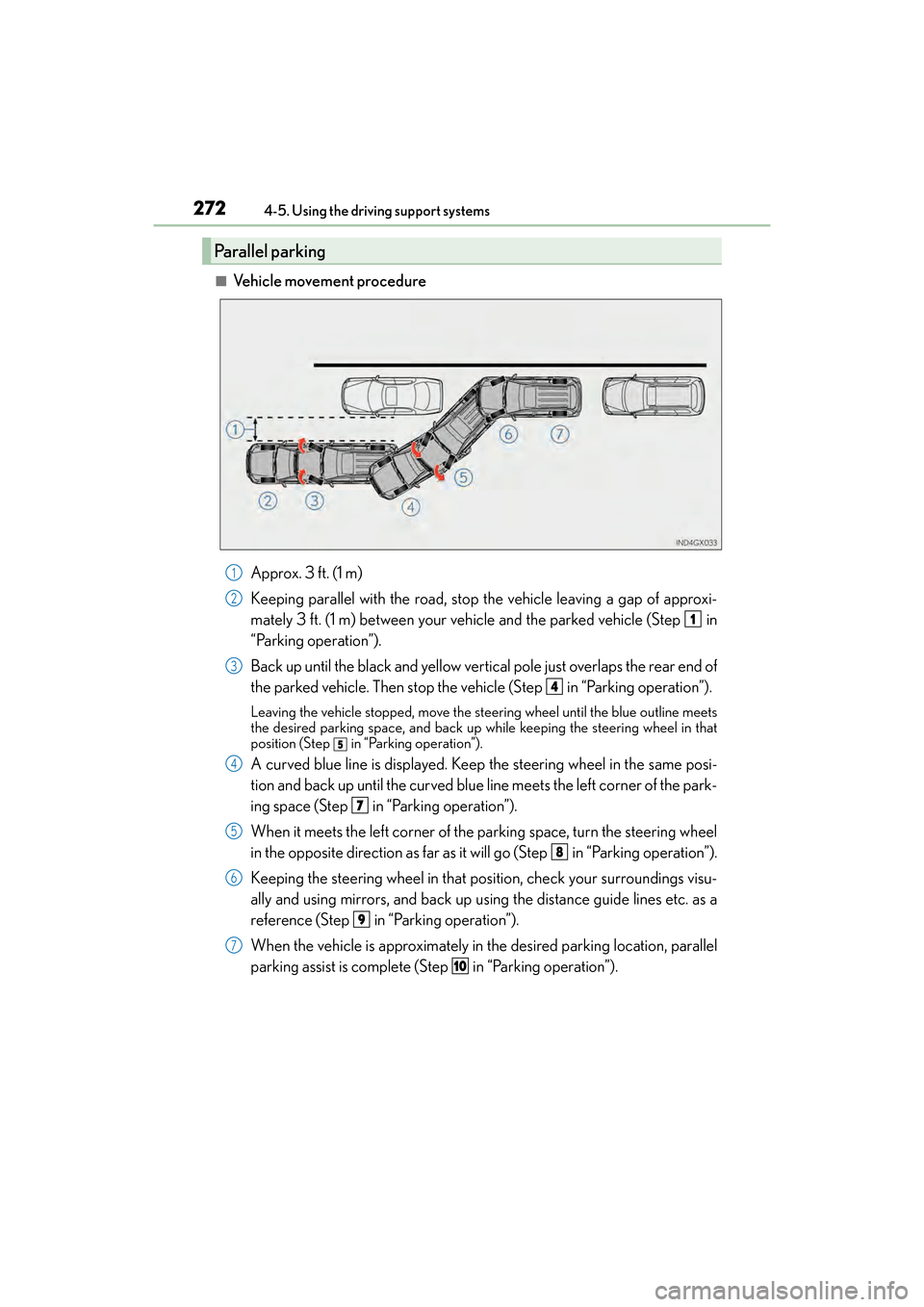

■Vehicle movement procedure
