2017 INFINITI QX30 sensor

MessagePossible causes/consequences and solutions
[Emergency Brake
Inoperative] Forward Emergency Braking is temporarily inoperative due to a malfunction.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Radar Sensor (See
Operator’s Manual):] At least one of the following driving systems or driving safety systems is temporarily restricted or inoperative:
•Forward Emergency Braking•Intelligent Cruise Control
Possible causes:
•The sensors in the radiator trim and/or in the bumpers are dirty.•The function of the driving system and/or driving safety system is impaired due to heavy rain or snow.
A warning tone also sounds.
Once the causes listed above no longer apply, the display message goes out. All driving systems/driving safety systems are operative
again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions
2. Secure the vehicle against rolling away.
3. Switch off the engine.
4. Clean the sensors in the following locations: - In the radiator trim
- In the front bumper
- In the rear bumper, particularly in the middle of the rear bumper.
5. Restart the engine. The display message disappears.
[SRS Malfunction Service Re-
quired] The restraint system needs servicing. Thewarning light also lights up in the combination meter.
It is recommended you visit an INFINITI retailer for these services.
Unless checked and repaired, the Supplemental Restraint Systems and/or the pretensioner seat belt may not function properly.
WARNING
If this light is on, it could mean that the front air bag, side air bag, curtain air bag systems and/or pretensioner systems will not operate in
an accident. To help avoid injury to yourself or others, have your vehicle checked as soon as possible. It is recommended you visit an INFINITI
retailer for this service.
For further information about the restraint system, see Supplemental Restraint System (SRS)in the1. Safety — seats, seat belts and
supplemental restraint system section.
Instruments and controls2-37

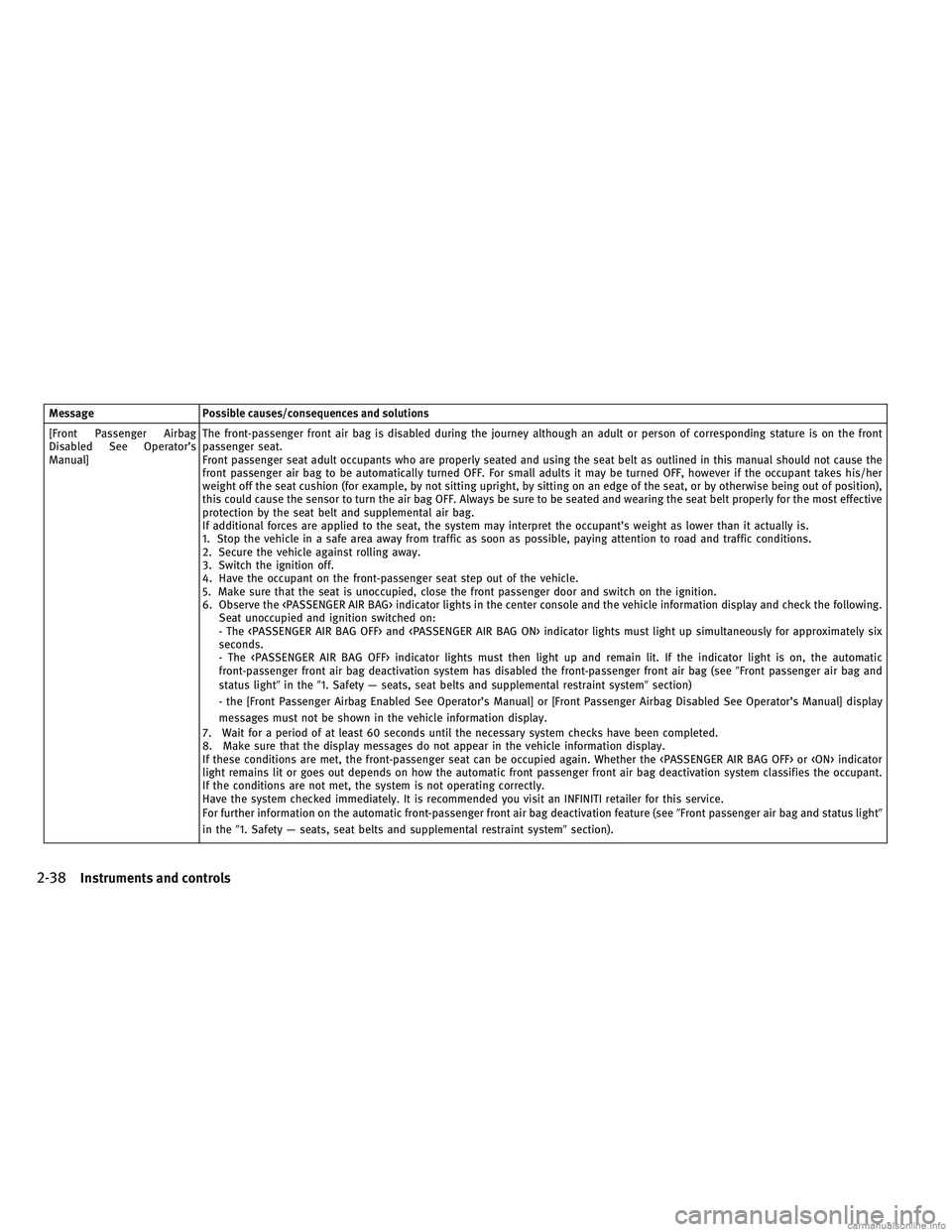

MessagePossible causes/consequences and solutions
[Front Passenger Airbag
Disabled See Operator’s
Manual] The front-passenger front air bag is disabled during the journey although an adult or person of corresponding stature is on the front
passenger seat.
Front passenger seat adult occupants who are properly seated and using the seat belt as outlined in this manual should not cause the
front passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however if the occupant takes his/her
weight off the seat cushion (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position),
this could cause the sensor to turn the air bag OFF. Always be sure to be seated and wearing the seat belt properly for the most effective
protection by the seat belt and supplemental air bag.
If additional forces are applied to the seat, the system may interpret the occupant’s weight as lower than it actually is.
1. Stop the vehicle in a safe area away from traffic as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Switch the ignition off.
4. Have the occupant on the front-passenger seat step out of the vehicle.
5. Make sure that the seat is unoccupied, close the front passenger door and switch on the ignition.
6. Observe the indicator lights in the center console and the vehicle information display and check the following.
Seat unoccupied and ignition switched on:
- The and indicator lights must light up simultaneously for approximately six
seconds.
- The indicator lights must then light up and remain lit. If the indicator light is on, the automatic
front-passenger front air bag deactivation system has disabled the front-passenger front air bag (see Front passenger air bag and
status light in the1. Safety — seats, seat belts and supplemental restraint system section)
- the [Front Passenger Airbag Enabled See Operator’s Manual] or [Front Passenger Airbag Disabled See Operator’s Manual] display
messages must not be shown in the vehicle information display.
7. Wait for a period of at least 60 seconds until the necessary system checks have been completed.
8. Make sure that the display messages do not appear in the vehicle information display.
If these conditions are met, the front-passenger seat can be occupied again. Whether the or indicator
light remains lit or goes out depends on how the automatic front passenger front air bag deactivation system classifies the occupant.
If the conditions are not met, the system is not operating correctly.
Have the system checked immediately. It is recommended you visit an INFINITI retailer for this service.
For further information on the automatic front-passenger front air bag deactivation feature (see Front passenger air bag and status light
in the 1. Safety — seats, seat belts and supplemental restraint system section).
2-38Instruments and controls

MessagePossible causes/consequences and solutions
[Check Left Daytime Running
Light] or [Check Right Daytime
Running Light] The left or right-hand daytime driving light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Adaptive front lighting system
Inoperative]
The Adaptive Front Lighting System is faulty. The lights remain available without the Adaptive Front Lighting System.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Malfunction See Operator’s
Manual]The exterior lighting is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Auto Lamp Function inopera-
tive]The light sensor is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Switch Off Lights]
The side lights are still switched on when you leave the vehicle. A warning tone also sounds.
Turn the light switch to.
[High beam assist Currently Un-
available See Operator’s
Manual] High beam assist is deactivated and temporarily inoperative. Possible causes:
•The windshield is dirty in the camera’s field of vision.•Visibility is impaired due to heavy rain, snow or fog.
Clean the windshield.
If the system detects that the camera is fully operational again, the [High beam assist Available Again] message is displayed.
[High beam assist Inoperative] High beam assist is faulty. Have the system checked. It is recommended you visit an INFINITI retailer for this service.
2-42Instruments and controls

Driving systems
MessagePossible causes/consequences and solutions
[Lane Departure Warning
Currently Unavailable See
Operator’s Manual] Lane Departure Warning is deactivated and temporarily inoperative.
Possible causes:
•The windshield is dirty in the camera’s field of vision.•Visibility is impaired due to heavy rain, snow or fog.•There have been no lane markings for an extended period.•The lane markings are worn, dark or covered, e.g. by dirt or snow.
Once the causes listed above no longer apply, the display message goes out.
Lane Departure Warning is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away.
3. Clean the windshield
[Lane Departure Warning In-
operative] Lane Departure Warning is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Blind Spot Warning Currently
Unavailable See Operator’s
Manual] Blind Spot Warning is temporarily inoperative. Possible causes:
•The function is impaired due to heavy rain or snow.•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations or
other sources of electromagnetic radiation.
•The radar sensor system is outside the operating temperature range.
The yellow indicator lights also light up in the exterior mirrors.
Once the causes listed above no longer apply, the display message goes out.
Blind Spot Warning is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away.
3. Restart the engine
[Blind Spot Warning Not Avail-
able When Towing a Trailer
See Operator’s Manual] Blind Spot Warning is deactivated while towing a trailer.
You have established the electrical connection between the trailer and your vehicle.
Press on the steering wheel to confirm the display message.
Instruments and controls2-47

MessagePossible causes/consequences and solutions
[Blind Spot Warning
Inoperative] Blind Spot Warning (BSW) is faulty.
The BSW indicator lights also light up.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Canceled] The driver’s door is open and the driver’s seat belt has not been fastened. Repeat the parking process with the seat belt fastened and the driver’s door closed.
You inadvertently touched the steering wheel while steering intervention was active.
While steering intervention is active, make sure not to touch the steering wheel.
The vehicle has started to skid and VDC has intervened.
Use Intelligent Park Assist again later.
[Park Assist Inoperative] You have just carried out a large number of turning or parking maneuvers. Intelligent Park Assist will become available again after approximately ten minutes.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Restart the engine.
If the display message continues to be displayed, have the system checked. It is recommended you visit an INFINITI retailer for this service.
The parking sensor system is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Finished] The vehicle is parked. A warning tone also sounds. The display message disappears automatically.
[ICC Off] Intelligent Cruise Control has been deactivated (see Intelligent Cruise Control (ICC) system (Full speed range) (if equipped) in the
5. Starting and driving section).
If it was not deactivated by the driver, a warning tone also sounds.
[ICC Now Available] Intelligent Cruise Control is operational again after having been temporarily unavailable. You can now reactivate Intelligent Cruise Control (seeIntelligent Cruise Control (ICC) system (Full speed range) (if equipped) in the5. Starting and driving section)
2-48Instruments and controls

MessagePossible causes/consequences and solutions
[ICC Currently Unavailable
See Operator’s Manual] Intelligent Cruise Control is temporarily inoperative.
Possible causes:
•The function is impaired due to heavy rain or snow.•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations or
other sources of electromagnetic radiation.
•The system is outside the operating temperature range.•The on-board voltage is too low.
A warning tone also sounds.
Once the causes listed above no longer apply, the display message goes out.
Intelligent Cruise Control is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Restart the engine
[ICC Inoperative] Intelligent Cruise Control is faulty. Forward Emergency Braking may also have become inoperative. A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[ICC Suspended] You have depressed the accelerator pedal. Intelligent Cruise Control is no longer controlling the speed of the vehicle. Remove your foot from the accelerator pedal.
[ICC---MPH] An activation condition for Intelligent Cruise Control is not fulfilled.
Check the activation conditions for Intelligent Cruise Control (see Intelligent Cruise Control (ICC) system (Full speed range) (if equipped)
in the 5. Starting and driving section)
[ICC and Speed Limiter Inop-
erative] Intelligent Cruise Control and Speed Limiter are faulty.
A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Cruise Control and Speed
Limiter Inoperative] Cruise Control and Speed Limiter are faulty.
A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Speed Limiter Suspended] While depressing the accelerator pedal beyond the pressure point (kickdown), Speed Limiter cannot be activated. If conditions permit, drive faster than 20 MPH (30 km/h) and store the speed.
Instruments and controls2-49

MessagePossible causes/consequences and solutions
[Tire Press. Monitor Currently
Unavailable] No signals can be received from the tire pressure sensors due to strong RF interference. The tire pressure monitor is temporarily
malfunctioning.
Drive on. The tire pressure monitoring system restarts automatically as soon as the cause has been rectified.
[Tire Press. Sensor(s)
Missing] There is no signal from the tire pressure sensor of one or several wheels. The pressure of the affected tire is not displayed in the vehicle
information display.
Have the faulty tire pressure sensor replaced. It is recommended you visit an INFINITI retailer for this service.
[Tire Press. Monitor
Inoperative No Wheel
Sensors] The wheels fitted do not have suitable tire pressure sensors. The tire pressure monitoring system is deactivated.
Fit wheels with suitable tire pressure sensors The tire pressure monitoring system is activated automatically after driving for a few
minutes.
[Tire Press. Monitor
Inoperative] The tire pressure monitoring system is faulty.
2-52Instruments and controls

SWITCHING THE WINDSHIELD WIPERS
ON/OFF
1Windshield wipers off.
2Intermittent wipe, low (rain sensor
set to low sensitivity).
3Intermittent wipe, high (rain sen-
sor set to high sensitivity).
4Continuous wipe, slow.
5Continuous wipe, fast.
ASingle wipe/
wipe the windshield using washer fluid.
The windshield wiper and washer operate when
the ignition switch is in the ON position.
Turn the combination switch to the desired
position.
Rain sensor (if equipped)
CAUTION
•Do not touch the rain sensor and around it
when the wiper switch is in theorposition and the ignition switch is in
the ON position. The wipers may operate
unexpectedly and cause an injury or may
damage a wiper.
•The rain-sensing auto wipers are intended
for use during rain. If the switch is left in the
orposition, the wipers may
operate unexpectedly when dirt, finger-
prints, oil film or insects are stuck on or
around the sensor. The wipers may also op-
erate when exhaust gas or moisture affect
the rain sensor.
•When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
•Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
•The rain-sensing auto wipers may not oper-
ate if rain does not hit the rain sensor even if
it is raining.
•Using genuine wiper blades is recom-
mended for proper operation of the rain-
sensing auto wiper system. For additional
information, refer to Wiper bladesin the
8. Do-it-yourself section.
•Vehicles with a rain sensor: if the wind-
shield becomes dirty in dry weather condi-
tions, the windshield wipers may be acti-
vated inadvertently. This could damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Vehicles with a rain sensor: in the
orposition, the appropriate wiping fre-
quency is automatically set according to the
intensity of the rain. In the
position, the
rain sensor is more sensitive than in the
position, causing the windshield wiper to wipe
more frequently.
If the wiper blades are worn, the windshield will
no longer be wiped properly. This could prevent
you from observing the traffic conditions.
The rain-sensing auto wiper system uses the
rain sensor located on the upper part of the
windshield.
NIC2810Combination switch
2-60Instruments and controls
