2017 INFINITI QX30 sensor

When a front air bag inflates, a fairly loud noise
may be heard, followed by the release of smoke.
This smoke is not harmful and does not indicate a
fire. Care should be taken to not inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
Front air bags, along with the use of seat belts,
help to cushion the impact force on the face and
chest of the front occupants. They can help save
lives and reduce serious injuries. However, an
inflating front air bag may cause facial abrasions
or other injuries. Front air bags do not provide
restraint to the lower body.
Even with INFINITI Advanced Air Bags, seat belts
should be correctly worn and the driver and pas-
senger seated upright as far as practical away
from the steering wheel or instrument panel. The
front air bags inflate quickly in order to help
protect the front occupants. Because of this, the
force of the front air bag inflating can increase the
risk of injury if the occupant is too close to, or is
against, the front air bag module during inflation.
The front air bags deflate quickly after a collision.The front air bags operate only when the
ignition switch is placed in the ON position.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off a few seconds
after the engine starts if the system is op-
erational.
Front passenger air bag and status
light
WARNING
The front passenger air bag is designed to
automatically turn OFF under some condi-
tions. Read this section carefully to learn
how it operates. Proper use of the seat,
seat belt and child restraints is necessary
for most effective protection. Failure to
follow all instructions in this manual con-
cerning the use of seats, seat belts and
child restraints can increase the risk or
severity of injury in an accident.
1indi-
cator light
2indi-
cator light
Status light
The front passenger seat is equipped with an
occupant classification sensor (pressure sensor)
that turns the front passenger air bag on or off
depending on the weight applied to the front
passenger seat. The indicator lights inform you
whether the front passenger front air bag is dis-
abled or enabled.
LRS2885

Place the ignition in the ON position. The system
carries out a self-diagnosis.
The and SENGER AIR BAG ON> indicator lights will light
up simultaneously for approximately six seconds.
The indicator lights display the status of the front
passenger front air bag:● lights up:
the front passenger front air bag is enabled.
If, in the event of an accident, all deployment
criteria are met, the front passenger front air
bag is deployed.
● lights up:
the front passenger front air bag is disabled.
It will then not be deployed in the event of an
accident.
If the status of the front passenger front air bag
changes while the vehicle is in motion, an air bag
display message appears in the vehicle informa-
tion display. When the front passenger seat is
occupied, always pay attention to the SENGER AIR BAG ON> and AIR BAG OFF> indicator lights. Be aware of the
status of the front passenger front air bag both
before and during the journey.
If neither the or
the indicator lights
light up, or if either indicator light only lights up intermittently during the journey, the front passen-
ger seat may not be used for a child restraint. Use
another seating position for the child restraint.
INFINITI recommends that all child restraints be
installed in the rear seat. Preteen children should
be seated in the rear seat. For further information
see “Troubleshooting” later in this section.
Front passenger air bag
The front passenger air bag is designed to auto-
matically turn OFF when the vehicle is operated
under some conditions as described below in
accordance with U.S. regulations. If the front
passenger air bag is OFF, it will not inflate in a
crash. The driver air bag and other air bags in your
vehicle are not part of this system. The purpose of
the regulation is to help reduce the risk of injury or
death from an inflating air bag to certain front
passenger seat occupants, such as children, by
requiring the air bag to be automatically turned
OFF under some conditions. Certain sensors are
used to meet the requirements.
The occupant classification sensor in this vehicle
is a pressure sensor. It is designed to detect an
occupant and objects on the seat by weight. For
example, if a child up to the approximate size and
weight of a one year old is properly restrained in
the front passenger seat, the INFINITI Advanced
Air Bag System is designed to turn the front
passenger air bag OFF. For a properly restrainedchild who is larger than the approximate size and
weight of a one year old, the front passenger air
bag may or may not be automatically turned OFF,
depending on the size of the child and the type of
child restraint being used. After installing the
child restraint and positioning the child, place the
ignition switch in the ON position: if the SENGER AIR BAG OFF> indicator light is illu-
minated, the air bag is OFF. If the AIR BAG ON> indicator light is illuminated, the
air bag will inflate in a crash. Front passenger seat
adult occupants who are properly seated and
using the seat belt as outlined in this manual
should not cause the front passenger air bag to
be automatically turned OFF. For small adults it
may be turned OFF, however if the occupant
takes his/her weight off the seat cushion (for
example, by not sitting upright, by sitting on an
edge of the seat, or by otherwise being out of
position) , this could cause the sensor to turn the
air bag OFF. Always be sure to be seated and
wearing the seat belt properly for the most effec-
tive protection by the seat belt and supplemental
air bag. INFINITI recommends that pre-teens and
children be properly restrained in a rear seat.
INFINITI also recommends that appropriate child
restraints and booster seats be properly installed
in a rear seat. If this is not possible, the occupant
classification sensor is designed to operate as
described above to turn the front passenger air
bag OFF for specified child restraints as required

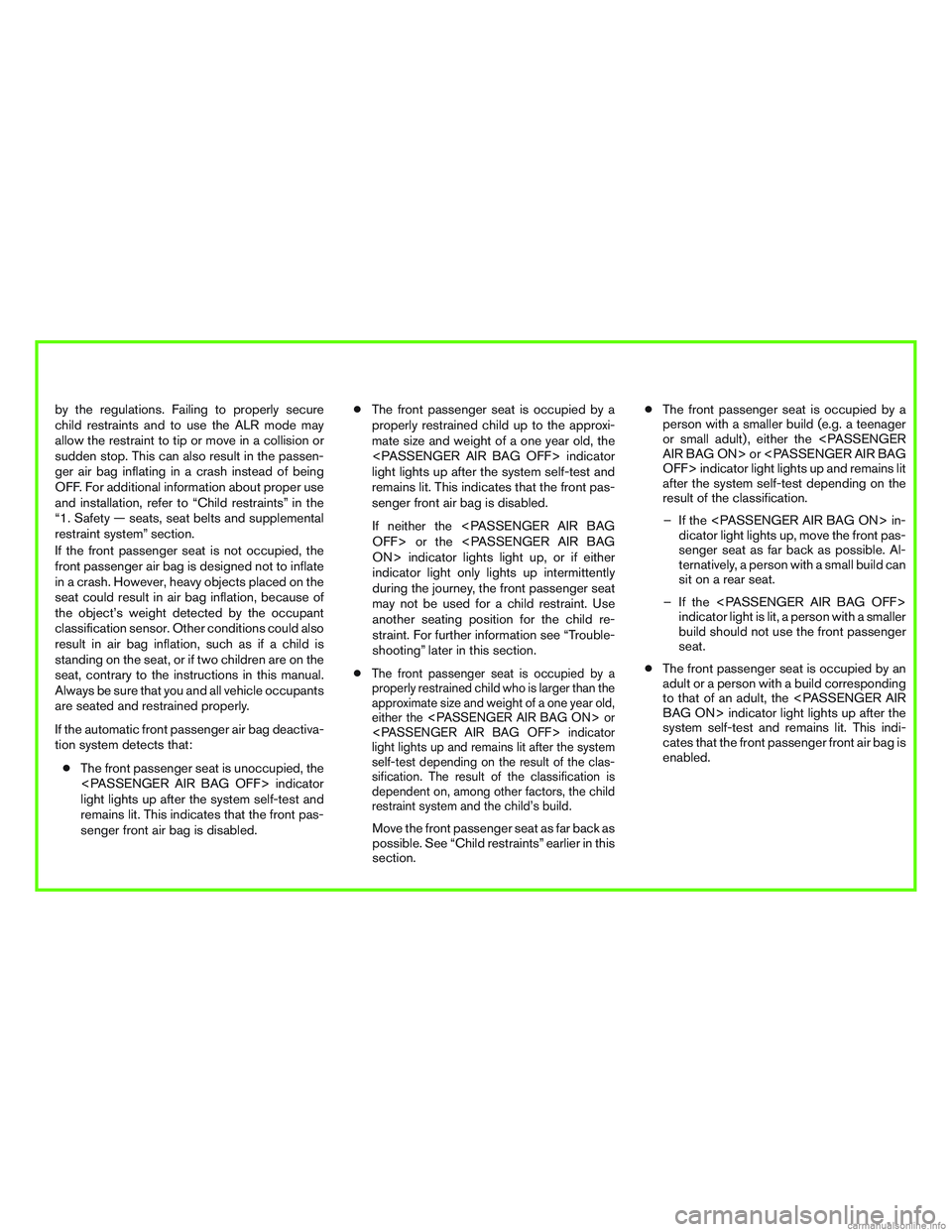

by the regulations. Failing to properly secure
child restraints and to use the ALR mode may
allow the restraint to tip or move in a collision or
sudden stop. This can also result in the passen-
ger air bag inflating in a crash instead of being
OFF. For additional information about proper use
and installation, refer to “Child restraints” in the
“1. Safety — seats, seat belts and supplemental
restraint system” section.
If the front passenger seat is not occupied, the
front passenger air bag is designed not to inflate
in a crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object’s weight detected by the occupant
classification sensor. Other conditions could also
result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle occupants
are seated and restrained properly.
If the automatic front passenger air bag deactiva-
tion system detects that:● The front passenger seat is unoccupied, the
indicator
light lights up after the system self-test and
remains lit. This indicates that the front pas-
senger front air bag is disabled. ●
The front passenger seat is occupied by a
properly restrained child up to the approxi-
mate size and weight of a one year old, the
indicator
light lights up after the system self-test and
remains lit. This indicates that the front pas-
senger front air bag is disabled.
If neither the OFF> or the ON> indicator lights light up, or if either
indicator light only lights up intermittently
during the journey, the front passenger seat
may not be used for a child restraint. Use
another seating position for the child re-
straint. For further information see “Trouble-
shooting” later in this section.
●
The front passenger seat is occupied by a
properly restrained child who is larger than the
approximate size and weight of a one year old,
either the or
indicator
light lights up and remains lit after the system
self-test depending on the result of the clas-
sification. The result of the classification is
dependent on, among other factors, the child
restraint system and the child’s build.
Move the front passenger seat as far back as
possible. See “Child restraints” earlier in this
section. ●
The front passenger seat is occupied by a
person with a smaller build (e.g. a teenager
or small adult) , either the AIR BAG ON> or OFF> indicator light lights up and remains lit
after the system self-test depending on the
result of the classification.
– If the in- dicator light lights up, move the front pas-
senger seat as far back as possible. Al-
ternatively, a person with a small build can
sit on a rear seat.
– If the indicator light is lit, a person with a smaller
build should not use the front passenger
seat.
● The front passenger seat is occupied by an
adult or a person with a build corresponding
to that of an adult, the BAG ON> indicator light lights up after the
system self-test and remains lit. This indi-
cates that the front passenger front air bag is
enabled.

Other supplemental front-impact air
bag precautions
WARNING
●Do not place any objects on the steering
wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may be-
come dangerous projectiles and cause
injury if the front air bags inflate.
● Immediately after inflation, several
front air bag system components will be
hot. Do not touch them; you may se-
verely burn yourself.
● No unauthorized changes should be
made to any components or wiring of
the supplemental air bag system. This is
to prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system.
● Do not make unauthorized changes to
your vehicle’s electrical system, sus-
pension system or front end structure.
This could affect proper operation of
the front air bag system. ●
Tampering with the front air bag system
may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and above
the instrument panel or by installing
additional trim material around the air
bag system.
● Removing or modifying the front pas-
senger seat may affect the function of
the air bag system and result in serious
personal injury.
● Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing mate-
rial on the seat cushion or by installing
additional trim material, such as seat
covers, on the seat that are not specifi-
cally designed to assure proper air bag
operation. Additionally, do not stow any
objects under the front passenger seat
or the seat cushion and seatback. Such
objects may interfere with the proper
operation of the occupant classification
sensor (pressure sensor) . ●
No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with
the seat belt system may result in seri-
ous personal injury.
● It is recommended that you visit an
INFINITI retailer for work on and around
the front air bag. It is also recom-
mended that you visit an INFINITI re-
tailer for installation of electrical equip-
ment. The Supplemental Restraint
System (SRS) wiring harnesses* should
not be modified or disconnected. Unau-
thorized electrical test equipment and
probing devices should not be used on
the air bag system.
● A cracked windshield should be re-
placed immediately by a qualified repair
facility. A cracked windshield could af-
fect the function of the supplemental air
bag system.
*The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
