–Vehicles such as motorcycles, low
height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone
when you accelerate from a stop.
– A vehicle merging into an adjacent lane
at a speed approximately the same as
your vehicle.
– A vehicle that is too close to your ve-
hicle.
– A vehicle approaching rapidly from be-
hind.
– A vehicle which your vehicle overtakes
rapidly.
•The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar sen-
sors may not detect vehicles in an adjacent
lane. When driving in a narrow lane, the
radar sensors may detect vehicles driving
two lanes away.
•The radar sensors are designed to ignore
most stationary objects, however objects
such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal operating condition.
•The following conditions may reduce the
ability of the radar to detect other vehicles: –
Severe weather
– Road spray
– Ice build-up on the vehicle
– Frost build-up on the vehicle
– Dirt build- up on the vehicle
•Do not attach stickers (including transpar-
ent material), install accessories or apply
additional paint near the radar sensors.
These conditions may reduce the ability of
the radar to detect other vehicles.
•Do not use the BSW system when towing a
trailer because the system may not function
properly.
•Excessive noise (e.g. audio system volume,
open vehicle window) will interfere with the
chime sound, and it may not be heard.
•The BSW system may not provide a warning
for vehicles that pass through the detection
zone quickly.
Another vehicle approaching from
behind
Illustration 1: The BSW indicator light illumi-
nates if a vehicle enters the detection zone from
behind in an adjacent lane.
However, if the overtaking vehicle is travelling
much faster than your vehicle, the indicator
light may not illuminate before the detected
vehicle is beside your vehicle. Always use the
side and rear mirrors and turn and look in the
direction your vehicle will move to ensure it is
safe to change lanes.
SSD1026ZIllustration 1 – Approaching from behind
Starting and driving5-39

Illustration 2: If the driver activates the turn
signal, then the system chimes (twice) and the
BSW indicator light flashes.
NOTE
•The radar sensors may not detect vehicles
which are approaching rapidly from behind.
•If the driver activates the turn signal before a
vehicle enters the detection zone, the BSW
indicator light will flash but no chime will
sound when the other vehicle is detected.
Accelerate from a stop
NOTE
Illustration 3: If you accelerate from a stop with a
vehicle in the detection zone, the other vehicle
may not be detected.
Overtaking another vehicle
When you overtake a vehicle, the warning only
occurs if the difference in speed is less than
7 MPH (12 km/h).
Illustration 4: The side indicator light illumi-
nates if you overtake a vehicle and that vehicle
stays in the detection zone for approximately
3 seconds.
SSD1031ZIllustration 2 – Approaching from behindSSD1032ZIllustration3–Accelerate from a stopSSD1033ZIllustration4–O vertaking another vehicle
5-40Starting and driving

Illustration 5: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes (twice) and the
BSW indicator light flashes.
NOTE
•When overtaking several vehicles in a row,
the vehicles after the first vehicle may not be
detected if they are travelling close together.
•The radar sensors may not detect slower
moving vehicles if they are passed quickly.
•If the driver activates the turn signal before a
vehicle enters the detection zone, the side
indicator light will flash but no chime will
sound when the other vehicle is detected.
Overtaking several vehicles
Illustration 6: When overtaking several vehicles
in a row, the vehicles after the first vehicle may
not be detected if they are travelling close
together.
SSD1034ZIllustration5–Overtaking another vehicleSSD1036ZIllustration6–O vertaking several vehicles
Starting and driving5-41

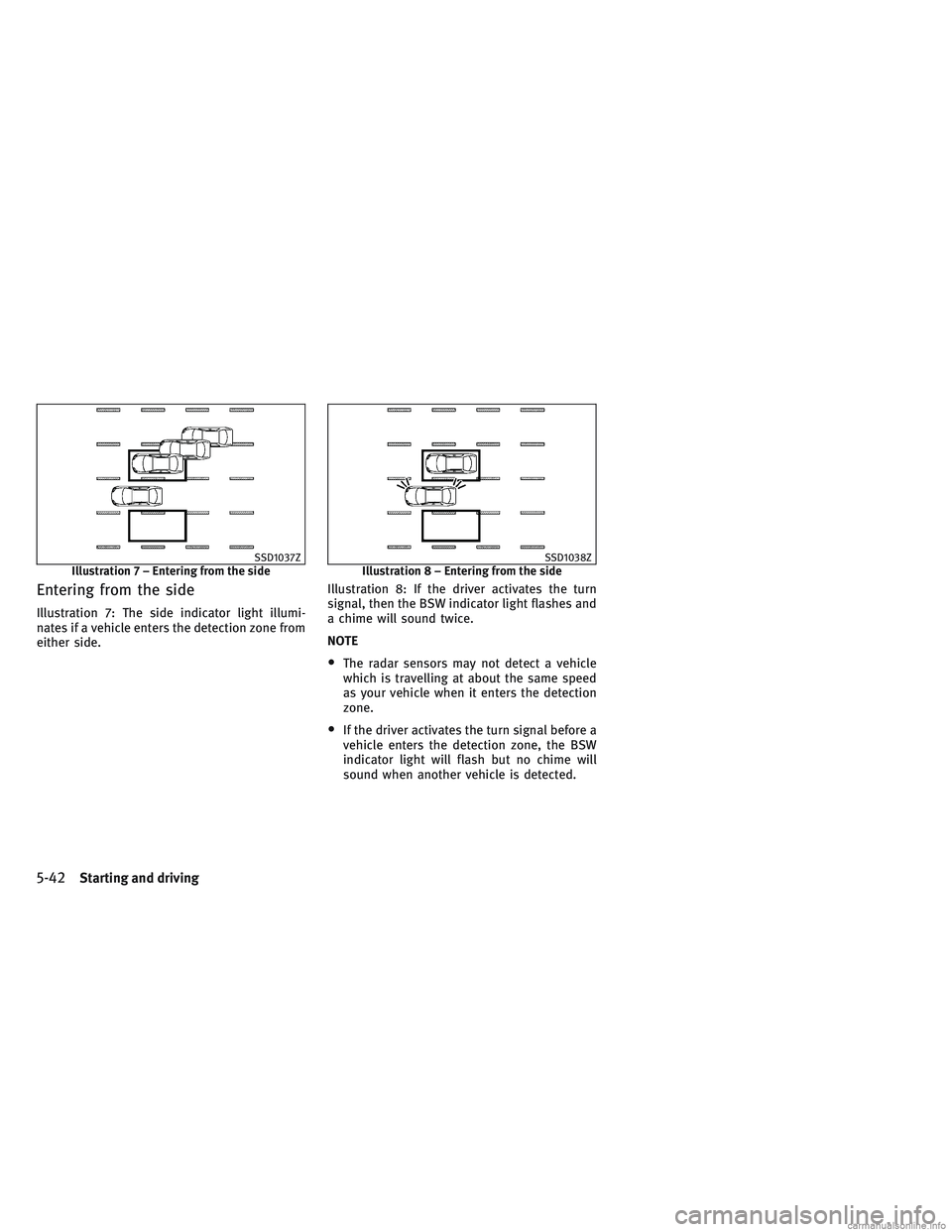

Entering from the side
Illustration 7: The side indicator light illumi-
nates if a vehicle enters the detection zone from
either side.Illustration 8: If the driver activates the turn
signal, then the BSW indicator light flashes and
a chime will sound twice.
NOTE
•The radar sensors may not detect a vehicle
which is travelling at about the same speed
as your vehicle when it enters the detection
zone.
•If the driver activates the turn signal before a
vehicle enters the detection zone, the BSW
indicator light will flash but no chime will
sound when another vehicle is detected.
SSD1037ZIllustration 7 – Entering from the sideSSD1038ZIllustration8–En
tering from the side
5-42Starting and driving

SYSTEM TEMPORARILY UNAVAILABLE
1Vehicle information display
If radar blockage is detected, the system will be
turned off automatically, and the [Blind Spot
Warning Currently Unavailable See Operator’s Manual] message appears in the vehicle infor-
mation display1. The system is not available
until the conditions no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also be caused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:
When the above conditions no
longer exist, the system will resume automati-
cally. If the message still appears, have the
system checked. It is recommended you visit an
INFINITI retailer for this service.
System malfunction
If the system malfunctions, it will be turned off
automatically, and the [Blind Spot Warning
Inoperative] message appears in the vehicle
information display
1.
Action to take: Stop the vehicle in a safe loca-
tion, place the vehicle in the P (Park) position,
turn the engine off and restart the engine.
If the message still appears, have the system
checked. It is recommended you visit an
INFINITI retailer for this service.
NSD631
Starting and driving5-43

RADAR MAINTENANCE
The two radar sensor unitsAfor the BSW
system are located near the rear bumper. Al-
ways keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors. Do not strike or damage the area around the
radar sensors. It is recommended you consult
an INFINITI retailer if the area around the radar
sensors is damaged due to a collision.
FCC NOTICE
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modification not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equip-
ment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference re-
ceived, including interference that may cause
undesired operation of the device.
Cruise control maintains a constant road speed
for you. It brakes automatically in order to avoid
exceeding the set speed. You must select a
lower gear in good time on long and steep
downhill gradients, especially if the vehicle is
laden or towing a trailer.WARNING
For vehicles with automatic transmission, you
need to have selected manual drive program M
(see
Manual drive program earlier in this sec-
tion). By doing so, you will make use of the
braking effect of the engine. This relieves the
load on the brake system and prevents the
brakes from overheating and wearing too
quickly.
Use cruise control only if road and traffic con-
ditions are appropriate for maintaining a steady
speed for a prolonged period. You can set the
cruise control at any road speed above 20 MPH
(30 km/h).
The speed indicated in the speedometer may
differ slightly from the set speed.
NAA1640
CRUISE CONTROL
5-44Starting and driving

ICC SYSTEM OPERATION
1Speedometer
2Distance warning light
3Vehicle information display
4Cruise control leverThe ICC system is intended to enhance the
operation of the vehicle when following a ve-
hicle traveling in the same lane and direction.
If the distance sensorAdetects a slower
moving vehicle ahead, the system will reduce the vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The ICC system maintains a selected distance
from the vehicle in front of you within the speed
range of 0 to 125 MPH (0 to 200 km/h) up to the
set speed. The set speed can be selected by the
driver between 20 to 125 MPH (30 to 200 km/h).
The vehicle travels at a set speed when the road
ahead is clear.
The ICC system is designed to maintain a
selected distance from the vehicle in front of
you and reduce the speed to match a slower
vehicle ahead. The system will decelerate the
vehicle as necessary and if the vehicle ahead
comes to a stop, the vehicle decelerates to a
standstill. However, the ICC system can only
apply up to 50% of the vehicle’s total braking
power. This system should only be used when
traffic conditions allow vehicle speeds to re-
main fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and illuminate the
distance warning light to notify the driver to
take necessary action.
NSD625
5-48Starting and driving

Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and distance warning
light. Decelerate by depressing the brake pedal
to maintain a safe vehicle distance if:
•The chime sounds.
•The distance warning light is illuminated.
The warning chime may not sound and the
distance warning light may not illuminate in
some cases when there is a short distance
between vehicles. Some examples are:
•When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing. In this case, the distance
warning light will be on.
•When the vehicle ahead is traveling faster
and the distance between vehicles is increas-
ing.
•When a vehicle cuts in near your vehicle
•The warning chime will not sound and the
distance warning light will not illuminate
when: – The vehicle approaches other vehicles that are parked or moving slowly. – The accelerator pedal is depressed, over-
riding the system.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condi-
tion (for example, if a vehicle is being driven
with some damage).
Automatic cancellation
A chime sounds and the message [ICC off] is
displayed in the vehicle information display for
5 seconds under the following conditions and
the control is automatically canceled.
•The electric parking brake is applied.
•The VDC intervenes or the VDC is deacti-
vated.
•The P (Park), R (Reverse) or N (Neutral)
position is engaged.
•The cruise control lever is pulled in order to
pull away but the front passenger door or
one of the rear doors is open.
•The vehicle is skidding or a wheel slips.
•Active Park Assist is activated.
ICC LIMITATIONS
WARNING
Listed below are the system limitations for the
ICC system. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
•This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s responsi-
bility to stay alert, drive safely and be in
control of the vehicle at all times.
•The system is primarily intended for use on
straight, dry, open roads with light traffic. It
is not advisable to use the system in city
traffic or congested areas.
•This system will not adapt automatically to
road conditions. This system should be
used in evenly flowing traffic. Do not use the
system on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
•As there is a performance limit to the dis-
tance control function, never rely solely on
the ICC system. This system does not cor-
rect careless, inattentive or absent-minded
driving, or overcome poor visibility in rain,
fog, or other bad weather. Decelerate the
vehicle speed by depressing the brake
5-54Starting and driving
