2017 AUDI TT COUPE Owners Manual

CD
CD
.... N
" N .... 0
0
Ill co

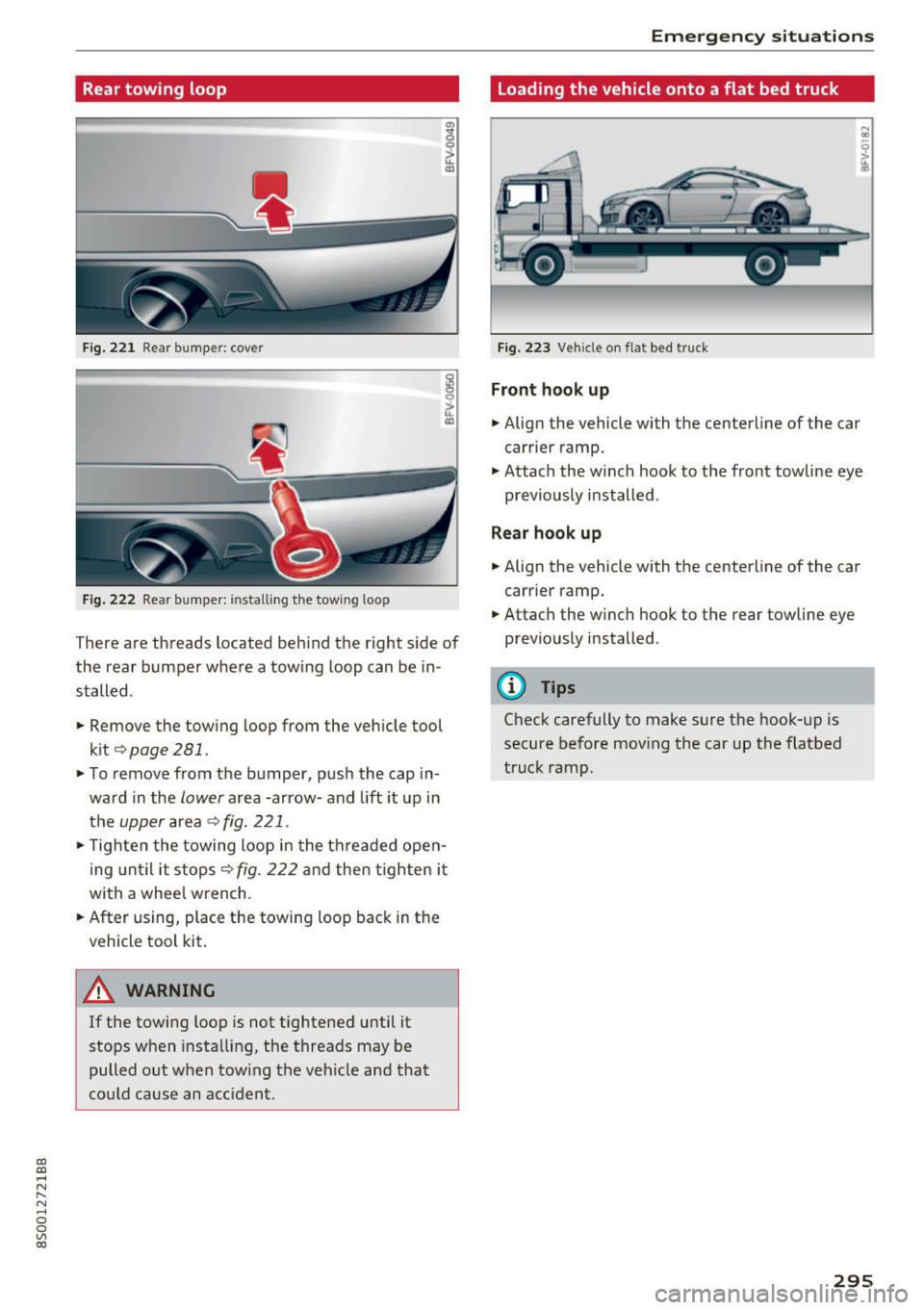

Rear towing loop
Fig. 221 Rea r bumper: cove r
Fig. 222 Rear bumper: installing the towing loop
There are threads located beh ind the right side of
the rear bumper where a towing loop can be in­
stalled .
• Remove the towing loop from the vehicle tool
kit¢page281 .
• To remove from the bumper, push the cap in­
ward in the
lower area -arrow- and lift it up in
the
upper area ~ fig. 221 .
• Tighten the towing loop in the threaded open­
ing until it stops
~ fig . 222 and then tighten it
with a whee l wrench.
• After using, place the towing loop back in the
vehicle tool kit .
.&_ WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
pulled out when tow ing the veh icle and that
could cause an accident .
-
Emergency situations
Loading the vehicle onto a flat bed truck
N ..
~ m
Fig. 223 Vehicle on flat bed truck
Front hook up
• Align the vehicle with the centerline of the car
carrier ramp.
• Attach the w inch hook to the front towline eye
previously installed .
Rear hook up
• Align the vehicle with the centerline of the car
carrier ramp.
• Attach the winch hook to the rear towline eye
previously installed .
@ Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp .
295

Emergency situations
Raising the vehicle
Lifting with workshop hoist and with floor
jack
Th e vehicle may only b e lift ed at the lifting
poin ts illust rated.
F ig .. 224 Fro nt lift ing po int
F ig. 225 Rea r lifti ng po int
.,. Read and heed WARNING ¢ A-
.,. Locate lifti ng po ints ¢ fig. 224 and ¢ fig. 225 .
.,. Adjust lifting arms of wo rkshop hoist or floor
jack to match veh icle lifting points.
.,. In se rt a rubb er pad between t he floor jack/
wor kshop hoist a nd the lif ting poin ts .
The vehicle jack mode * must be activated so that
the au tomatic ad justment of the Adaptive Air
Suspens ion * d oes no t mak e it more difficult to
raise the ve hicl e with the floo r jack.
If you must lift your vehicle with a floor jack to
work underneath, be sure the vehicle is safely
supported on stands intended for this purpose .
F ront lifting point
The lift ing po int is located on the floor pan re in­
forcement about at the same leve l as the jack
mo unt ing point ¢
fig. 224 . Do not lift the vehi­
cle at the vertical sill reinforcement.
296
Rear lifting point
The li fting poin t is lo cated on the ve rtic al rein ­
f orcement o f th e lower s ill for the on -boar d ja ck
¢fig. 225 .
Lifting with vehicle jack
Refer to ¢ page 28 5.
Ln., WARNING
- To reduc e the r isk of s erious in ju ry and vehi­
cle dam age.
- Always lift the vehicle on ly at the special
wor ksh op hoist an d flo or jack lift points il ­
l ustrated
¢ f ig. 224 and ¢ fig . 225.
- Failur e to lift t he ve hicle at these points
could cause th e veh icle to tilt o r fall from
a lift if t he re is a cha nge in vehi cle w eight
dist ribution and balanc e. This mi ght hap­
p en, fo r exa mple , whe n he avy co mpo­
n en ts s uch as the e ngine blo ck or tran s­
mis sion a re removed .
- Wh en r em ov ing heavy com ponen ts like
t hese, an ch or veh icle t o hoi st or add corre ­
s p ond ing weights t o maintain the ce n ter of
gravi ty. Oth e rw ise, the vehicle mig ht til t o r
slip off t he hoist, causi ng serious pe rsona l
in jur y .
(D Note
- B e aw are of the fo llow ing poin ts bef ore lif t­
ing the vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members .
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in ­
serted between the floor jack and the lift
points .
- Before driving over a workshop hoist ,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist. ..,.

co
co
.... N
" N .... 0
0
Vl c:o
-Before driving over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the
vehicle.
Emergency situations
297

Technical data
Technical data
Vehicle specifications
Fig. 226 Windsh iel d (fro nt left s ide): V IN
XXXXX XX -X -XXX X XX X xx
®--+ f AHRZC . - ll)[jj f -Nil . Vlll[l£ • OOIT • NO. XX XXXXXX XX X XX XX XXX X
1YP /rtl'! XXX XXX
xx xxxxxxx
xx xx xx
XXX KW XXX
OC. OOll / lll AMS . lllO! xxxx XXX XXX ®-t Ml) TORKB./ CETll kS.
©+ IACl( flR./ INNENAIJSS t
XXXX I XXXX XXX I XX PAI NT NO. / WlllllOfl
II. -AUSST . / OPTIO NS
E 0 A 7D 5 4U B 6XM 5SG 5RW
2 EH JO Z l lB lA S lBA
3 FC 5M U 7X1
F0A 9G3 0G7 0 YH 0JF
TL 6 3 KA 8EH UlA X 9B OZ 7
lXW 8 0 3 908 8Z4 020
7T6 C V7
7K0 4
X3 2 K2
3 L4 4 KC 3 Y0 413 5 02
1 SA 7GB 0 1A 4GO
XX X XX X X X X xxxx
F ig . 227 Vehicle id entifica tion labe l
Vehicle Identification Number (VIN) in the
Infotainment system
0
0
0:, 0 ' J: .. a:,
~ Select in the Infotainment system: the I MENU I
button > left control button > Service & checks
> Vehicle information .
Vehicle Identification Number (VIN)
The VIN can be found in the Infotainment sys ­
tem, on the vehicle data label and under the
windshield on the driver's side*
¢ fig. 226.
298
Vehicle identification label
The vehicle identification label¢
fig. 22 7 is locat ­
ed in the luggage compartment under the cargo
floor cover.
The information of the vehicle identification label
can also be found in your Warranty
& Mainte­
nance booklet.
The st icker contains the follow ing vehicle data:
(D Vehicle Identifica tion Number (VIN)
@ Vehicle type, eng ine output, transmission
® Engine and transmission cod es
@ Paint and interior codes
® Optional equipment numbers
Safety compliance sticker
The safety compliance sticker is your assurance
that your new veh icle complies with all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu­
factured. You can find this sticker on the door
jamb on the driver's side. It shows the month and
year of production and the vehicle identification
number of your vehicle (perforation) as well as
the Gross Vehicle Weight Rating (GVWR) and the Gro ss Axle We ight Rating (GAWR).
High voltage warning label
The high voltage warn ing label is located in the
engine compartment next to the engine hood re­
lease. The spark ignition system complies w ith
the Canadian standard IC ES-002.
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rat ing (GAWR) for front
and rear are li sted on a sticker on the door jamb
on the driver 's side.
The Gross Vehicle Weight Rating includes the
weight of the basic vehicle plus full fuel tank, oil
and coolant, plus maximum load, which includes
passenger weigh t (150 lbs/68 kg per designated
seat ing position) and luggage weight
c::> ,&.. ..,.

co
co
.... N
" N .... 0
0
Vl c:o
Gross Axle Weight Rating
The G ross Axle We igh t Rating is the max imum
l oad that can be applied at each axle of the vehi ­
cle ~.& .
Vehicle capacity weight
The vehicle capac ity we ight (max. load) is listed
on the drive r's side 8-p illar.
_& WARNING
- T he ac tual Gross Ax le Weight Ra ting a t the
front and rear axles sho uld not exceed the
permissible weights, and their combination
must not exceed the Gross Ve hicle We ight
Rating.
Dimensions
The dimens io ns can vary depending on the mod­
e l, equipment and measur ing methods used in
e a ch ma rket.
Leng th in (mm)
Width in (mm)
Width across the m irrors in (mm)
He ight at cu rb we ight in (mm)
When driving on poor roads, by cu rbs and on
steep ramps, make s ure that low-hang ing com­
ponents such as the spo iler and exhaust system
Capacities
F uel t ank
Windsh ield and headlight washer system*
Techn ical data
- Exceeding permissible weight ratings can
res ult in vehicle damage, accidents and per­
sonal injury.
(D Note
- The vehi cle capacity weig ht figures apply
when the load is d istributed evenly in the
vehicle (passengers and luggage) . When
transport ing a heavy load in the luggage
compartment, carry the load as near to the
rear axle as possib le so that the veh icle's
hand ling is not impaired .
- Do not exceed the maximum perm iss ible
ax le loads or the maximum g ross ve hicle
we igh t. Always remember that the veh icle's
han dling will be affe cted by the extra load.
Th erefore, adjust your spee d accordingly.
- Always observe local regulations.
TT TTS
164.7 ( 4,1 84) 165 .0 (4,191)
72.1 (1,832) 72.1 (1,832)
77.4 (1 ,966) 77.4 (1,966)
53.3 (1,353) 52.9 (1,343)
do not come i nto contact with these or they cou ld
be damaged. This applies especially when the ve­
hicle is fully loaded.
ga l (l) approx. 1 4.5 (5 5)
ga l
(l) approx . 2 .4 (9 .0)
299

Tech nical data
Gasoline engines
TT Coupe 2.0, 4 cylinder
Maximum output SAE net hp@ rpm
Max imum torq ue SAE net lb-ft@ rpm
Displacement CID (cm
3
)
Engine oil with filter change1>
Fuel ¢page240
TTS Coupe 2.0, 4 cylinder
Maximum output SAE net hp@ rpm
Maximum torque SAE net lb
-ft @ rpm
Displacement CID (cm
3
)
Engine oil with fi lter change1
)
Fuel ~ page240
ll For specific engine oil capacities, please see
the most current information fo r th e USA at
ht tp:/ /www .aud iusa.com/help/ma intenance o r
for Canada at http://www.aud i.ca/ca/b rand/ en/
your _aud i/ aud i _services _a nd/Ca re _and _M a i nte­
n a nce/ schedu le.htm l or call 1 (80 0) 822-2834.
300
220 @ 4500 -6200
258@ 1600 - 4400
121 (1984)
292 @ 5400 -6200
280@ 1900 - 5300
121 (1984)

co
co
.... N
" N .... 0
0
Vl c:o
Consumer information
Warranty coverages
Y our Audi is co vered b y the foll owing war ran­
tie s:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regard ing your warranties
can be found in yo ur
W arranty & M ainten ance
bookl et.
Operating your vehicle
outside the U.S.A. or
Canada
Government reg ulations in the Un ited States and
Canada require that automobiles meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U .S.A. and Cana­
da differ from vehicles sold in other countries.
I f you p lan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- u nleaded fue ls for vehicles with cata lytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
i ng. Imprope r fuel may ca use engine damage;
- service may be inadequate due to lack of p roper
service facilities, tools or testing eq uipment;
- r eplacement parts may not be readily ava ilable.
- Navigation systems for veh icles built for the
U .S .A . and Canada will not necessa rily work in
E urope, and may not wo rk in other countries
outside No rth Ame rica.
Con sumer inf ormation
(D Note
Audi cannot be respons ible for mechanical
damage that could resu lt from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and L itera­
ture are published as soon as poss ible after mod­
el introduction. Service ma nuals and literature
are avai lab le to order from the Audi Tec hni cal Lit ­
erature Ordering Center at:
www .audi .t e chlit eratur e.com
Maintenance
General
Your vehicle has been designed to he lp keep
maintenance requirements to a min imum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your veh icle's safety,
economy and reliab ility . For detailed vehicle
maintenance consult your Wa rranty
& Mainte­
nance book let .
Und er diff icult op erating condition s, for exam­
ple at extremely low outside temperatures, in
very dusty regions, etc., some se rvice work
sho uld be pe rformed between the intervals speci ­
fied. This app lies part icu larly to:
- oil changes, and
- cleaning or replacing the a ir filter .
@ For the sake of the environment
By regularly maintaining your vehicle, you
help make sure that emiss ion standards are
maintained, thus min imizing adverse effects
on the enviro nment.
' Important considerations for you and your
vehicle
T he increas ing use of electronics, soph istica ted
f uel injection and emission control systems, and
the genera lly increasing technica l comp lexity of
today's automobiles, have steadily reduced the ""'
301

Consumer information
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can
perform .
Maintenance, adjustments and repairs usually re­
quire special tools, testing devices and other
equipment available to specially trained work­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems .
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty.
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for
upholding a possible warranty claim made within
the warranty period.
Above all, operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any other properly
equ ipped and qualified workshop. We strongly
urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­
nance and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly.
Performing limited maintenance yourself
The following pages describe a limited number of procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­
ly follow the instructions given. Always rigorously
observe the
WARNINGS provided.
Before you check anything in the engine com­
partment, always read and heed all WARNINGS
c> & and c> & in Working in the engine compart­
ment on page 244.
302
A WARNING
-
- Serious personal injury may occur as a result
of improperly performed maintenance, ad­
justments or repairs .
- Always be extremely careful when working
on the vehicle. Always follow commonly ac­
cepted safety practices and general com­
mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fully familiar with these
or other procedures with respect to the ve­ hicle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi­
cle is a potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly - even when the en­
gine is off. The radiator fan switches on au­
tomatically when the coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle.
- Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
Jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in P (Park
position) and the park brake is applied. ..,
