6098-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touc hing these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.
• When installing a tire, only use wh eel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deforma tions in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. ( P. 535)
●Observe the following precautions.
Failure to do so may re sult in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury.
• Lower the spare tire completely to the ground before removing it from under the vehicle.

6108-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Vehicles with a compact spare tire
Tighten the nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Vehicles with a full-size spare tire
Turn the nuts until the washers
come into contact with the
wheel.
Installing the spare tire
1
2
Disc
wheel
seat
Tapered portion
Washer
Disc wheel

6118-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)

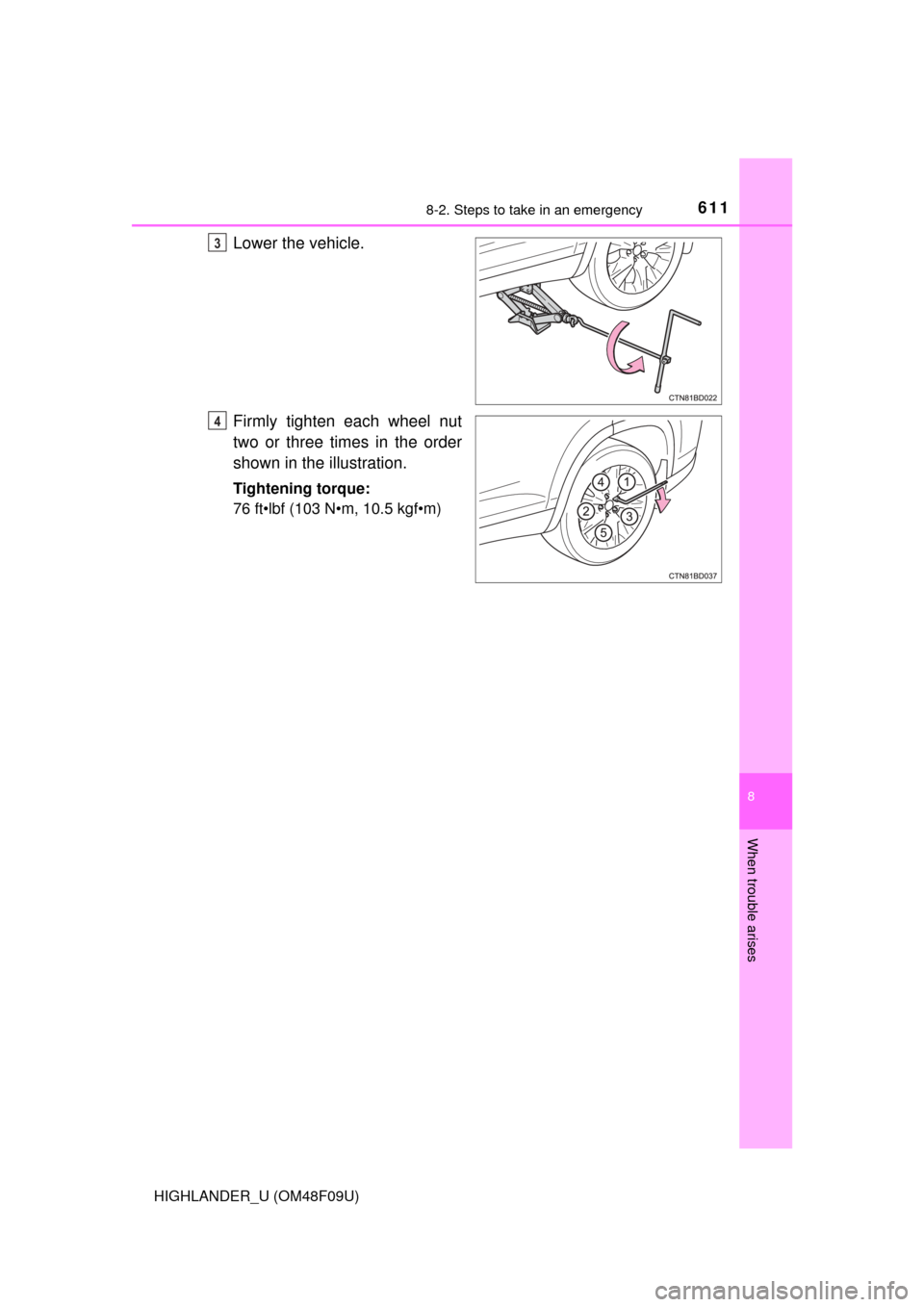

Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
3
4

6128-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
Remove the center wheel ornament by pushing from the reverse
side.
Be careful not to lose the wheel ornament.
Stand the tire against the
bumper with the inner surface
facing toward you. Pass the
hoist assembly (C) and holding
bracket (B) through the wheel
opening.

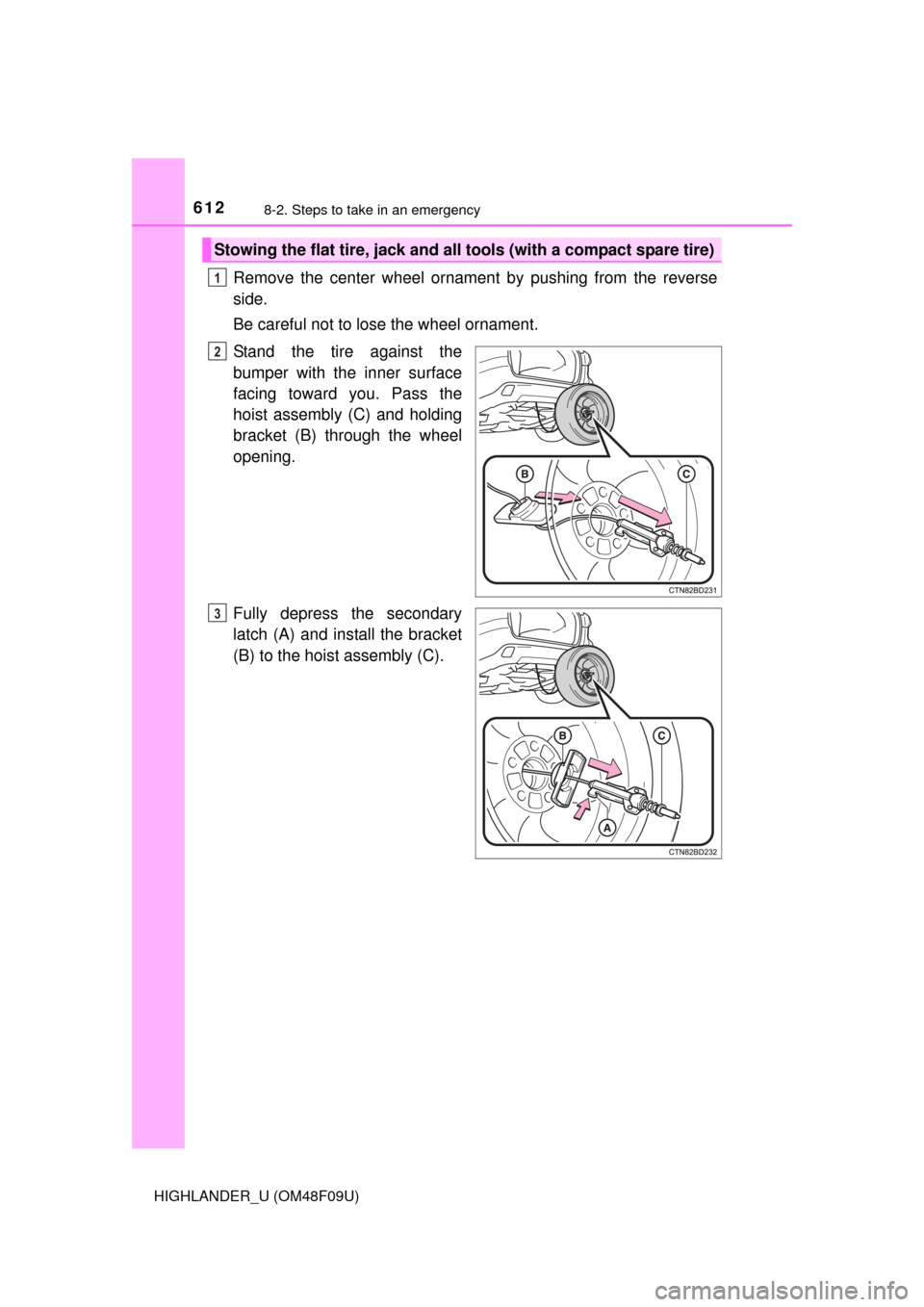

Fully depress the secondary
latch (A) and install the bracket
(B) to the hoist assembly (C).
Stowing the flat tire, jack and all tools (with a compact spare tire)
1
2
3

6138-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)

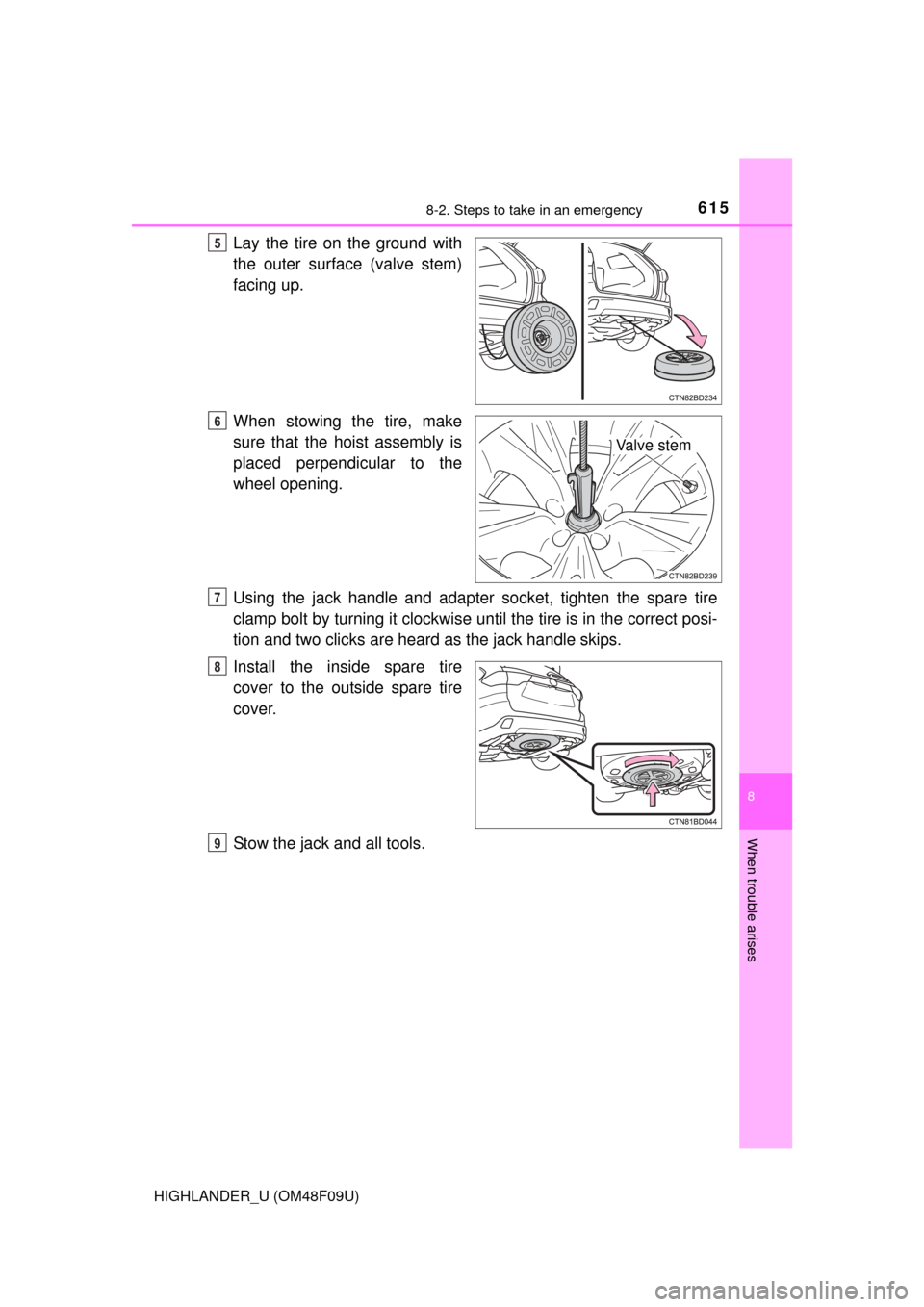

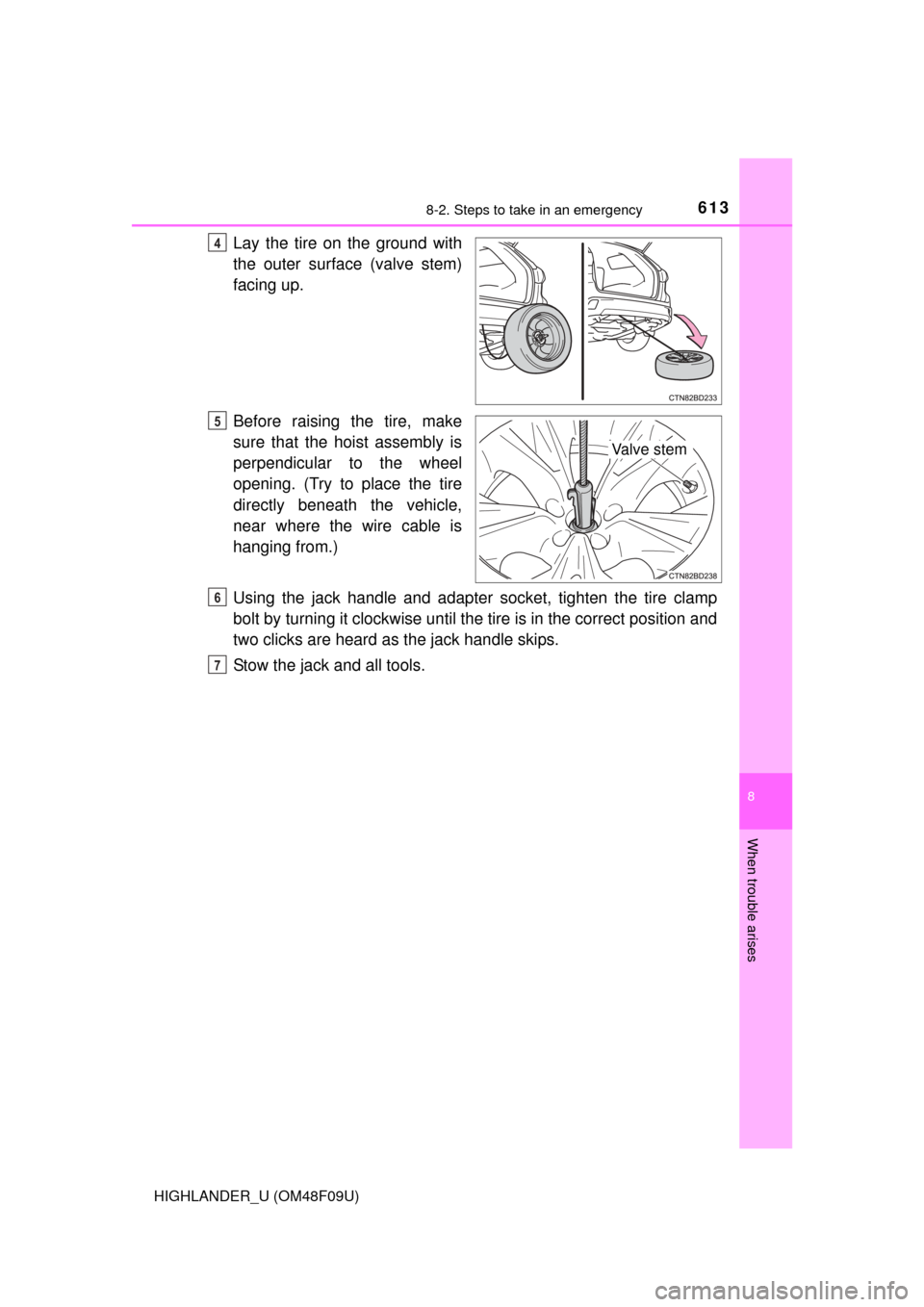

Lay the tire on the ground with
the outer surface (valve stem)
facing up.
Before raising the tire, make
sure that the hoist assembly is
perpendicular to the wheel
opening. (Try to place the tire
directly beneath the vehicle,
near where the wire cable is
hanging from.)
Using the jack handle and adapter socket, tighten the tire clamp
bolt by turning it clockwise until the tire is in the correct position and
two clicks are heard as the jack handle skips.
Stow the jack and all tools.4
Valve stem
5
6
7

6148-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
Remove the center wheel ornament by pushing from the reverse
side.
Be careful not to lose the wheel ornament.
Stand the tire against the
bumper with the inner surface
facing toward you and install
the outside spare tire cover.
Pass the hoist assembly (C)
and holding bracket (B) through
the wheel opening.
Fully depress the secondary
latch (A) and install the bracket
(B) to the hoist assembly (C).
Stowing the flat tire, jack and all tools (with a full-size spare tire)
1
2
3
4

6158-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
Lay the tire on the ground with
the outer surface (valve stem)
facing up.
When stowing the tire, make
sure that the hoist assembly is
placed perpendicular to the
wheel opening.
Using the jack handle and adapter socket, tighten the spare tire
clamp bolt by turning it clockwise un til the tire is in the correct posi-
tion and two clicks are heard as the jack handle skips.
Install the inside spare tire
cover to the outside spare tire
cover.
Stow the jack and all tools.5
Va l v e s t e m
6
7
8
9

6168-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
■The compact spare tire (vehicles with a compact spare tire)
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(  P. 648)
■When the compact spare tire is installed (vehicles with a compact
spare tire)
The vehicle is lower when the compact spare tire is installed compared to
when standard tires are installed.
■When using the compact spare tire (vehicles with a tire pressure
warning system)
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, lo w inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
■If you have a flat front tire on a road covered with snow or ice (vehi-
cles with a compact spare tire)
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
Fit tire chains to the front tires.
1
2
3
