2016 TOYOTA HIGHLANDER Owners Manual

6739-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM48F09U)■

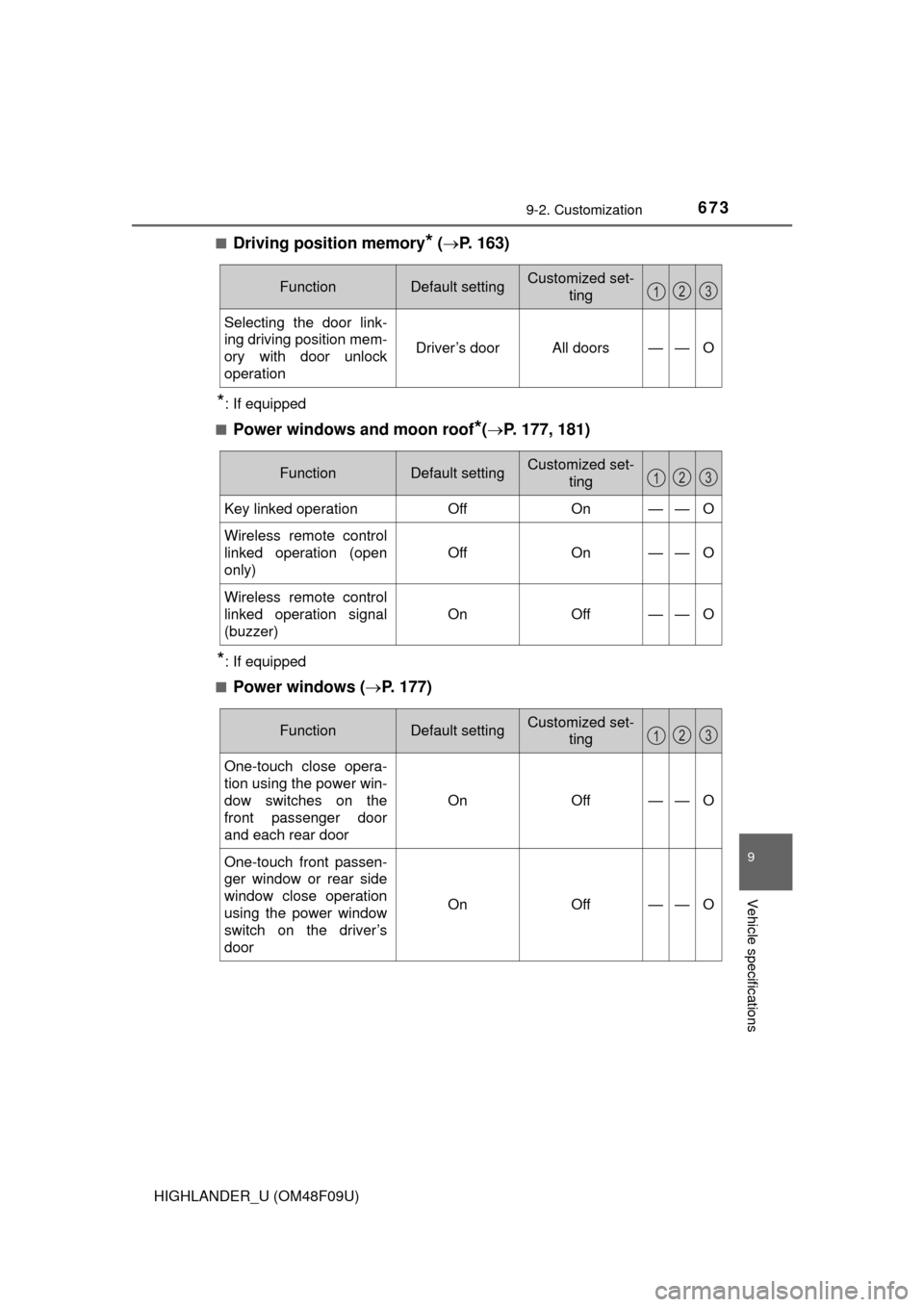

Driving position memory* (
 P. 163)
*: If equipped
■
Power windows and moon roof*(  P. 177, 181)
*: If equipped
■
Power windows ( P. 177)
FunctionDefault settingCustomized set-
ting
Selecting the door link-
ing driving position mem-
ory with door unlock
operation
Driver’s doorAll doors——O
123
FunctionDefault settingCustomized set-ting
Key linked operationOffOn——O
Wireless remote control
linked operation (open
only)
OffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
123
FunctionDefault settingCustomized set-ting
One-touch close opera-
tion using the power win-
dow switches on the
front passenger door
and each rear door
OnOff——O
One-touch front passen-
ger window or rear side
window close operation
using the power window
switch on the driver’s
door
OnOff——O
123

6749-2. Customization
HIGHLANDER_U (OM48F09U)■

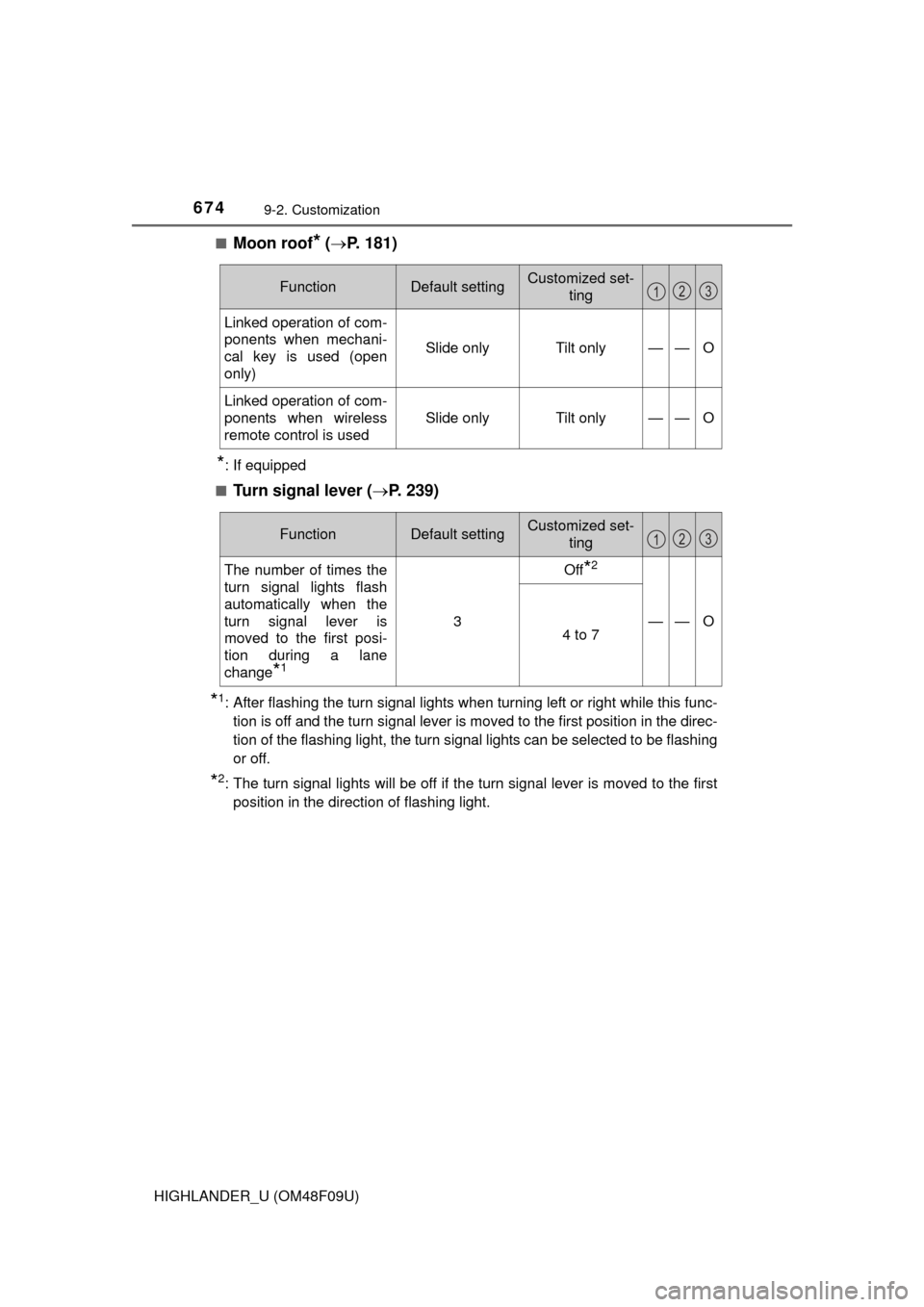

Moon roof* (
 P. 181)
*: If equipped
■
Turn signal lever ( P. 239)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the firstposition in the direction of flashing light.
FunctionDefault settingCustomized set- ting
Linked operation of com-
ponents when mechani-
cal key is used (open
only)
Slide onlyTilt only——O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only——O
123
FunctionDefault settingCustomized set-ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
Off*2
——O4 to 7
123

6759-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM48F09U)■

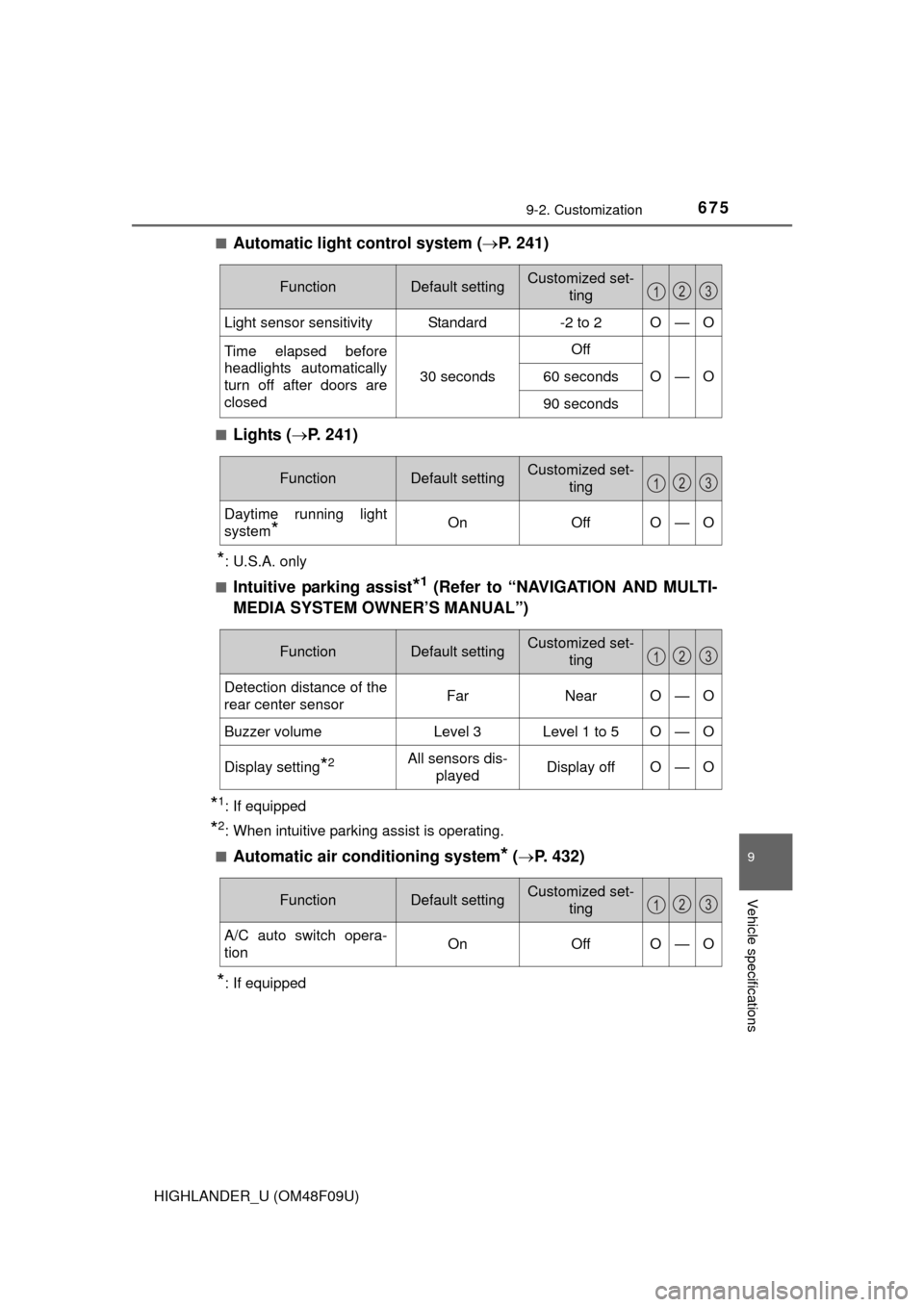

Automatic light control system (
P. 241)
■Lights ( P. 241)
*: U.S.A. only
■
Intuitive parking assist*1 (Refer to “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MANUAL”)
*1: If equipped
*2: When intuitive parking assist is operating.
■
Automatic air conditioning system* (  P. 432)
*: If equipped
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
O—O60 seconds
90 seconds
123
FunctionDefault settingCustomized set-ting
Daytime running light
system
*OnOffO—O
123
FunctionDefault settingCustomized set-
ting
Detection distance of the
rear center sensorFarNearO—O
Buzzer volumeLevel 3Level 1 to 5O—O
Display setting*2All sensors dis-playedDisplay offO—O
123
FunctionDefault settingCustomized set- ting
A/C auto switch opera-
tionOnOffO—O
123

6769-2. Customization
HIGHLANDER_U (OM48F09U)■

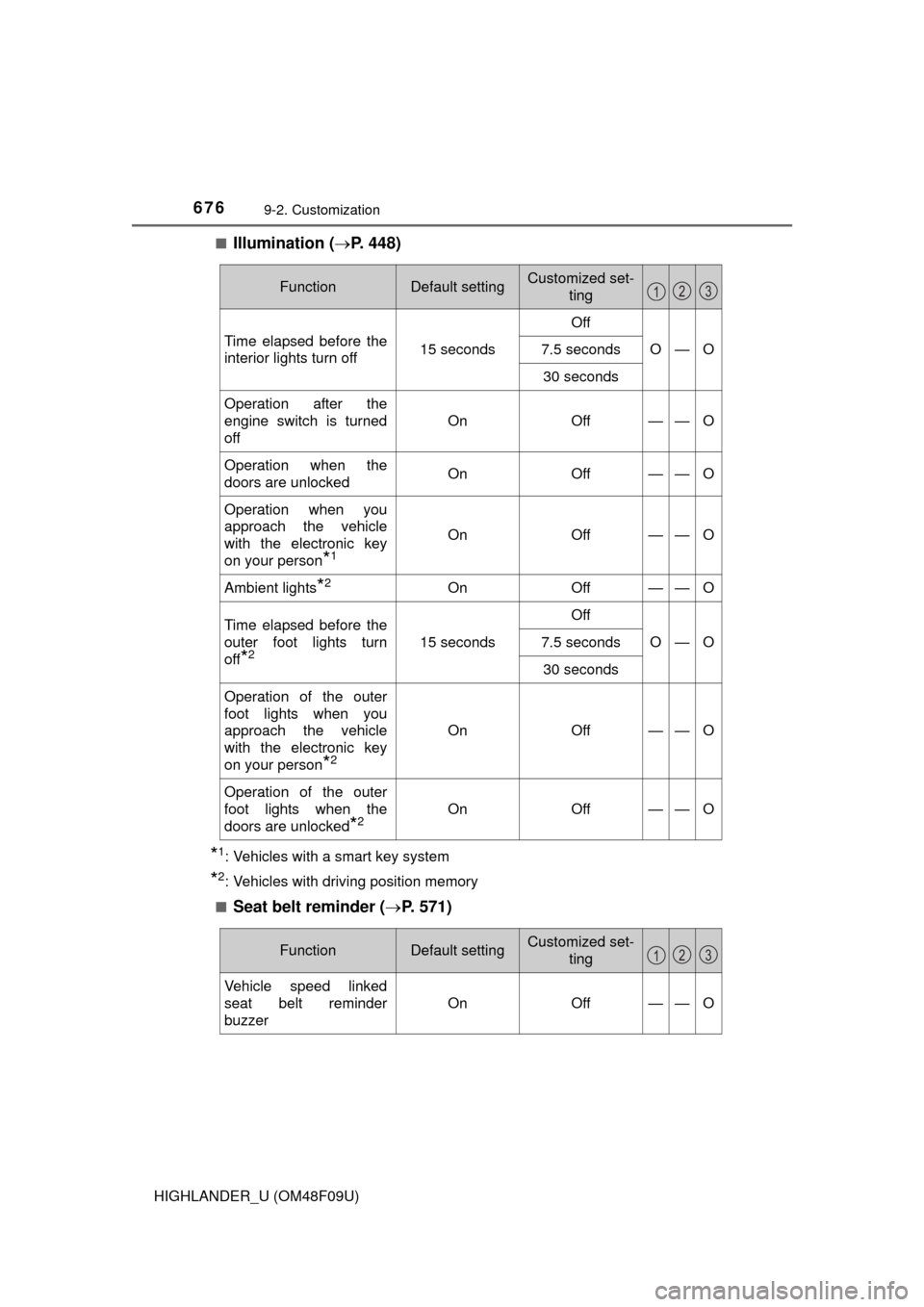

Illumination (
P. 448)
*1: Vehicles with a smart key system
*2: Vehicles with driving position memory
■
Seat belt reminder ( P. 571)
FunctionDefault settingCustomized set-
ting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the
engine switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
*1
OnOff——O
Ambient lights*2OnOff——O
Time elapsed before the
outer foot lights turn
off
*215 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer
foot lights when you
approach the vehicle
with the electronic key
on your person
*2
OnOff——O
Operation of the outer
foot lights when the
doors are unlocked
*2OnOff——O
123
FunctionDefault settingCustomized set-ting
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
123

6779-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM48F09U)
■Vehicle customization
●When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal (Emer-
gency flashers) function settings.
■ Changing of the power back door opening angle (if equipped)
The opening angle setting can be changed through operation of either the
power back door switch or the audio system screen.
However, if the engine switch is on and the power back door switch is used to
change the opening angle setting, the changed opening angle will not be
reflected on the audio system screen until the engine switch is turned off and
then on again.
■ When customizing on the audio system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

678
HIGHLANDER_U (OM48F09U)
9-3. Initialization
*: If equipped

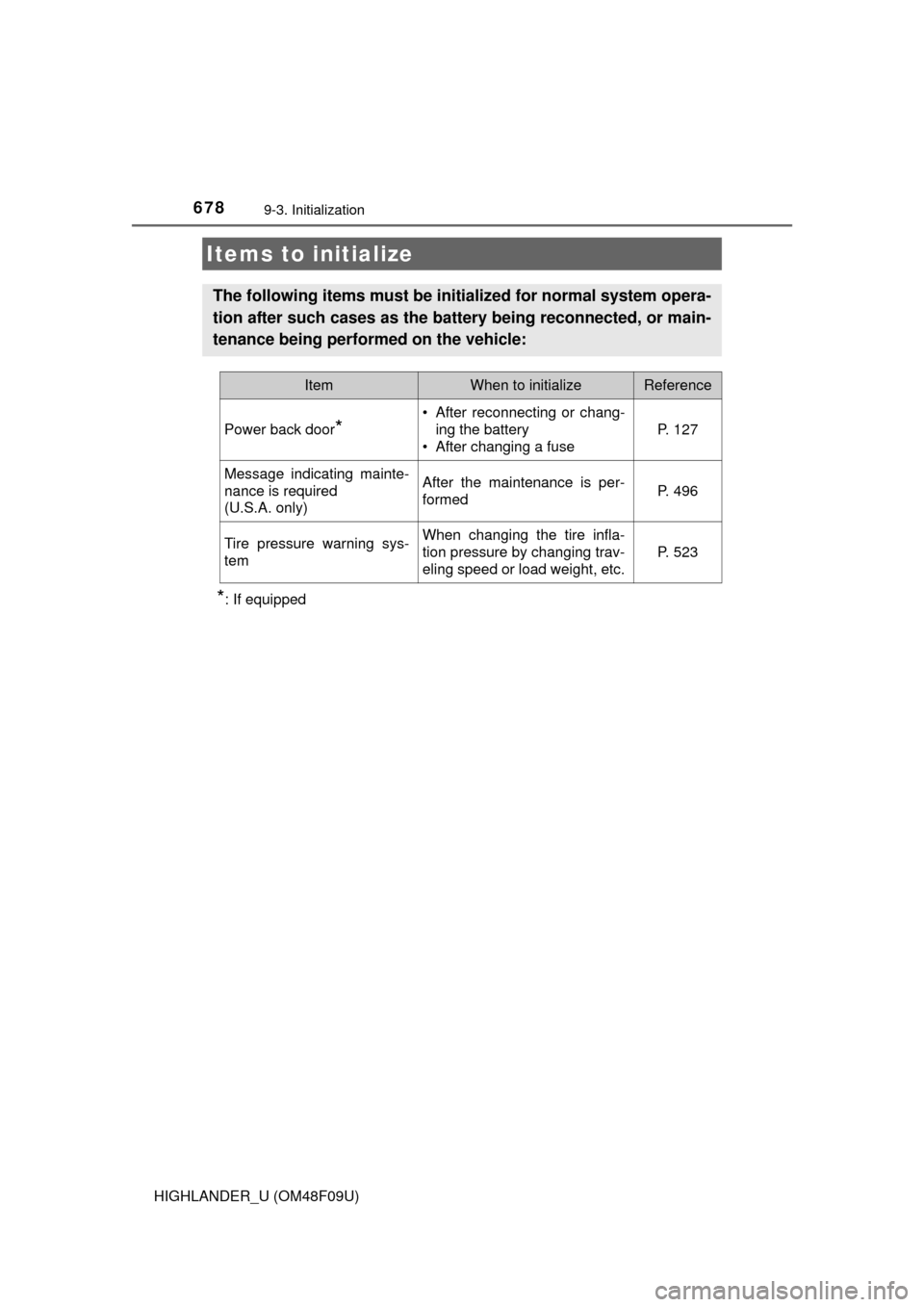

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door*
• After reconnecting or chang- ing the battery
• After changing a fuse
P. 127
Message indicating mainte-
nance is required
(U.S.A. only)After the maintenance is per-
formedP. 496
Tire pressure warning sys-
temWhen changing the tire infla-
tion pressure by changing trav-
eling speed or load weight, etc.
P. 523

679
For owners
HIGHLANDER_U (OM48F09U)
10
Reporting safety defects for U.S. owners ........................ 680
Seat belt instructions for Canadian owners
(in French) ............................... 681
SRS airbag instructions for Canadian owners
(in French) ............................... 684

680
HIGHLANDER_U (OM48F09U)

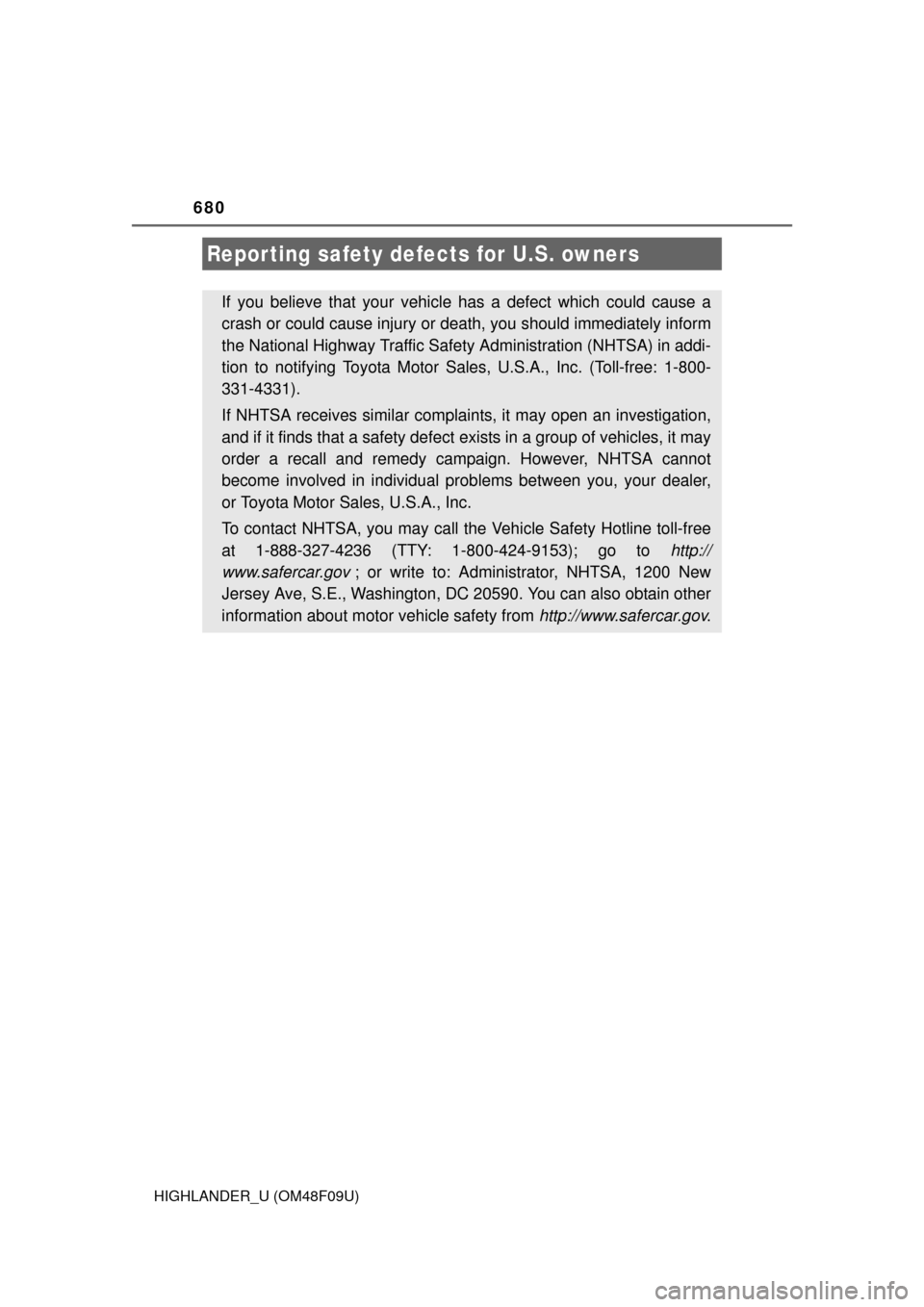

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.
