2016 TOYOTA HIGHLANDER Owners Manual

5778-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)
NOTICE
■To ensure the tire pressure warning system operates properly
(vehicles with a tire pressure warning system)
Do not install tires with different sp ecifications or makers, as the tire
pressure warning system may not operate properly.

5788-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.
If a war ning mess age is displayed
If a warning message is shown on the multi-information display,
stay calm and perform the following actions:
1
2

5798-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)

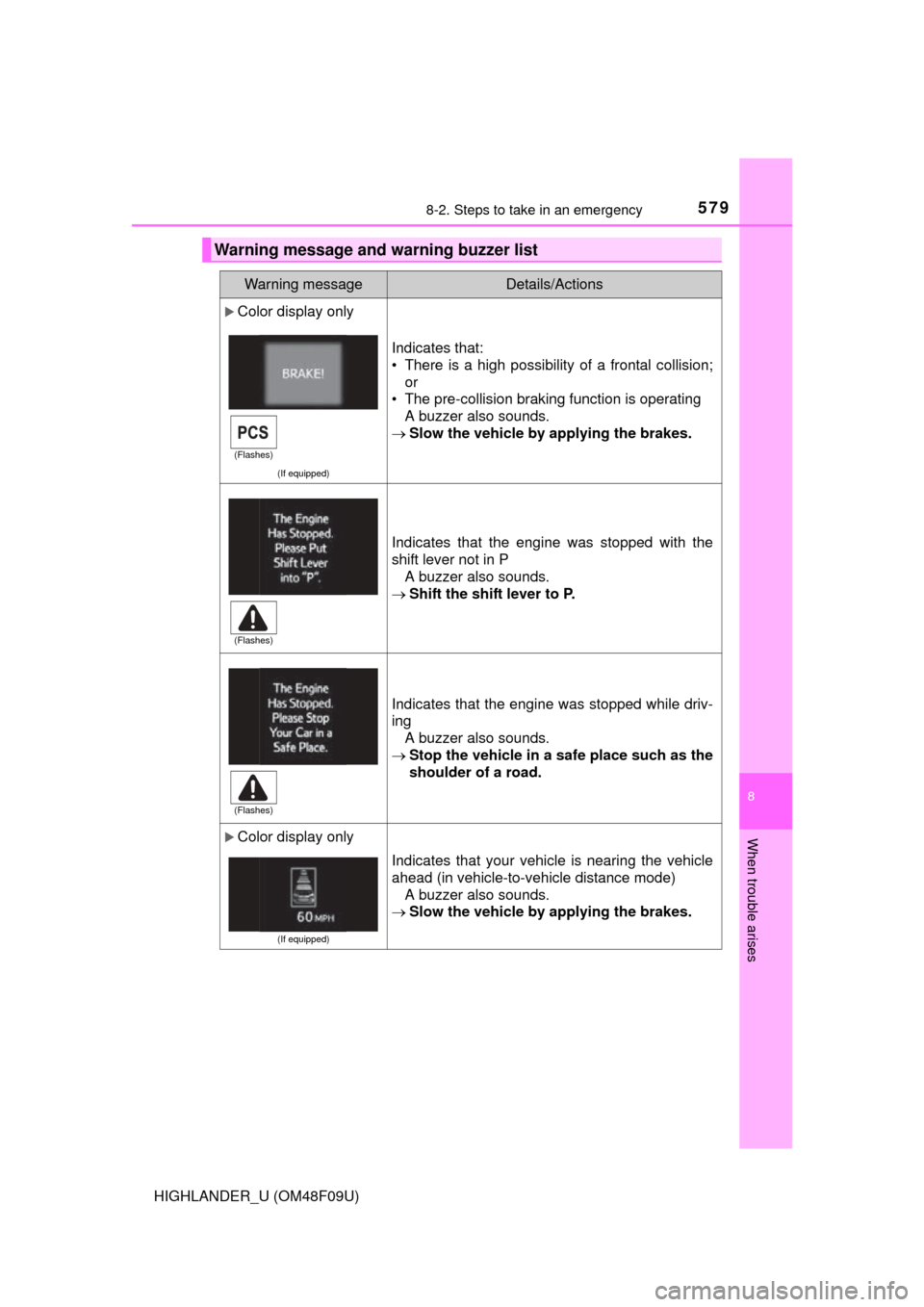

Warning message and warning buzzer list
Warning messageDetails/Actions
Color display only
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision;or
• The pre-collision braking function is operating
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
Indicates that the engine was stopped with the
shift lever not in P
A buzzer also sounds.
 Shift the shift lever to P.
Indicates that the engine was stopped while driv-
ing
A buzzer also sounds.
 Stop the vehicle in a safe place such as the
shoulder of a road.
Color display only
(If equipped)
Indicates that your vehicle is nearing the vehicle
ahead (in vehicle-to-vehicle distance mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(Flashes)
(Flashes)
(Flashes)

5808-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)

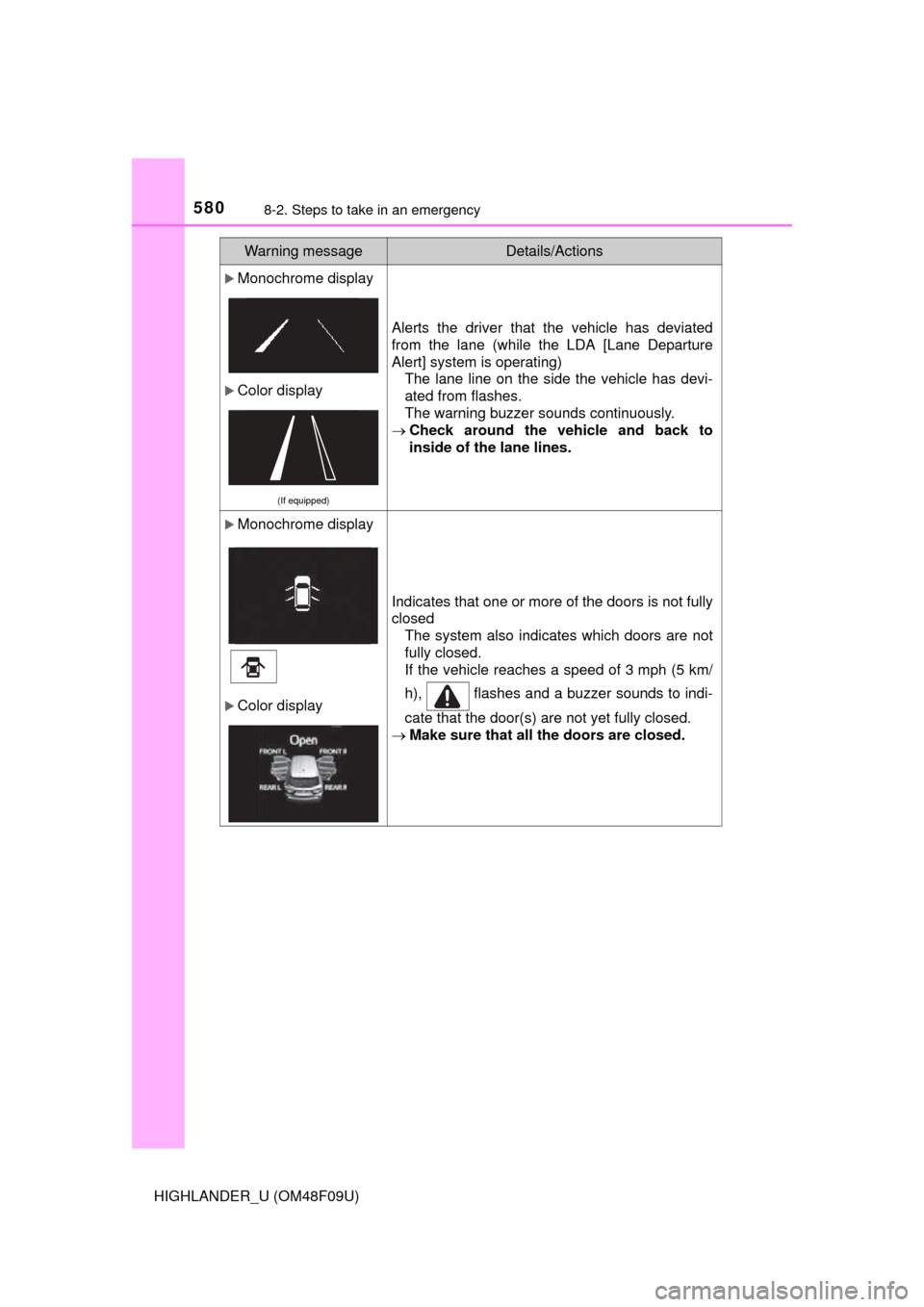

Monochrome display
Color display
(If equipped)
Alerts the driver that the vehicle has deviated
from the lane (while the LDA [Lane Departure
Alert] system is operating)The lane line on the side the vehicle has devi-
ated from flashes.
The warning buzzer sounds continuously.
 Check around the vehicle and back to
inside of the lane lines.
Monochrome display
Color display
Indicates that one or more of the doors is not fully
closed
The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the door(s) are not yet fully closed.
 Make sure that all the doors are closed.
Warning messageDetails/Actions

5818-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)

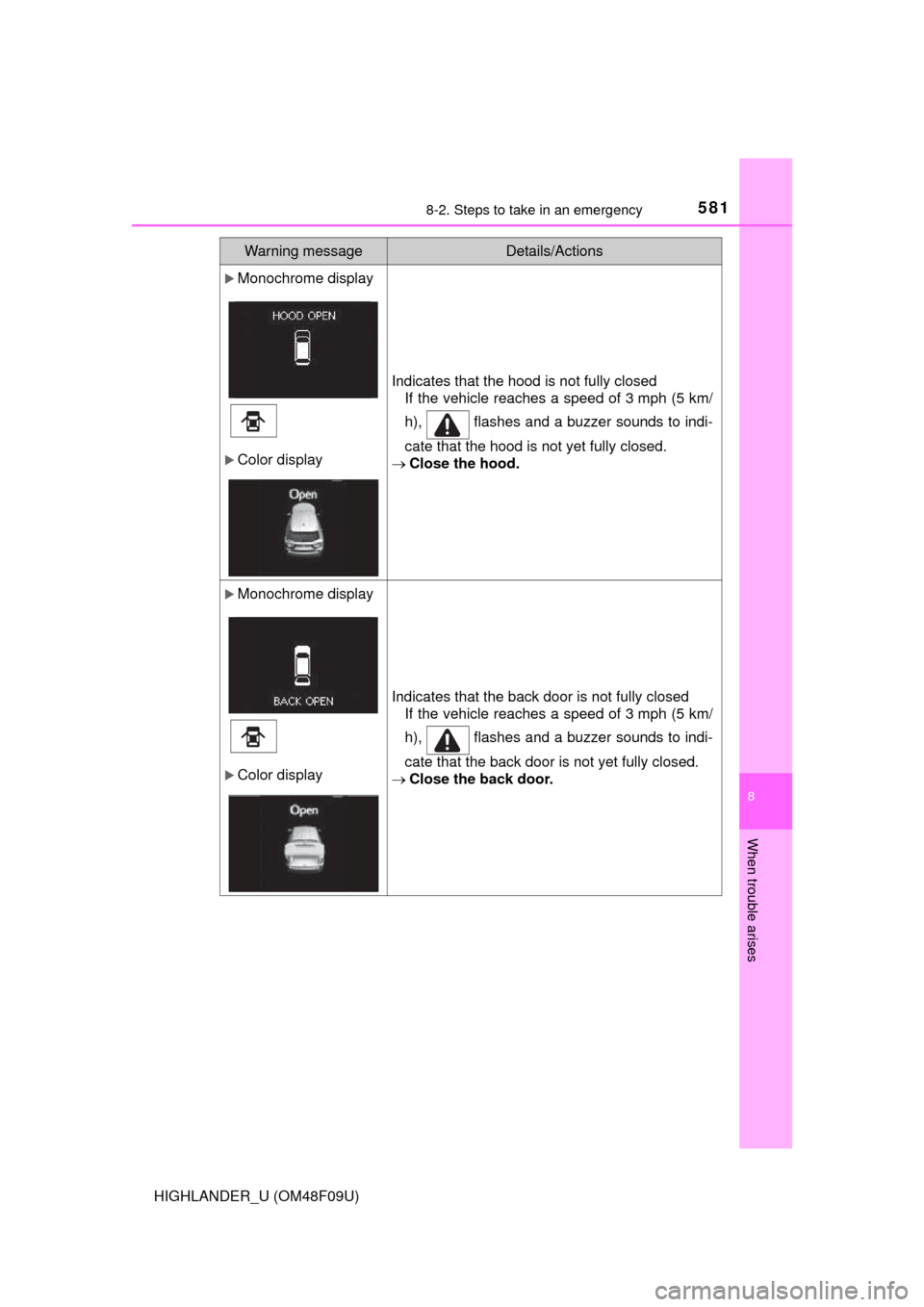

Monochrome display
Color display
Indicates that the hood is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the hood is not yet fully closed.
 Close the hood.
Monochrome display
Color display
Indicates that the back door is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the back door is not yet fully closed.
 Close the back door.
Warning messageDetails/Actions

5828-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)

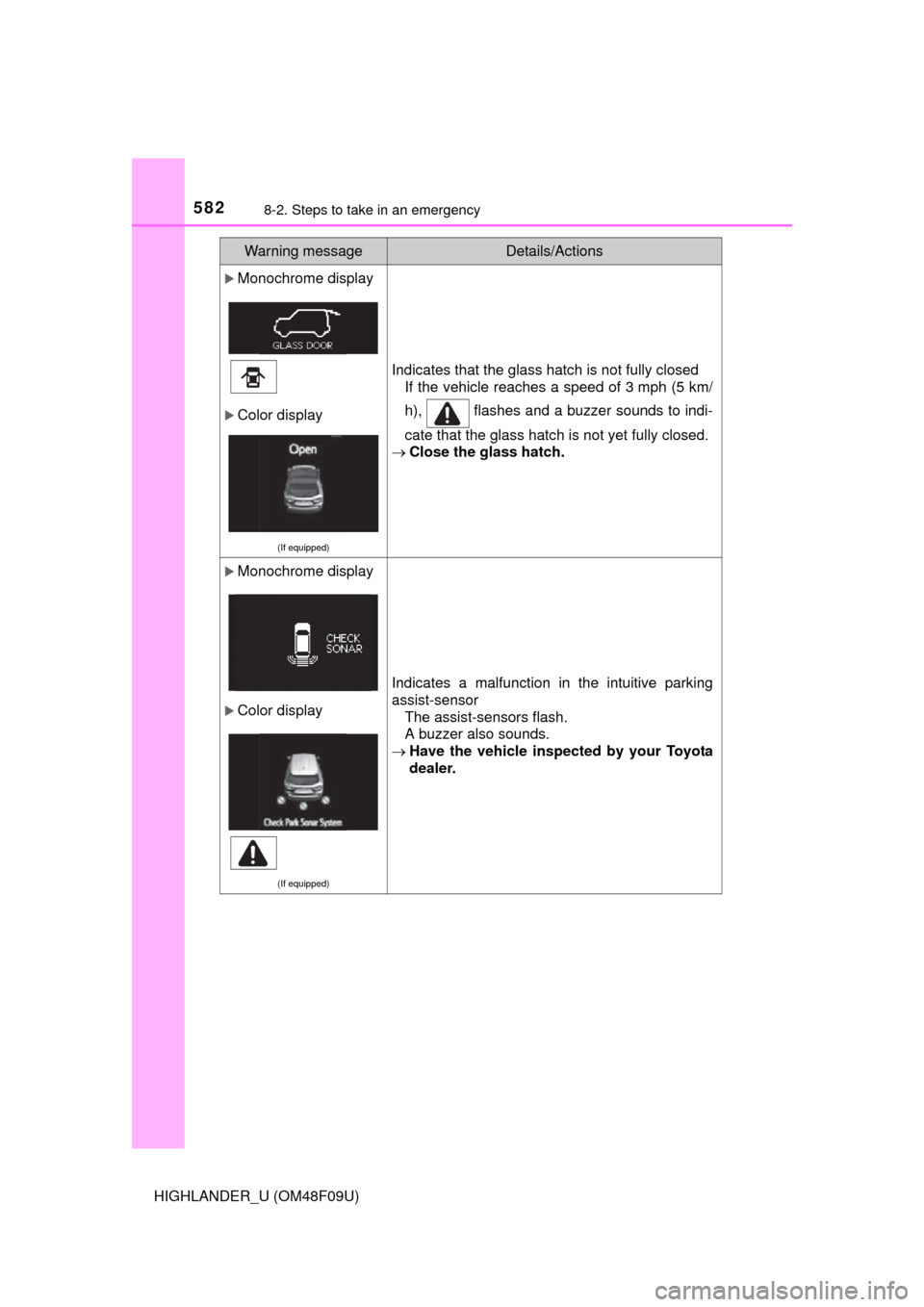

Monochrome display
Color display
(If equipped)
Indicates that the glass hatch is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the glass hatch is not yet fully closed.
 Close the glass hatch.
Monochrome display
Color display
(If equipped)
Indicates a malfunction in the intuitive parking
assist-sensor
The assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions

5838-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48F09U)

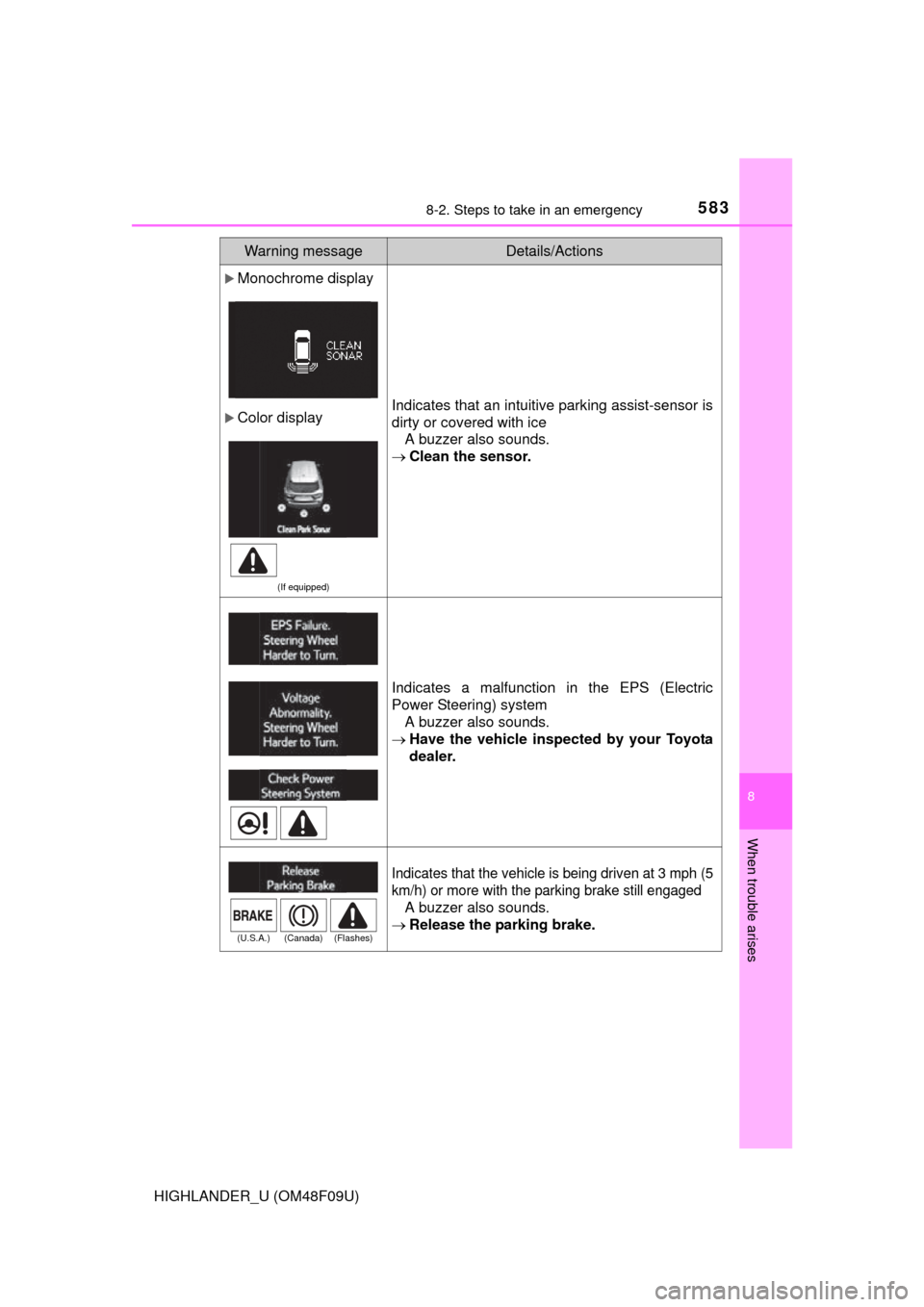

Monochrome display
Color display
(If equipped)
Indicates that an intuitive parking assist-sensor is
dirty or covered with iceA buzzer also sounds.
 Clean the sensor.
Indicates a malfunction in the EPS (Electric
Power Steering) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the parking brake still engaged
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada) (Flashes)

5848-2. Steps to take in an emergency
HIGHLANDER_U (OM48F09U)

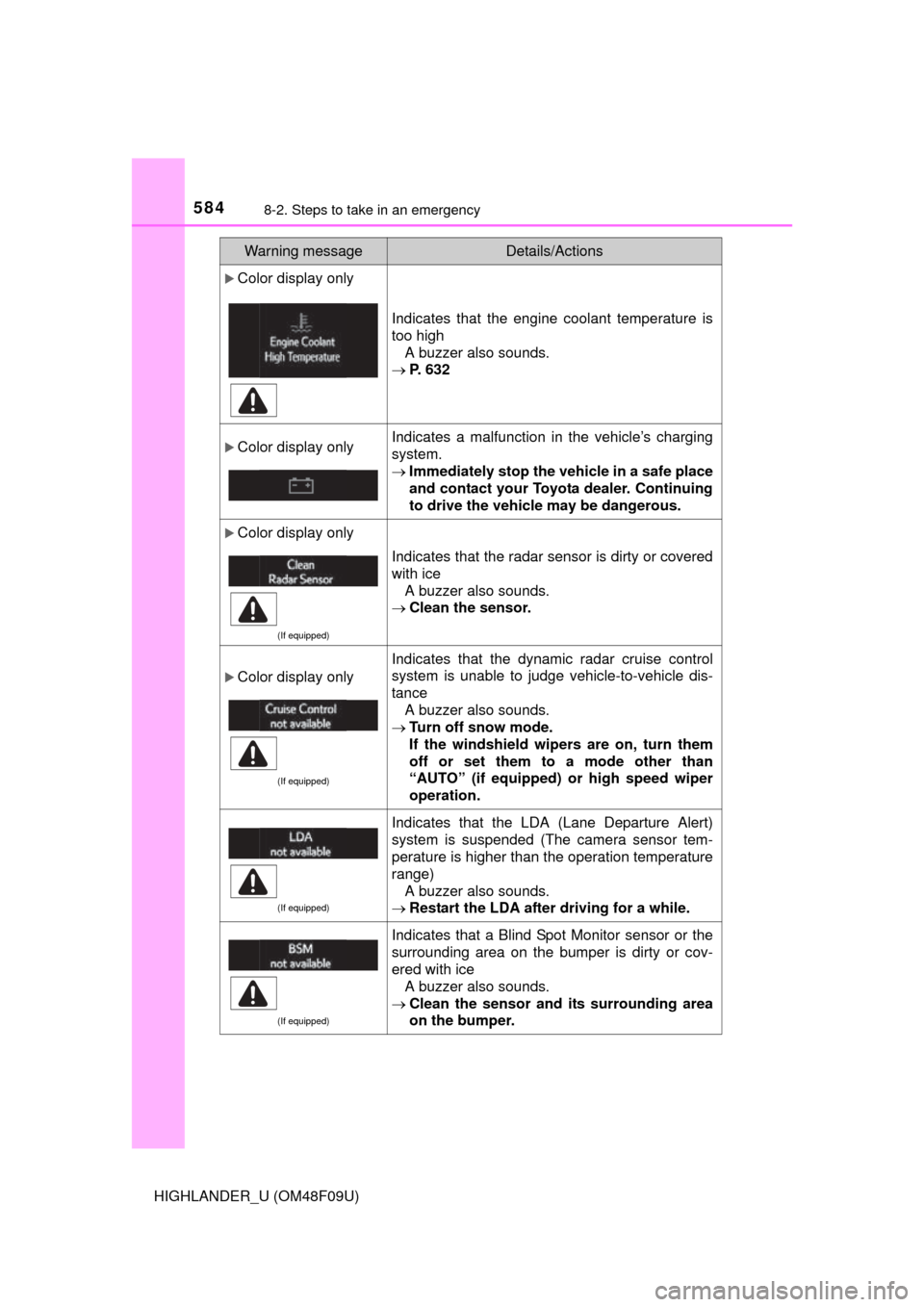

Color display only
Indicates that the engine coolant temperature is
too highA buzzer also sounds.
 P. 632
Color display onlyIndicates a malfunction in the vehicle’s charging
system.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Color display only
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
 Clean the sensor.
Color display only
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
 Turn off snow mode.
If the windshield wipers are on, turn them
off or set them to a mode other than
“AUTO” (if equipped) or high speed wiper
operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system is suspended (The camera sensor tem-
perature is higher than the operation temperature
range)
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Warning messageDetails/Actions
