2016 Peugeot Partner Tepee Owner's Manual

07-15
Printed in the
eu
A

nglais
Your vehicle will be fitted with some of this
equipment described in this document,
depending on its trim level, version and the
specification for the country in which it is sold. This handbook describes all of the equipment
available in the whole range.
The descriptions and illustrations are given
without any obligation. Automobiles P
e

ugeo
T


reserves the right to modify the technical
specifications, equipment and accessories without
having to update this edition of the handbook.
This document is an integral part of your
vehicle. It should be passed on to the new user
in the event of sale or transfer.
In addition, there are labels present in your
vehicle to warn you of the need for certain
precautions to take for your safety; don't
remove them, they will be useful again for a
new owner. Automobiles P
e

ugeo
T

declares, by
application of the provisions of the
e
u

ropean
regulation (Directive 2000/53) relating to
e
nd
of Life Vehicles, that it achieves the objectives
set by this regulation and that recycled
materials are used in the manufacture of the
products that it sells.
Reproduction or translation of all or part of
this document is prohibited without written
authorisation from Automobiles P
e

ugeo
T

.
We draw your attention to the following
points:
-

The fitting of electrical equipment or
accessories not listed by P

eugeo
T


may
cause faults and failures with the electrical
system of your vehicle. Contact a
P
eugeo
T dealer for information on the
range of recommended accessories.
-

As a safety measure, access to the
diagnostic socket, used for the vehicle's
electronic systems, is reserved strictly for
PEUGEOT

dealers or qualified workshops,
equipped with the special diagnostic
tool required (risk of malfunctions of the
vehicle's electronic systems that could
cause breakdowns or serious accidents).
The manufacturer cannot be held
responsible if this advice is not followed.
-

Any modification or adaptation not intended
or authorised by

Automobiles P
eugeo T
or carried out without meeting the technical
requirements defined by the manufacturer
would lead to the suspension of the legal
and contractual warranties.
The rear bodywork components of your vehicle
have been designed to minimise spray.

Anglais
AN. 15PAR.0041www.peugeot.com

46
Instruments and controls






The new pressure settings registered
are considered to be reference values
by the system.



The under-infl ation alert is only
dependable if the system has
been reinitialised with all four tyres
infl ated to the correct pressures.

Before doing anything to the
system, the pressures of the four
tyres must be checked and the
system reinitialised.

Snow chains
The system does not have to be
reinitialised after fi tting or removing
snow chains.



Dashboard button


)
Make a long press on this button.
A high tone audible signal confi rms the
reinitialisation.
A low tone audible signal indicates that
the reinitialisation was not completed.



Operating fault

The fl ashing and then fi xed illumination
of the under-infl ation warning lamp
accompanied by illumination of the
Service warning lamp indicates a fault
with the system.
In this case, under-infl ation monitoring
of the tyres is no longer assured.
Have the system checked by a dealer
or a qualifi ed workshop.

CANCELS AND REPLACES






UNDER-INFLATION DETECTION
WITH REINITIALISATION

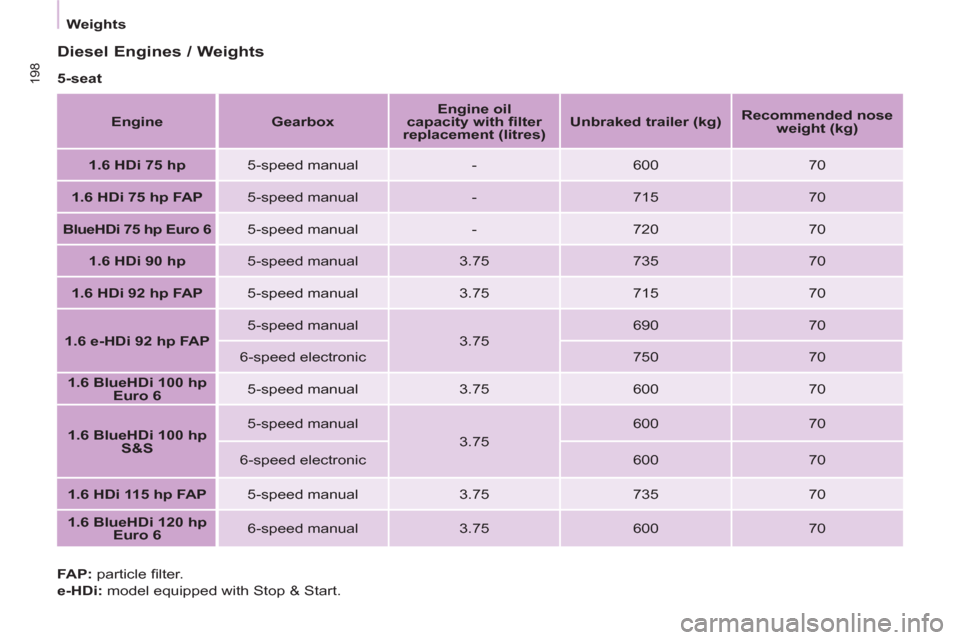

198

Weights


Diesel Engines / Weights


5-seat

Engine


Gearbox



Engine oil
capacity with fi lter
replacement (litres)



Unbraked trailer (kg)



Recommended nose
weight (kg)



1.6 HDi 75 hp

5-speed manual
-
600
70

1.6 HDi 75 hp FAP

5-speed manual
-
715
70

BlueHDi 75 hp Euro 6

5-speed manual
-
720
70

1.6 HDi 90 hp

5-speed manual
3.75
735
70

1.6 HDi 92 hp FAP

5-speed manual
3.75
715
70

1.6 e-HDi 92 hp FAP

5-speed manual

3.75
690
70

6-speed electronic
750
70

1.6 BlueHDi 100 hp
Euro 6

5-speed manual
3.75
600
70

1.6 BlueHDi 100 hp
S&S

5-speed manual

3.75
600
70

6-speed electronic
600
70

1.6 HDi 115 hp FAP

5-speed manual
3.75
735
70

1.6 BlueHDi 120 hp
Euro 6

6-speed manual
3.75
600
70

FAP:
particle fi lter.

e-HDi:
model equipped with Stop & Start.

199
TECHNICAL DATA
9

Weights


7-seat

Engine


Gearbox



Engine oil
capacity with fi lter
replacement (litres)



Unbraked trailer (kg)



Recommended nose
weight (kg)



1.6 HDi 92 hp FAP

5-speed manual
3.75
750
70

1.6 BlueHDi 100 hp
Euro 6

5-speed manual
3.75
600
70

1.6 BlueHDi 100 hp
Euro 6 S&S

5-speed manual
3.75
600
70

1.6 HDi 115 hp FAP

5-speed manual
3.75
750
70

1.6 BlueHDi 120 hp
Euro 6

6-speed manual
3.75
600
70

FAP:
particle fi lter.

e-HDi:
model equipped with Stop & Start.

197
TECHNICAL DATA
9

Weights


Petrol Engines / Weights


5-seat

Engine


Gearbox



Engine oil
capacity with fi lter
replacement (litres)



Unbraked trailer (kg)



Recommended nose
weight (kg)



1.6 110 hp

5-speed manual
3.25
750
55

1.6 VTi 100 hp

5-speed manual
4.25
600
70

1.6 VTi 120 hp

5-speed manual
4.25
690
70

1.6 VTi 120 hp Euro 6

5-speed manual
4.25
600
70

1.2 PureTech S&S
110 hp Euro 6

5-speed manual
3.45
600
70

7-seat

Engine


Gearbox



Engine oil
capacity with fi lter
replacement (litres)



Unbraked trailer (kg)



Recommended nose
weight (kg)



1.6 110 hp

5-speed manual
3.25
750
70

CANCELS AND REPLACES
