2016 Peugeot Partner Tepee Owner's Manual

183

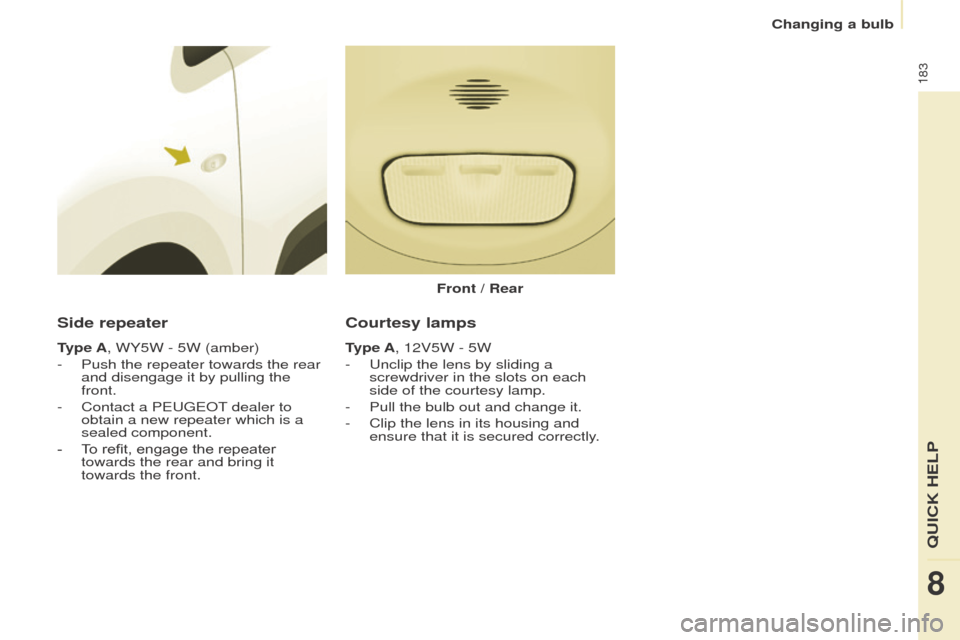

Side repeater
type A, WY5W - 5W (amber)
-
Push the repeater towards the rear
and disengage it by pullin

g the
front.
-

Contact a P
eugeo T dealer to
obtain a new repeater which is a
sealed component.
-

T
o refit, engage the repeater
towards the rear and bring it
towards the front.
Courtesy lamps
type A , 12V5W - 5W
- u nclip the lens by sliding a
screwdriver in the slots on each
side of the courtesy lamp.
-

Pull the bulb out and change it.
-


Clip the lens in its housing and
ensure that it is secured correctly

.
Front / Rear
8
QuICK HeLP
Changing a bulb

184
Rear lamps
This procedure requires the use of
the spanner supplied with the tools for
changing a wheel.When refitting, take care to
reposition the tabs and the wiring
correctly to avoid trapping the
wiring.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes. - Move aside the 4 tabs then extract
the bulb holder
.
-

Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.
-


Change the bulb.
When removing the lamp unit:
-


with tailgate, pull the lamp unit
towards the centre of the vehicle,
-


with hinged doors, pull the lamp
unit towards you.
For more information on bulbs, refer to
the "T

ypes of bulb".
1.

Brake lamps / sidelamps


type B

, P21/5W - 21/5W
2.

Direction indicators


type B

, PY21W - 21W (amber)
3.

Reversing lamps


type B

, P21W - 21W
4.

Foglamps


type B

, P21W - 21W
High pressure jet washing When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals. Chapter 9, "Changing a wheel"
section.
-

Identify the failed bulb, then open
the rear doors to 180°. Chapter 3, "Access" section.
-


Remove the two fixing bolts using
the spanner provided.
-


Pull the lamp unit from the outside.
-


Holding the lamp, disconnect the
electrical connector

.
Changing a bulb

185
Number plate lamps
- unscrew the two nuts.
-
Push the pins.
-


If necessary
, disconnect the
connector to remove the lamp.
-

Change the bulb.
third brake lamp
type A , W16W - 16Wtype A
, W5W - 5W
With tailgate
-

Disengage the plastic lens using a
screwdriver

.
-

Change the bulb.
-


Replace the plastic lens and press
on it. W

ith hinged doors
-
u
nclip the interior trim.
-

Disconnect the connector by
moving aside its tab.
-


T

urn the bulb holder a quarter turn
anticlockwise.
-

Change the bulb.
-


Put the bulb holder back in place
and reconnect the connector

.
-

Put the trim back in place.
8
QuICK HeLP
Changing a bulb

186
CHANgINg A Fu S e
The fuseboxes are located:
-

in the lower dashboard on the left-
hand side (behind the cover),
-


under the bonnet (near the battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer

, located
behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a P
eugeo T
dealer or a qualified workshop.
Removing and fitting a fuse
Always replace a failed fuse with a
fuse of the same rating.
Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
P
eugeo
T will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
P
eugeo
T network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Before replacing a fuse, the cause of
the incident must be identified and
rectified.
●

Use the tweezer
.
Changing a fuse

187
Dashboard fuses
Tilt the cover to gain access to the
fuses.Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Not used
3 5 Airbag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30
e

lectric windows
6 30 Locks
7 5Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-inflation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15 Central column 11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free phone kit
15 30 Locks
16 - Not used
17 40 Rear screen/mirrors demist/defrost
8
QuICK HeLP
Changing a fuse

188
Passenger compartment fuses
Fuses F Amperes
A Allocation
1 - Not used
2 20 Heated seats
3 - Not used
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
Changing a fuse

189
Fuses under the bonnet
After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses.Fuses
F Amperes
A Allocation
1 20
e
ngine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15
e

ngine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter motor
9 10 Headlamp beam motor, fleet management unit
10 30
e

ngine components
11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp
8
QuICK HeLP
Changing a fuse

190
Placing the windscreen wiper
blades in the special positionChanging a front wiper blade
- Lift the wiper arm.
- u nclip the blade and remove it.
-

Fit the new blade.
-


Push back the wiper arm.
Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
-

Fit the new blade and push back
the wiper arm.
CHANgINg A WIP e R BLAD e
- Within a minute after switching of f
the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.
Changing a wiper blade
