2016 Peugeot Partner Tepee Owner's Manual

63
tRIP C o MP ute R
A

few definitions
Range: displays the distance which
can travelled with the remaining fuel
detected in the tank, basd on the
average consumption over the last few
miles (kilometres).
This displayed value may vary
significantly following a change in the
vehicle speed or the relief of the route. Current fuel consumption:
only
calculated and displayed above
20 mph (30 km/h).
Average fuel consumption: this is the
average fuel consumption since the
last trip computer zero reset.
Distance travelled: calculated since
the last trip computer zero reset.
Distance remaining to the
destination: calculated with reference to
the final destination, entered by the user.
If guidance is activated, the navigation
system calculates it as a current value.
Average speed: this is the average
speed calculated since the last trip
computer zero reset (ignition on).
e

ach press of the button, located at
the end of the wiper stalk, displays the
different trip computer information in
turn, depending on the screen. When the required trip is displayed,
press the control for more than
two seconds. When the range falls below 20 miles
(30 km), dashes are displayed. After
filling with at least 10 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed
continuously in place of the digits,
contact a P
eugeo T dealer.
The "vehicle" tab with the range,
current fuel consumption and the
remaining distance to run.
The "1" tab (trip 1) with the average
speed, the average fuel consumption
and the distance travelled in trip "1".
The "2" tab (trip 2) with the same
information for a 2
nd trip.
Reset
Steering mounted controls
eASe oF uSe and CoMFoRt
4

64
CRuISe CoNtRoL
"CR
u IS e "
"This is the speed at which the driver
wishes to drive".
This aid to driving in free-flowing
traffic enables the vehicle to maintain
the speed programmed by the driver,
unless a steep gradient makes this
impossible.
For the system to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with
4th
gear or higher engaged. The state of the cruise control system
can be seen in the instrument panel
together with the the programmed
speed setting.
Function selected,
display of the "Cruise
Control" symbol.
Function off,
o
FF.
Function on.
Vehicle speed above,
the programmed
speed flashes.
o

perating fault
detected,
o

FF - the dashes
flash.
1.
Cruise control mode
o
n /
o
ff.
2.

Reduce cruise speed setting.
3.


Increase cruise speed setting.
4.


Pause / Resume cruise control.
Steering mounted controls

65
Selecting the functionFirst activation /
Programming a
speed
temporarily exceeding the
speed setting
Deactivation (off)
- Press this button or
the brake or clutch
pedal.
Reactivation
- Following deactivation of the cruise
control, press this button.
Y
our vehicle will return to the last
programmed speed.
Alternatively, you can repeat the "first
activation" procedure.
It is possible to accelerate and drive
momentarily at a speed greater than
the programmed speed setting. The
value programmed flashes.
When the accelerator pedal is
released, the vehicle will return to the
programmed speed.
-

Reach the chosen speed by
pressing the accelerator

.
-

Press the

S
et
- or S
et
+ button.
This programmes/activates the speed
setting and the vehicle will maintain
this speed. -

Place the switch in the

CR
u
IS
e

position. The cruise control is
selected but is not yet active and
no speed has been programmed.
Steering mounted controls
eASe oF uSe and CoMFoRt
4

66
Changing the
programmed speedSwitching the system off
o

perating fault
Cancelling the programmed
speed setting
When the vehicle becomes stationary,
after switching off the ignition, the
system no longer memorises a speed.
There are two methods of memorising
a speed higher than the previous one:
-
Place the dial in position
0 or switch
off the ignition to switch everything
off.
good practice
Without using the accelerator
-

Press the
S et + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in steps of
5 mph (km/h).
using the accelerator
- e xceed the memorised speed until
the speed required is reached,
-

Press the
S et + or S et - button.
To memorise a speed lower than the
previous one:
-

Press the
S et - button.
A brief press decreases the speed by
1
mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h). The programmed speed setting is
cleared and replaced by three dashes.
Contact a P
eugeo T dealer or a
qualified workshop to have the system
checked. When changing the programmed
speed setting by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly.
Do not use the cruise control on
slippery roads or in heavy traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed
setting.
In any event, the cruise control cannot
replace the need to observe the speed
limits and the need for vigilance on the
part of the driver.
It is advisable to keep your feet near
the pedals.
To avoid any jamming under the
pedals:
-

ensure that the mat and its fixings
on the floor are positioned correctly

,
-
never place one mat on top of
another

.
Steering mounted controls

67
The speed of the vehicle responds to
the pressure of the driver's foot, up
to the the accelerator pedal's point of
resistance, which indicates that the
programmed speed has been reached.
However, pressing the pedal beyond
this point of resistance to the floor
allows the programmed speed to be
exceeded. To resume use of the limiter,
simply reduce the pressure on the
accelerator pedal gradually and return
to a speed below that programmed.
Adjustments can be carried out
when stationary, with the engine
running, or with the vehicle moving.This speed limiter shows the function
selection status in the instrument panel
and displays the programmed speed:SPeeD LIMIteR
"LIMI

t "
Function selected,
displaying of the
"Speed Limiter"
symbol.
Function off,
last programmed
speed -
o FF.
Function on.
Vehicle speed above,
the programmed
speed setting is
displayed flashing.
o

perating fault
detected,
o

FF - the dashes
flash.
1.

Limiter mode

o
n /
o
ff.
2.

Reduce programmed speed
setting.
3.


Increase programmed speed
setting.
4.


Speed limiter

o
n / Pause.
"This is the selected speed which the
driver does not wish to exceed".
This selection is made with the engine
running while stationary or with the
vehicle moving. The minimum speed
which can be programmed is 20 mph
(30 km/h).
Steering mounted controls
eASe oF uSe and CoMFoRT
4

68

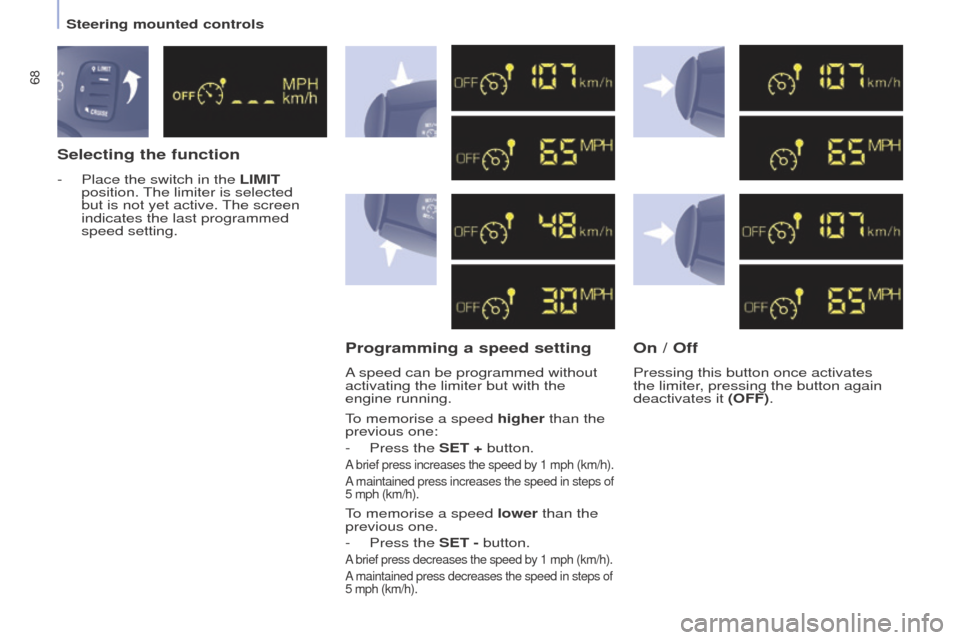

Selecting the functionProgramming a speed setting
o
n / o ff
- Place the switch in the LIMI t
position. The limiter is selected
but is not yet active. The screen
indicates the last programmed
speed setting.
A speed can be programmed without
activating the limiter but with the
engine running.
To memorise a speed higher than the
previous one:
-

Press the
S et + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in steps of
5 mph (km/h).
To memorise a speed lower than the
previous one.
-

Press the
S et - button.
A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the speed in steps of
5 mph (km/h).
Pressing this button once activates
the limiter, pressing the button again
deactivates it (o FF).
Steering mounted controls

69
exceeding the programmed
speed
Switching the function offo perating fault
The programmed speed is cleared
then replaced by three dashes.
Contact a P
eugeo T dealer or a
qualified workshop to have the system
checked.
Flashing of the speed setting
good practice
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance on the part of the driver
.
Always pay attention to the profile
of the road and sharp acceleration
and stay in complete control of your
vehicle.
To avoid any jamming under the
pedals:
-

ensure that the mat and its fixings
on the floor are positioned correctly

,
-

never place one mat on top of
another

.
Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal firmly beyond the point of
resistance.
The limiter is deactivated temporarily
and the programmed speed flashes
accompanied by an audible signal.
To return to the limiter function, reduce
your speed to below the programmed
speed.
The speed setting flashes:
-

following forcing of the accelerator
point of resistance,
-


when the limiter cannot prevent an
increase in the vehicle speed due
to the profile of the road or on a
steep descent,
-


in the event of sharp acceleration. -


Place the switch in position

0 or
switch off the ignition to switch the
system off.
The last programmed speed remains in
the memory.
Steering mounted controls
eASe oF uSe and CoMFoRt
4

70
VeNtILAtI o N
the side vents and the central
vents,
Air flow
the footwells,
the windscreen and the
footwells,
the windscreen.
The air distribution can be
modulated by placing the
control in the intermediate
positions, marked "●".
Air distribution
The air supply distribution is
determined by the following symbols:
in the red zone, provides
heating of the passenger
compartment. in the blue zone, provides
ambient air,
The speed of the blown air at
the vents varies from 1 to the
fastest 4. Position 0 switches
it off.
Adjust this control in order
to attain the desired comfort
level.
Heating
Manual air conditioning
temperature
Control positioned:
Ventilation
