2016 Peugeot Expert VU Owner's Manual - RHD (UK, Australia)

183

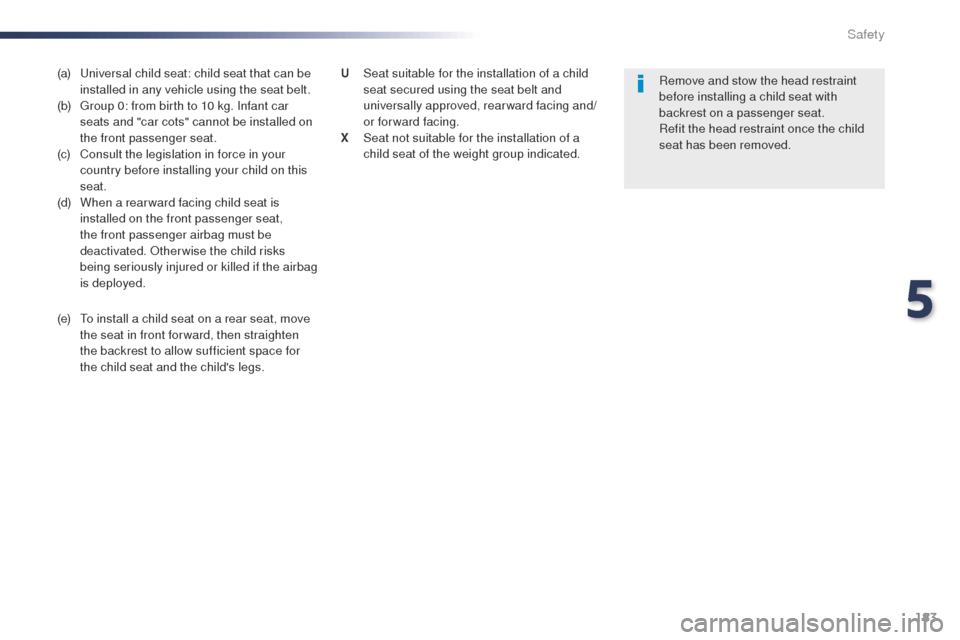

(a) universal child seat: child seat that can be installed in any vehicle using the seat belt.
(b)
g
r
oup 0: from birth to 10 kg. Infant car
seats and "car cots" cannot be installed on
the front passenger seat.
(c)

C
onsult the legislation in force in your
country before installing your child on this
seat.
(d)

W
hen a rear ward facing child seat is
installed on the front passenger seat,
the front passenger airbag must be
deactivated.
o
t
herwise the child risks
being seriously injured or killed if the airbag
is deployed.
(e)
t
o i
nstall a child seat on a rear seat, move
the seat in front for ward, then straighten
the backrest to allow sufficient space for
the child seat and the child's legs. Remove and stow the head restraint
before installing a child seat with
backrest on a passenger seat.
Refit the head restraint once the child
seat has been removed.
U
S eat suitable for the installation of a child
seat secured using the seat belt and
universally approved, rearward facing and/
or forward facing.
X

S
eat not suitable for the installation of a
child seat of the weight group indicated.
5
Safety

184
In line with european legislation, this table indicates the options for installing child seats secured using a seat belt and universally
approved (a) for the weight of the child and the seat in the vehicle.
Seat Weight of the child and indicative age
Under 13 kg
(groups 0 (b) and 0+)
up t

o approx 1 yearFrom 9 to 18 kg
(g r o u p 1)
1 to 3 years approx From 15 to 25 kg
(group 2)
3 to 6 years approx From 22 to 36 kg
(group 3)
6 to 10 years approx
Row 1 (c)
With individual seat,
passenger seatwith passenger airbag deactivated " OFF" U
UUU
with passenger airbag activated " ON" X
UFUFUF
With
bench seat, centre seat with passenger airbag
deactivated " OFF" X
XXX
with passenger airbag activated " ON" X
XXX
With
bench seat, outer seat with passenger airbag
deactivated " OFF" U
UUU
with passenger airbag activated " ON" X
UFUFUF
Row 2 Left-hand outer seat
UUUU
Centre seat UUUU
Right-hand outer seat UUUU
Row 3 Left-hand outer seat
UUUU
Centre seat UUUU
Right-hand outer seat UUUU
Safety

185

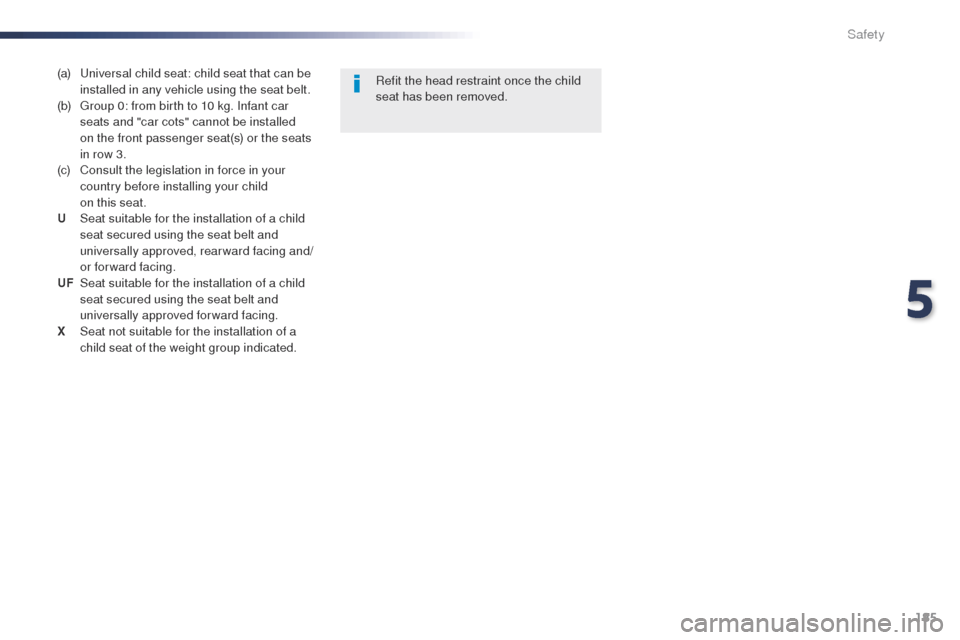

(a) universal child seat: child seat that can be installed in any vehicle using the seat belt.
(b)
g
r
oup 0: from birth to 10 kg. Infant car
seats and "car cots" cannot be installed
on the front passenger seat(s) or the seats
in row 3.
(c)

C
onsult the legislation in force in your
country before installing your child
on this seat.
U

S
eat suitable for the installation of a child
seat secured using the seat belt and
universally approved, rearward facing and/
or forward facing.
UF
S

eat suitable for the installation of a child
seat secured using the seat belt and
universally approved forward facing.
X

S
eat not suitable for the installation of a
child seat of the weight group indicated. Refit the head restraint once the child
seat has been removed.
5
Safety

186
"ISoFIX" mountings
the incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information on the possibilities for
installing IS
oF
IX child seats in your
vehicle, refer to the locations table.
ob

serve strictly the fitting instructions
provided with the child seat.
Your vehicle has been approved to the latest
IS
oF

IX regulation.
If fitted on your vehicle, the regulation IS
oF

IX
mountings are located by labels.the
mountings comprise three rings for each
seat:
-
t
w

o front rings A , located between
the vehicle seat backrest and cushion,
indicated by an "IS
o
F

IX" marking,
-

I

f fitted to your vehicle, a rear ring B ,
located behind the vehicle's seat, called
the
t
o

p
t
e

ther, for securing the upper
strap, indicated by a "
to

p
t
e

ther" marking.
th

e
t
o

p
t
e

ther is used to secure the upper
strap of child seats that have one. In the event
of a front impact, this system limits the for ward
tipping of the child seat.
th

is IS
oF

IX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
th

e IS
oF

IX child seats are fitted with
two

latches which are secured on the two front
rings A .
Some also have an upper strap which is
attached to the rear ring B .
to s

ecure the child seat to the
t
o

p
t
e

ther:
-

r

emove and stow the head restraint before
installing a child seat on this seat (refit it
once the child seat has been removed),
-

p

ass the child seat upper strap over the
top of the seat backrest, between the
apertures for the head restraint rods, -

f

ix the hook on the end of the upper strap
to the rear ring B ,
-

t

ighten the upper strap.
Safety

187

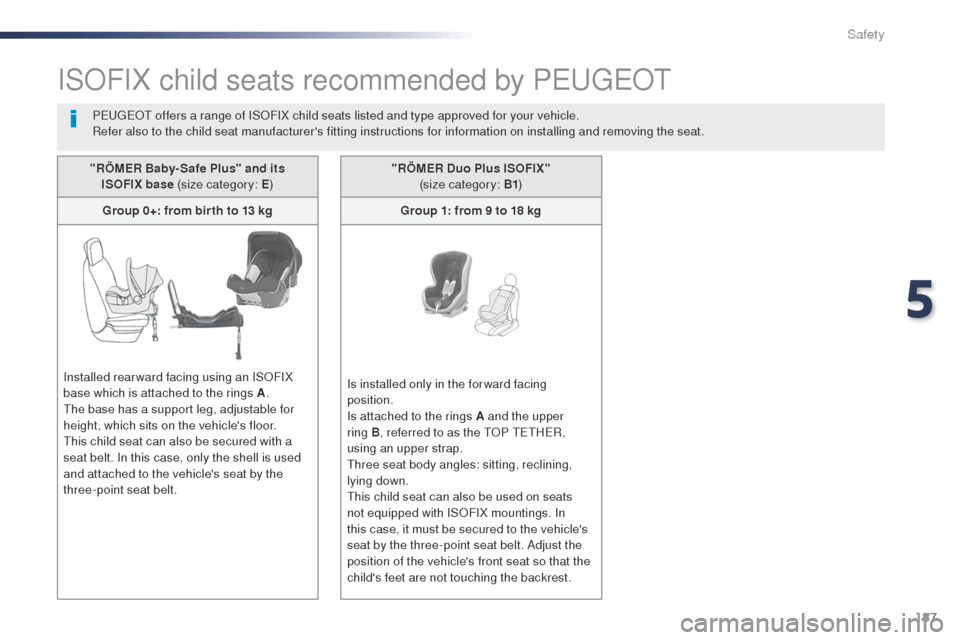

ISoFIX child seats recommended by Peugeot
Peugeot offers a range of ISoF IX child seats listed and type approved for your vehicle.
Refer also to the child seat manufacturer's fitting instructions for information on installing and removing the seat.
"RÖMER Baby- Safe Plus" and its ISOFIX base (size category: E )
Group 0+: from bir th to 13 kg
Installed rearward facing using an IS
o
F
IX
base which is attached to the rings A .
th

e base has a support leg, adjustable for
height, which sits on the vehicle's floor.
th

is child seat can also be secured with a
seat belt. In this case, only the shell is used
and attached to the vehicle's seat by the
three-point seat belt. "RÖMER Duo Plus ISOFIX"
(size category: B1 )
Group 1: from 9 to 18 kg
Is installed only in the for ward facing
position.
Is attached to the rings A and the upper
ring
B, referred to as the
to
P
tet
HeR
,
using an upper strap.
th

ree seat body angles: sitting, reclining,
lying down.
th

is child seat can also be used on seats
not equipped with IS
oF

IX mountings. In
this case, it must be secured to the vehicle's
seat by the three-point seat belt. Adjust the
position of the vehicle's front seat so that the
child's feet are not touching the backrest.
5
Safety

188
In line with european legislation, this table indicates the options for installing ISoF IX child seats on seats in the vehicle fitted with ISoF IX
mountings.
In the case of universal and semi-universal IS
oF

IX child seats, the IS
oF
IX size category, determined by a letter from A to G, is indicated
on the child seat next to the IS
oF

IX logo. Weight of the child / indicative age
Less than 10 kg (group 0)
u

p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1 2-seat bench seat
Not ISOFIX
Individual seat Not ISOFIX
Row 2 with
2-seat bench seat in row 1 Left-hand
outer seat -*
Centre seat Not ISOFIX
Right-hand outer seat -*
Locations for ISoFIX child seats
Safety

189

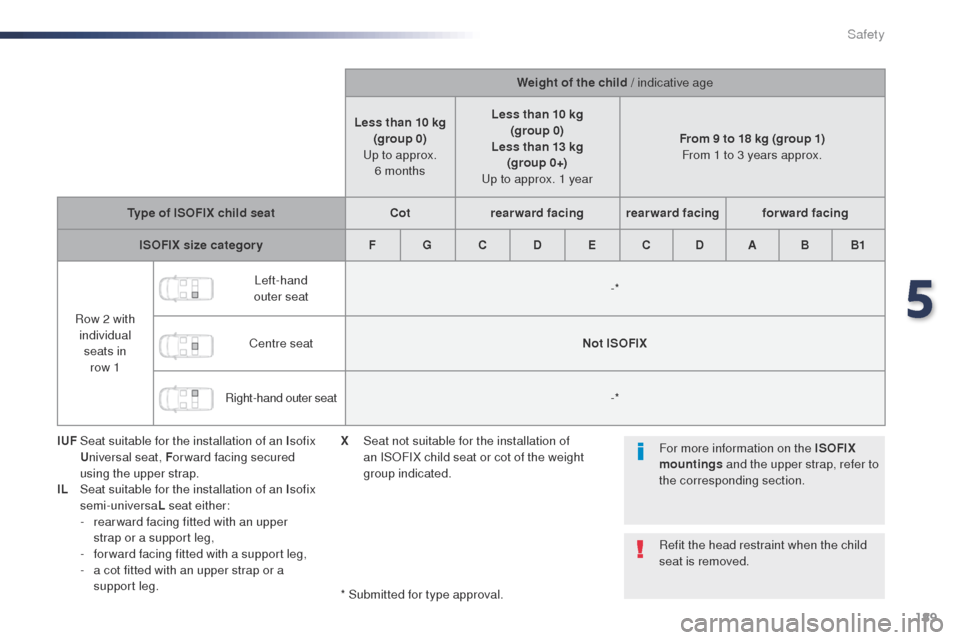

Weight of the child / indicative age
Less than 10 kg (group 0)
u

p to approx. 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 year From 9 to 18 kg (group 1)
From 1 to 3 years approx.
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 2 with individual seats in row 1 Left-hand
outer seat -*
Centre seat Not ISOFIX
Right-hand outer seat -*
IUF
S

eat suitable for the installation of an I sofix
U niversal seat, F or ward facing secured
using the upper strap.
IL
S

eat suitable for the installation of an I sofix
semi-universa L seat either:
-

r

ear ward facing fitted with an upper
strap or a support leg,
-

f

or ward facing fitted with a support leg,
-

a c

ot fitted with an upper strap or a
support leg. * Submitted for type approval. For more information on the ISOFIX
mountings
and the upper strap, refer to
the corresponding section.
Refit the head restraint when the child
seat is removed.
X

S

eat not suitable for the installation of
an IS
oF

IX child seat or cot of the weight
group indicated.
5
Safety

190
In line with european legislation, this table indicates the options for installing ISoF IX child seats on seats in the vehicle fitted with ISoF IX
mountings.
In the case of universal and semi-universal IS
oF

IX child seats, the IS
oF
IX size category, determined by a letter from A to G, is indicated on
the child seat next to the IS
oF

IX logo. Weight of the child / indicative age
Under 10 kg
(group 0)
u

p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
up t

o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Cot (1) rearward facing rearward
facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1 (a) Individual
seat or 2-seat bench seat with passenger airbag
deactivated " OFF" Not ISOFIX
with passenger airbag activated " ON" Not ISOFIX
Row 2 Left-hand outer seat
XIL (3) IL (2) IL IL (2) I U F, I L
Centre seat (b) XIL (3) IL (2) IL IL (2) I U F, I L
Right-hand outer seat XIL (3) IL (2) IL IL (2) I U F, I L
Safety
