2016 Peugeot Expert VU Owner's Manual - RHD (UK, Australia)

223
F With the engine running, adjust the brightness of the information displayed
using buttons 3 :
-

t
he "sun" to increase the brightness,
-

t
he "moon" to decrease the brightness.
Brightness adjustment
Height adjustment
In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary interference.
Some sunglasses may hamper reading
of the information.
to c

lean the blade, use a clean, soft
cloth (such as a spectacles cloth or
microfibre cloth). Do not use a dry or
abrasive cloth or detergent or solvent
products as these could scratch the
blade or damage the non-reflective
coating. We recommend that adjustments are
made using these buttons only when
the vehicle is stationary.
When stationary or while driving, no
objects should be placed around the
blade (or in its recess) so as to not
impede deployment of the blade and its
correct operation.
th

is system operates when the engine
is running and the settings are stored
when the ignition is switched off.
F

W

ith the engine running, adjust the display
to the desired height using buttons 4 :
-

u

p to move the display up,
-

d

own to move the display down.
6
Driving

224
MEM

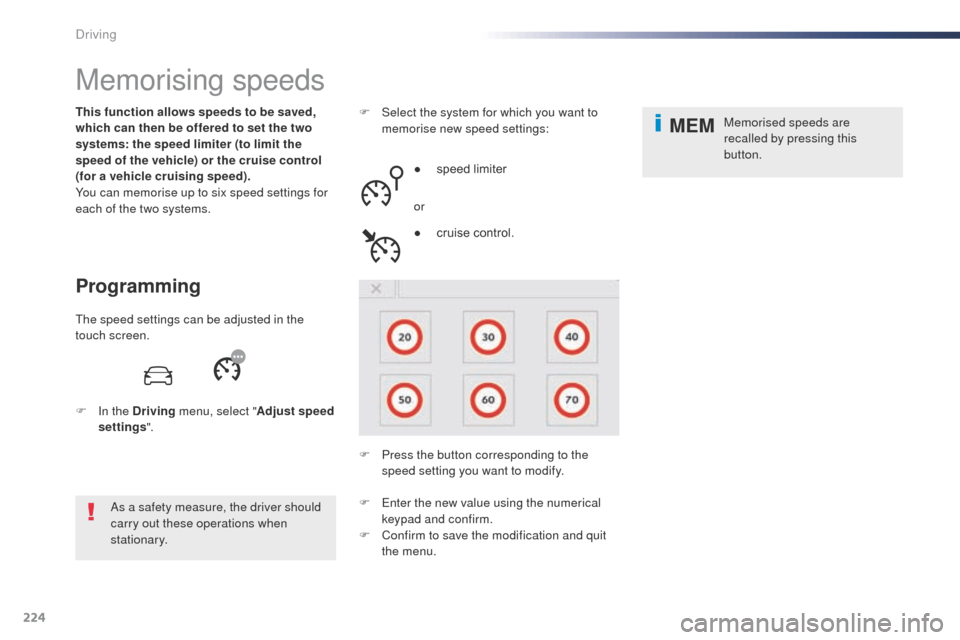

Memorising speeds
Programming
This function allows speeds to be saved,
which can then be offered to set the two
systems: the speed limiter (to limit the
speed of the vehicle) or the cruise control
(for a vehicle cruising speed).
You can memorise up to six speed settings for
each of the two systems.As a safety measure, the driver should
carry out these operations when
stationary. F
S elect the system for which you want to
memorise new speed settings:
●

s
peed limiter
or
F

P
ress the button corresponding to the
speed setting you want to modify. ●

c
ruise control.Memorised speeds are
recalled by pressing this
button.
th

e speed settings can be adjusted in the
touch screen.
F

I
n the Driving menu, select " Adjust speed
settings ".
F
e
n
ter the new value using the numerical
keypad and confirm.
F

C
onfirm to save the modification and quit
the menu.
Driving

225

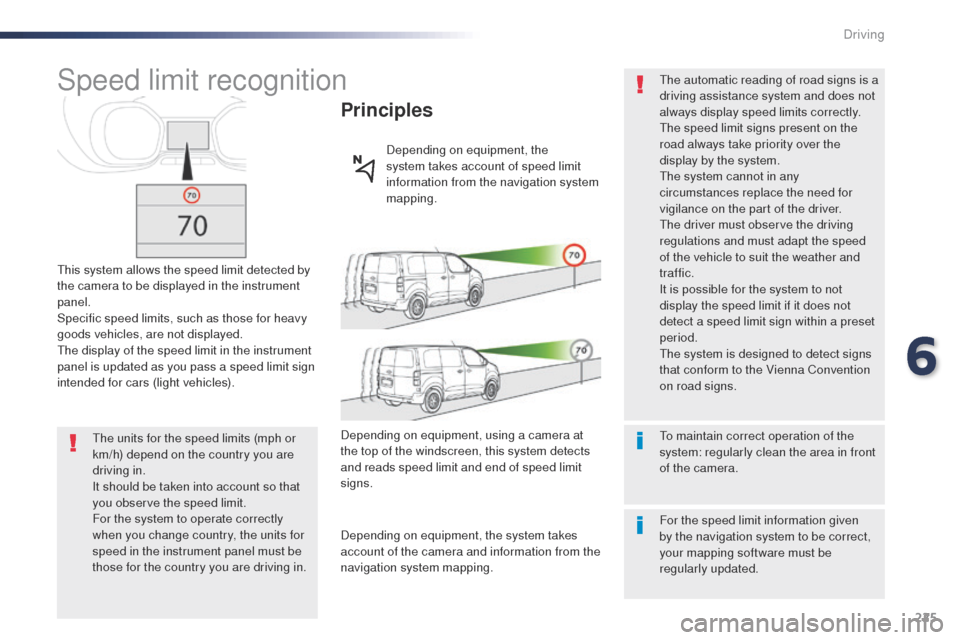

Speed limit recognition
this system allows the speed limit detected by
the camera to be displayed in the instrument
panel.
Specific speed limits, such as those for heavy
goods vehicles, are not displayed.
th
e display of the speed limit in the instrument
panel is updated as you pass a speed limit sign
intended for cars (light vehicles).
Principles
Depending on equipment, the
system takes account of speed limit
information from the navigation system
mapping.
th

e units for the speed limits (mph or
km/h) depend on the country you are
driving in.
It should be taken into account so that
you observe the speed limit.
For the system to operate correctly
when you change country, the units for
speed in the instrument panel must be
those for the country you are driving in. Depending on equipment, using a camera at
the top of the windscreen, this system detects
and reads speed limit and end of speed limit
signs.
Depending on equipment, the system takes
account of the camera and information from the
navigation system mapping.
to m

aintain correct operation of the
system: regularly clean the area in front
of the camera.
th
e automatic reading of road signs is a
driving assistance system and does not
always display speed limits correctly.
th
e speed limit signs present on the
road always take priority over the
display by the system.
th

e system cannot in any
circumstances replace the need for
vigilance on the part of the driver.
the

driver must observe the driving
regulations and must adapt the speed
of the vehicle to suit the weather and
traffic.
It is possible for the system to not
display the speed limit if it does not
detect a speed limit sign within a preset
period.
th

e system is designed to detect signs
that conform to the Vienna Convention
on road signs.
For the speed limit information given
by the navigation system to be correct,
your mapping software must be
regularly updated.
6
Driving

226
the system is active but is not detecting speed
limit information.
th
e driver can, if desired, adjust the
speed of the vehicle according to the
information given by the system.

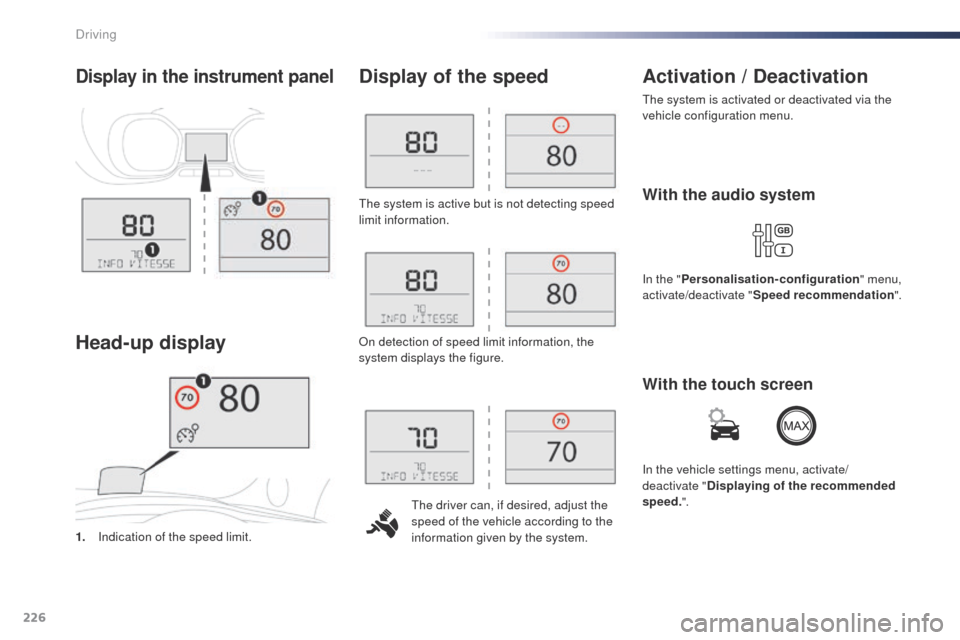

Display of the speed
1. Indication of the speed limit.
Head-up display Activation / Deactivation
the system is activated or deactivated via the
vehicle configuration menu.
Display in the instrument panel
on detection of speed limit information, the
system displays the figure.
With the audio system
In the "
Personalisation-configuration " menu,
activate/deactivate " Speed recommendation ".
With the touch screen
In the vehicle settings menu, activate/
deactivate "Displaying of the recommended
speed. ".
Driving

227
Memorising the speed
setting
this memorisation is in addition to the display
of Speed limit recognition .
th

e driver can choose to adapt the speed
setting to the speed limit suggested, by
pressing the memorisation button at the speed
limiter controls, with the standard cruise control
or the dynamic cruise control.
th

is speed setting then replaces the previous
speed setting for the speed limiter and/or
dynamic cruise control.
For more information on the
Speed limiter , Cruise control or
Dynamic cruise control , refer to the
corresponding sections.
Steering mounted controls
1. Select speed limiter/cruise control mode.
2. M emorise a speed setting.

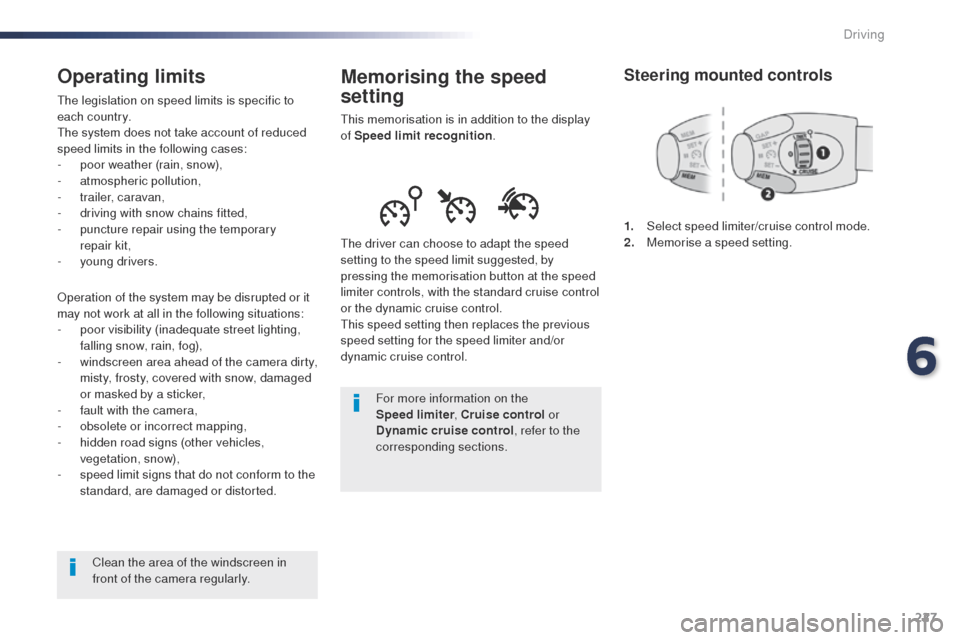

Operating limits
the legislation on speed limits is specific to
each country.
th

e system does not take account of reduced
speed limits in the following cases:
-

p
oor weather (rain, snow),
-
a

tmospheric pollution,
-

t
railer, caravan,
-
d

riving with snow chains fitted,
-

p
uncture repair using the temporary
repair


kit,
-
y

oung drivers.
op

eration of the system may be disrupted or it
may not work at all in the following situations:
-

p
oor visibility (inadequate street lighting,
falling snow, rain, fog),
-

w
indscreen area ahead of the camera dirty,
misty, frosty, covered with snow, damaged
or masked by a sticker,
-

f
ault with the camera,
-

o
bsolete or incorrect mapping,
-

h
idden road signs (other vehicles,
vegetation, snow),
-

s
peed limit signs that do not conform to the
standard, are damaged or distorted.
Clean the area of the windscreen in
front of the camera regularly.
6
Driving

228
MEMMEM

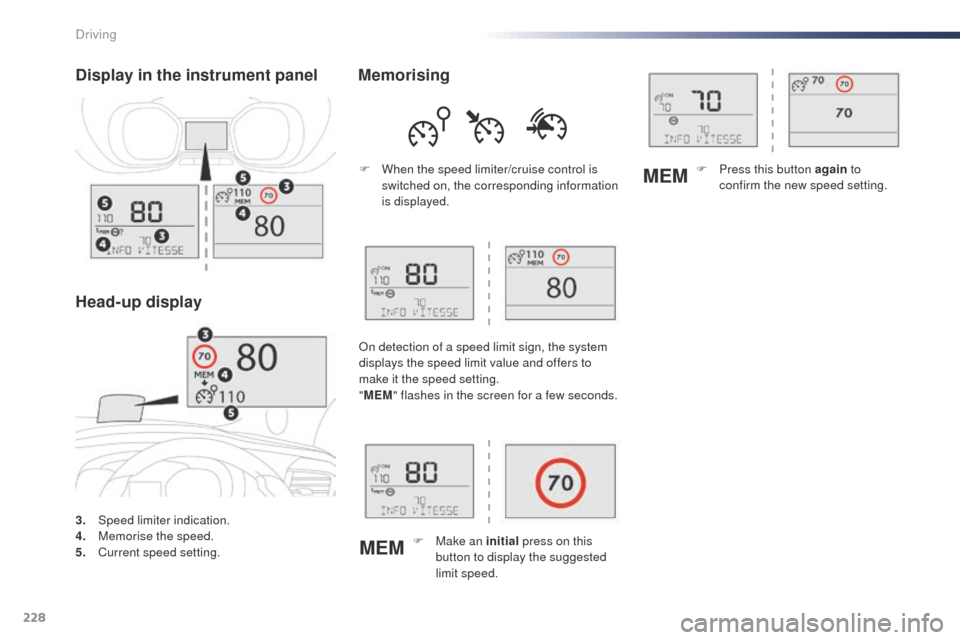

3. Speed limiter indication.
4. M
emorise the speed.
5.
C

urrent speed setting.
Display in the instrument panel
Head-up display Memorising
F When the speed limiter/cruise control is
switched on, the corresponding information
is displayed.
on d

etection of a speed limit sign, the system
displays the speed limit value and offers to
make it the speed setting.
" MEM " flashes in the screen for a few seconds.
F

M
ake an initial press on this
button to display the suggested
limit speed. F
P ress this button again
to
confirm the new speed setting.
Driving

229
GAP
MEM
Steering mounted controls
6. Speed limiter on/pause indication.
7. Spe ed limiter mode selection indication.
8.
Spe

ed value setting.

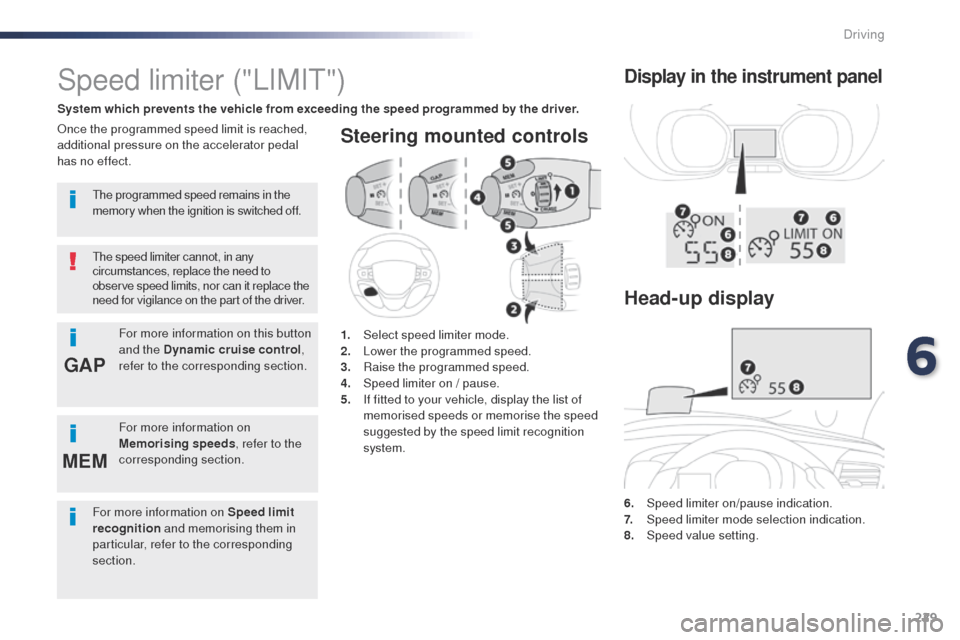

Speed limiter ("LIMIt")
System which prevents the vehicle from exceeding the speed programmed by the driver.
th

e speed limiter cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
on

ce the programmed speed limit is reached,
additional pressure on the accelerator pedal
has no effect.
1.
Sel

ect speed limiter mode.
2.
L

ower the programmed speed.
3.
Ra

ise the programmed speed.
4.
S

peed limiter on / pause.
5.
I

f fitted to your vehicle, display the list of
memorised speeds or memorise the speed
suggested by the speed limit recognition
system.
Display in the instrument panel
the programmed speed remains in the
memory when the ignition is switched off.
For more information on this button
and the Dynamic cruise control ,
refer to the corresponding section.
For more information on
Memorising speeds , refer to the
corresponding section.
Head-up display
For more information on Speed limit
recognition and memorising them in
particular, refer to the corresponding
section.
6
Driving

230

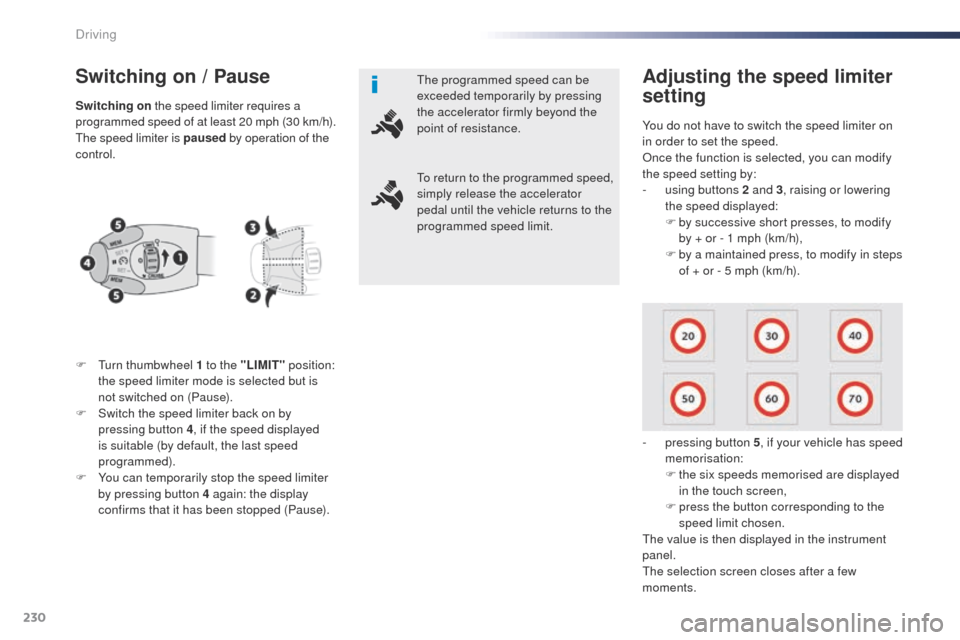

Switching on / Pause
F turn thumbwheel 1 to the "LIMIT" position:
the speed limiter mode is selected but is
not switched on (Pause).
F

S
witch the speed limiter back on by
pressing button 4 , if the speed displayed
is suitable (by default, the last speed
programmed).
F

Y
ou can temporarily stop the speed limiter
by pressing button 4 again: the display
confirms that it has been stopped (Pause). You do not have to switch the speed limiter on
in order to set the speed.
on

ce the function is selected, you can modify
the speed setting by:
-
u
sing buttons 2 and 3
, raising or lowering
the speed displayed:
F
b
y successive short presses, to modify
by + or - 1 mph (km/h),
F
b
y a maintained press, to modify in steps
of + or - 5 mph (km/h).
-
p
ressing button 5, if your vehicle has speed
memorisation:
F

t
he six speeds memorised are displayed
in the touch screen,
F

p
ress the button corresponding to the
speed limit chosen.
th

e value is then displayed in the instrument
panel.
th

e selection screen closes after a few
moments.
Adjusting the speed limiter
setting
S witching on the speed limiter requires a
programmed speed of at least 20 mph (30 km/h).
th

e speed limiter is paused by operation of the
control.
th
e programmed speed can be
exceeded temporarily by pressing
the accelerator firmly beyond the
point of resistance.
to r

eturn to the programmed speed,
simply release the accelerator
pedal until the vehicle returns to the
programmed speed limit.
Driving
