15
1. Analogue speedometer (mph or km/h).
2. Fuel gauge.
3.


e
ng
ine coolant temperature gauge.
4.
C

ruise control or speed limiter settings.
5.
D

igital speedometer (mph or km/h). A. S
ervice indicator reset. R
ecall of instantaneous information on:
-


servicing,
-
r

emaining driving range with the
emissions fluid (AdBlue
®).
B. M
ain lighting dimmer.
C.


t
r

ip recorder reset.
6.


g
e

ar shift indicator.


g
e

ar with an automatic or electronic
gearbox.
7.
S

ervice indicator, then total distance
recorder (miles or km), trip recorder (miles
or km), display of messages, ...
8.
R

ev counter (x 1 000 rpm or tr/min).
Dials and screens Control buttons

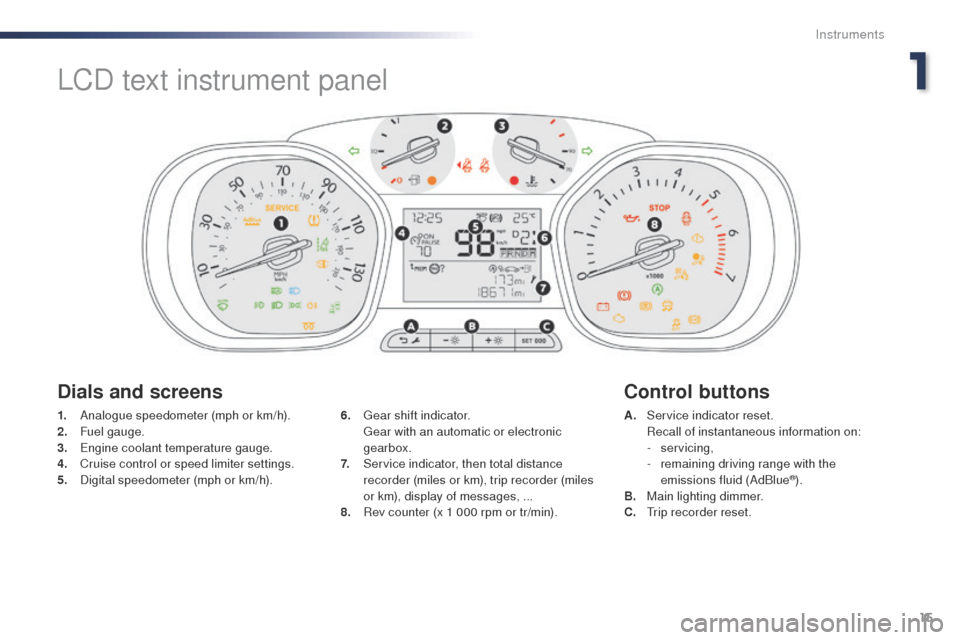

LCD text instrument panel
1
Instruments

16
Matrix instrument panel
1. Analogue speedometer (mph or km/h).
2. Fuel gauge.
3.


e
ng
ine coolant temperature gauge.
4.
C

ruise control or speed limiter settings.
5.


g
e
ar shift indicator.


g
e
ar with an automatic or electronic
gearbox. A. S
ervice indicator reset. A
lert log display.
R

ecall of information on:
-


servicing,
-
r

emaining driving range with the
emissions fluid (AdBlue
®).
B. M
ain lighting dimmer.
C.


t
r

ip recorder reset.
6.
D

isplay area: alert or state of function
messages, trip computer, digital
speedometer (mph or km/h), ...
7.
S

ervice indicator, then total distance
recorder (miles or km).
th
ese functions are displayed in turn when
the ignition is switched on.
8.


t
r

ip recorder (miles or km).
9.
R

ev counter (x 1 000 rpm or tr/min).
Dials and screens Control buttons
Instruments

17

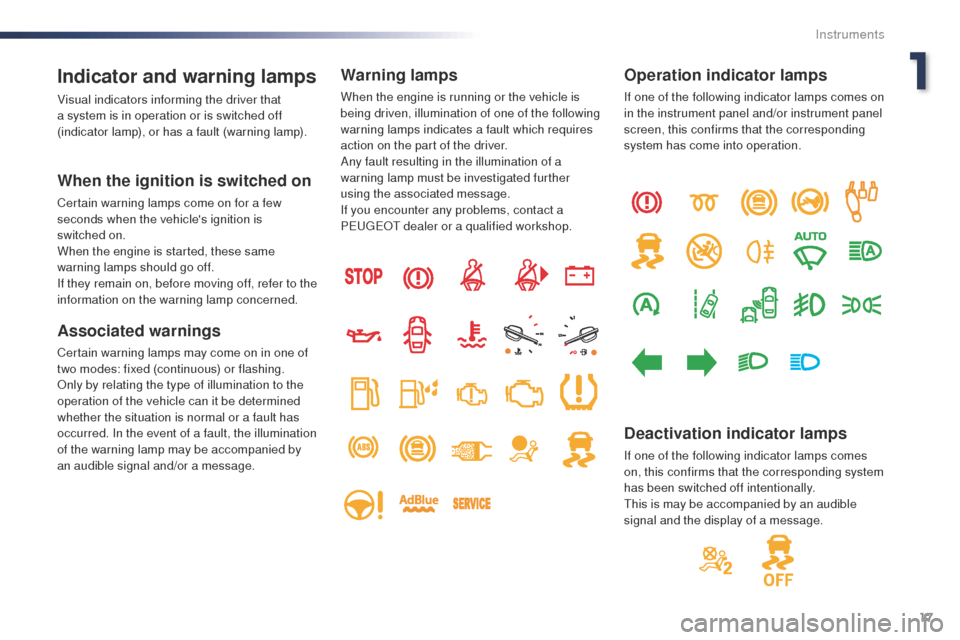

Indicator and warning lamps
Visual indicators informing the driver that
a system is in operation or is switched off
(indicator lamp), or has a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few
seconds when the vehicle's ignition is
switched

on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
Certain warning lamps may come on in one of
two modes: fixed (continuous) or flashing.
on

ly by relating the type of illumination to the
operation of the vehicle can it be determined
whether the situation is normal or a fault has
occurred. In the event of a fault, the illumination
of the warning lamp may be accompanied by
an audible signal and/or a message.
Warning lamps
When the engine is running or the vehicle is
being driven, illumination of one of the following
warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a
warning lamp must be investigated further
using the associated message.
If you encounter any problems, contact a
P
e

ugeot dealer or a qualified workshop.
Operation indicator lamps
If one of the following indicator lamps comes on
in the instrument panel and/or instrument panel
screen, this confirms that the corresponding
system has come into operation.
Deactivation indicator lamps
If one of the following indicator lamps comes
on, this confirms that the corresponding system
has been switched off intentionally.
th
is is may be accompanied by an audible
signal and the display of a message.
1
Instruments

18
Warning / indicator lampStateCause Action / Observations
STOP fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message. Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a P
e

ugeot
dealer or a qualified workshop.
Parking brake fixed.
th

e parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
ob

serve the safety recommendations.
For more information on the Parking brake , refer to
the corresponding section.
Braking fixed.
th

e brake fluid level has dropped
significantly. You must stop as soon as it is safe to do so.
to

p-up with brake fluid listed by P
e
ugeot
.
I

f the problem persists, have the system checked by a
P
e

ugeot dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.
th

e electronic brake force distribution
(
eB

FD) system has a fault.You must stop as soon as it is safe to do so.
Have it checked by a P
e

ugeot dealer or a qualified
workshop.
Instruments

19
Warning / indicator lampStateCause Action / Observations
Seat belt(s)
not fastened /
unfastened fixed
or flashing
accompanied by an
audible signal. A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
* Depending on the country of sale. Battery charge
*fixed.
th

e battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).
th

e warning lamp should go off when the engine is
started.
If it does not go off, contact a P
e

ugeot dealer or a
qualified workshop.
Engine oil
pressure fixed.
th

ere is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a P
e

ugeot
dealer or a qualified workshop.
or Maximum
coolant
temperature
fixed with the needle
in the red zone.
th

e temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a P
e

ugeot dealer or
a qualified workshop.
fixed (only with the
LCD instrument
panel).
1
Instruments

20
Warning / indicator lampStateCause Action / Observations
Door(s) open fixed, associated with
a message identifying
the door, if the speed
is below 6 mph
(10 km/h). A front, side or rear door (left-hand
side-hinged door or tailgate) is still
open.
Close the door in question.
If your vehicle has side-hinged rear doors and the
right-hand door is still open, it being open will not be
signalled by this warning lamp.
fixed, associated with
a message identifying
the door, together with
an audible signal if the
speed is above 6 mph
(10 km/h).
or Low fuel level
fixed, with the needle
in the red zone. When it first comes on there remains
less than 8 litres of fuel
in the tank.You must refuel as soon as possible to avoid running
out of fuel.
th

is warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 69 litres .
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
fixed (only with the
LCD instrument
panel).
Presence of
water in the
Diesel fuel fixed (only with the
LCD instrument
panel).
th

e Diesel fuel filter contains water.
th
ere is a risk of damage to the injection system.
Contact a P
e

ugeot dealer or a qualified workshop
without delay.
Instruments

21
Warning / indicator lampStateCause Action / Observations
+ Engine
auto-diagnosis
system
fixed, associated with
the S
t

o
P w
arning
lamp. A major engine fault has been
detected.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a P
e

ugeot
dealer or a qualified workshop.
Diesel engine
pre-heating fixed.
th

e ignition switch is at the
2
nd position (igntion on).o
r
th

e " START/STOP " button has been
pressed. Wait until the warning lamp goes off before starting.on
ce it goes off, starting is immediate, on condition
that:
-

t
he clutch pedal is pressed fully down with a
manual gearbox,
-

p
ressure is maintained on the brake pedal with an
automatic or electronic gearbox.
th

e period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Engine
auto-diagnosis
system
fixed.
th

e emission control system has a
fault.
th
e warning lamp should go off when the engine is
started.
If it does not go off, contact a P
e
ugeot dealer or
qualified workshop without delay.
flashing.
the
engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a P
e
ugeot dealer or a qualified
workshop.
+ fixed, associated with
the S
eR

VIC
e

warning
lamp. A minor engine fault has been
detected.
Have it checked by a P
e
ugeot dealer or a qualified
workshop.
1
Instruments

22
Warning / indicator lampStateCause Action / Observations
Under-inflation fixed, accompanied by
an audible signal and
a message.
th

e pressure in one or more tyres is
too low. Check the tyre pressures as soon as possible.
th

is check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection ,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.
th

e system has a fault: the tyre
pressures are no longer monitored. Check the tyre pressures as soon as possible.
Have the system checked by a P
e

ugeot dealer or a
qualified workshop.
Foot on the
brake pedal fixed.
th

e brake pedal must be pressed. With an automatic or electronic gearbox, press the brake pedal, engine running, before releasing the
parking brake, to release the selector lever and come
out of position P or N.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Foot on the
clutch fixed.
In the S
t

o
P m
ode of Stop & Start,
the change to S
tA

R
t
mode is denied
because the clutch pedal is not fully
down. If your vehicle has a manual gearbox, you must
declutch fully to allow the change to engine S
tA

R
t

mode.
