2016 Peugeot Expert VU Owner's Manual - RHD (UK, Australia)

47
Unfolding / Folding the key
If you do not press the button, you risk
damaging the remote control.
It allows the central locking or unlocking of the
vehicle using the door lock or from a distance.
It also allows the vehicle to be located, the fuel
filler cap to be removed and refitted and the
engine to be started or switched off, as well as
providing protection against theft.
Key, remote control
this separation of cab
and loading
area locking provides security in use.
It allows you to prevent access to the
part of the vehicle where you are not
present.
What is the point
of total or selective
unlocking?
total unlocking allows all of the vehicle's doors
(front, side and rear) to be unlocked.
th

e remote control buttons are not
active when the ignition is switched on.
Selective unlocking allows either the cab
doors, or the loading area doors (side and
rear) to be unlocked.
Key
the key allows the central locking or unlocking
of the vehicle using the door lock.
It also allows the fuel filler cap to be removed
and refitted and the engine started or
switched


off.
F

P
ress this button to unfold or fold the key.
2
Access

48
F to activate this selectivity between cab and loading
area , switch the ignition on and
press this button for more than
2


seconds.
Its indicator lamp comes on.
th

e modification is confirmed by an audible
signal and, depending on equipment, the
display of a message. F
t
o
deactivate this selectivity and
return to total unlocking, switch
the ignition on and press this
button for more than 2
seconds.
Its indicator lamp goes off.
By default, selectivity between cab and
loading area is activated.
Total unlocking
Using the remote control
F Press one of these buttons
(depending on equipment) to
unlock the vehicle.
un
locking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold at the same time. If fitted to your vehicle, pressing
and holding this button allows the
windows to be opened.
t
h
e window
stops when you release the button.
Using the key
Using the remote control with
electric sliding side door(s)
F to totally unlock the
vehicle and open the
side door, press and
hold this button until the
door has opened.
F
t
o


totally unlock the vehicle
without opening the side door,
press this button.
Programming
F to totally unlock the vehicle, turn the key
towards the front of the vehicle.
F
t
h
en to open the door, pull the handle.
If your vehicle has an alarm, this is not
deactivated.
o
p
ening a door will trigger the
alarm, which can then be stopped by switching
the ignition on. Cab
and loading area selectivity
deactivated.
Access

49
Using the key
F to unlock the cab doors only,
make an initial press on this
button.
F
t
o u
nlock the loading area
doors (side and rear), press this
button again
Selective unlocking
unlocking is confirmed by rapid flashing
of the direction indicators for about
two


seconds.
Depending on version, the electric door
mirrors unfold at the same time. F
t
o u
nlock the vehicle, turn the key to the
front of the vehicle.
F th en pull the handle to open the door.
If your vehicle has an alarm, this is not
deactivated.
o
p
ening a door will trigger the
alarm, which can then be stopped by switching
the ignition on.
Cab
and loading area selectivity
activated.
Using the remote control
If fitted to your vehicle, pressing
and holding this button opens the
windows.
t
he
window stops when
you release the button.
F
t
o u
nlock the loading area o n l y,
press this button.
If fitted to your vehicle:
Using the remote control with
electric sliding side door(s)
F Press this button to
unlock the loading area
only and open the side
door, press and hold
this button until the door
has opened.
F

P

ress this button to unlock
the loading area only, without
opening the side door.
Unlocking
2
Access

50
Using the remote control
F to unlock the vehicle, press this button.
un

locking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold at the same time. Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
As a safety measure (children on
board), never leave the vehicle without
taking your remote control, even for a
short period.
en
sure that no person or object might
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows.
Locking
F to unlock the vehicle totally , turn the key
to the rear of the vehicle.
If your vehicle has an alarm, this will not be
activated.
F
t
o l
ock the vehicle totally , press
this button.
Using the key
If a door is not fully closed (except
the right-hand door with side-hinged
d o o r s):
-

v
ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
If fitted to your vehicle, pressing
and holding this button closes the
windows.
t
he

window stops when
you release the button.
F
t
o u

nlock the vehicle
and open the side door,
press and hold this
button until the door has
opened.
Using the remote control with
electric sliding side door(s)
Using the remote control
Access

51

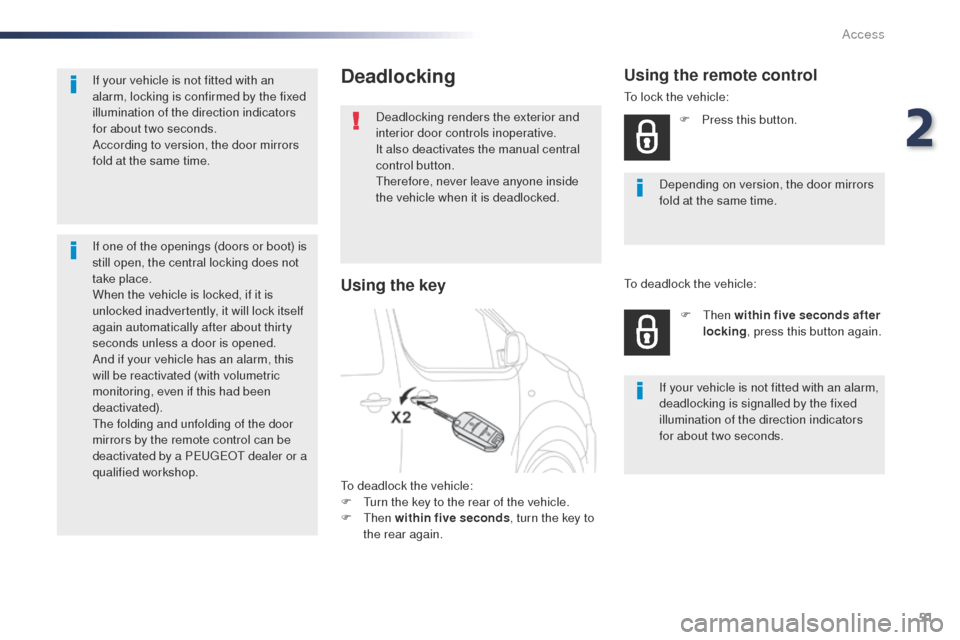

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
th
erefore, never leave anyone inside
the vehicle when it is deadlocked.
to d

eadlock the vehicle:
F
t
u
rn the key to the rear of the vehicle.
F
t
hen
within five seconds , turn the key to
the rear again. Depending on version, the door mirrors
fold at the same time.
Using the remote control
to lock the vehicle:
F
P
ress this button.
F
t
hen
within five seconds after
locking , press this button again.
If your vehicle is not fitted with an alarm,
deadlocking is signalled by the fixed
illumination of the direction indicators
for about two seconds.
to d

eadlock the vehicle:
Using the key
If your vehicle is not fitted with an
alarm, locking is confirmed by the fixed
illumination of the direction indicators
for about two seconds.
According to version, the door mirrors
fold at the same time.
If one of the openings (doors or boot) is
still open, the central locking does not
take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
And if your vehicle has an alarm, this
will be reactivated (with volumetric
monitoring, even if this had been
deactivated).
th

e folding and unfolding of the door
mirrors by the remote control can be
deactivated by a P
e

ugeot dealer or a
qualified workshop.
2
Access

52

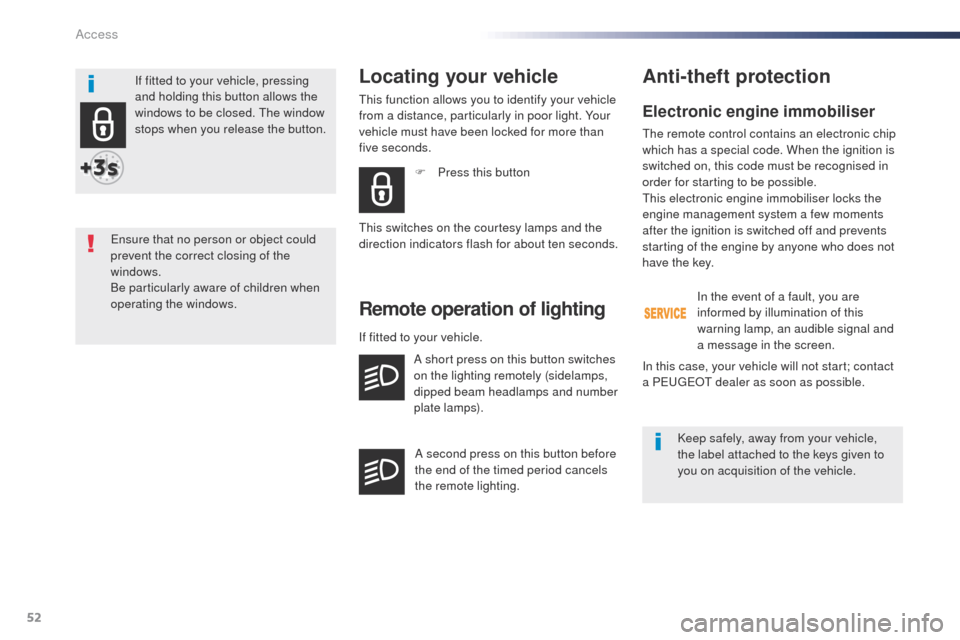

Electronic engine immobiliser
the remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
th
is electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
F

P

ress this button
Locating your vehicle
this function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.
th

is switches on the courtesy lamps and the
direction indicators flash for about ten seconds.
Remote operation of lighting
A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press on this button before
the end of the timed period cancels
the remote lighting.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
In this case, your vehicle will not start; contact
a P
e

ugeot dealer as soon as possible.
If fitted to your vehicle.
en

sure that no person or object could
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows. If fitted to your vehicle, pressing
and holding this button allows the
windows to be closed.
t
h

e window
stops when you release the button.
Access

53

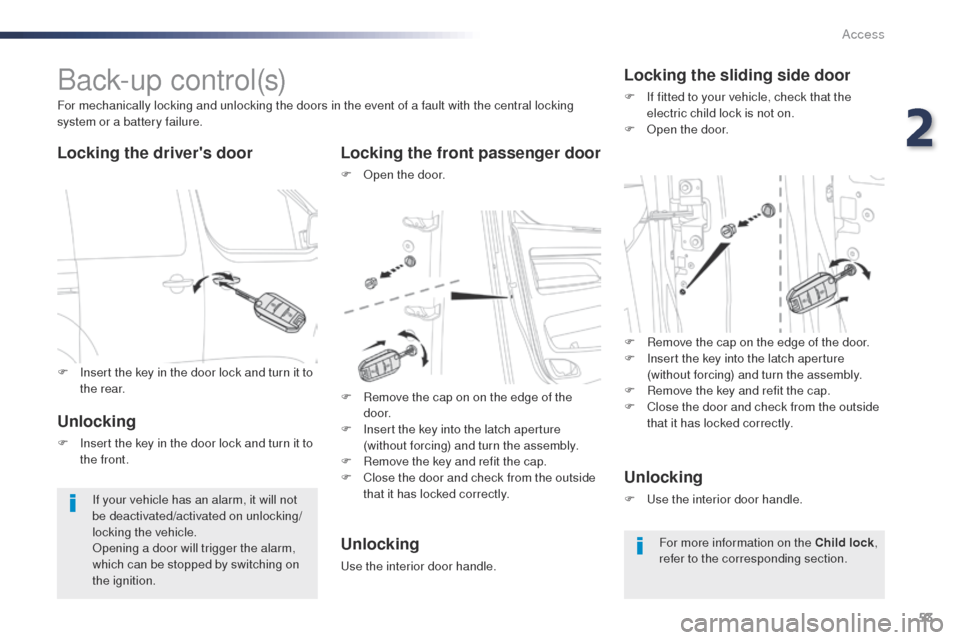

B a c k- u p c o nt r o l (s)
Locking the driver's doorLocking the front passenger door
F open the door.
For mechanically locking and unlocking the doors in the event of a fault with the central locking
system or a battery failure.
If your vehicle has an alarm, it will not
be deactivated/activated on unlocking/
locking the vehicle.
op

ening a door will trigger the alarm,
which can be stopped by switching on
the ignition.
Locking the sliding side door
F If fitted to your vehicle, check that the electric child lock is not on.
F
o
p
en the door.
Unlocking
F Insert the key in the door lock and turn it to the front.
Unlocking
use the interior door handle.
Unlocking
F use the interior door handle.
For more information on the Child lock ,
refer to the corresponding section.
F

I

nsert the key in the door lock and turn it to
the rear. F

R

emove the cap on on the edge of the
d o o r.
F

I

nsert the key into the latch aperture
(without forcing) and turn the assembly.
F

R

emove the key and refit the cap.
F

C

lose the door and check from the outside
that it has locked correctly. F
R
emove the cap on the edge of the door.
F
I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door and check from the outside
that it has locked correctly.
2
Access

54
Changing the battery
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta
ke them to an approved collection
point. If the battery is flat, you are
informed by lighting of this warning
lamp in the instrument panel, an audible signal
and a message in the screen.
Reinitialisation
Locking the side-hinged doors
F If fitted to your vehicle, check that the
electric child lock is not on.
F
o
p
en the left-hand door. Battery ref.: CR1620 / 3 volts.
F
L
ock the driver's door using the
key.
F

P
ress one of the remote control
buttons.
F
t
u
rn the key to position 2 (Ignition on).
F

S
witch off the ignition and remove the key
from the ignition switch.
th

e remote control is fully operational again.
Unlocking
F use the interior door handle.
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F
F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F
t
hen
reinitialise the remote control.
If the problem persists, contact a P
e

ugeot
dealer as soon as possible.
F
u
n
clip the cover using a screwdriver in the
cut-out.
F

R
emove the cover.
F
e
x
tract the flat battery from its location.
F

P
lace the new battery into its location
observing the original direction.
F

C
lip the cover in place.
F

I

nsert the key into the latch aperture on the
edge of the door (without forcing) and slide
the assembly upward.
F

R

emove the key.
F

C

lose the door and check from the outside
that it has locked correctly.
Access
