2016 Peugeot Expert VU Owner's Manual - RHD (UK, Australia)

303

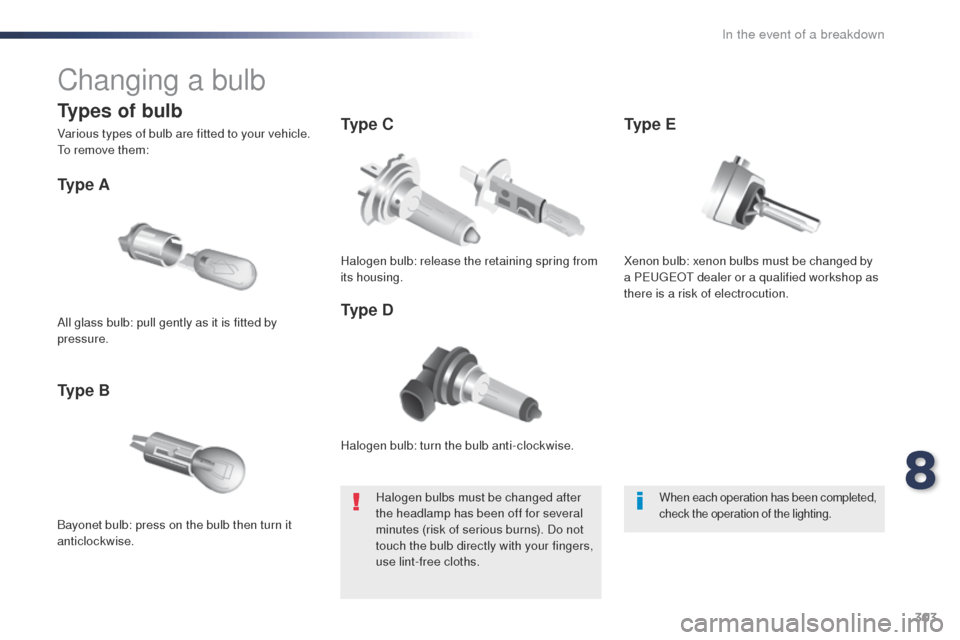

Changing a bulb
Halogen bulb: turn the bulb anti-clockwise.
Ty p e A
Bayonet bulb: press on the bulb then turn it
anticlockwise.
Ty p e BTy p e C
Ty p e D
All glass bulb: pull gently as it is fitted by
pressure.
Halogen bulb: release the retaining spring from
its housing.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not
touch the bulb directly with your fingers,
use lint-free cloths.
When each operation has been completed,
check the operation of the lighting.
Types of bulb
Various types of bulb are fitted to your vehicle. to remove them:
Xenon bulb: xenon bulbs must be changed by
a P
e

ugeot dealer or a qualified workshop as
there is a risk of electrocution.Ty p e E
8
In the event of a breakdown

304
Front lamps
Xenon headlamps
For more information on Changing a bulb
and in particular the types of bulb, refer to the
corresponding section.
Halogen headlamps
For more information on Changing a bulb
and in particular the types of bulb, refer to the
corresponding section.
For H7 type bulbs with lugs... take care
to observe their correct installation
so as to ensure the best lighting
performance.
Front fog lamps
Ty p e D , H11 - 5 5 W
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
1.
M

ain beam headlamps.
Ty

p e C , H1- 55W.
2.
D

ipped beam headlamps.
Ty

p e E , D8S 25W
3.
D

irection indicators.
Ty

p e B , PY21W-21W (amber)
1.


Sidelamps.
Ty

p e A , W5W-5W.
2.
M

ain beam headlamps.
Ty

p e C , H1- 55W
3.
D

ipped beam headlamps.
Ty

p e C , H7- 5 5 W
4.
D

aytime running lamps.
Ty

p e A , W21W LL-21W
5.
D

irection indicators.
Ty

p e B , PY21W-21W (amber)
In the event of a breakdown

305

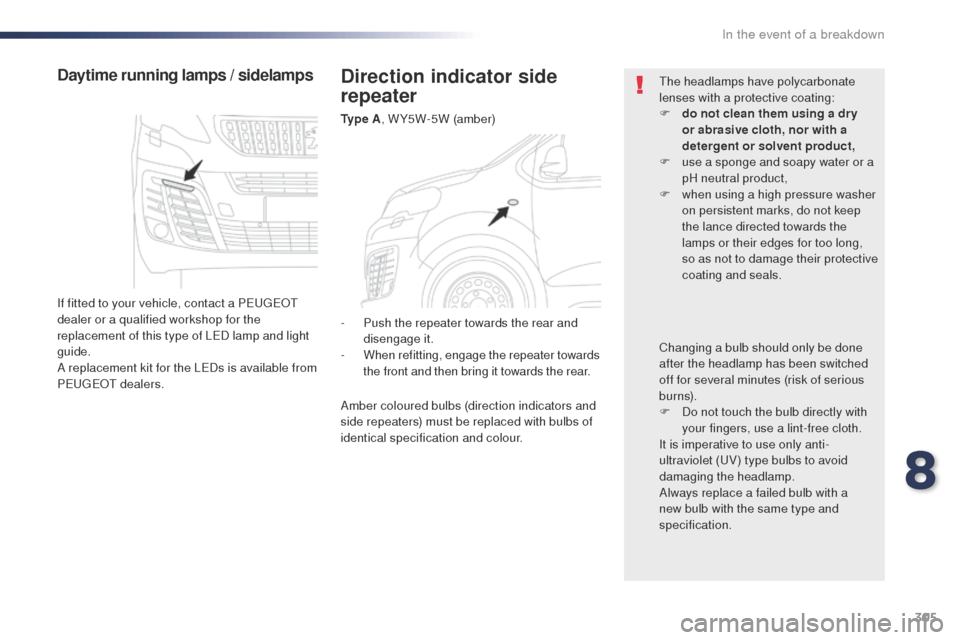

Direction indicator side
repeater
Ty p e A, W Y5W-5W (amber)
Daytime running lamps / sidelamps
If fitted to your vehicle, contact a Pe ugeot
dealer or a qualified workshop for the
replacement of this type of L
eD l

amp and light
guide.
A replacement kit for the L
eD

s is available from
P
e

ugeot
d
ealers.
th
e headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (
uV

) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
-

P
ush the repeater towards the rear and
disengage it.
-
W

hen refitting, engage the repeater towards
the front and then bring it towards the rear.
Amber coloured bulbs (direction indicators and
side repeaters) must be replaced with bulbs of
identical specification and colour.
8
In the event of a breakdown

306
When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place.
Dipped beam headlamps
(halogen headamps)
Ty p e C, H7- 5 5 W
Daytime running lamps
(halogen headlamps)
Ty p e A , W21W LL-21W
Sidelamps
(halogen headlamps)
Ty p e A, W5W
F

P

ress the upper clip on the cover then tip it
rear wards to remove it.
F

P

ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F

P

ull the bulb out and change it.
to r

efit, carry out these operations in reverse
o r d e r. F

P

ress the upper clip on the cover then tip it
rear wards to remove it.
F

P

ress the two side clips on the electrical
connector and remove the assembly of
connector and bulb.
F

P

ull out the bulb and change it.
to r

efit, carry out these operations in reverse
o r d e r. F

P
ress the upper clip on the cover then tip it
rear wards to remove it.
F

P
ress the two side clips on the electrical
connector and remove the assembly of
connector and bulb.
F

P
ull the bulb out and change it.
to r

efit, carry out these operations in reverse
o r d e r.
In the event of a breakdown

307
Be aware that the area behind the right-
hand headlamp (facing forwards) may
be hot, with the risk of burns (over flow
p i p e).Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.

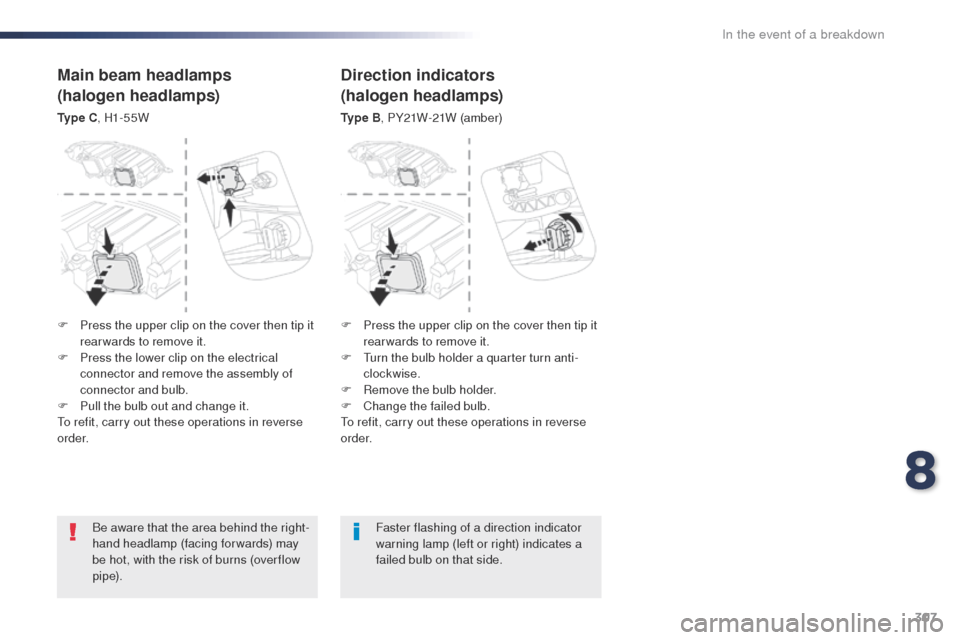

Direction indicators
(halogen headlamps)
Ty p e B
, PY21W-21W (amber)
Main beam headlamps
(halogen headlamps)
Ty p e C, H1- 55W
F
P
ress the upper clip on the cover then tip it
rear wards to remove it.
F

P
ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F

P
ull the bulb out and change it.
to r

efit, carry out these operations in reverse
o r d e r. F

P
ress the upper clip on the cover then tip it
rear wards to remove it.
F
t
u
rn the bulb holder a quarter turn anti-
clockwise.
F

R
emove the bulb holder.
F

C
hange the failed bulb.
to r

efit, carry out these operations in reverse
o r d e r.
8
In the event of a breakdown

308

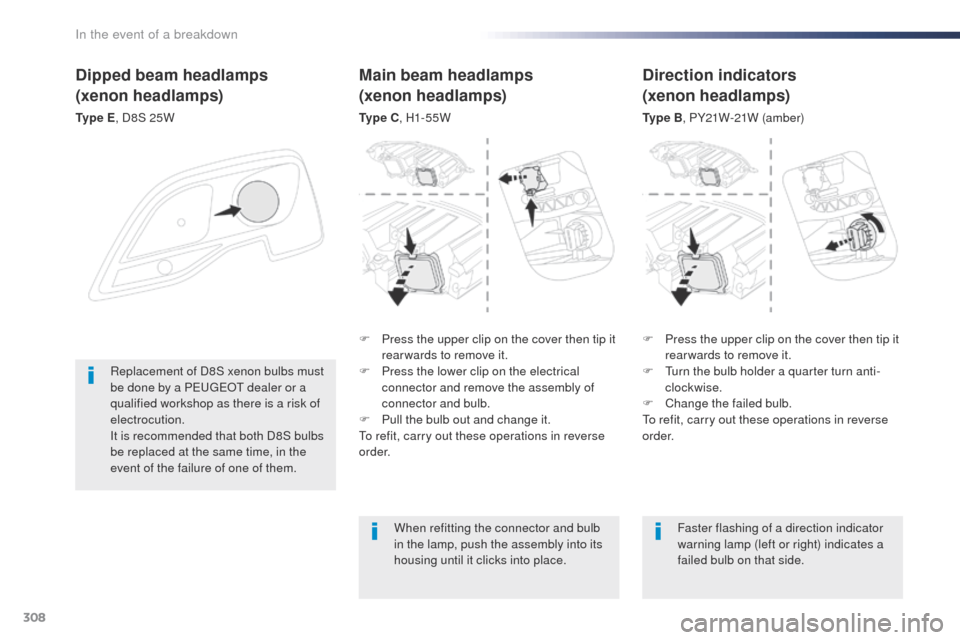

Dipped beam headlamps
(xenon headlamps)
Ty p e E, D8S 25W
F
P
ress the upper clip on the cover then tip it
rear wards to remove it.
F
t
u
rn the bulb holder a quarter turn anti-
clockwise.
F

C
hange the failed bulb.
to r

efit, carry out these operations in reverse
o r d e r.
Replacement of D8S xenon bulbs must
be done by a P
e

ugeot dealer or a
qualified workshop as there is a risk of
electrocution.
It is recommended that both D8S bulbs
be replaced at the same time, in the
event of the failure of one of them.
Main beam headlamps
(xenon headlamps)
Ty p e C , H1- 55W
When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place. Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Direction indicators
(xenon headlamps)
Ty p e B
, PY21W-21W (amber)
F

P

ress the upper clip on the cover then tip it
rear wards to remove it.
F

P

ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F

P

ull the bulb out and change it.
to r

efit, carry out these operations in reverse
o r d e r.
In the event of a breakdown

309

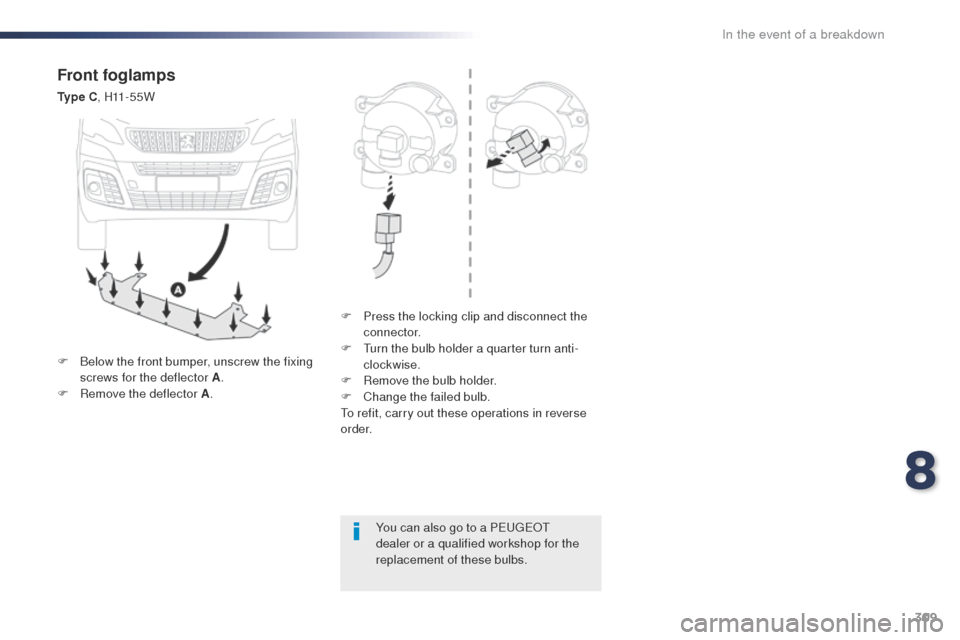

Front foglamps
Ty p e C, H11 - 5 5 W
F
P
ress the locking clip and disconnect the
connector.
F
t
u
rn the bulb holder a quarter turn anti-
clockwise.
F

R
emove the bulb holder.
F

C
hange the failed bulb.
to r

efit, carry out these operations in reverse
o r d e r.
You can also go to a P
e

ugeot
dealer or a qualified workshop for the
replacement of these bulbs.
F

B
elow the front bumper, unscrew the fixing
screws for the deflector A .
F

R
emove the deflector A .
8
In the event of a breakdown

310

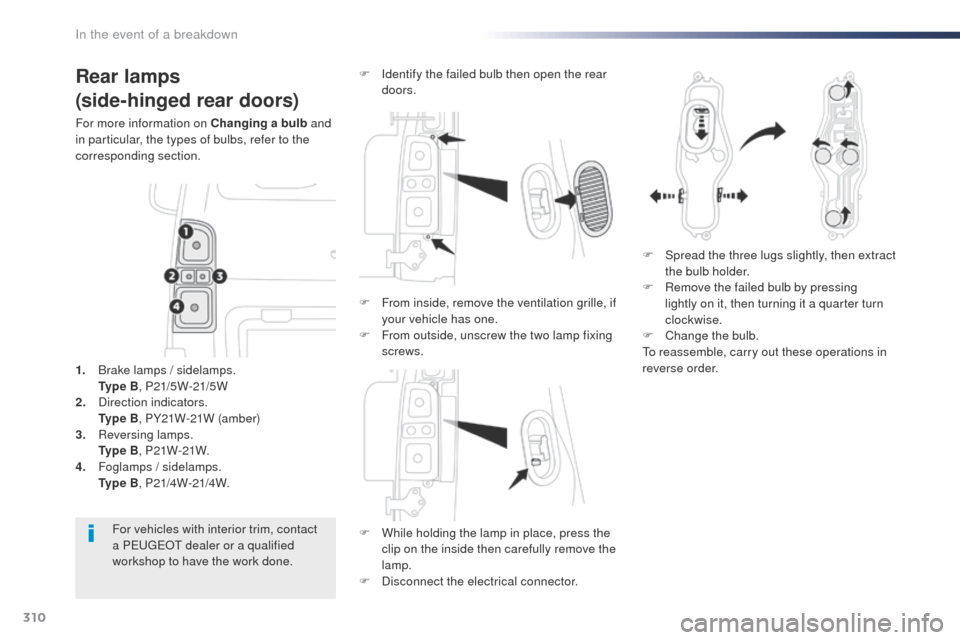

Rear lamps
(side-hinged rear doors)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
F

W
hile holding the lamp in place, press the
clip on the inside then carefully remove the
lamp.
F

D
isconnect the electrical connector.
For vehicles with interior trim, contact
a P
e

ugeot dealer or a qualified
workshop to have the work done.
1.
B

rake lamps / sidelamps.
Ty

p e B, P21/5W-21/5W
2.
D

irection indicators.
Ty

p e B, PY21W-21W (amber)
3.
R

eversing lamps.
Ty

p e B, P21W-21W.
4.
F

oglamps / sidelamps.
Ty

p e B, P21/4W-21/4W. F

I
dentify the failed bulb then open the rear
doors.
F
S
pread the three lugs slightly, then extract
the bulb holder.
F

R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F

C
hange the bulb.
to r

eassemble, carry out these operations in
reverse order.
F

F
rom inside, remove the ventilation grille, if
your vehicle has one.
F

F
rom outside, unscrew the two lamp fixing
screws.
