2016 Peugeot Expert VU Owner's Manual - RHD (UK, Australia)

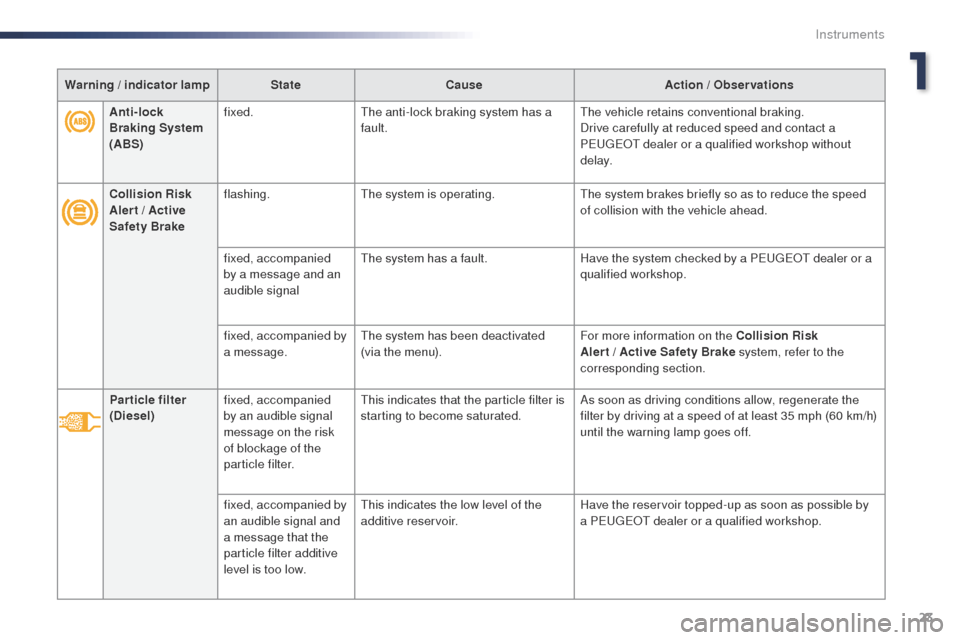

23
Anti-lock
Braking System
(ABS)fixed.th
e anti-lock braking system has a
fault.th e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
P
e

ugeot dealer or a qualified workshop without
d e l ay.
Warning / indicator lamp
StateCause Action / Observations
Collision Risk
Aler t / Active
Safety Brake flashing.
the

system is operating.
th
e system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
fixed, accompanied
by a message and an
audible signal
th

e system has a fault.Have the system checked by a P
e

ugeot dealer or a
qualified workshop.
fixed, accompanied by
a message.
th

e system has been deactivated
(via the menu). For more information on the Collision Risk
Aler t / Active Safety Brake system, refer to the
corresponding section.
Par ticle filter
(Diesel) fixed, accompanied
by an audible signal
message on the risk
of blockage of the
particle filter.
th

is indicates that the particle filter is
starting to become saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied by
an audible signal and
a message that the
particle filter additive
level is too low.
th

is indicates the low level of the
additive reservoir. Have the reservoir topped-up as soon as possible by
a P
e

ugeot dealer or a qualified workshop.
1
Instruments

24
Warning / indicator lampStateCause Action / Observations
Passenger's
front airbag fixed in the seat belt
and front passenger's
airbag warning lamps
display.
th

e control switch, located at the
passenger's end of the dashboard, is
set to the "OFF" position.
the

passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the airbags (airbag warning lamp on).
tu

rn the control switch to the "ON" position to activate
the passenger's front airbag; in this case, you must
not install a child seat in the rear ward facing position
on this seat.
Airbags
on temporarily.
th

is warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
th

is warning lamp should go off when the engine is
started.
If it does not go off, contact a P
e

ugeot dealer or a
qualified workshop.
fixed.
on

e of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a P
e

ugeot dealer or a
qualified workshop.
Passenger 's
airbag system fixed.
th

e control switch, located at the
passenger's end of the dashboard, is
at the " ON" position.
the

passenger's front airbag is
activated.
In this case, do not install a rear ward
facing child seat on the front
passenger seat.
tu

rn the control switch to the "OFF" position to
deactivate the passenger's front airbag.
You can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp


on).
Instruments

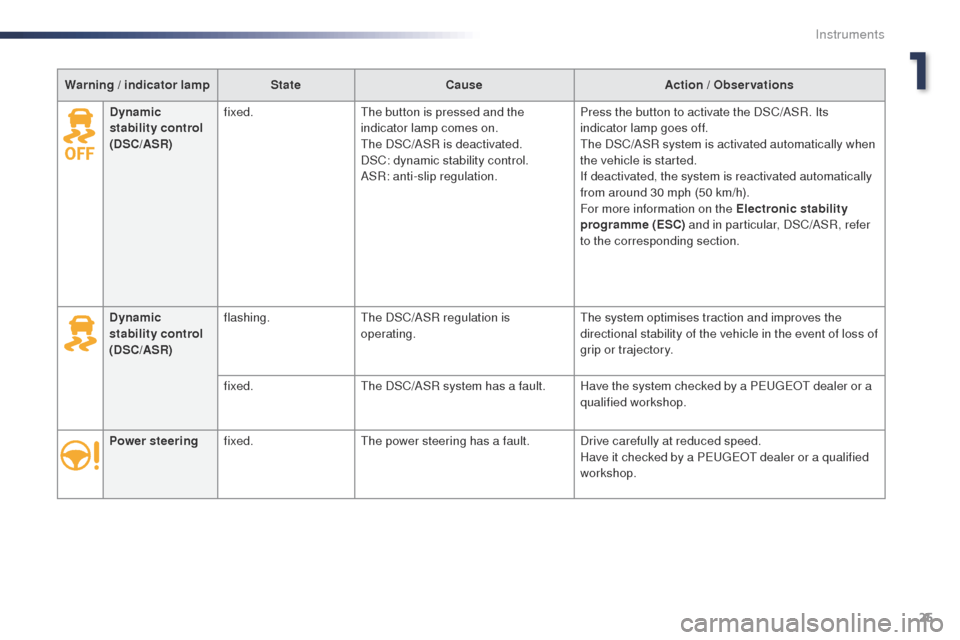

25
Warning / indicator lampStateCause Action / Observations
Power steering fixed.
th

e power steering has a fault. Drive carefully at reduced speed.Have it checked by a P
e

ugeot dealer or a qualified
workshop.
Dynamic
stability control
(DSC/ASR)
flashing.
th

e DSC/ASR regulation is
operating.
th

e system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed.
th

e DSC/ASR system has a fault. Have the system checked by a P
e
ugeot dealer or a
qualified workshop.
Dynamic
stability control
(DSC/ASR)
fixed.
th

e button is pressed and the
indicator lamp comes on.
the

DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation. Press the button to activate the DSC/ASR. Its
indicator lamp goes off.
th

e DSC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information on the Electronic stability
programme (ESC) and in particular, DSC/ASR, refer
to the corresponding section.
1
Instruments

26
For topping-up the AdBlue® fluid or for more information on AdBlue®, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
AdBlue
®
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.the
remaining driving range is
between 350 miles (600 km)
and
1500 miles (2400 km).Have the AdBlue® tank topped-up as soon as
possible: go to a Pe ugeot dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range.
the

remaining driving range is
between 0 and 350 miles (600 km). You must top-up the AdBlue
® tank to avoid a
breakdown : go to a Pe
ugeot dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented.
th

e AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine.to b e able to start the engine, you must top-up the
AdBlue® tank: go to a Pe ugeot dealer or a qualified
workshop, or carry out this operation yourself.
It is essential to add at least 3.8 litres of AdBlue
® to
the fluid tank.
Instruments

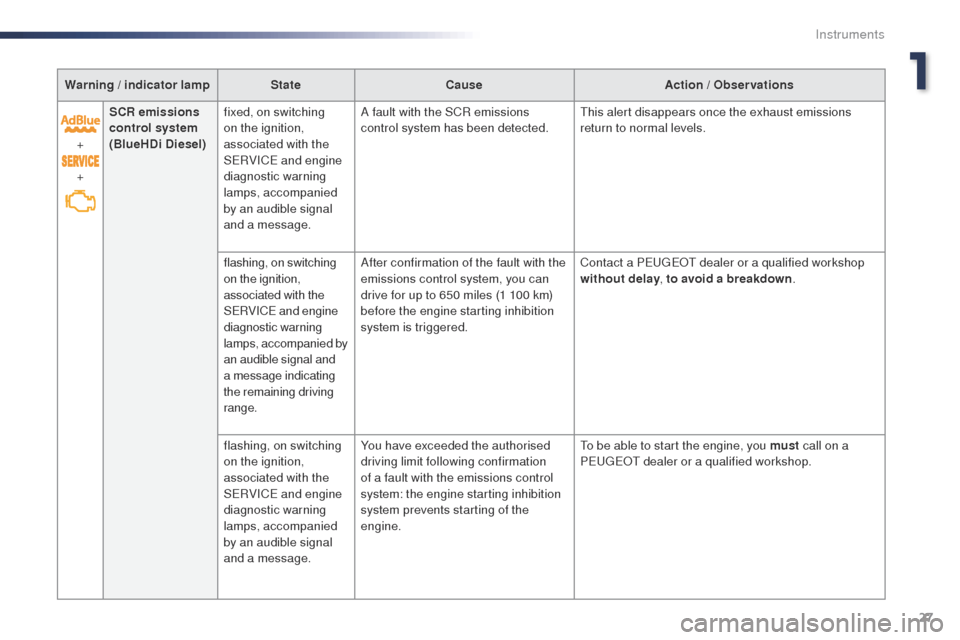

27
Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
fixed, on switching
on the ignition,
associated with the
S
eR

VIC
e
and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
th

is alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with the
S
eR

VIC
e an
d engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a P
e

ugeot dealer or a qualified workshop
without delay , to avoid a breakdown .
flashing, on switching
on the ignition,
associated with the
S
eR

VIC
e
and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
to b

e able to start the engine, you must call on a
P
e

ugeot dealer or a qualified workshop.
1
Instruments

28
Warning / indicator lampStateCause Action / Observations
Rear foglamps fixed.
th

e rear foglamps are on.
tu
rn the ring on the stalk rear ward to switch off the
rear foglamps.
Service
on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated message,
for example:
-

l
ow engine oil level,
-

l
ow screenwash/headlamp wash fluid level,
-

d
ischarged remote control battery,
-

l
ow tyre pressures,
-

s
aturation of the particle filter (FAP) on Diesel
vehicles.
-


...
For more information on Checks and in particular the
particle filter, refer to the corresponding section.
For any other faults, contact a P
e

ugeot dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a P
e

ugeot dealer or a qualified workshop.
+ fixed, associated with
flashing and then fixed
display of the service
spanner.
the

servicing interval has been
exceeded.
on

ly on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Instruments

29
Warning / indicator lampStateCause Action / Observations
Automatic
wiping fixed.
th

e wiper control has been pushed
down. Automatic front wiping is activated.
to d

eactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Automatic
headlamp
dipping fixed.
th

e lighting control stalk is in
the
"AUTO " position, and the function
has been activated.
th

e main beam headlamps come
on if the exterior lighting and driving
conditions permit.
th

e camera, located at the top of the windscreen,
manages the operation of main beam, depending on
the ambient lighting and driving conditions.
For more information on Automatic headlamp
dipping , refer to the corresponding section.
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start
system has put the engine into S
t

o
P
m

ode.
th
e warning lamp goes off and the engine restarts
automatically in S
tA

R
t
mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. S
t

o
P m
ode is temporarily
unavailable,
or
S
tA

R
t
mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Blind spot
monitoring
system fixed.
th

e blind spot monitoring system has
been activated. For more information on the Blind spot monitoring
system, refer to the corresponding section.
Lane departure
warning system
fixed.
th

e lane departure warning system
has been activated.
th

e lane departure warning system is on.
For more information on the Lane departure warning
system, refer to the corresponding section.
1
Instruments

30
For more information on the Lighting control stalk, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Front foglamps fixed.
th
e front foglamps are switched on
using the ring on the lighting control
stalk.
tu
rn the ring on the lighting control stalk rear ward
once to switch off the front foglamps.
Sidelamps fixed.
th
e lighting stalk is in the
"Sidelamps" position.
Left-hand
direction
indicato r flashing with buzzer.
th
e lighting stalk has been pushed
down.
Right-hand
direction
indicator flashing with buzzer.
th
e lighting stalk has been
pushed

up.
Dipped beam
headlamps fixed.
th
e lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
th
e lighting stalk has been pulled
towards you. Pull the stalk to return to dipped beam headlamps.
Instruments
