2016 Peugeot Expert VU Owner's Manual - RHD (UK, Australia)

143
F Move switch A to the right or to the left to select the corresponding mirror.
F

M
ove knob B in all four directions to adjust.
F

R
eturn switch A to the centre position.
Electric unfolding
the electric unfolding of the mirrors is possible
with the remote control or the key on unlocking
the vehicle, unless folding was selected using
switch A . In this case, pull the switch rear wards
from the centre position again.

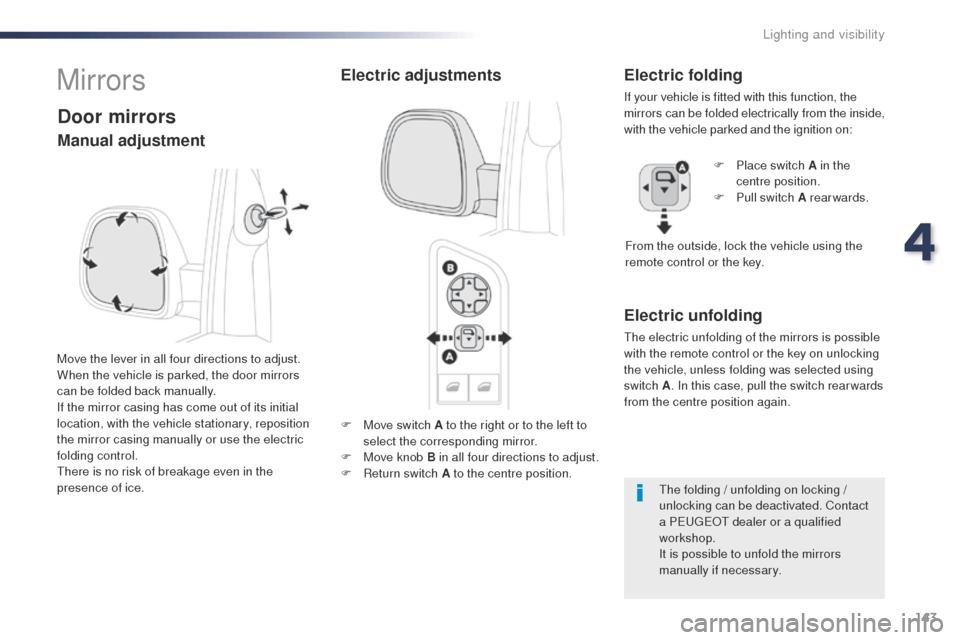

MirrorsElectric adjustments Electric folding
If your vehicle is fitted with this function, the
mirrors can be folded electrically from the inside,
with the vehicle parked and the ignition on:
F

P
lace switch A in the
centre position.
F

P
ull switch A rearwards.
From the outside, lock the vehicle using the
remote control or the key.
th

e folding / unfolding on locking /
unlocking can be deactivated. Contact
a P
e

ugeot dealer or a qualified
workshop.
It is possible to unfold the mirrors
manually if necessary.
Door mirrors
Move the lever in all four directions to adjust.
When the vehicle is parked, the door mirrors
can be folded back manually.
If the mirror casing has come out of its initial
location, with the vehicle stationary, reposition
the mirror casing manually or use the electric
folding control.
th

ere is no risk of breakage even in the
presence of ice.
Manual adjustment
4
Lighting and visibility

144
Heated mirrors
orA s a safety measure, the mirrors should
be adjusted to reduce the blind spots.
th
e objects observed are, in reality,
closer than they appear.
ta
ke this into account in order to
correctly judge the distance of vehicles
approaching from behind.
For more information on Rear

screen demist - defrost , refer to the
corresponding section.
F
P
ress the heated rear window
button.
F
P
ress the heated mirror button.
If your vehicle has heated door mirrors:
Lighting and visibility

145
Rear view mirror
equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Day / night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
this system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
4
Lighting and visibility

146
Model without AUTO lighting
Model with AUTO lighting
Main lighting selection ringLighting off (ignition off) / Front daytime
running lamps (engine running).
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.Dipping the headlamps
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
op

eration of the selected lighting is
confirmed by the illumination of the
corresponding indicator lamp. Pull the stalk to switch between dipped and
main beam headlamps.
Lighting control stalk
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
tu

rn the ring to align the desired symbol with
the marking.
Lighting and visibility

147

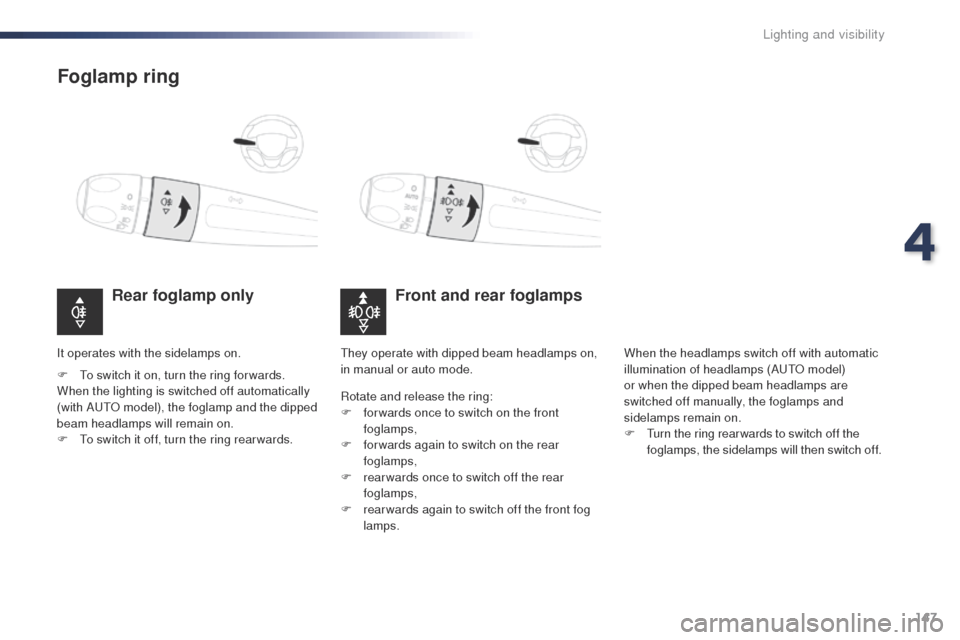

Foglamp ring
Front and rear foglamps
Rear foglamp only
F to switch it on, turn the ring for wards.
When the lighting is switched off automatically
(with A
u

to model), the foglamp and the dipped
beam headlamps will remain on.
F
t
o s
witch it off, turn the ring rear wards. Rotate and release the ring:
F

f
or wards once to switch on the front
foglamps,
F

f
or wards again to switch on the rear
foglamps,
F

r
ear wards once to switch off the rear
foglamps,
F

r
ear wards again to switch off the front fog
lamps. When the headlamps switch off with automatic
illumination of headlamps (Au
to model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F
t
u
rn the ring rear wards to switch off the
foglamps, the sidelamps will then switch off.
th
ey operate with dipped beam headlamps on,
in manual or auto mode.
It operates with the sidelamps on.
4
Lighting and visibility

148
Direction indicators
F Left: lower the lighting stalk, passing the point of resistance.
F

R
ight: raise the lighting stalk, passing the
point of resistance.
Three flashes of the direction
indicators
F Press briefly upwards or downwards, without going beyond the point of
resistance; the direction indicators will
flash 3 times.
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers.
t
he

y should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped headlamps manually as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front
foglamps and the rear foglamps when
they are no longer needed.
Lighting left on audible
signal
An audible signal when a front door
is opened warns the driver that the
vehicle's exterior lighting is on, with the
ignition off and in manual lighting mode.
In this case, switching off the lighting
stops the audible signal.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a P
e

ugeot dealer or a
qualified workshop.
th
e lighting goes off when you switch
off the ignition, but you can always
switch it on again using the lighting
control stalk.
Lighting and visibility

149

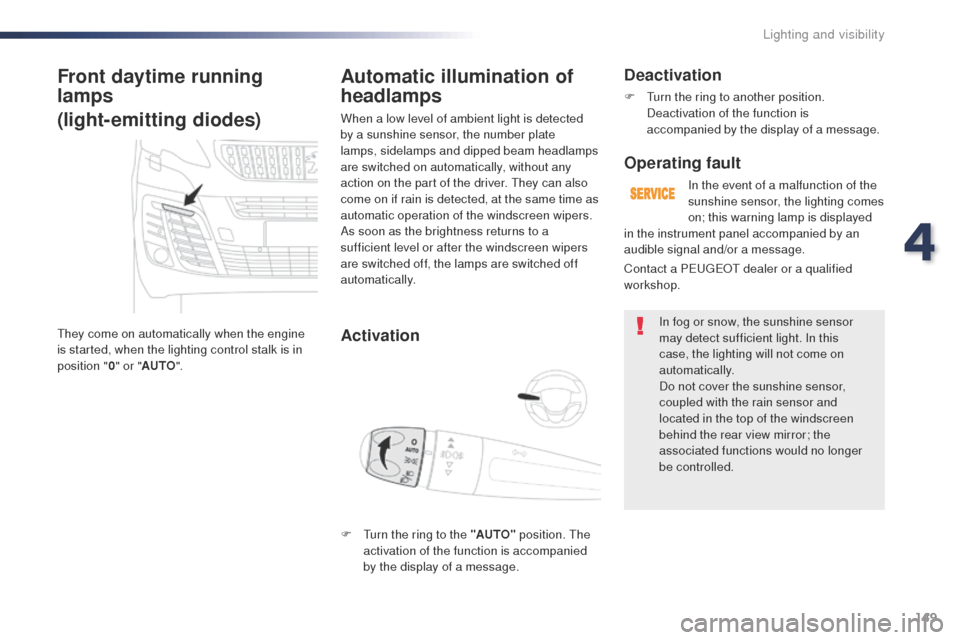

Front daytime running
lamps
(light-emitting diodes)
they come on automatically when the engine
is started, when the lighting control stalk is in
position "0" or " AUTO ".
Automatic illumination of
headlamps
Activation
When a low level of ambient light is detected
by a sunshine sensor, the number plate
lamps,


sidelamps and dipped beam headlamps
are switched on automatically, without any
action on the part of the driver.
t
h
ey can also
come on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.
Deactivation
F turn the ring to another position. Deactivation of the function is
accompanied by the display of a message.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on; this warning lamp is displayed
Contact a P
e

ugeot dealer or a qualified
workshop. in the instrument panel accompanied by an
audible signal and/or a message.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the top of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
F
t
u

rn the ring to the "AUTO" position.
t
h

e
activation of the function is accompanied
by the display of a message.
4
Lighting and visibility

150
temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the driver's exit easier
when the light is poor.
Manual guide-me-home
lighting
F With the ignition off, "flash" the headlamps using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
the manual guide-me-home lighting switches
off automatically after a set time.
Automatic guide-me-home
lighting
When the automatic illumination of headlamps
function is activated, under low ambient
light the dipped beam headlamps come on
automatically when the ignition is switched off.
Programming
the activation, deactivation and selection of
period the guide-me-home lighting is kept on
can be set.
With the audio system
In the " Personalisation-configuration "
menu, activate/deactivate " Follow-me-home
headlamps ".
In the vehicle settings menu, activate/
deactivate " Guide-me-home lighting ".
With the touch screen
Switching on
Lighting and visibility
