2016 NISSAN QUEST Owners Manual


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
SSD1176
Overdrive (O/D) OFF switchGUID-ABC541E2-C15D-47C3-BECA-952AC6C42B5BWhen the O/D OFF switch is pushed with the
shift lever in the D (Drive) position, the
indicator light in the instrument panel illuminates.
Use the overdrive off mode when you need
improved engine braking.
To turn off the overdrive off mode, push the O/D
OFF switch again. The
indicator light will
turn off.
Each time the engine is started, or when the shift
lever is shifted to any position other than the D
(Drive) position, the overdrive off mode will be
automatically turned off.
Accelerator downshift Ð In D position ÐGUID-6F2528F8-7C30-4D84-ACB1-886040E69E34For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into a lower gear, depending
on the vehicle speed.
High fluid temperature protection modeGUID-C0263A9D-0737-4C81-B0F9-D670C4B337C5This transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer) , engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the engine and vehicle speed may be
limited.
Fail-safeGUID-86C18CEC-91C6-4574-ACFA-37D36E7C0DACIf the vehicle is driven under extreme
conditions, such as excessive wheel spin-
ning and subsequent hard braking, the
fail-safe system may be activated. This will
occur even if all electrical circuits are
functioning properly. In this case, place
the ignition switch in the OFF position and
wait for 10 seconds. Then place the igni-
tion switch back in the ON position. The
vehicle should return to its normal operat- ing condition. If it does not return to its
normal operating condition, have the
transmission checked and repaired, if
necessary. It is recommended you visit a
NISSAN dealer for this service.

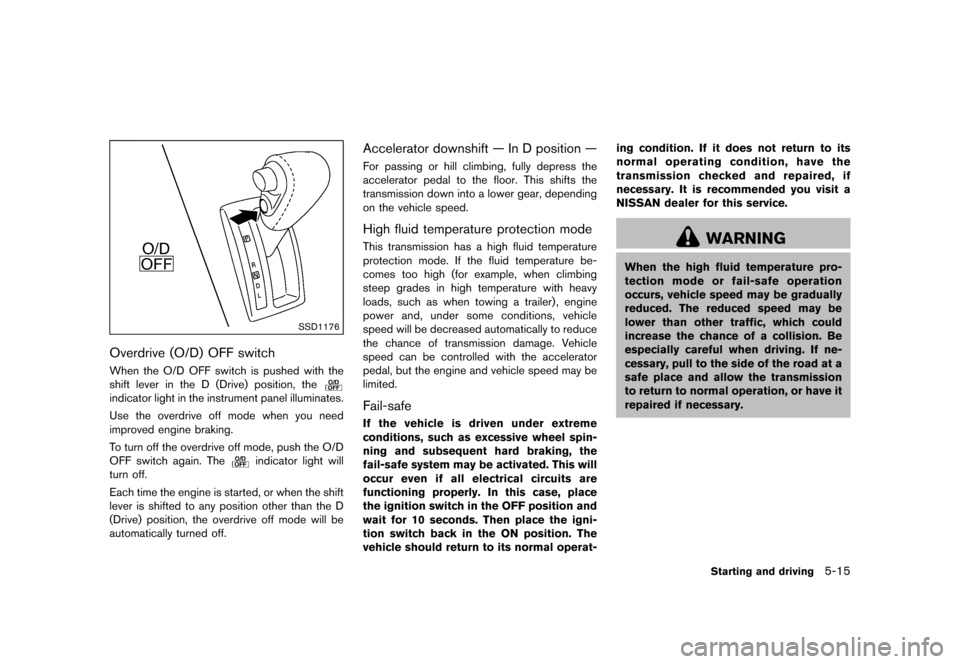

WARNING
When the high fluid temperature pro-
tection mode or fail-safe operation
occurs, vehicle speed may be gradually
reduced. The reduced speed may be
lower than other traffic, which could
increase the chance of a collision. Be
especially careful when driving. If ne-
cessary, pull to the side of the road at a
safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
Starting and driving5-15
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
5-16Starting and driving
SSD1177
Shift lock releaseGUID-D1B1011E-24FC-4DA4-8FB1-638355580FE5If the battery charge is low or discharged, the
shift lever may not be moved from the P (Park)
position even with the brake pedal depressed
and the shift lever button pushed.
To move the shift lever, perform the following
procedure:
1. Push the ignition switch to the OFF or LOCKposition.
2. Apply the parking brake.
3. Remove the shift lock release cover
*A
using a suitable tool. 4. Push down the shift lock release
*Busing a
suitable tool.
5. Push the shift lever button
*Cand move the
shift lever to the N (Neutral) position
*D
while holding down the shift lock release.
The vehicle may be moved to the desired
location.
Replace the removed shift lock release cover
after the operation.
If the shift lever cannot be moved out of the P
(Park) position, have the CVT system checked
as soon as possible. It is recommended you visit
a NISSAN dealer for this service.

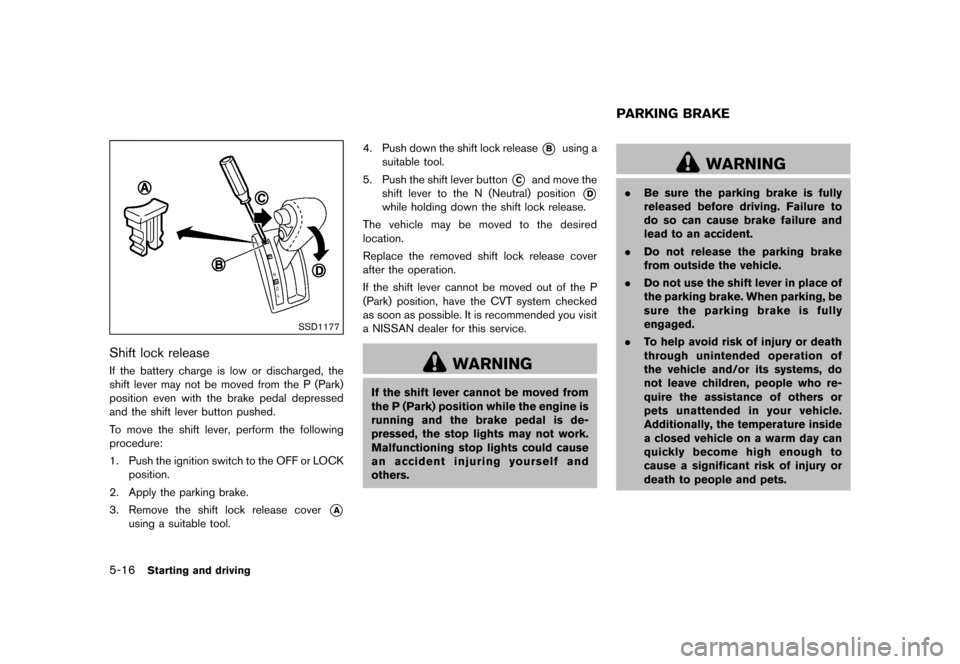

WARNING
If the shift lever cannot be moved from
the P (Park) position while the engine is
running and the brake pedal is de-
pressed, the stop lights may not work.
Malfunctioning stop lights could cause
an accident injuring yourself and
others.
GUID-FFFD8FE1-A4DB-4F7E-B037-579C5105C22D
WARNING
. Be sure the parking brake is fully
released before driving. Failure to
do so can cause brake failure and
lead to an accident.
. Do not release the parking brake
from outside the vehicle.
. Do not use the shift lever in place of
the parking brake. When parking, be
sure the parking brake is fully
engaged.
. To help avoid risk of injury or death
through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
PARKING BRAKE
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
SPA2331
To apply:Fully depress the parking brake pedal
*1.
To release:
1. Firmly apply the foot brake
*2.
2. Depress the parking brake pedal
*1and
the parking brake will be released.
3. Before driving, be sure the brake warning light goes out.
GUID-8C590A26-003A-4629-B1A7-BD81A3C3475E

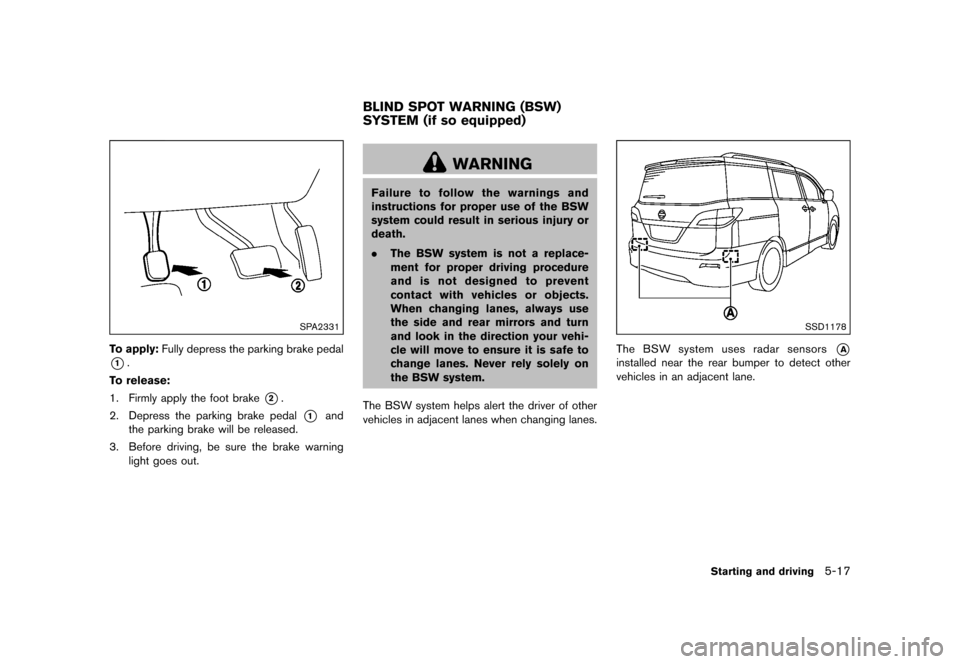

WARNING
Failure to follow the warnings and
instructions for proper use of the BSW
system could result in serious injury or
death.
.The BSW system is not a replace-
ment for proper driving procedure
and is not designed to prevent
contact with vehicles or objects.
When changing lanes, always use
the side and rear mirrors and turn
and look in the direction your vehi-
cle will move to ensure it is safe to
change lanes. Never rely solely on
the BSW system.
The BSW system helps alert the driver of other
vehicles in adjacent lanes when changing lanes.
SSD1178
The BSW system uses radar sensors*A
installed near the rear bumper to detect other
vehicles in an adjacent lane.
Starting and driving5-17
BLIND SPOT WARNING (BSW)
SYSTEM (if so equipped)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
5-18Starting and driving
SSD1030
Detection zone
The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and
extends approximately 10 ft (3.0 m) behind the
rear bumper, and approximately 10 ft (3.0 m)
sideways.
JVS0724X
*1BSW system warning light
*2Side indicator light
*3BSW switch
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
BSW SYSTEM OPERATIONGUID-B7B4A2DD-5B73-4122-8C65-5DB3CA4A4566The BSW system operates above approximately
20 MPH (32 km/h) .
If the radar sensors detect a vehicle in the
detection zone, the side indicator light illumi-
nates.
If the turn signal is then activated, the system
chimes (twice) and the side indicator light
flashes. The side indicator light continues to
flash until the detected vehicle leaves the
detection zone.
NOTE:
.The side indicator light illuminates for
a few seconds when the ignition switch
is placed in the ON position.
. The brightness of the side indicator
light is adjusted automatically depend-
ing on the brightness of the ambient
light.
. If a vehicle comes into the detection
zone after the driver activates the turn
signal, then only the side indicator light
flashes and no chime sounds. For
additional information, refer to ªBSW
system limitationsº (P.5-20) .
JVS0725X
HOW TO ENABLE/DISABLE THE BSW
SYSTEM
GUID-8ED78A73-0826-4839-BF58-87DD00404B40The BSW swich*1is used to turn ON and
OFF the BSW system. When the BSW switch
*1is turned to off, the BSW ON indicator light
*2on the switch is off.
Starting and driving5-19
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
5-20Starting and driving

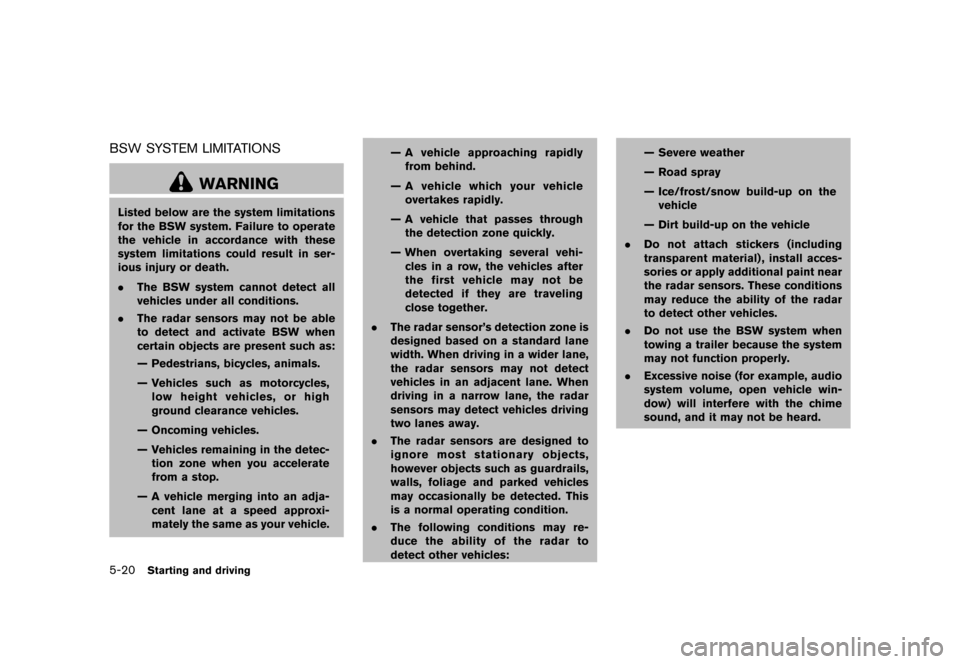

BSW SYSTEM LIMITATIONSGUID-3BABE416-C807-49BE-8422-720D8EFDAE45
WARNING
Listed below are the system limitations
for the BSW system. Failure to operate
the vehicle in accordance with these
system limitations could result in ser-
ious injury or death.
.The BSW system cannot detect all
vehicles under all conditions.
. The radar sensors may not be able
to detect and activate BSW when
certain objects are present such as:
Ð Pedestrians, bicycles, animals.
Ð Vehicles such as motorcycles,
low height vehicles, or high
ground clearance vehicles.
Ð Oncoming vehicles.
Ð Vehicles remaining in the detec- tion zone when you accelerate
from a stop.
Ð A vehicle merging into an adja- cent lane at a speed approxi-
mately the same as your vehicle. Ð A vehicle approaching rapidly
from behind.
Ð A vehicle which your vehicle overtakes rapidly.
Ð A vehicle that passes through the detection zone quickly.
Ð When overtaking several vehi- cles in a row, the vehicles after
the first vehicle may not be
detected if they are traveling
close together.
. The radar sensor's detection zone is
designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect
vehicles in an adjacent lane. When
driving in a narrow lane, the radar
sensors may detect vehicles driving
two lanes away.
. The radar sensors are designed to
ignore most stationary objects,
however objects such as guardrails,
walls, foliage and parked vehicles
may occasionally be detected. This
is a normal operating condition.
. The following conditions may re-
duce the ability of the radar to
detect other vehicles: Ð Severe weather
Ð Road spray
Ð Ice/frost/snow build-up on the
vehicle
Ð Dirt build-up on the vehicle
. Do not attach stickers (including
transparent material) , install acces-
sories or apply additional paint near
the radar sensors. These conditions
may reduce the ability of the radar
to detect other vehicles.
. Do not use the BSW system when
towing a trailer because the system
may not function properly.
. Excessive noise (for example, audio
system volume, open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
BSW DRIVING SITUATIONSGUID-4694AEAE-B2AD-456F-B194-67039F7B2FD9
Indicator on
Indicator off
Indicator flashing
JVS0737X
Illustration 1 ± Approaching from behind
Another vehicle approaching from be-
hind
GUID-94FEA650-D18D-4A7A-91B7-9E8035334637Illustration 1: The side indicator light illuminates
if a vehicle enters the detection zone from
behind in an adjacent lane.
JVS0738X
Illustration 2 ± Approaching from behind
Illustration 2: If the driver activates the turn
signal, then the system chimes (twice) and the
side indicator light flashes.
NOTE:
.The radar sensors may not detect
vehicles which are approaching rapidly
from behind.
. If the driver activates the turn signal
before a vehicle enters the detection
zone, the side indicator light will flash
but no chime will sound when the other
vehicle is detected.
Starting and driving5-21
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
5-22Starting and driving
JVS0739X
Illustration 3 ± Overtaking another vehicle
Overtaking another vehicleGUID-E148AB76-62C4-493D-9302-A57F3667E723Illustration 3: The side indicator light illuminates
if you overtake a vehicle and that vehicle stays in
the detection zone for approximately 3 seconds.
JVS0740X
Illustration 4 ± Overtaking another vehicle
Illustration 4: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes (twice) and the
side indicator light flashes.
NOTE:
.When overtaking several vehicles in a
row, the vehicles after the first vehicle
may not be detected if they are travel-
ing close together.
. The radar sensors may not detect
slower moving vehicles if they are
passed quickly.
. If the driver activates the turn signal
before a vehicle enters the detection zone, the side indicator light will flash
but no chime will sound when the other
vehicle is detected.
&RQGLWLRQ
