2016 NISSAN QUEST Owners Manual


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
PROGRAMMING HomeLink


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
2-62Instruments and controls
4. At the receiver located on the garage dooropener motor in the garage, locate the
ªlearnº or ªsmartº button (the name and
color of the button may vary by manufacturer
but it is usually located near where the
hanging antenna wire is attached to the
unit) . If there is difficulty locating the button,
reference the garage door opener's manual.
5. Press and release the ªlearnº or ªsmartº button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
PROGRAMMING TROUBLESHOOT-
ING
GUID-A74B64CF-4A06-448A-A031-4FFBE07569D0If the HomeLink


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
2-64Instruments and controls
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-3
Intelligent Key system ...
......................................................... 3-3
Mechanical key ...
.................................................................... 3-4
Valet hand-off ...
....................................................................... 3-5
Doors ...
........................................................................\
.................... 3-5
Locking with mechanical key ...
............................................ 3-5
Opening and closing windows with the mechanical
key (if so equipped) ...
........................................................... 3-6
Locking with inside lock knob ...
.......................................... 3-6
Locking with power door lock switch ...
............................ 3-6
Automatic door locks ...
......................................................... 3-7
Sliding doors ...
........................................................................\
3-7
Sliding door auto closure function (if
so equipped) ...
........................................................................\
3-9
Child safety sliding door lock ...
.......................................... 3-9
Power sliding door (if so equipped) ...
................................. 3-10
Precautions on power sliding door operation ...
........... 3-10
Switching sliding door operation ...
................................. 3-11
Operating sliding door switch ...
...................................... 3-12
Operating the power sliding door with the
Intelligent Key (if so equipped) ...
..................................... 3-12
Operating sliding door by power assist ...
..................... 3-13
Sliding door auto reverse function ...
.............................. 3-13 Intelligent Key system
...
........................................................... 3-13
Intelligent Key operating range ...
................................... 3-15
Door locks/unlocks precaution ...
................................... 3-15
Intelligent Key operation ...
............................................... 3-16
Battery saver system ...
..................................................... 3-19
Warning signals ...
.............................................................. 3-19
Troubleshooting guide ...
.................................................. 3-20
Remote keyless entry system ...
............................................. 3-21
How to use remote keyless entry system ...
................ 3-22
Hood ...
........................................................................\
................. 3-25
Lift gate ...
........................................................................\
............ 3-26
Operating manual lift gate ...
........................................... 3-26
Operating power lift gate (if so equipped) ...
............. 3-26
Auto closure ...
.................................................................... 3-29
Lift gate release ...
.............................................................. 3-30
Fuel-filler door ...
........................................................................\
3-30
Opening fuel-filler door ...
................................................ 3-30
Fuel-filler cap ...
.................................................................. 3-30
Tilt/telescopic steering ...
......................................................... 3-32
Tilt or telescopic operation ...
.......................................... 3-32
Sun visors ...
........................................................................\
........ 3-33
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
Mirrors...
........................................................................\
............... 3-33
Inside mirror ...
....................................................................... 3-33
Outside mirrors ...
................................................................. 3-35
Vanity mirror ...
....................................................................... 3-36 Automatic drive positioner (if so equipped)
...
................... 3-36
Entry/exit function ...
.......................................................... 3-36
Memory storage ...
.............................................................. 3-37
System operation ...
........................................................... 3-38
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
GUID-3AE7A6EF-F9A0-4170-8F25-D2AD88653F67A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, it is recommended you visit a
NISSAN dealer for duplicates by using the key
number. NISSAN does not record any key
numbers so it is very important to keep track of
your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, it can be duplicated
without knowing the key number.
SPA2406
Type A (if so equipped)
SPA2844
Type B (if so equipped)
SPA2845
Type C (if so equipped)
1. Master key (2)
2. Mechanical key (inside the key) (2)
3. Key number plate (1)
INTELLIGENT KEY SYSTEMGUID-E1D9BFF8-38D2-4E11-8A34-3242B810AF20Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
Pre-driving checks and adjustments3-3
KEYS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
3-4Pre-driving checks and adjustments
nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.

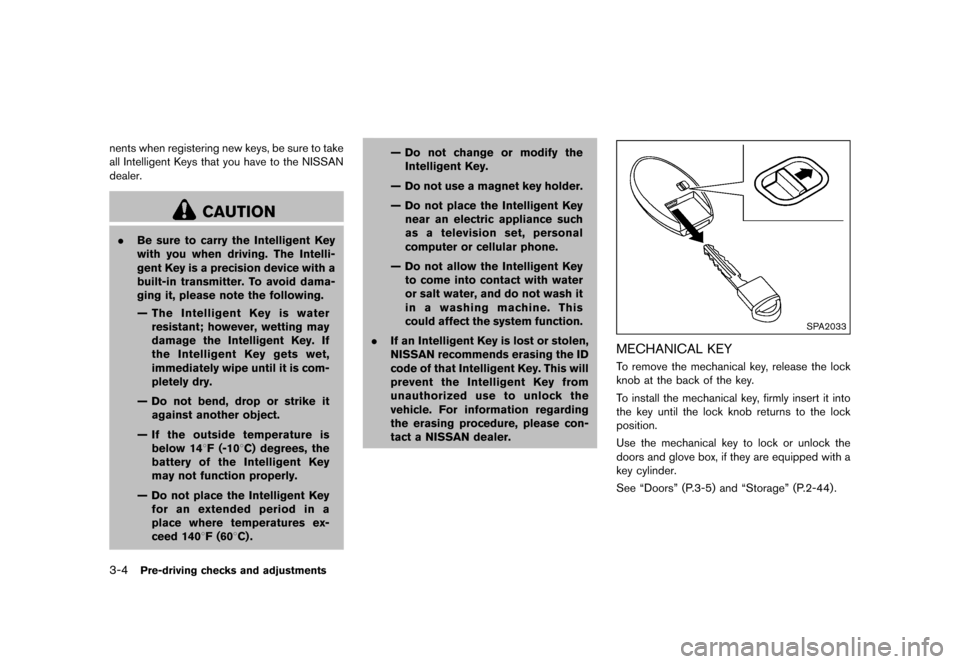

CAUTION
.Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð If the outside temperature is below 148F (-108C) degrees, the
battery of the Intelligent Key
may not function properly.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) . Ð Do not change or modify the
Intelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
SPA2033
MECHANICAL KEYGUID-65EB5236-29E3-4BF1-B902-8BE659CAAE13To remove the mechanical key, release the lock
knob at the back of the key.
To install the mechanical key, firmly insert it into
the key until the lock knob returns to the lock
position.
Use the mechanical key to lock or unlock the
doors and glove box, if they are equipped with a
key cylinder.
See ªDoorsº (P.3-5) and ªStorageº (P.2-44) .
&RQGLWLRQ
