2016 NISSAN QUEST Owners Manual


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
GUID-400A6F1D-F08D-4635-A2B1-88B07B48469D
SDI2716
1. Headlight (high beam)
2. Front side marker light
3. Map light
4. Side turn signal light (if so equipped)
5. Rear personal light
6. Front turn signal/parking light
7. Front fog light (if so equipped)
8. Headlight (low beam)
9. Step light
10. Cargo light
11. Rear side marker light
12. Stop/tail light
13. High-mounted stop light
14. Rear turn signal light
15. Back up light
16. License plate lights
Maintenance and do-it-yourself8-25
LIGHTS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
8-26Maintenance and do-it-yourself
HEADLIGHTSGUID-1DDF8B44-6A31-4E64-A9A2-A7AC87475D78Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, it is recommended you visit a
NISSAN dealer for servicing.
ReplacingGUID-B4433D6E-5EF8-404D-ABE2-E3D27A5E9E7FIf replacement is required, it is recommended
you visit your NISSAN dealer for this service.
Xenon headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407

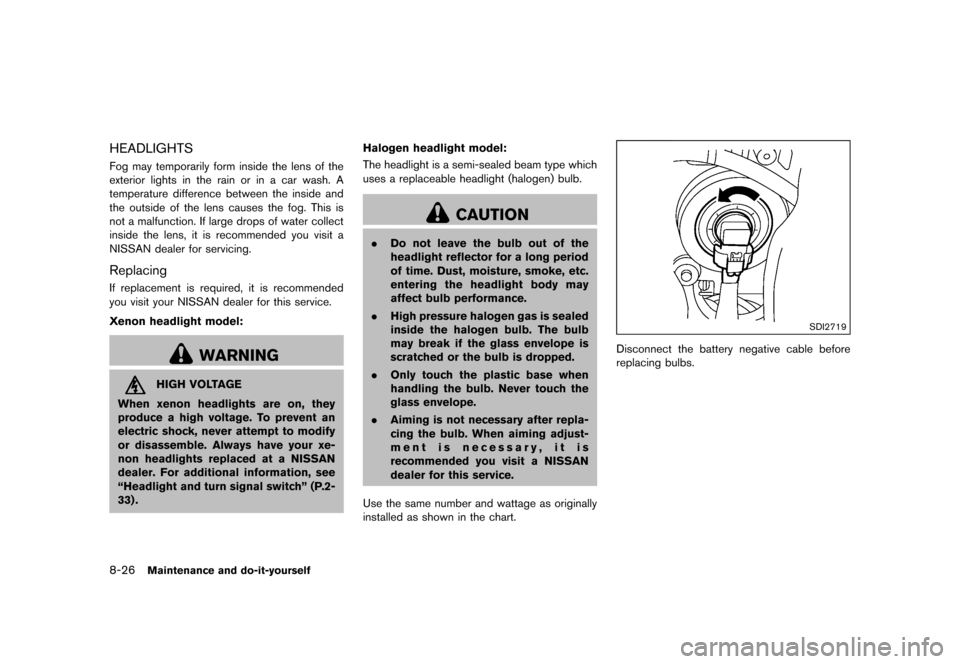

WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
ªHeadlight and turn signal switchº (P.2-
33) . Halogen headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
.
Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, it is
recommended you visit a NISSAN
dealer for this service.
Use the same number and wattage as originally
installed as shown in the chart.
SDI2719
Disconnect the battery negative cable before
replacing bulbs.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
EXTERIOR AND INTERIOR LIGHTSGUID-74DA7277-F276-48A5-BDCF-43B331EA01E6
ItemWattage (W)Bulb No.
Headlight
Low beams (Xenon)* 35D2S
High beam (Halogen) 60HB3
Low beam (Halogen) 55H11
Front turn signal/parking light* 27/8S25
Side turn signal light (if so equipped)* LEDÐ
Front fog light (if so equipped) 35H8
Front side marker light 5T10
Rear combination light*
Turn signal 21WY21W
Stop/tail and side marker 21/5W21/5W
Back-up 16W16W
License plate light* 5T10
Front map light 8Ð
Rear personal light 8Ð
Vanity mirror light (if so equipped) 1.8Ð
Step light* 3.4Ð
High-mounted stop light* LEDÐ
Cargo light 8Ð
Glove box light* 1.4Ð
*: It is recommended you visit a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about
parts.
Replacement proceduresGUID-9456DF2D-1ECF-49AE-8081-B2431E050E93All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
Maintenance and do-it-yourself8-27
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
8-28Maintenance and do-it-yourself
SDI1679
SDI2200
Front side marker light
1. Remove the rubber cover.
2. Remove the bulb as illustrated.
SDI2184
Front fog light (if so equipped)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
SDI2030
Front map light
SDI2031
Rear personal light
SDI1500B
Cargo light
SDI2032
Vanity mirror light
Maintenance and do-it-yourself8-29
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
8-30Maintenance and do-it-yourself
GUID-89F90EC9-1A21-4C1D-B1C6-EA0BAF7C2106If you have a flat tire, see ªFlat tireº (P.6-3) .
TIRE PRESSUREGUID-6E7250AB-AD14-4FBE-A46C-D5F24A0415DC
Tire Pressure Monitoring System (TPMS)GUID-3AC4D70E-6B75-4BF7-9B81-983A94E44C75This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) .
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see ªLow tire pressure warning
lightº (P.2-14) , ªTire Pressure Monitoring Sys-
tem (TPMS)º (P.5-3) and ªTire Pressure Mon-
itoring System (TPMS)º (P.6-3) .
Tire inflation pressureGUID-B1306429-C2A4-4116-B9C4-C79D19196D15
Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the ªCold Tire Pressureº heading. TheTire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked reg-
ularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at
moderate speeds.
The TPMS with Easy Fill Tire Alert
provides visual and audible signals out-
side the vehicle for inflating the tires to
the recommended COLD tire pressure.
(See ªTPMS with Easy Fill Tire Alertº
(P.5-6) .)
Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.

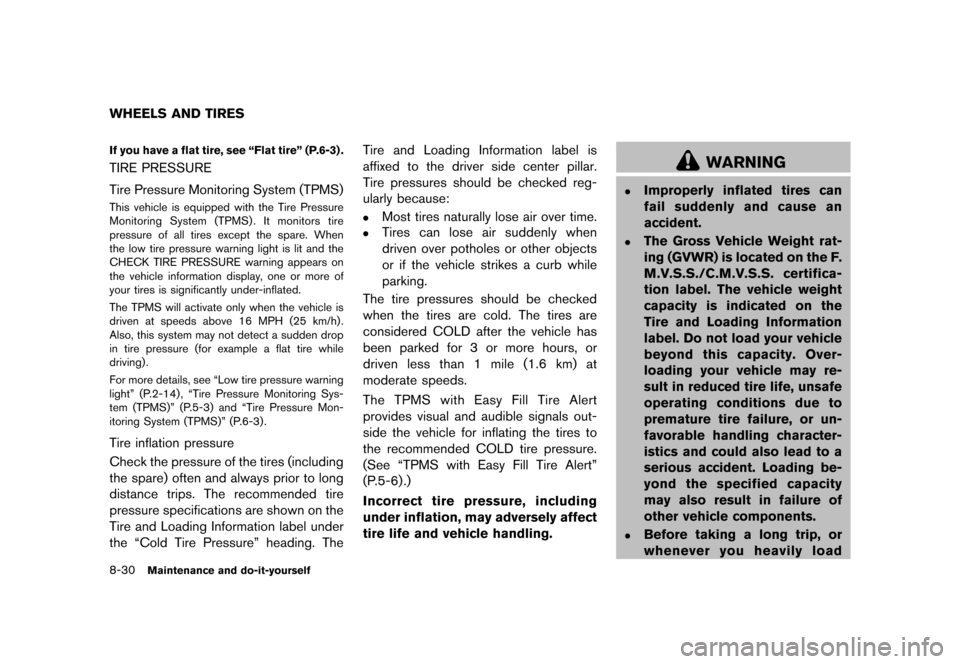

WARNING
.Improperly inflated tires can
fail suddenly and cause an
accident.
.The Gross Vehicle Weight rat-
ing (GVWR) is located on the F.
M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight
capacity is indicated on the
Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Over-
loading your vehicle may re-
sult in reduced tire life, unsafe
operating conditions due to
premature tire failure, or un-
favorable handling character-
istics and could also lead to a
serious accident. Loading be-
yond the specified capacity
may also result in failure of
other vehicle components.
.Before taking a long trip, or
whenever you heavily load
WHEELS AND TIRES
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @

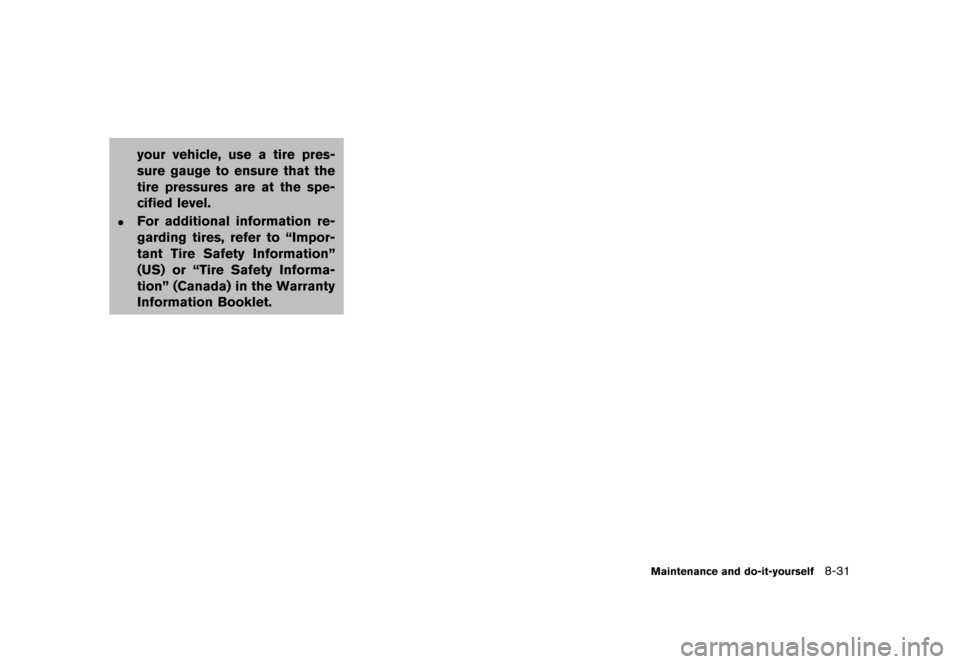

your vehicle, use a tire pres-
sure gauge to ensure that the
tire pressures are at the spe-
cified level.
.For additional information re-
garding tires, refer to ªImpor-
tant Tire Safety Informationº
(US) or ªTire Safety Informa-
tionº (Canada) in the Warranty
Information Booklet.
Maintenance and do-it-yourself8-31
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
8-32Maintenance and do-it-yourself
SDI2197
Tire and Loading Information labelGUID-F769ACFA-6743-412C-BA4F-C2F1B56720AD*1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
*2Vehicle load limit: See ªVehicle
loading informationº (P.9-12) .
*3Original size: The size of the tires
originally installed on the vehicle at
the factory.
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are
cold. Tires are considered COLDafter the vehicle has been parked for
3 or more hours, or driven less than
1 mile (1.6 km) at moderate speeds.
The recommended cold tire inflation
is set by the manufacturer to provide
the best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle's GVWR.
*5Tire size Ð see ªTire labelingº (P.8-
34) .
*6Spare tire size or compact spare tire
size (if so equipped)
