2016 NISSAN QUEST Owners Manual


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
.Switch Call
Speak this command to hold the second call
and switch back to the original call.
. End Other Call
Speak this command to stay with the
second call and end the original call.
Push the
button to accept the call. Push the
button to reject the call.
Ending a callGUID-F0A837C9-CEB1-4718-828B-984F304BC3FETo end an active call, push thebutton.
Text messagingGUID-677BDF91-9A9D-45D5-B336-713B5B728CC6

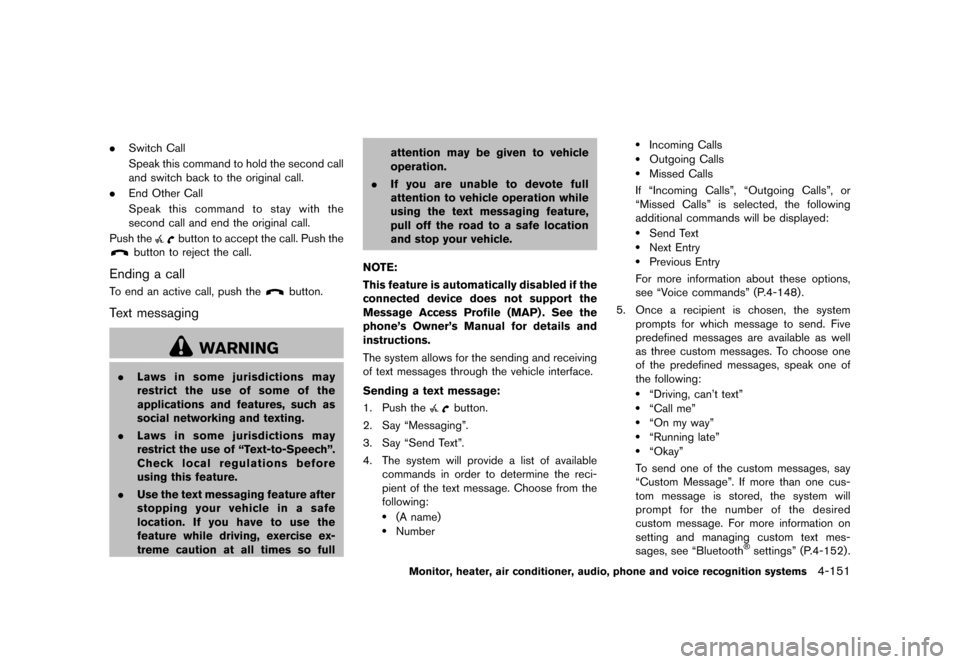

WARNING
. Laws in some jurisdictions may
restrict the use of some of the
applications and features, such as
social networking and texting.
. Laws in some jurisdictions may
restrict the use of ªText-to-Speechº.
Check local regulations before
using this feature.
. Use the text messaging feature after
stopping your vehicle in a safe
location. If you have to use the
feature while driving, exercise ex-
treme caution at all times so full attention may be given to vehicle
operation.
. If you are unable to devote full
attention to vehicle operation while
using the text messaging feature,
pull off the road to a safe location
and stop your vehicle.
NOTE:
This feature is automatically disabled if the
connected device does not support the
Message Access Profile (MAP) . See the
phone's Owner's Manual for details and
instructions.
The system allows for the sending and receiving
of text messages through the vehicle interface.
Sending a text message:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push thebutton.
2. Say ªMessagingº.
3. Say ªSend Textº.
4. The system will provide a list of available commands in order to determine the reci-
pient of the text message. Choose from the
following:
.(A name).Number
.Incoming Calls.Outgoing Calls.Missed Calls
If ªIncoming Callsº, ªOutgoing Callsº, or
ªMissed Callsº is selected, the following
additional commands will be displayed:
.Send Text.Next Entry.Previous Entry
For more information about these options,
see ªVoice commandsº (P.4-148) .
5. Once a recipient is chosen, the system prompts for which message to send. Five
predefined messages are available as well
as three custom messages. To choose one
of the predefined messages, speak one of
the following:
.ªDriving, can't textº.ªCall meº.ªOn my wayº.ªRunning lateº.ªOkayº
To send one of the custom messages, say
ªCustom Messageº. If more than one cus-
tom message is stored, the system will
prompt for the number of the desired
custom message. For more information on
setting and managing custom text mes-
sages, see ªBluetooth


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-152Monitor, heater, air conditioner, audio, phone and voice recognition systems
Reading a received text message:GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push thebutton.
2. Say ªMessagingº.
3. Say ªRead Textº.
The text message, sender and delivery time are
shown on the screen. Use the tuning switch on
the steering wheel to scroll through all text
messages if more than one are available. Push
the
button to exit the text message screen.
Push the
button to access the following
options for replying to the text message:
. Call Back
Speak this command to call the sender of
the text message using the Bluetooth


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
incoming text messages.
.Edit Custom MessagesSelect to set a custom message that will
be available with the standard options
when sending a text message. To set a
custom message, send a text message to
your own phone number while the phone
is connected to the system. Three
custom messages can be set. Custom
messages can only be set while the
vehicle is stationary.
.Auto ReplySelect to turn on or off the Auto Reply
function. When enabled, the vehicle will
automatically send a predefined text
message to the sender when a text
message is received while driving.
.Auto Reply MessageSelect to choose the message that is
sent when the Auto Reply function is
enabled. Choose from ªI'm Drivingº or
one of the three custom messages
stored in the system.
.Vehicle Signature On/OffSelect to choose whether or not the
vehicle signature is added to outgoing
text messages from the vehicle. This
message cannot be changed or custo-
mized.
GUID-FE75B73B-AA8F-4122-814F-3028369D91F4NISSAN Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes,
Standard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and announced
by the system. You can complete your desired
operation by simply following the prompts given
by the system. (See ªNISSAN voice recognition
standard modeº (P.4-153) for details.)
For advanced operation, you can use the
Alternate Command Mode. (See ªNISSAN voice
recognition alternate command modeº (P.4-
164) for details.) When this mode is active, an
expanded list of commands can be spoken after
pushing the TALK
switch, and the voice
command menu prompts are turned off. Review
the expanded command list, which is available
when this mode is active. Note that in this mode
the recognition success rate may be affected as
the number of available commands and the ways
of speaking each command are increased.
To switch one mode to another, see each mode
description later in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using the
Speaker Adaptation Function available in that
mode. Otherwise, it is recommended that
Alternate Command Mode be turned off and Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner's
Manual of your vehicle.
NISSAN VOICE RECOGNITION
STANDARD MODE
GUID-79EE6534-9728-4A47-AB1E-8480EB29E2CCThe following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-153
NISSAN VOICE RECOGNITION
SYSTEM (models with navigation
system)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-154Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3008
Activating Standard ModeGUID-5D7B03F4-985D-42BA-9BB5-3DCF08EAD00BWhen the Alternate Command Mode is active,
perform the following steps to switch to the
Standard Mode.
1. Push the SETTING button on the instrumentpanel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
SAA2530
4. Select the ªAlternate Command Modeº key.
5. The indicator turns off and the Standard Mode activates.
Displaying user guideGUID-45FEEEDB-42FB-4A6F-A377-2806C9A2887CIf you use the NISSAN Voice Recognition
system for the first time or you do not know
how to operate it, you can display the User
Guide for confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which
contains basic instructions and tutorials for
several voice commands.
SAA2531
1. Push the INFO button on the instrument
panel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
4. Select the ªUser Guideº key.
5. Select a preferred item.
You can skip steps 1 and 3 above if you say
ªHelpº.
Available items:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Getting Started
Describes the basics of how to operate the
NISSAN Voice Recognition system.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
.Let's Practice
Mode that allows practicing by following the
instructions of the system voice.
. Using the Address Book
Tutorial for entering a destination by using
the Address Book.
. Finding a Street Address (if so equipped)
Tutorial for entering a destination by street
address.
. Placing Calls
Tutorial for making a phone call by voice
command operation.
. Help on Speaking
Displays useful tips of speaking for correct
command recognition by the system.
Note that the Command List feature is only
available when Alternate Command Mode is
active.
SAA2532
Getting StartedGUID-2DA36E70-6A48-4D33-BD75-4F5D1A147BD3Before using the NISSAN Voice Recognition
system for the first time, you can confirm how to
use commands by viewing the Getting Started
section of the User Guide.
1. Select the ªGetting Startedº key.
2. You can confirm the page by scrolling the screen using the multi-function controller.
Tutorials on the operation of the NISSAN
Voice Recognition system
If you choose ªUsing the Address Bookº,
ªFinding a Street Addressº or ªPlacing Callsº,
you can view tutorials on how to perform these
operations using NISSAN Voice Recognition.
SAA2534
Let's PracticeGUID-CB93832D-E3B8-4629-A970-1914AAC11ACFThis mode helps learn how to use the NISSAN
Voice Recognition system.
1. Select the ªLet's Practiceº key.
2. After the message screen appears, push the TALK
switch on the steering wheel.
3. Speak the displayed number after the tone. The evaluation screen will be displayed and
the result can be confirmed.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-155
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-156Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2533
Useful tips for correct operationGUID-ADF1E6E5-B8F6-418B-AF77-95820B656F28You can display useful speaking tips to help the
system recognize your voice commands cor-
rectly.
Select ªHelp on Speakingº to start display.
USING THE SYSTEMGUID-60616B9C-5ED4-4BB3-8E6B-440BCC59A7C4
InitializationGUID-30517E2D-7119-4A42-B6D1-5345EA6C9E4DWhen the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes, the display
will show the message: ªSystem not ready.º or a
beep sounds.
Before startingGUID-AC9B6401-7B52-4E4B-97A0-050451FA109DTo get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to ªAutoº, the fan
speed is automatically lowered so that your
commands can be recognized more easily.SAA1859
Giving voice commandsGUID-97441E5D-7422-4D42-B7B3-F33A836EC02F1. Push the TALKswitch located on the
steering wheel.
2. A list of commands appears on the screen, and you will hear a prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
Selecting the ªPracticeº key will start the
practice mode. See ªLet's Practiceº (P.4-
155) .
4. Continue to follow the voice menu prompts and speak after the tone sounds until your
desired operation is completed.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
Selecting the ªHelpº key can display the
detailed information of the each command.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, ªPlease say againº.
Repeat the command in a clear voice.
. Push the BACK button once to return to the
previous screen.
. To exit the voice recognition system, push
and hold the TALK
switch. The mes-
sage, ªVoice canceledº will be announced.
Voice Prompt Interrupt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip the voice guidance function and give the
command immediately, press the TALK
switch to interrupt the system. Remember to
speak after the tone.
How to speak numbers:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples. General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, ªfive zero
zeroº can be used, but ªfive hundredº cannot.)
Examples
.
1-800-662-6200
Ð ªOne eight zero zero six six two six two
zero zeroº
Improving Recognition of Phone numbers
You can improve the recognition of phone
numbers by saying the phone number in three
groups of numbers. For example, when you try to
call 800-662-6200, say ªeight zero zeroº first,
and the system will then ask you for the next
three digits. Then, say ªsix six twoº. After
recognition, the system will then ask for the last
four digits. Say, ªsix two zero zeroº. Using this
method of phone digit entry can improve
recognition performance.
When speaking a house number, speak the
number ª0º as ªzeroº. If the letter ªo (Oh)º is
included in the house number, it will not be
recognized as the number ª0 (zero)º even if you
speak ªohº instead of ªzeroº. Please speak
ªzeroº for the number ª0 (zero)º, ªohº for
the letter ªo (oh)º. Send digits using dial tone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
Press the TALKswitch during a phone
call.
. The menu will be launched and you will be
provided with the following guidance:
"Please say the digits to dial".
. After guidance, say the digits of the number
you want to send. After this, the digits that
have been recognized will be read out.
. If you press the ENTER button on the
steering wheel or on the multi-function
controller, the selected digits will be sent.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-157
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-158Monitor, heater, air conditioner, audio, phone and voice recognition systems
Command ListGUID-5382546A-BF65-4D8A-B5D8-BF7AF1B1D5A0
Category Command:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Call (Optional) Makes a call to a contact that is stored in either phonebook. Please say ªCallº followed by a stored name.
Phone Operates the Phone function.
Navigation Operates the Navigation function.
Information Displays the vehicle Information function.
Audio Operates the Audio function.
Help Displays User Guide
.Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Quick Dial Makes a call to a contact that is stored in the Quick Dial.
Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry) .
.Navigation Command:
Command Action
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
&RQGLWLRQ
