2016 NISSAN QUEST navigation system


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
GUID-3F5BDD52-9AA5-463B-87CB-C132C6049CB4
SSI0824
1. Side ventilator (P.4-47)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-8)
4. Hazard warning flasher switch (P.6-2)
5. Shift lever (P.5-13)
6. Center displayÐ Center color display* (P.4-5) Ð Navigation system**
7. Center multi-function control panel* (P.4-5) Ð Navigation system**
Ð Vehicle information and setting buttons*
(P.4-10)
Ð RearView Monitor* (P.4-25)
Ð Around View


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
2-4Instruments and controls
GUID-0C8F786C-EE91-435E-980B-4A330DFE7B46
SSI0824
1. Side ventilator
2. Meters and gauges
3. Push-button ignition switch
4. Hazard warning flasher switch
5. Shift lever
6. Center displayÐ Center color display* Ð Navigation system**
7. Center multi-function control panel* Ð Navigation system**
Ð Vehicle information and setting buttons*
Ð RearView Monitor*
Ð Around View


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
OPERATING SLIDING DOOR BY
POWER ASSIST
GUID-FD94DF64-8ED4-43CE-8353-FF9CDB47F70CTo operate, pull the inside or outside door
handle until you hear the buzzer, the door will
automatically open or close.
If the door handle is operated while the sliding
door is moving, the door will reverse directions
and stop at either the full open or closed
position.
SLIDING DOOR AUTO REVERSE
FUNCTION
GUID-3187603A-46AE-40CE-97BD-3601230ED6EBIf an obstacle is detected while the power
sliding door is being operated, the door will
reverse directions and return to the full open or
full closed position.
If you touch the sensor of the sliding door while
the sliding door is closing automatically, the door
will start moving in the reverse direction and
stop at the fully opened position.
GUID-7C39F98D-38C6-4523-BF51-8634B2D72D58
WARNING
.Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
. The Intelligent Key transmits radio
waves when the buttons are
pushed. The FAA advises that radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored for a flight.
The Intelligent Key system can operate all the
door locks (including the lift gate) using the
remote keyless function or pushing the request
switch on the vehicle without taking the key out
from a pocket or purse. The operating environ-
ment and/or conditions may affect the Intelligent
Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
. Be sure to carry the Intelligent Key
with you when operating the vehi-
cle.
. Never leave the Intelligent Key in
the vehicle when you leave the
vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
signals. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
. When operating near a location where
strong radio signals are transmitted, such
as a TV tower, power station and broad-
casting station.
. When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
. When the Intelligent Key is in contact with or
covered by metallic materials.
. When any type of radio wave remote control
is used nearby.
. When the Intelligent Key is placed near an
electric appliance such as a personal
Pre-driving checks and adjustments3-13
INTELLIGENT KEY SYSTEM
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
GUID-50562980-B6C3-4CD3-8E21-47AEFBFA68AB

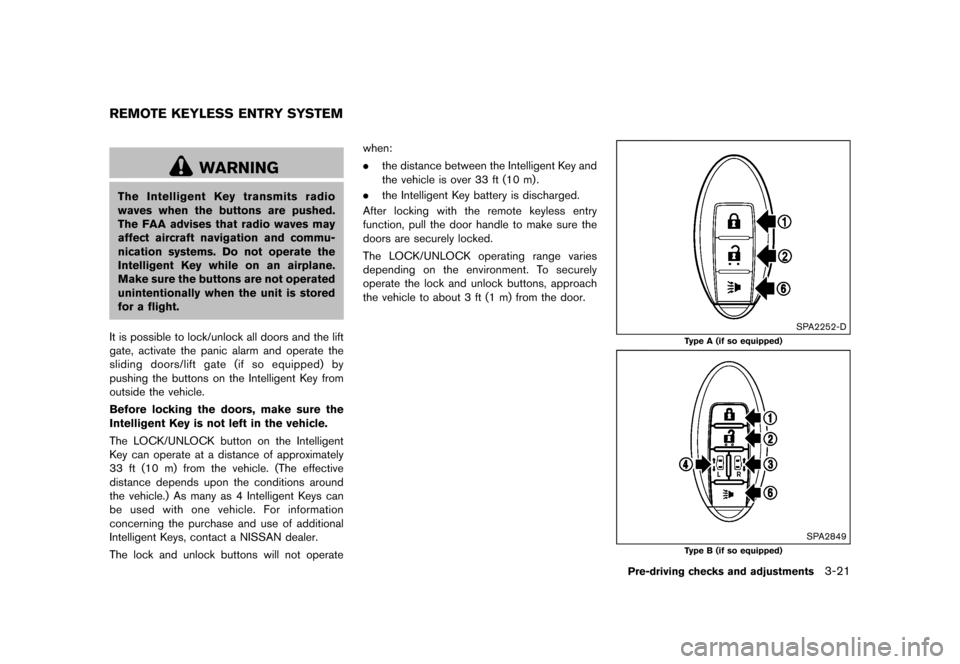

WARNING
The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that radio waves may
affect aircraft navigation and commu-
nication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
for a flight.
It is possible to lock/unlock all doors and the lift
gate, activate the panic alarm and operate the
sliding doors/lift gate (if so equipped) by
pushing the buttons on the Intelligent Key from
outside the vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent
Key can operate at a distance of approximately
33 ft (10 m) from the vehicle. (The effective
distance depends upon the conditions around
the vehicle.) As many as 4 Intelligent Keys can
be used with one vehicle. For information
concerning the purchase and use of additional
Intelligent Keys, contact a NISSAN dealer.
The lock and unlock buttons will not operate when:
.
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m) .
. the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, approach
the vehicle to about 3 ft (1 m) from the door.
SPA2252-D
Type A (if so equipped)
SPA2849
Type B (if so equipped)
Pre-driving checks and adjustments3-21
REMOTE KEYLESS ENTRY SYSTEM
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4 Monitor, heater, air conditioner, audio, phoneand voice recognition systems
Safety note ...
........................................................................\
.......... 4-4
Center multi-function control panel (if so equipped) ...
...... 4-5
How to use multi-function controller ...
.............................. 4-7
How to use touch screen (models with
navigation system) ...
.............................................................. 4-7
Menu options (models with navigation system) ...
.......... 4-9
How to select menus on the screen ...
........................... 4-10
Vehicle information and settings (models with center
multi-function control panel) ...
............................................... 4-10
How to use STATUS button ...
.......................................... 4-10
How to use brightness control and display
ON/OFF button ...
................................................................ 4-10
How to use DISP button (models without
navigation system) ...
........................................................... 4-10
How to use ECON button (models without
navigation system) ...
........................................................... 4-11
How to use INFO button ...
............................................... 4-11
How to use SETTING button ...
....................................... 4-15
RearView Monitor (if so equipped) ...
................................... 4-25
RearView Monitor system operation ...
.......................... 4-25
How to read the displayed lines ...
.................................. 4-26
How to park with predictive course lines
(models with center multi-function control panel) ...
..... 4-26
Adjusting the screen ...
....................................................... 4-29
Predictive course line settings (if so equipped) ...
...... 4-30
RearView Monitor system limitations ...
.......................... 4-30 System maintenance
...
..................................................... 4-31
Around View


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
GUID-FCD5479C-66CC-40C2-9130-A25FC2C7475B
SAA3020
Models with navigation system1. ªCAMERAº button (P.4-32)
2, 6, 7.For navigation system control buttons (Refer to
the separate Navigation System Owner's Man-
ual.)
3. Multi-function controller (P.4-7)
4. ªINFOº button (P.4-11)
5. ªSETTINGº button (P.4-15)
8. ªSTATUSº status display button (P.4-10)
9. ª
OFFº brightness control and display ON/
OFF button (P.4-10)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-5
CENTER MULTI-FUNCTION
CONTROL PANEL (if so equipped)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-6Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3613
Models without navigation system1. ªINFOº button (P.4-11)
2. ªSTATUSº status display button (P.4-10)
3. ªDISPº display setting button (P.4-15)
4. ª
º brightness UP button (P.4-10)
5. ª
ECONº button (P.4-11)
6. ªSETTINGº button (P.4-15)
7. Multi-function controller (P.4-7)
8. ª
OFFº brightness control and display ON/
OFF button (P.4-10)
9. ª
º brightness DOWN button (P.4-10)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery and the
engine may not start.
SAA3025
Models with navigation system
SAA3614
Models without navigation system
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-7E48C6E3-13FB-400D-A81F-BF7E3F9AA50BChoose an item on the display by rotating or
pushing the center dial
*1upward/ downward,
and push the ENTER button
*2for operation.
If you push the BACK button
*3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
*3and return to the previous screen.
For the VOICE button
*4functions, refer to the
separate Navigation System Owner's Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-341874AE-CB3F-4BF9-A452-77225AECC7B8

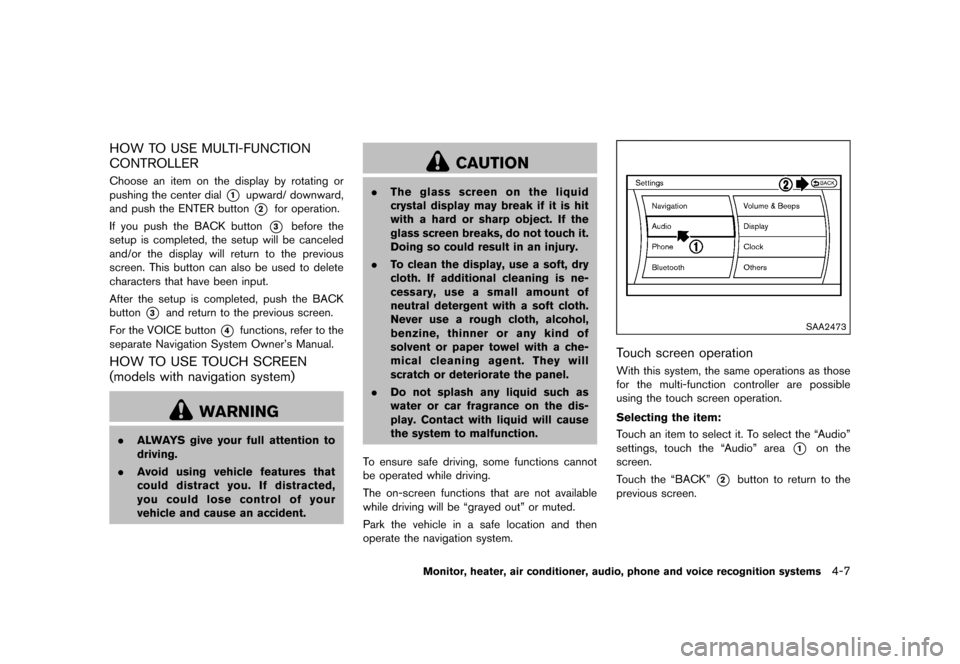

WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be ªgrayed outº or muted.
Park the vehicle in a safe location and then
operate the navigation system.
SAA2473
Touch screen operationGUID-6C7F3DCF-7A3A-4832-B1C2-2CEC2C25F75EWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the ªAudioº
settings, touch the ªAudioº area
*1on the
screen.
Touch the ªBACKº
*2button to return to the
previous screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-7
&RQGLWLRQ
