.During cold weather or rainy days, the player
may malfunction due to the humidity. If this
occurs, remove the CD and dehumidify or
ventilate the player completely.
. The player may skip while driving on rough
roads.
. The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
. Only use high quality 4.7 in (12 cm) round
discs that have the ªCOMPACT disc DIGI-
TAL AUDIOº logo on the disc or packaging.
. Do not expose the CD to direct sunlight.
. CDs that are of poor quality, dirty, scratched,
covered with fingerprints, or that have pin
holes may not work properly.
. The following CDs may not work properly:
Ð Copy control compact discs (CCCD)
Ð Recordable compact discs (CD-R)
Ð Rewritable compact discs (CD-RW)
. Do not use the following CDs as they may
cause the CD player to malfunction.
Ð 3.1 in (8 cm) discs
Ð CDs that are not round
Ð CDs with a paper label
Ð CDs that are warped, scratched, or have
abnormal edges .
This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.
. If the CD cannot be played, one of the
following messages will be displayed.
CHECK DISC:
Ð Confirm that the CD is inserted correctly
(the label side is facing up, etc.) .
Ð Confirm that the CD is not bent or warped and it is free of scratches.
PUSH EJECT:
This is an error due to the temperature inside
the player is too high. Remove the CD by
pushing the EJECT button, and after a short
time reinsert the CD. The CD can be played
when the temperature of the player returns
to normal.
UNPLAYABLE:
The file is unplayable in this audio system
(only MP3 or WMA CD) .
LHA0484
DVD (Digital Versatile Disc) player (if so
equipped)
GUID-4686D449-D8E1-477D-BFC3-4B9923AC2ADE. Do not force a compact disc into the CD/
DVD insert slot. This could damage the CD/
DVD player.
. During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the CD/DVD and dehumidify
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-63
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-64Monitor, heater, air conditioner, audio, phone and voice recognition systems
or ventilate the player completely.
. The player may skip while driving on rough
roads.
. The CD/DVD player sometimes cannot
function when the passenger compartment
temperature is extremely high. Decrease the
temperature before use.
. Only use high quality 4.7 in (12 cm) round
discs that have the ªCOMPACT disc DIGI-
TAL AUDIOº or ªDVD Videoº logo on the
disc or packaging.
. Do not expose the CD/DVD to direct
sunlight.
. CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or that
have pinholes may not work properly.
. The following CD/DVDs are not guaranteed
to play:
Ð Copy control compact discs (CCCD)
Ð Recordable compact discs (CD-R)
Ð Rewritable compact discs (CD-RW)
Ð Recordable DVDs (DVD‹R, DVD‹R DL)
Ð Rewritable DVDs (DVD‹RW, DVD‹RW
DL)
. Do not use the following CD/DVDs as they
may cause the CD/DVD player to malfunc-
tion. Ð 3.1 in (8 cm) discs
Ð CD/DVDs that are not round
Ð CD/DVDs with a paper label
Ð CD/DVDs that are warped, scratched or
have abnormal edges
Ð This audio system can only play pre- recorded CD/DVDs. It has no capabilities
to record or burn CD/DVDs.
. If the CD/DVD cannot be played, one of the
following messages will be displayed.
Disc Read Error:
Ð Confirm that the CD/DVD is inserted
correctly (the label side is facing up,
etc.) .
Ð Confirm that the CD/DVD is not bent or warped and it is free of scratches.
Please Eject Disc:
Ð This may be an error due to the temperature inside the player being too
high. Remove the CD/DVD by pushing
the EJECT button, and after a short time
reinsert the CD/DVD. The CD/DVD can
be played when the temperature of the
player returns to normal. If the error
persists, consult your local dealership.
Unplayable File:
Ð The file may be copy protected. Ð The file is not MP3, WMA, AAC, M4A or
DivX


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
.DTS and DTS 2.0 ªº are registered
trademarks of DTS, Inc.
Parental level (parental control):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selection:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following disc formats can be played with
the DVD drive.
. DVD-VIDEO
. VIDEO-CD
. CD-DA (Conventional Compact Disc)
. DTS-CD (models with navigation system)
USB (Universal Serial Bus) Connection
Port (if so equipped)
GUID-137299BE-2612-44E0-9D4E-6CFFD0EEE055

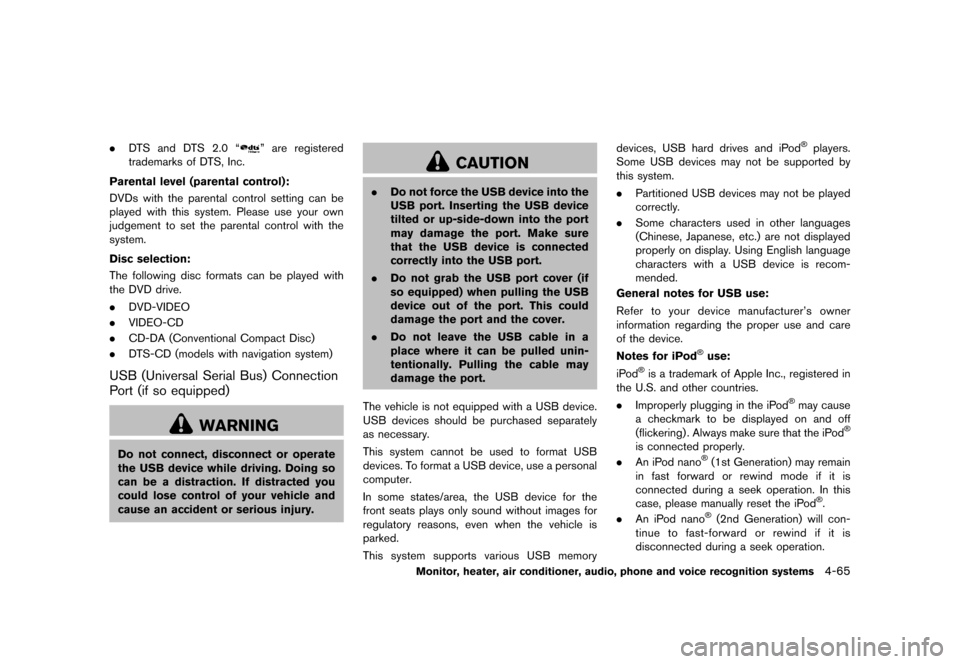

WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
The vehicle is not equipped with a USB device.
USB devices should be purchased separately
as necessary.
This system cannot be used to format USB
devices. To format a USB device, use a personal
computer.
In some states/area, the USB device for the
front seats plays only sound without images for
regulatory reasons, even when the vehicle is
parked.
This system supports various USB memory devices, USB hard drives and iPod


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-66Monitor, heater, air conditioner, audio, phone and voice recognition systems
.An incorrect song title may appear when the
Play Mode is changed while using an iPod
nano


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
SAA2494
Playback order:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.The folder names of folders not containing
compressed audio files are not shown in the
display.
. If there is a file in the top level of a disc/USB,
ªRoot Folderº is displayed. .
The playback order is the order in which the
files were written by the writing software, so
the files might not play in the desired order.
. Music playback order of compressed audio
files is as illustrated.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-67
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-68Monitor, heater, air conditioner, audio, phone and voice recognition systems
Specification chart (for FM-AM Radio with Compact Disc (CD) Player):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Supported mediaCD, CD-R, CD-RW
Supported file systems ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System Component (on a Windows Vista-based computer) are
not supported.
Supported versions*1 MP3
Version
MPEG1, MPEG2, MPEG2.5
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*3 Version
WMA7, WMA8, WMA9 (except WMA9 Pro, WMA9 Lossless, WMA9 Voice)
Sampling frequency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
Folder levels Folder levels: 8, Folders:255 (including root folder) , files: 512
Displayable character codes*2 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian) , 04: UNICODE (UTF-16
Non-BOM Big Endian) , 05: UNICODE (UTF-8) , 06: UNICODE (Non-UTF-16 BOM Little
Endian)
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Available codes depend on what kind of media, versions and information are going to be displayed.
*3 Protected WMA files (DRM) cannot be played.
*4 When VBR files are played, the playback time may not be displayed correctly. WMA7 and WMA8 are not applied to VBR.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
Specification chart (for FM-AM-SAT radio with Compact Disc (CD) player (Type A)):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Supported mediaCD, CD-R, CD-RW
Supported file systems ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
Supported versions*1 MP3 Version MPEG1, MPEG2, MPEG2.5
Bit rate 8 kHz - 48 kHz
Sampling frequency 8 kbps - 320 kbps, VBR
WMA Version WMA7, WMA8, WMA9
Sampling frequency 32 kHz - 48 kHz
Bit rate 48 kbps - 192 kbps, VBR
Tag information ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3 only)
Folder levels Folder levels: 8, Max folders: 255 (including root folder) , Files: 512 (Max. 255 files for one folder)
Text character number limitation 128 characters
Displayable character codes*2 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian) , 04: UNICODE (UTF-16
Non-BOM Big Endian) , 05: UNICODE (UTF-8) , 06: UNICODE (Non-UTF-16 BOM Little
Endian)
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Available codes depend on what kind of media, versions and information are going to be displayed.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-69
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-70Monitor, heater, air conditioner, audio, phone and voice recognition systems
Specification chart (for FM-AM-SAT Radio with Compact Disc (CD) Player (Type B)):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Supported mediaCD, CD-R, CD-RW, USB2.0
Supported file systems CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are
not supported.
USB memory: FAT16, FAT32
Supported versions*1 MP3
Version
MPEG1 Audio Layer 3
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version
WMA7, WMA8, WMA9
Sampling frequency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
Folder levels CD, CD-R, CD-RW Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
USB
Folder levels: 8, Folders 255, Files: 2500 (Max. 255 files for one folder)
Memory size: 4GB
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian) , 04: UNICODE (UTF-16
Non-BOM Big Endian) , 05: UNICODE (UTF-8) , 06: UNICODE (Non-UTF-16 BOM Little
Endian) , 07: SHIFT-JIS
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
