2016 NISSAN NOTE engine

ECM
EC-93
< ECU DIAGNOSIS INFORMATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
HO2S 05H
Air fuel ratio (A/F) sensor 1
(Bank 2) P015D 94H 01H
O2 sensor delayed response - Lean to
rich bank 2 sensor 1
P0153 95H 04H Response rate: Response ratio (lean
to rich)
P0153 96H 84H Response rate: Response ratio (rich to
lean)
06H Heated oxygen sensor 2
(Bank 2) P0158 07H 0CH
Minimum sensor output voltage for test
cycle
P0157 08H 0CH Maximum sensor output voltage for
test cycle
P0158 80H 0CH Sensor output voltage
P0159 81H 0CH Difference in sensor output voltage
P0159 82H 11H Rear O2 sensor delay response diag-
nosis
07H Heated oxygen sensor 3
(Bank2) P0163 07H 0CH
Minimum sensor output voltage for test
cycle
P0164 08H 0CH Maximum sensor output voltage for
test cycle
P0166 80H 0CH Sensor output voltage
P0165 81H 0CH Difference in sensor output voltage
CATA-
LY S T 21H
Three way catalyst function
(Bank1) P0420 80H 01H O2 storage index
P0420 82H 01H
Switching time lag engine exhaust in-
dex value
P2423 83H 0CH Difference in 3rd O2 sensor output
voltage
P2423 84H 84H O2 storage index in HC trap catalyst
22H Three way catalyst function
(Bank2) P0430 80H 01H O2 storage index
P0430 82H 01H
Switching time lag engine exhaust in-
dex value
P2424 83H 0CH Difference in 3rd O2 sensor output
voltage
P2424 84H 84H O2 storage index in HC trap catalyst
EGR
SYSTEM 31H EGR function P0400 80H 96H
Low flow faults: EGR temp change rate
(short term)
P0400 81H 96H Low flow faults: EGR temp change rate
(long term)
P0400 82H 96H Low flow faults: Difference between
max EGR temp and EGR temp under
idling condition
P0400 83H 96H Low flow faults: Max EGR temp
P1402 84H 96H High Flow Faults: EGR temp increase
rate
P0402 85H FCH EGR differential pressure high flow
P0401 86H 37H EGR differential pressure low flow
P2457 87H 96H EGR temperature
Item
OBD-
MID Self-diagnostic test item
DTCTest value and Test
limit
(GST display) Description
TID Unit and
Scaling ID
Revision: August 2015 2016 Versa Note

cardiagn.com

ENGINE CONTROL SYSTEMEC-99
< WIRING DIAGRAM > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

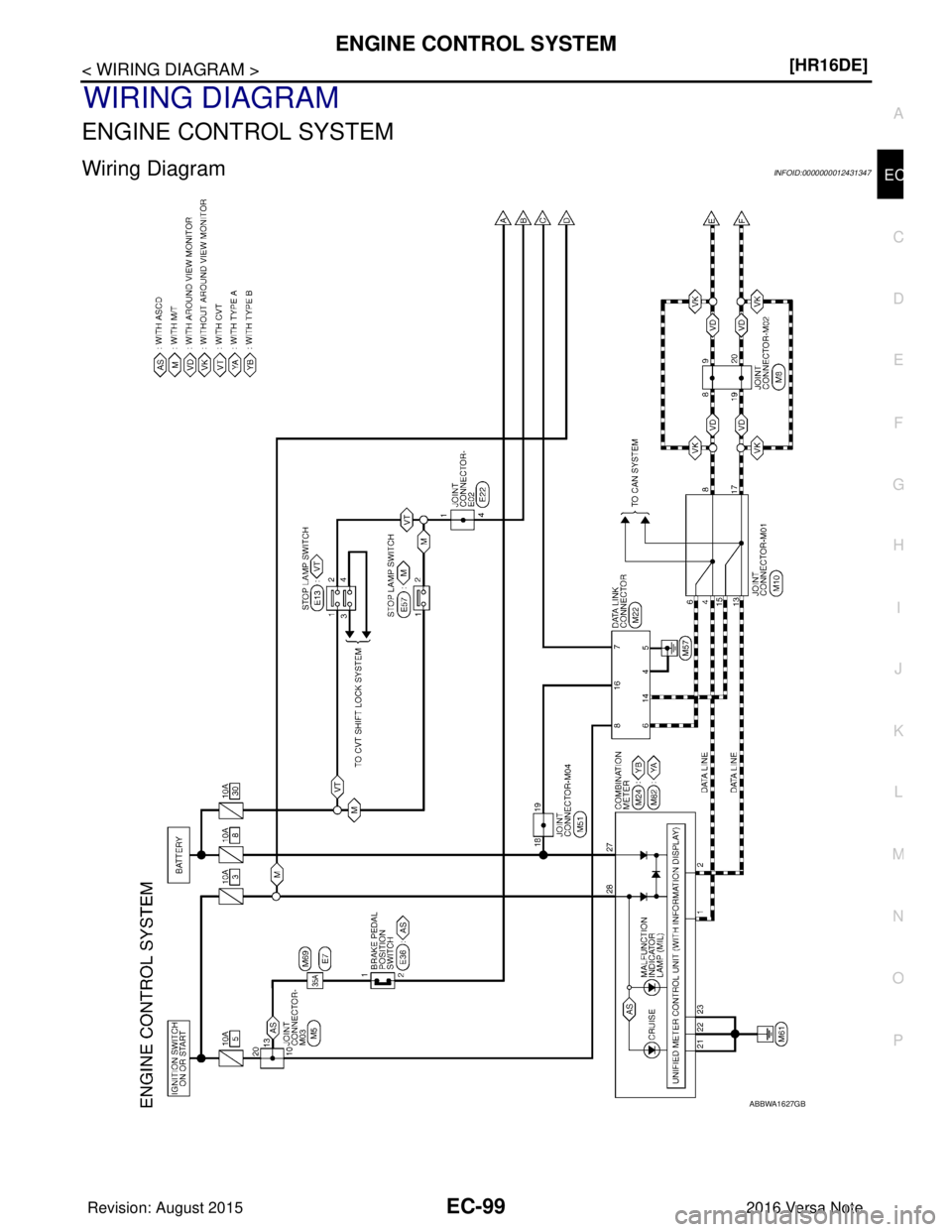

WIRING DIAGRAM
ENGINE CONTROL SYSTEM
Wiring DiagramINFOID:0000000012431347
ABBWA1627GB
Revision: August 2015
2016 Versa Note

cardiagn.com

EC-100
< WIRING DIAGRAM >[HR16DE]
ENGINE CONTROL SYSTEM

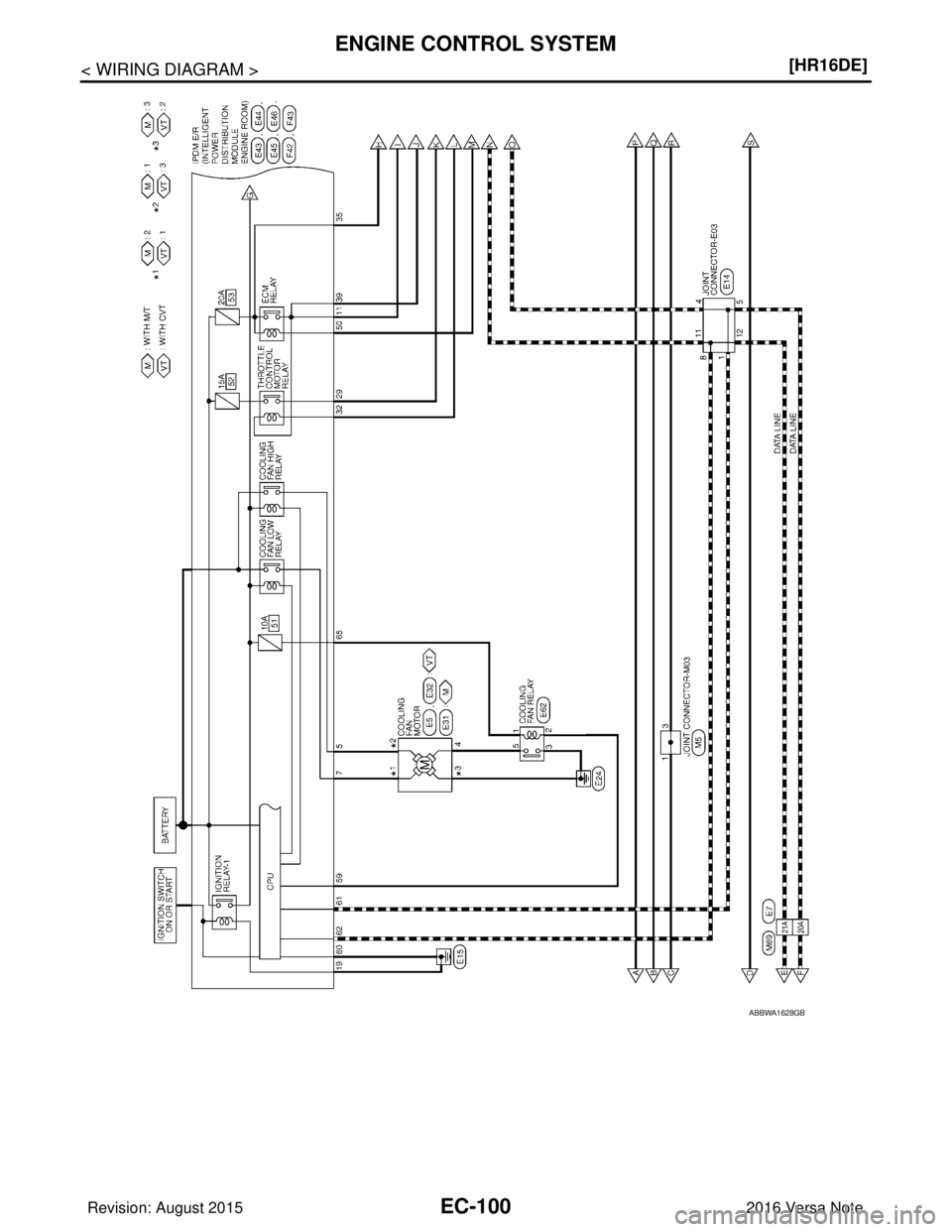

ABBWA1628GB
Revision: August 2015
2016 Versa Note

cardiagn.com

ENGINE CONTROL SYSTEMEC-101
< WIRING DIAGRAM > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

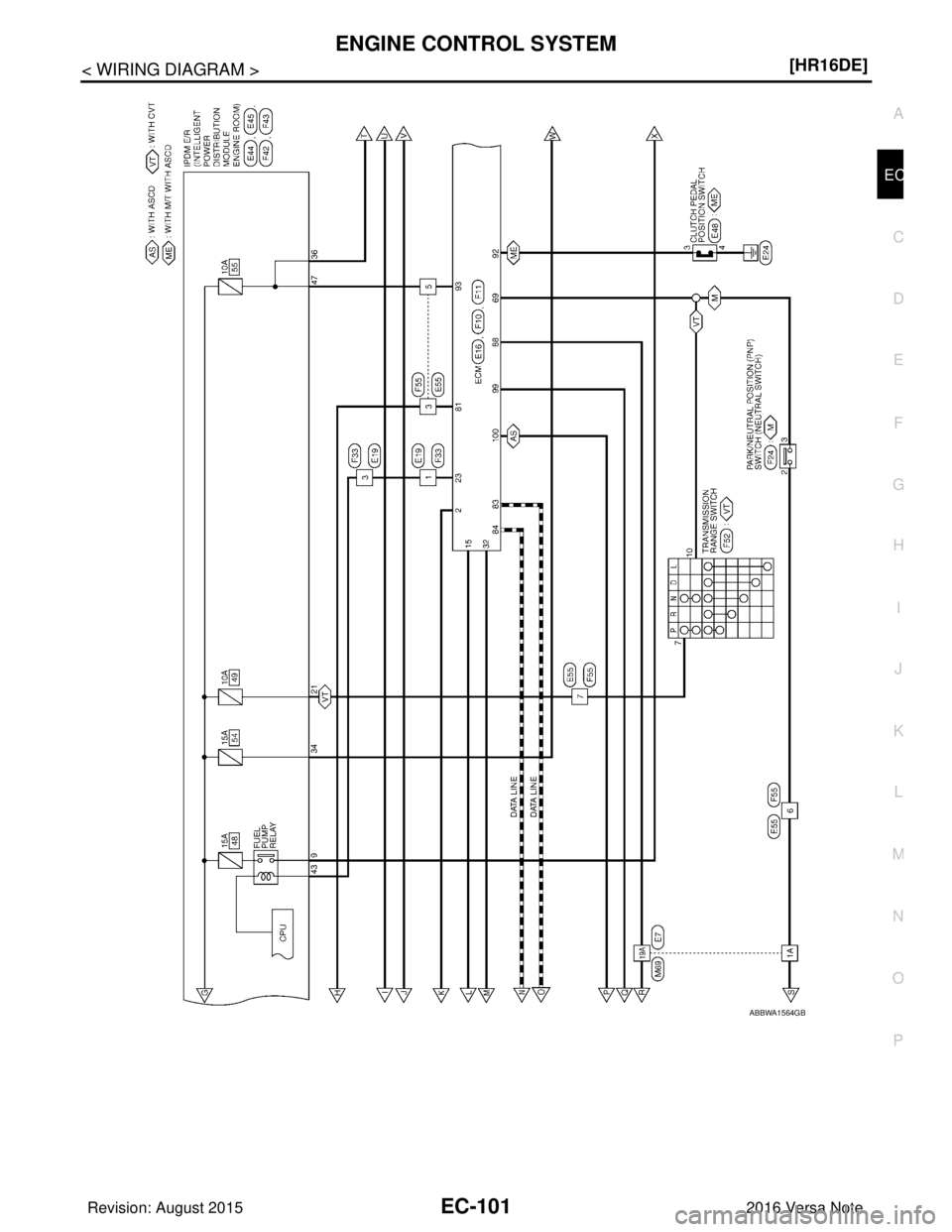

ABBWA1564GB
Revision: August 2015
2016 Versa Note

cardiagn.com

EC-102
< WIRING DIAGRAM >[HR16DE]
ENGINE CONTROL SYSTEM

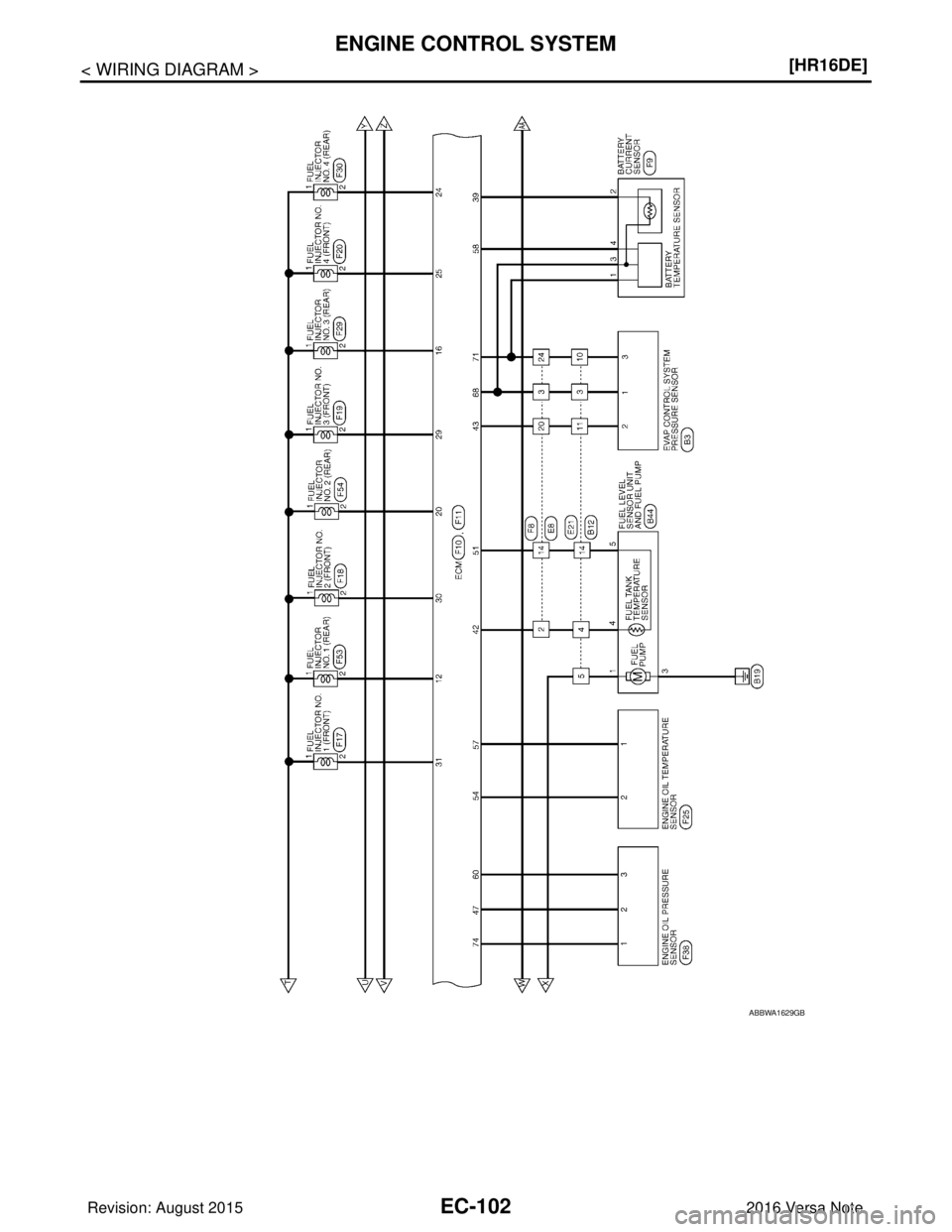

ABBWA1629GB
Revision: August 2015
2016 Versa Note

cardiagn.com

ENGINE CONTROL SYSTEMEC-103
< WIRING DIAGRAM > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

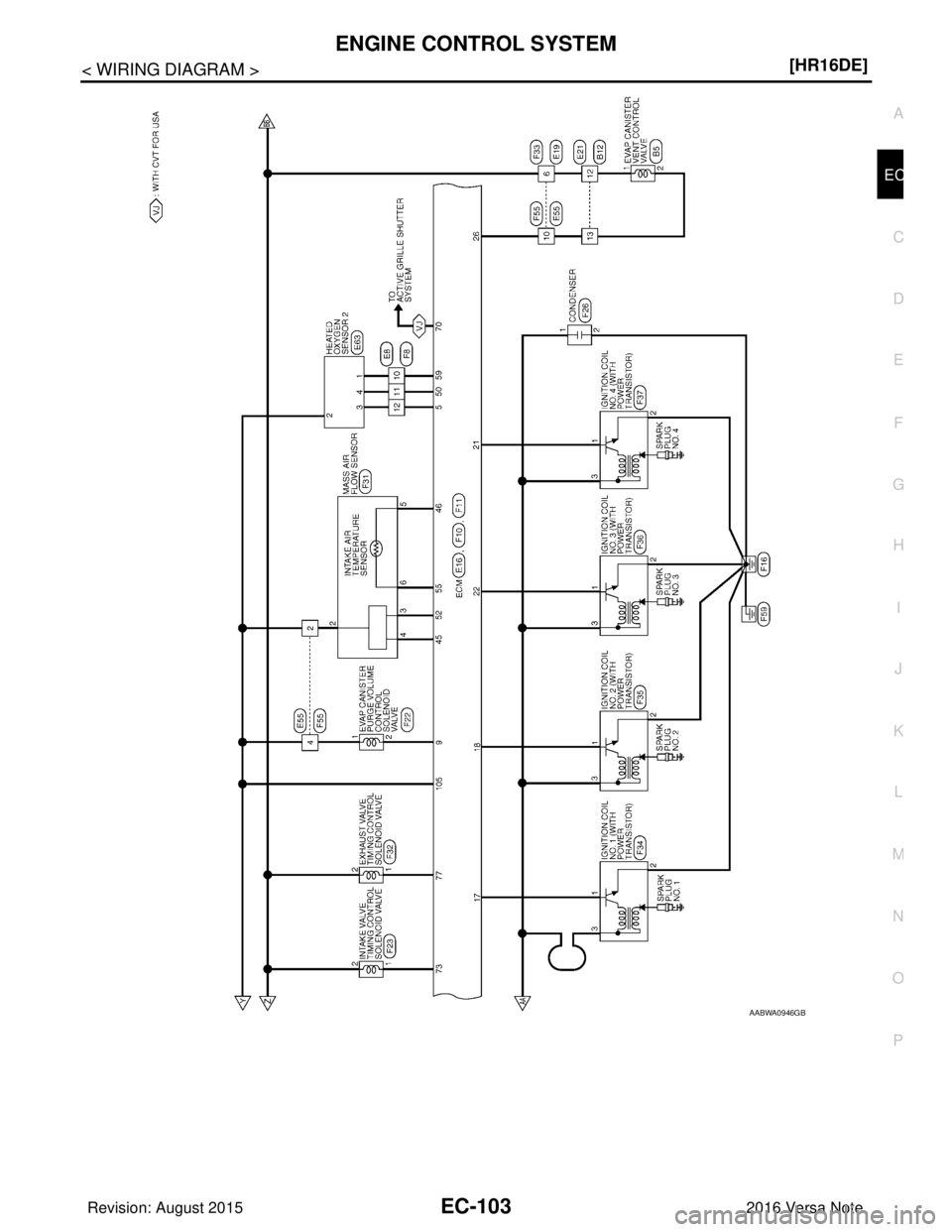

AABWA0946GB
Revision: August 2015
2016 Versa Note

cardiagn.com

EC-104
< WIRING DIAGRAM >[HR16DE]
ENGINE CONTROL SYSTEM

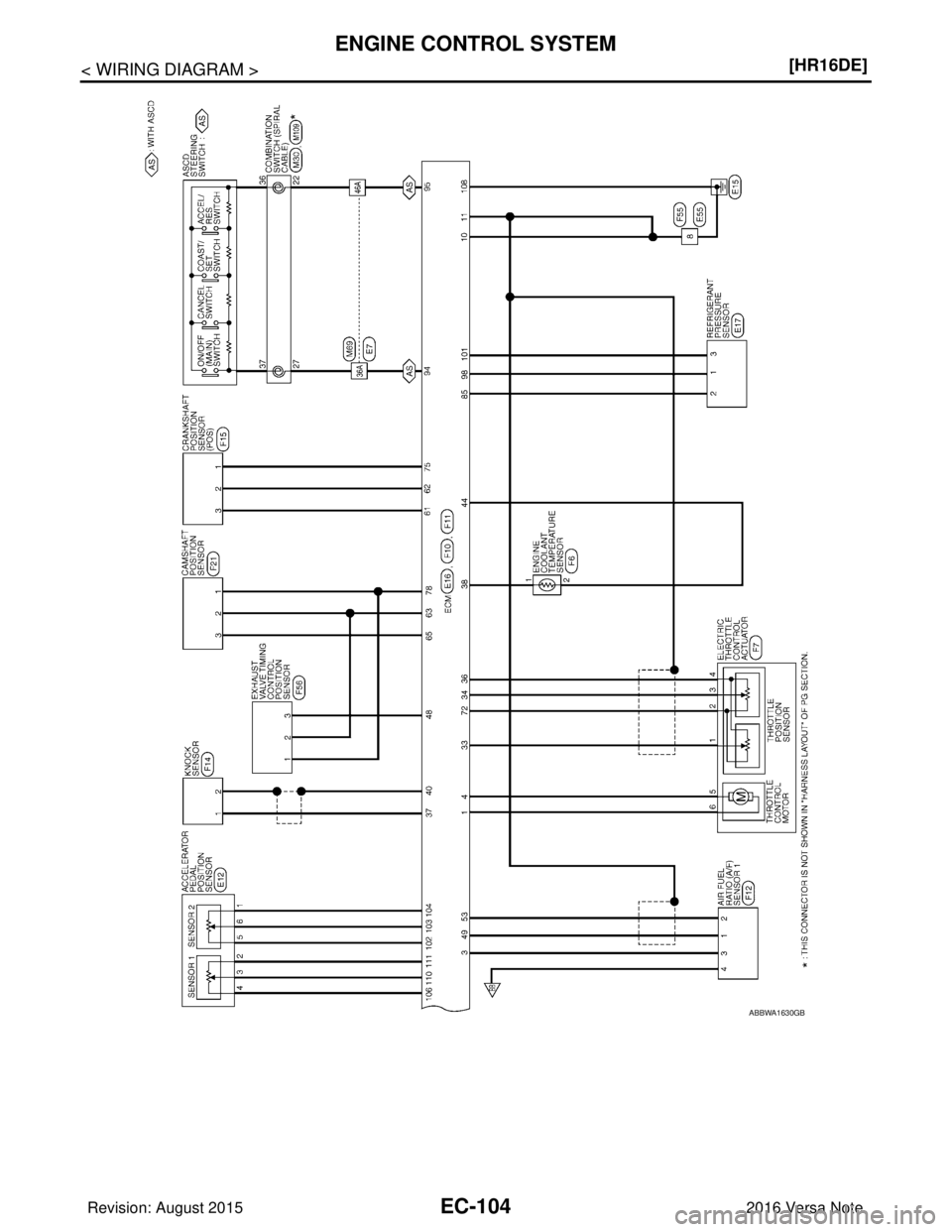

ABBWA1630GB
Revision: August 2015
2016 Versa Note

cardiagn.com

ENGINE CONTROL SYSTEMEC-105
< WIRING DIAGRAM > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

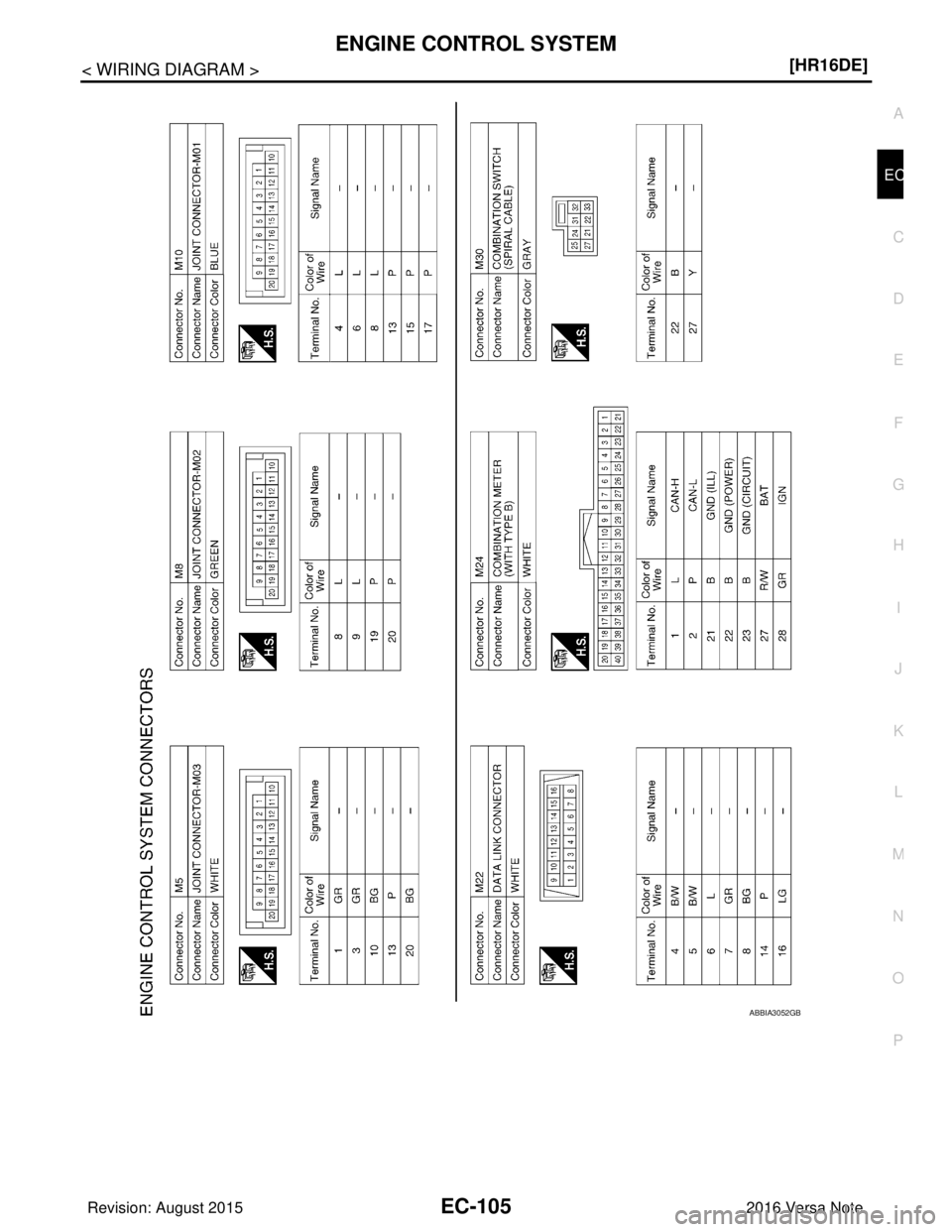

ABBIA3052GB
Revision: August 2015
2016 Versa Note

cardiagn.com
