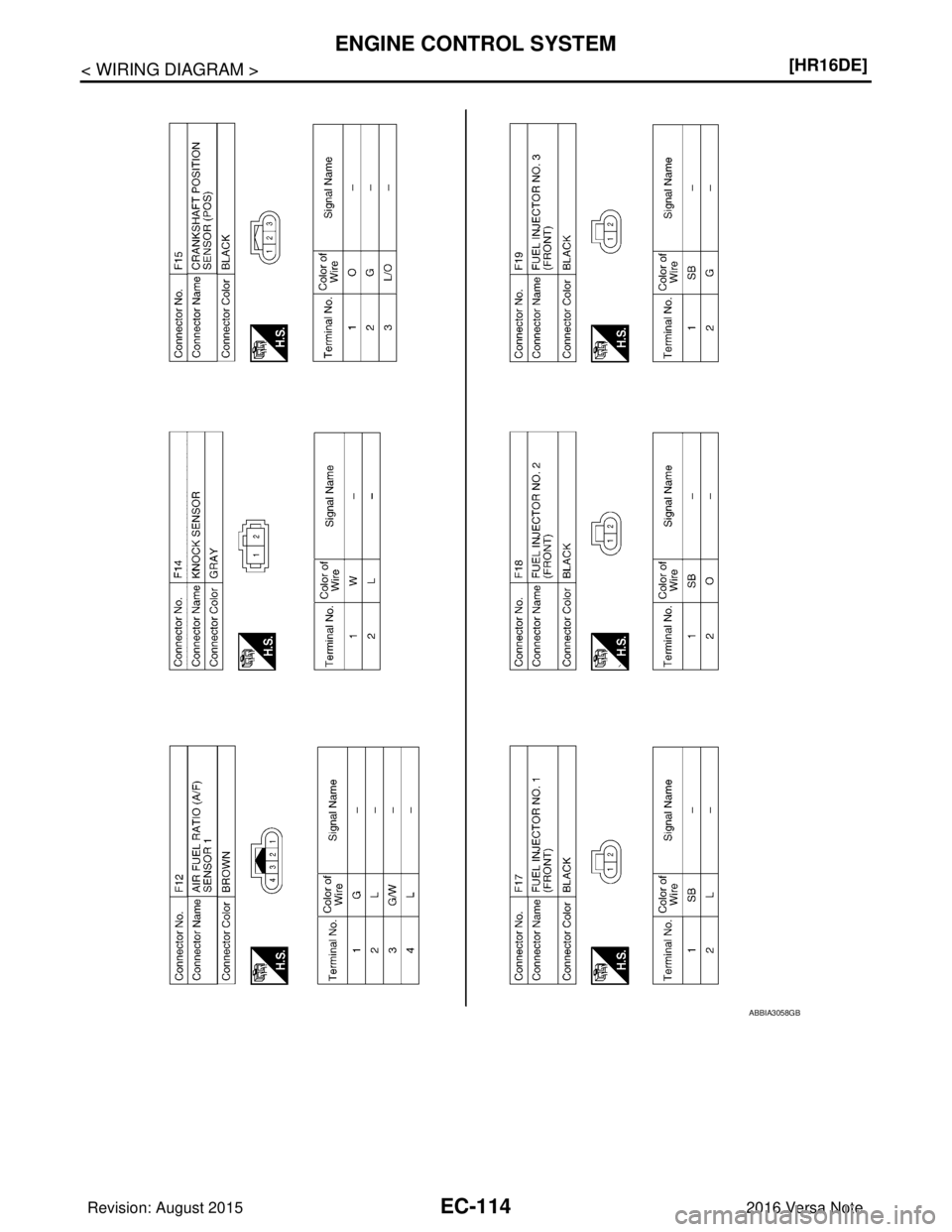

2016 NISSAN NOTE engine

EC-114
< WIRING DIAGRAM >[HR16DE]
ENGINE CONTROL SYSTEM
ABBIA3058GB
Revision: August 2015
2016 Versa Note

cardiagn.com

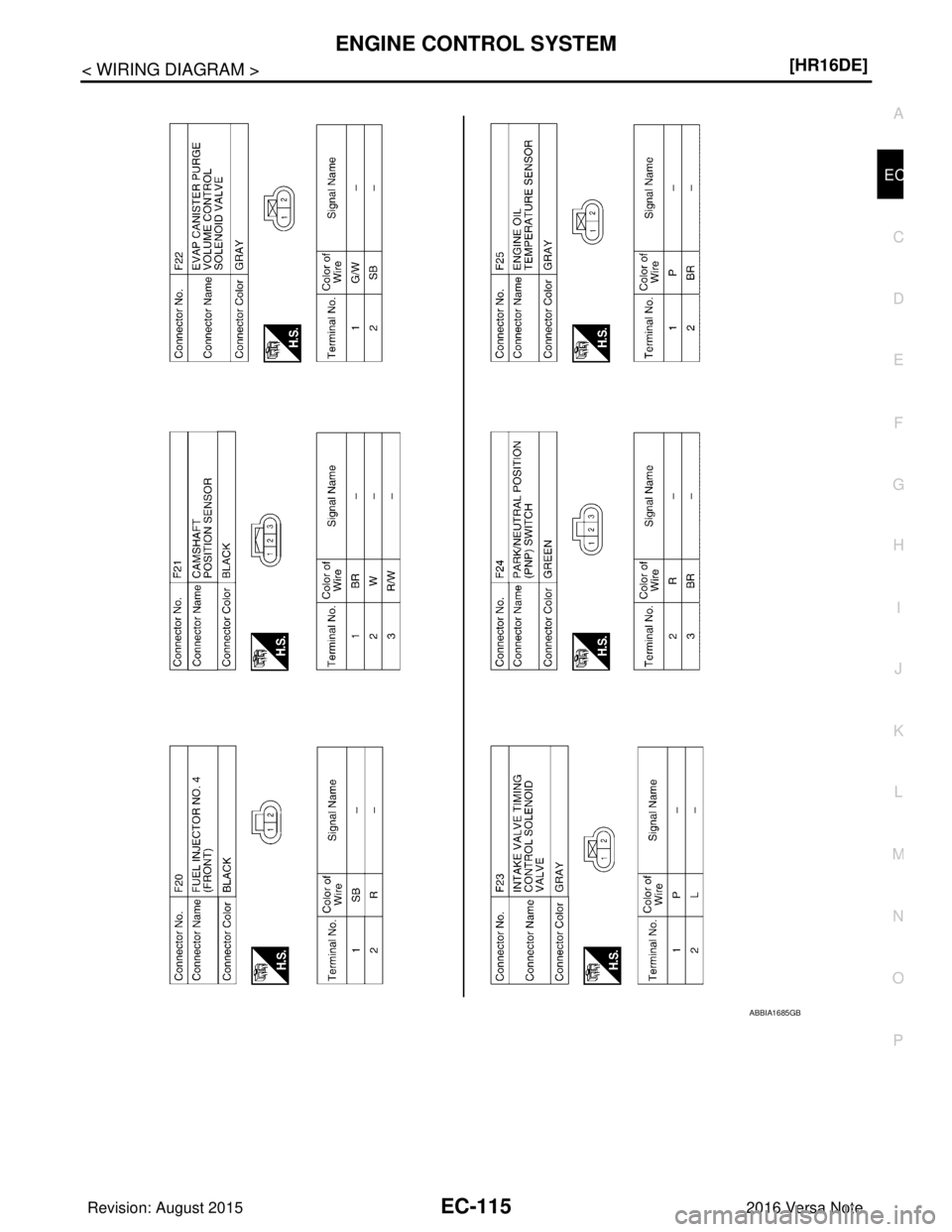

ENGINE CONTROL SYSTEMEC-115
< WIRING DIAGRAM > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ABBIA1685GB
Revision: August 2015
2016 Versa Note

cardiagn.com

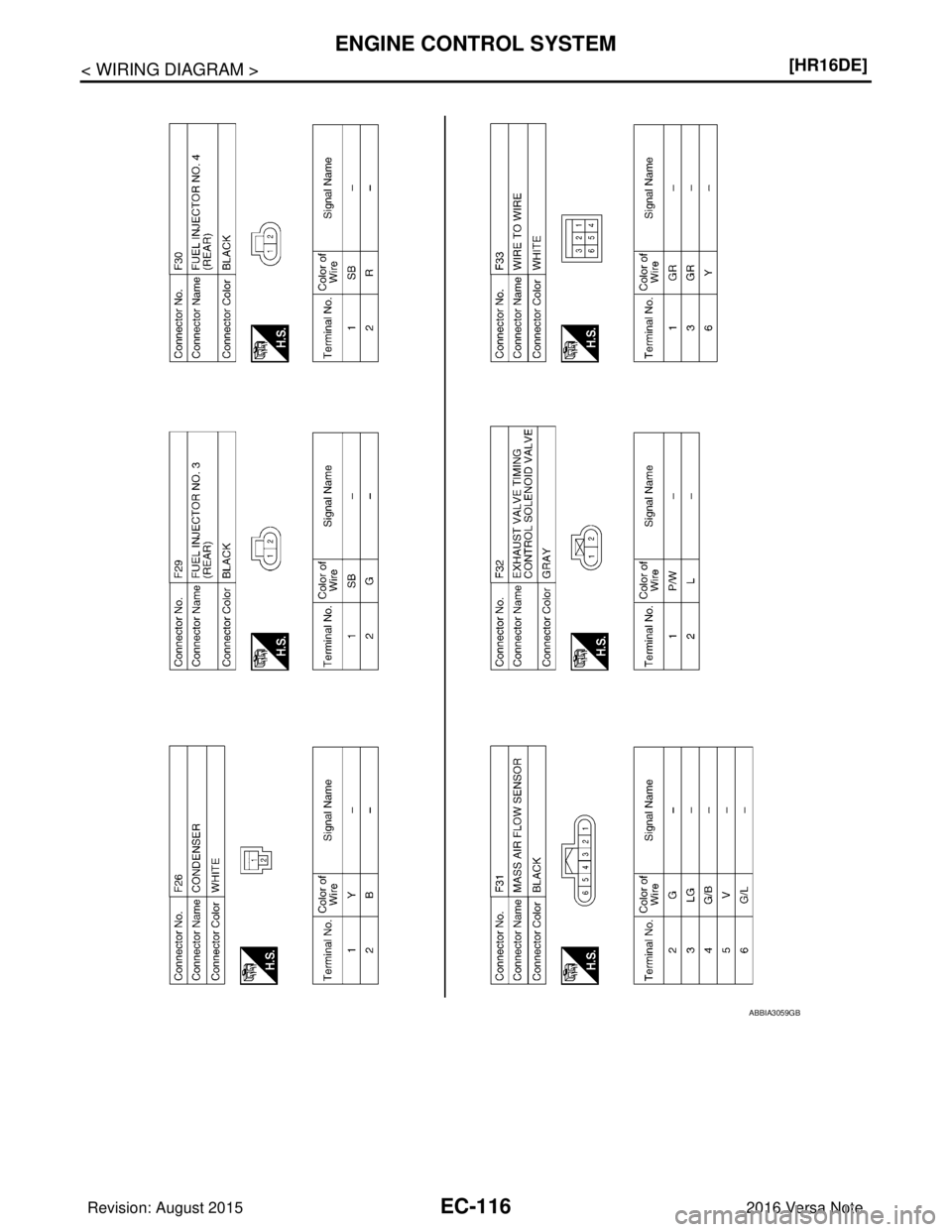

EC-116
< WIRING DIAGRAM >[HR16DE]
ENGINE CONTROL SYSTEM
ABBIA3059GB
Revision: August 2015
2016 Versa Note

cardiagn.com

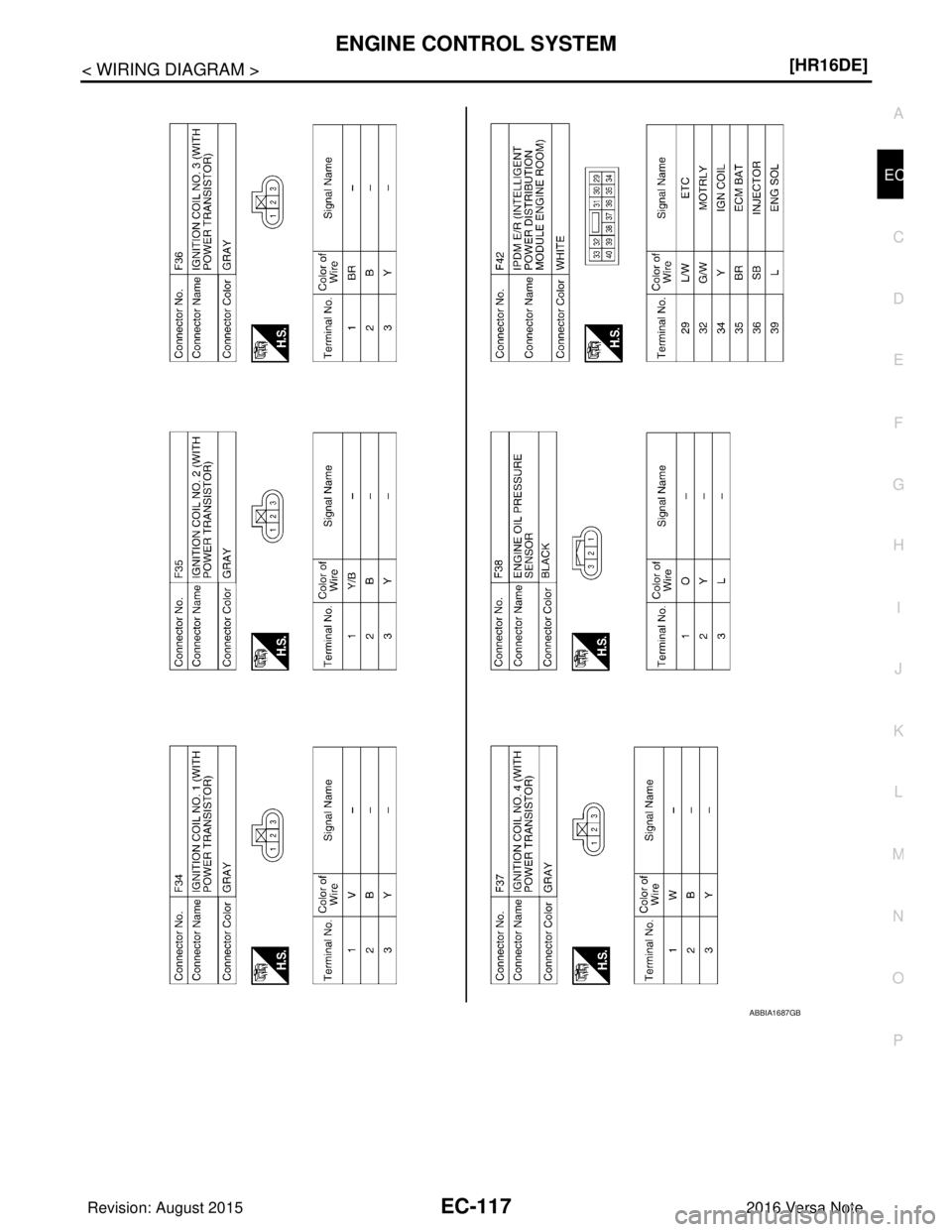

ENGINE CONTROL SYSTEMEC-117
< WIRING DIAGRAM > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ABBIA1687GB
Revision: August 2015
2016 Versa Note

cardiagn.com

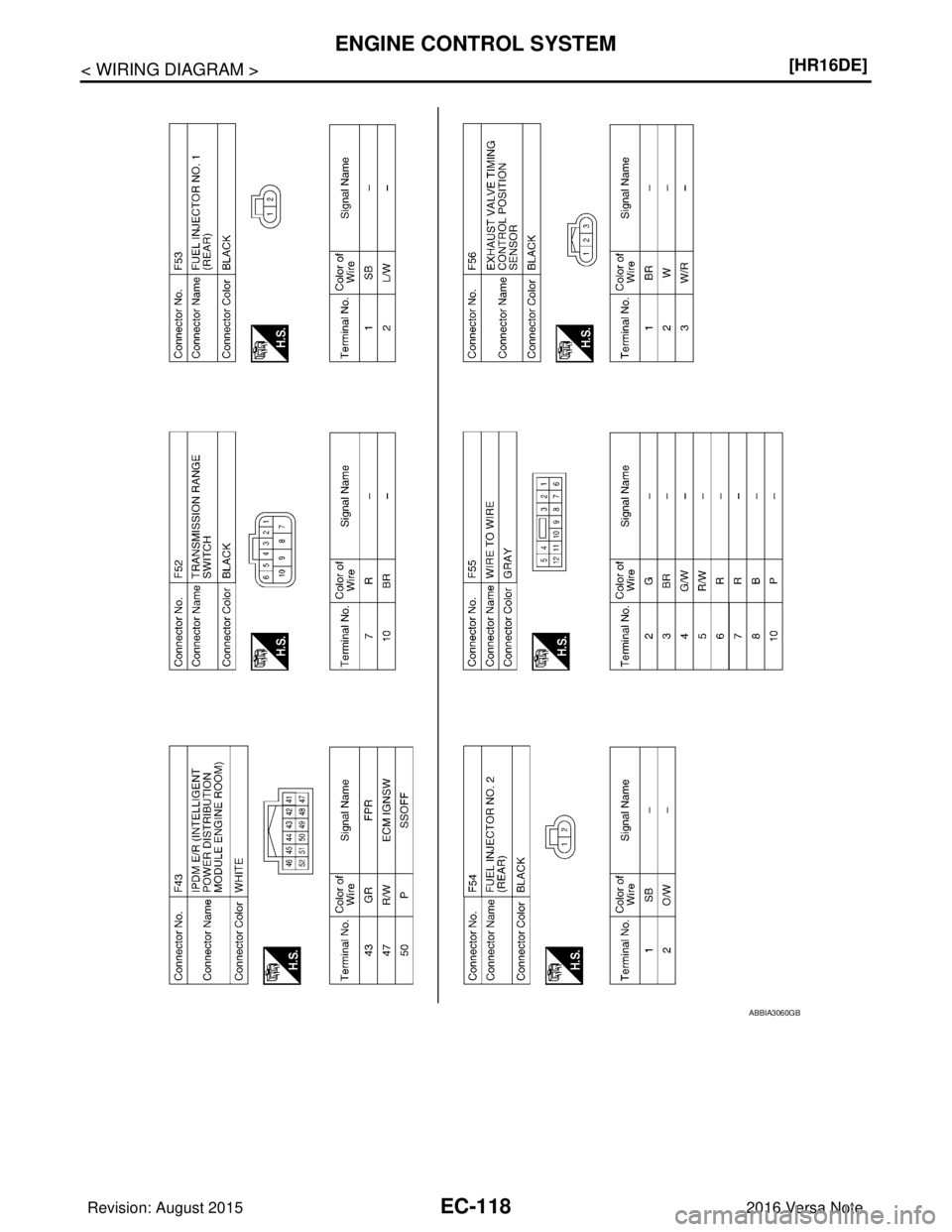

EC-118
< WIRING DIAGRAM >[HR16DE]
ENGINE CONTROL SYSTEM
ABBIA3060GB
Revision: August 2015
2016 Versa Note

cardiagn.com

ENGINE CONTROL SYSTEMEC-119
< WIRING DIAGRAM > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
AABIA1415GB
Revision: August 2015
2016 Versa Note

cardiagn.com

DIAGNOSIS AND REPAIR WORKFLOWEC-123
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NO-1 >> No request for I/M examination from the custom
er: Before returning the vehicle to the customer,
always erase unnecessary DTC in ECM and TCM ( With CONSULT: Refer to “How to Erase
DTC and 1st Trip DTC” in EC-60, "
CONSULT Function", Without CONSULT: Refer to “How to
Erase Self-diagnostic Results” in EC-57, "
On Board Diagnosis Function").
NO-2 >> I/M examination, requested from the customer: GO TO 13.
13.PREPARE FOR I/M EXAMINATION
1. Set SRT codes. Refer to EC-139, "
Description".
2. Erase permanent DTCs. Refer to EC-145, "
Description".
>> INSPECTION END

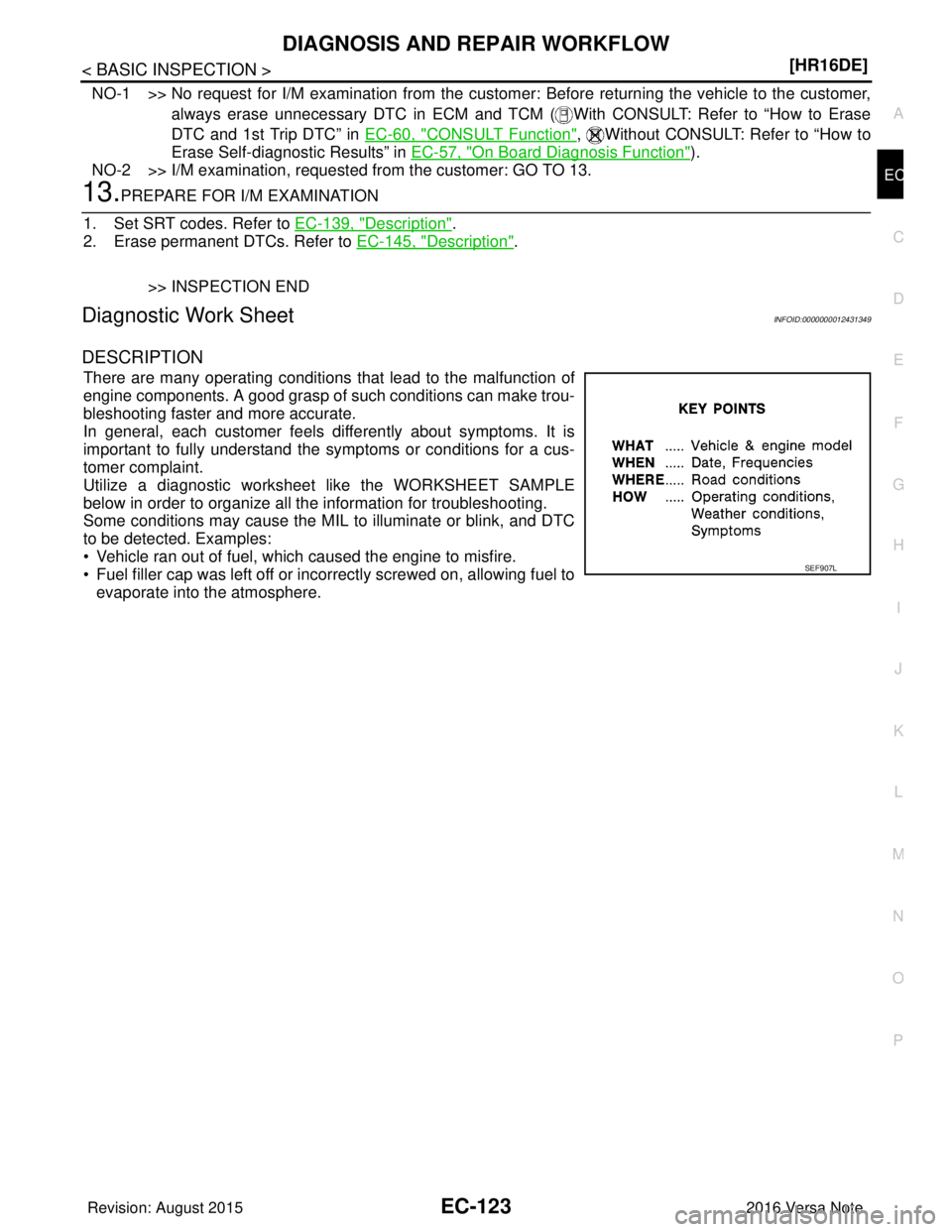

Diagnostic Work SheetINFOID:0000000012431349
DESCRIPTION
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about symptoms. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the WORKSHEET SAMPLE
below in order to organize all the information for troubleshooting.
Some conditions may cause the MIL to illuminate or blink, and DTC
to be detected. Examples:
• Vehicle ran out of fuel, which caused the engine to misfire.
• Fuel filler cap was left off or incorrectly screwed on, allowing fuel to evaporate into the atmosphere.
SEF907L
Revision: August 2015 2016 Versa Note

cardiagn.com

VIN REGISTRATIONEC-127
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VIN REGISTRATION
DescriptionINFOID:0000000012431352
VIN Registration is an operation to registering VIN in
ECM. It must be performed each time ECM is replaced.
Refer to EC-127, "
Work Procedure".
NOTE:
Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).
Work ProcedureINFOID:0000000012431353
1.CHECK VIN
Check the VIN of the vehicle and note it. Refer to GI-34, "
Identification Number".
>> GO TO 2.
2.PERFORM VIN REGISTRATION
With CONSULT
1. Turn ignition switch ON and engine stopped.
2. Select “VIN REGISTRATION” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.
3. Follow the instruction of CONSULT display.
>> END
