2016 NISSAN NOTE warning

SYSTEMEC-45
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
The fuel filler cap warning lamp tunes OFF, according to any condition listed below:
• Reset operation is performed by operating the meter control switch on the combination meter. Refer to
MWI-
16, "Switch Name and Function".
- When the reset operation is performed, the combination meter transmits a fuel filler cap warning reset signal to ECM via CAN communication. ECM transmits a fuel filler cap warning display signal (request for display
OFF) to the combination meter via CAN communication. When receiving the signal, the combination meter
turns OFF the fuel filler cap warning display.
• EVAP leak diagnosis result is normal.
• Fuel refilled.
• DTC erased by using CONSULT.
NOTE:
MIL turns ON if a malfunction is detected in leak diagnosis results again at the trip after the fuel filler cap warn-
ing display turns ON/OFF.
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED CONTROL DEVI CE (ASCD) : System DiagramINFOID:0000000012431328
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System DescriptionINFOID:0000000012431329
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line
BASIC ASCD SYSTEM
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can be set the vehicle speed in the set speed range.
ECM controls throttle angle of electric thro ttle control actuator to regulate engine speed.
Operation status of ASCD is indicated in combination meter.
If any malfunction occurs in the ASCD system, it automatically deactivates the ASCD control.
JSBIA3607GB
SensorInput signal to ECM ECM functionActuator
ASCD steering switch ASCD steering switch operation
ASCD vehicle speed control Electric throttle control actuator
Brake pedal position switch
Brake pedal operation
Stop lamp switch
Clutch pedal position switch Clutch pedal operation
Transmission range switch Gear position
Park/neutral position (PNP) switch PNP signal
Combination meter Vehicle speed signal*
TCM Output shaft revolution signal*
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM (ECM)EC-57
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
PERMANENT DTC SET TIMING
The setting timing of permanent DTC is stored in ECM
with the lighting of MIL when a DTC is confirmed.
DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)INFOID:0000000012431339
When emission-related ECU detects a malfunction in the emission
control systems components and/or the powertrain control compo-
nents (which affect vehicle emissions), it turns on/blinks MIL to
inform the driver that a malfunction has been detected.
1. The MIL illuminates when ignition switch is turned ON (engine is
not running).
NOTE:
Check the MIL circuit if MIL does not illuminate. Refer to EC-
456, "Diagnosis Procedure".
2. When the engine is start ed, the MIL should go off.
NOTE:
If MIL continues to illuminate/ blink, perform self-diagnoses and
inspect/repair accordingly because an emission-rela ted ECU has detected a malfunction in the emission
control systems components and/or the powertrain cont rol components (which affect vehicle emissions).
On Board Diagnosis FunctionINFOID:0000000012431340
ON BOARD DIAGNOSIS ITEM
The on board diagnostic system has the following functions.
BULB CHECK MODE
Description
This function allows damage inspection in the MIL bulb (blown, open circuit, etc.).
Operation Procedure
1. Turn ignition switch ON.
2. The MIL on the instrument panel should stay ON.
If it remains OFF, check MIL circuit. Refer to EC-456, "
Diagnosis Procedure".
SRT STATUS MODE
Description
This function allows to read if ECM has completed the self-diagnoses of major emission control systems and
components. For SRT, refer to EC-55, "
DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) Code".
Operation Procedure
1. Turn ignition switch ON and wait 20 seconds.
2. SRT status is indicated as shown blow.
• ECM continues to illuminate MIL if all SRT codes are set.
SAT652J
Diagnostic test mode Function
Bulb check MIL can be checked.
SRT status ECM can read if SRT codes are set.
Malfunction warning If ECM detects a malfunction, it illuminates or blinks MIL to inform the driver that a malfunction
has been detected.
Self-diagnostic results DTCs or 1st trip DTCs stored in ECM can be read.
Accelerator pedal released position
learning ECM can learn the accelerator pedal released position. Refer to
EC-128, "
Description".
Throttle valve closed position learning ECM can learn the throttle valve closed position. Refer to EC-129, "
Description".
Idle air volume learning ECM can learn the idle air volume. Refer to EC-130, "
Description".
Mixture ratio self-learning value clear Mixture ratio self-learning value can be erased. Refer to EC-132, "
Description".
Revision: August 20152016 Versa Note

cardiagn.com

EC-58
< SYSTEM DESCRIPTION >[HR16DE]
DIAGNOSIS SYSTEM (ECM)
• ECM blinks MIL for about 10 seconds if all SRT codes are not set.
MALFUNCTION WARNING MODE
Description
In this function ECM turns on or blinks MIL when it detects a malfunction in the emission control system com-
ponents and/or the powertrain control components (which affe
ct vehicle emissions) to inform the driver that a
malfunction has been detected.
Operation Procedure
1. Turn ignition switch ON.
2. Check that MIL illuminates. If it remains OFF, check MIL circuit. Refer to EC-456, "
Diagnosis Procedure".
3. Start engine and let it idle. • For two trip detection logic diagnoses, ECM turns on MIL when it detects the same malfunction twice inthe two consecutive driving cycles.
• For 1st trip detection logic diagnoses, ECM turns on MIL when it detects a malfunction in one driving cycle.
• ECM blinks MIL when it detects a malfunction t hat may damage the three way catalyst (misfire).
SELF-DIAGNOSTIC RESULTS MODE
Description
This function allows to indicate DTCs or 1st trip DT Cs stored in ECM according to the number of times MIL is
blinking.
How to Set Self-diagnostic Results Mode
NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a mal-
function.
• After ignition switch is turned off, ECM is always released from the “self-diagnostic results” mode.
1. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds. • Fully depress the accelerator pedal.
• Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it depressed for approx. 10 seconds until the MIL starts blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MIL starts blinking during this period. This blinking
is displaying SRT status and is continued for another 10 seconds.
4. Fully release the accelerator pedal. ECM has entered to “Self-diagnostic results” mode.
JMBIA1515GB
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS SYSTEM (ECM)EC-59
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to completely confirm all DTCs.

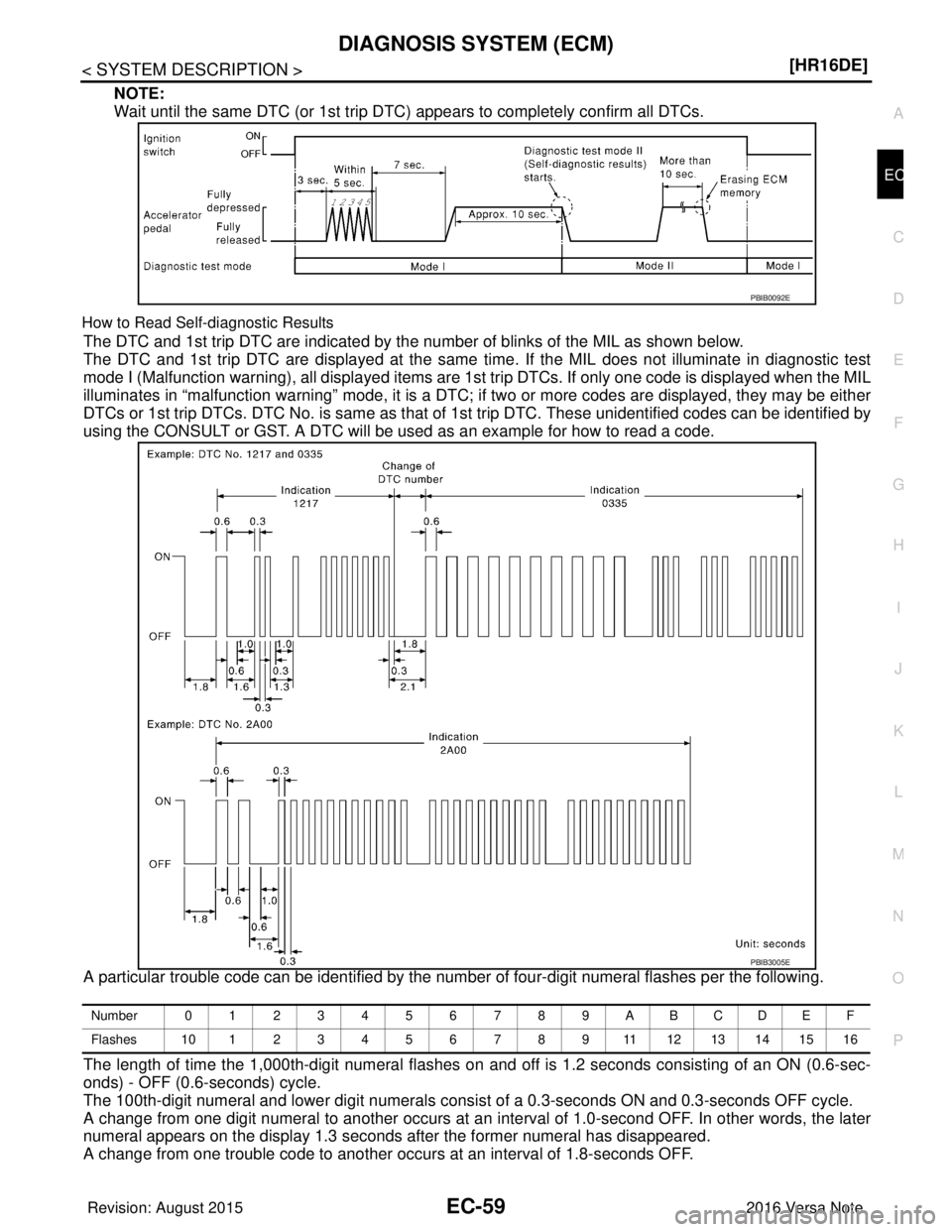

How to Read Self-diagnostic Results
The DTC and 1st trip DTC are indicated by the
number of blinks of the MIL as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MIL does not illuminate in diagnostic test
mode I (Malfunction warning), all displayed items are 1st trip DTCs. If onl y one code is displayed when the MIL
illuminates in “malfunction warning” mode, it is a DTC; if two or more codes are displayed, they may be either
DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These unidentified codes can be identified by
using the CONSULT or GST. A DTC will be used as an example for how to read a code.
A particular trouble code can be identified by the number of four-digit numeral flashes per the following.
The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds consisting of an ON (0.6-sec-
onds) - OFF (0.6-seconds) cycle.
The 100th-digit numeral and lower digit numerals consis t of a 0.3-seconds ON and 0.3-seconds OFF cycle.
A change from one digit numeral to another occurs at an inte rval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-seconds OFF.
PBIB0092E
PBIB3005E
Number 0123456789ABCDEF
Flashes 10123456789111213141516
Revision: August 2015 2016 Versa Note

cardiagn.com

ECM
EC-73
< ECU DIAGNOSIS INFORMATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
EXH/V TIM B1
• Engine: After warming up
• Selector lever position: P or N
(CVT) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
−5 ° - 5 °CA
When revving engine up to 2,000rpm
Quickly Approx. 0
° - 40 °CA
INT/V SOL(B1) • Engine: After warming up
• Selector lever position: P or N
(CVT) or Neutral (M/T)
• Air conditioner switch: OFF
•No load Idle
0% - 2%
When revving engine up to 2,000rpm
Quickly Approx. 0% - 90%
AIR COND RLY • Engine: After warming up, idle
the engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor operates.) ON
FUEL PUMP RLY • For 1 seconds after turning ignition switch: ON
• Engine running or cranking
ON
• Except above OFF
VENT CONT/V • Ignition switch: ON OFF
THRTL RELAY • Ignition switch: ON ON
COOLING FAN • Engine: After warning up, idle the
engine
• Air conditioner switch: OFF Engine coolant temperature is 98
°C
(208 °F) or less OFF
Engine coolant temperature is between
98 °C (208 °F) and 99° C (210°F) LOW
Engine coolant temperature is 100 °C
(212 °F) or more HIGH
HO2S2 HTR (B1) • Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load ON
ALT DUTY SIG • Power generation voltage variable control: Operating
ON
• Power generation voltage variable control: Not operating OFF
I/P PULLY SPD • Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as
the tachometer indication
VEHICLE SPEED • Turn drive wheels and compare CONSULT value with the speedometer indi-
cation. Almost the same speed as
speedometer indication
IDL A/V LEARN • En gine: running Idle air volume learning has not been per-
formed yet.
YET
Idle air volume learning has already been
performed successfully. CMPLT
TRVL AFTER MIL • Ignition switch: ON Vehicle has traveled after MIL has turned
ON.0 - 65,535 km
(0 - 40,723 miles)
ENG OIL TEMP • Engine: After warming up More than 70°C (158F)
A/F S1 H TR
(B1) •

Engine: After warming up, idle the engine
(More than 140 seconds after starting engine) 4 - 100%
VHCL SPEED SE • Turn drive wheels and compare CONSULT value with the speedometer indi-
cation. Almost the same speed as
speedometer indication
SET VHCL SPD • Engine: Running ASCD: OperatingThe preset vehicle speed is
displayed
MAIN SW • Ignition switch: ON MAIN switch: Pressed
ON
MAIN switch: Released OFF
CANCEL SW • Ignition switch: ON CANCEL switch: Pressed
ON
CANCEL switch: Released OFF
Monitor Item
Condition Values/Status
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-84
< ECU DIAGNOSIS INFORMATION >[HR16DE]
ECM
P0014 Exhaust valve timing control The signal is not energized to the exhaust valve timing control solenoid valve and the valve
control does not function.
P0101
P0102
P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118 Engine coolant temperature
sensor circuit Engine coolant temperature will be determined by ECM based on the following conditions.
CONSULT displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT display)
Just as ignition switch is turned ON or START 40°C (104 °F)
Approx. 4 minutes or more after engine starting 80°C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
• When the fail safe system for engine coolant temperature sensor is activated, the cool- ing fan operates while engine is running.
• ECM operates active grille shutter to fully-open position.
P0116
P0125 Engine coolant temperature
sensor ECM operates active grille shutter to fully-open position.
P0122
P0123
P0222
P0223
P2135 Throttle position sensor ECM controls the electric throttle control actuator in regulating the throttle opening in order
for the idle position to be within +10 degrees.
ECM regulates the opening speed of the throttle valve to be slower than the normal con-
dition.
So, the acceleration will be poor.
P0196
P0197
P0198 Engine oil temperature sensor • Exhaust valve timing control does not function.
• ECM operates active grille shutter to fully-open position.
P0500 Vehicle speed sensor • The cooling fan operates (Highest) while engine is running.
• ECM operates active grille shutter to fully-open position.
P0524 Engine oil pressure • ECM illuminates oil pressure warning lamp on the combination meter.
• Engine speed will not rise more than 4,000 rpm due to the fuel cut.
• Fail-safe is canceled when ignition switch OFF → ON.
P059F Active grille shutter • When a voltage and temperature related malfunction is detected, the active grille shutter
stops at the position of detection.
• Except for the above case, operates the active grille shutter to fully opened position.
P0603
P0607 ECM
Engine torque may be limited.
P0604
ECM • ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (Approx. 5 decrees) by the return spring.
• The position of the following commponents is fixed.
- Intake valve timing control solenoid valve
- Exhaust valve timing control solenoid valve
• ASCD operation may be deactivated.
P0605
P0606
P060B
ECM NOTE:
Fail-safe may not occur depending on malfunction type.
• ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (Approx. 5 decrees) by the return spring.
• The position of the following commponents is fixed.
- Intake valve timing control solenoid valve
- Exhaust valve timing control solenoid valve
• ASCD operation may be deactivated.
DTC No. Detected items
Engine operating condition in fail safe mode
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-168
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0011 IVT CONTROL
CAUTION:
Always drive at a safe speed.
2. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?
YES >> Go to EC-168, "Diagnosis Procedure"
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012431385
1.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi- nated.
Is oil pressure warning lamp illuminated?
YES >> Go to LU-7, "Inspection".
NO >> GO TO 2.
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-169, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace intake valve timing control solenoid valve.Refer to EM-60, "
Exploded View".
3.CHECK CRANKSHAFT POSITION SENSOR
Refer to EC-280, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace crankshaft position sensor.Refer to EM-93, "
Exploded View".
4.CHECK CAMSHAFT POSITION SENSOR
Refer to EC-284, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace camshaft position sensor. Refer to EM-48, "
Exploded View".
5.CHECK CAMSHAFT (INTAKE)
Check the following.
ENG SPEED 1,200 - 3,175 rpm (A cons tant rotation is maintained.)
COOLAN TEMP/S More than 65 °C (149 °F)
Shift lever 1st or 2nd position
Driving location uphill Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
PBIA8559J
Revision: August 2015
2016 Versa Note

cardiagn.com

EC-172
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0014 EVT CONTROL
CAUTION:
Always drive at a safe speed.
3. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?
YES >> Proceed to EC-172, "Diagnosis Procedure"
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012431388
1.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi- nated.
Is oil pressure warning lamp illuminated?
YES >> Check the engine oil level. Refer to LU-7, "Inspection".
NO >> GO TO 2.
2.CHECK EXHAUST VALVE TIMING CONTROL SOLENOID VALVE
Check the exhaust valve timing control solenoid valve. Refer to EC-173, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace exhaust valve timing control solenoid valve. Refer to EM-60, "
Exploded View".
3.CHECK CRANKSHAFT POSITION SENSOR
Check the crankshaft position sensor. Refer to EC-280, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace crankshaft position sensor. Refer to EM-93, "
Exploded View".
4.CHECK EXHAUST VALVE TIMING CONTROL POSITION SENSOR
Check the exhaust valve timing control position sensor. Refer to EC-284, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace exhaust valve timing control position sensor. Refer to EM-60, "
Exploded View".
5.CHECK CAMSHAFT (EXHAUST)
Check the following.
ENG SPEED 1,700 - 2,950 rpm (A constant rotati on is maintained.)
COOLAN TEMP/S More than 70 °C (158 °F)
Selector lever 1st or 2nd position
Driving location uphill Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
PBIA8559J
Revision: August 2015
2016 Versa Note

cardiagn.com
