2016 JEEP RENEGADE Owners Manual

Fuse Removal
To replace a fuse use the extractor attached to the fuse
cover (located on the inside of the engine compartment
fuse cover.Access To The Fuses
The fuses are grouped into four controllers located in the
engine compartment, under the instrument panel and on
the inside of the left side cargo trim panel.
Fuse Extractor Location
8
IN CASE OF EMERGENCY 471

Engine Compartment Fuses/Distribution Unit
The engine compartment fuse panel is located on the left
side of the engine compartment.
Engine Compartment Fuse Cavities
Fuse Panel & Cover Location
1 — Mounting Screw
2 — Fuse Cover 472 IN CASE OF EMERGENCY

Removing Fuse Cover and Locking Screw
Proceed as follows:
•Slowly turn the screw counterclockwise.
•Slowly release the screw.
•Remove the fuse cover by sliding it upward.
Mounting Fuse Cover and Locking Screw
Proceed as follows:
•Properly secure the fuse cover to the box, slide com-
pletely from top to bottom.
•Fully depress the screw, using the special screwdriver
supplied.
•Slowly turn the screw clockwise.
•Release the screw.
Battery Fuse Cover Location
1 — Fuse Cover Tabs
2 — Fuse Cover8
IN CASE OF EMERGENCY 473

CavityMaxi Fuse Cartridge Fuse Micro Fuse Description
F01 70 Amp Tan – – Module Body Computer
F02 70 Amp Tan – – Module Body Computer,
Rear Distribution Units
F03 – 20 Amp Blue – Controller Power Supply Body
Computer
F04 – 30 Amp Pink – Brake Control Electronics Module
F05 70 Amp Tan – – Electric Power-Assisted Steering
F06 20 Amp Yellow – – Engine Cooling fan
F07 40 Amp Orange –
1.4 Without A/C
50 Amp Red – 1.4
With A/C And All
2.4 Models– – Engine Cooling fan
F08 – 30 Amp Pink – Automatic Transmission, GSM
F09 – – 5 Amp Tan Control Module Engine
F10 – – 15 Amp Blue Horn
474 IN CASE OF EMERGENCY

CavityMaxi Fuse Cartridge Fuse Micro Fuse Description
F11 – – 10 Amp Red –
1.4 Engines
25 Amp Clear –
2.4 EnginesSupply Secondary Loads
F14 – – 7.5 Amp Brown HeaterBlow By
F14 – – 5 Amp Tan Pump PowerAfter Run
F15 40 Amp Orange – – Brake Control Module Pump
F16 – – 5 Amp Tan Engine Control Module Power,
Automatic Transmission
F17 – – 10 Amp Red –
1.4 Engines
15 Amp Blue –
2.4 EnginesSupply Primary Loads
F18 – – 20 Amp Yellow
12V Rear Cargo Outlet Ignition Powered
F19 – – 7.5 Amp Brown Air Conditioner Compressor
F20 – – 5 Amp Tan Electronic Power Four-Wheel Drive
8
IN CASE OF EMERGENCY 475

CavityMaxi Fuse Cartridge Fuse Micro Fuse Description
F21 – – 15 Amp Blue Fuel Pump
F22 – – 20 Amp Yellow Power Control Module Engine
F23 – – 30 Amp Green Heated Windshield – If Equipped
F24 – – 15 Amp Blue Electronic Unit Supply Automatic
Transmission
F30 – –
20 Amp Yellow
(Customer Installed)12V Rear Cargo Outlet Constant Bat-
tery Powered
F83 – 40 Amp Green – Air Conditioning Fan
F84 – – 30 Amp Green Power Supply All Wheel Drive
F87 – – 5 Amp Tan Shift Lever Automatic Transmission
F88 – – 7.5 Amp Brown Heated Outside Mirrors
F89 – – 30 Amp Green Heated Rear Window
F90 – – 5 Amp Tan IBS Sensor (Battery State Of Charge)
Body Computer Fuse Center
The controller is located at the left side of the steering
column at the bottom of the instrument panel.For the fuse replacement see your authorized dealer.
476 IN CASE OF EMERGENCY

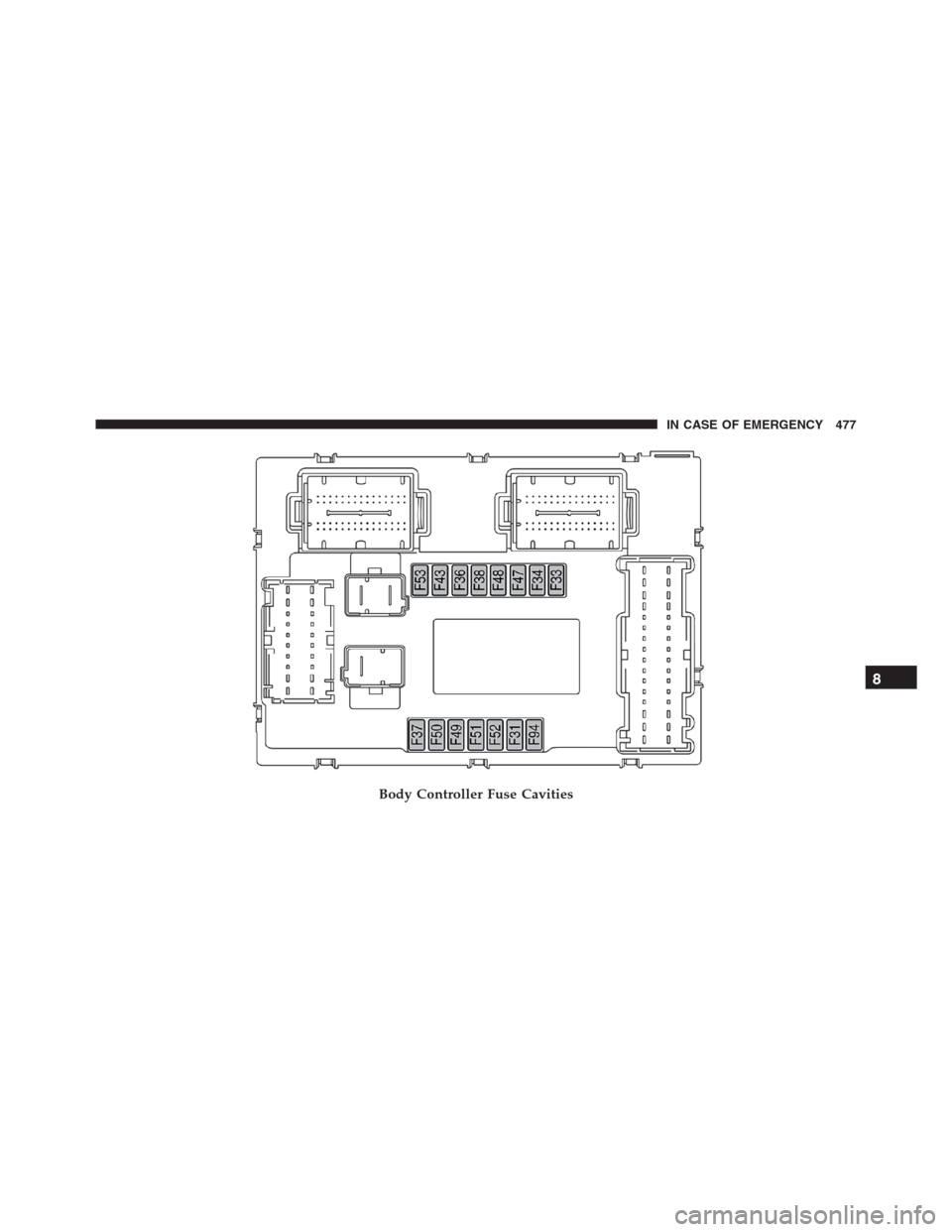

Body Controller Fuse Cavities
8
IN CASE OF EMERGENCY 477

Cavity Mini Fuse Description
F31 7.5 Amp Brown Flashes/Electrical Movement Front
Seats/Fan Air Conditioning
F33 20 Amp Yellow Power Window Front (Driver Side)
F34 20 Amp Yellow Power Window Front (Passenger Side)
F36 15 Amp Blue Supply Uconnect System, Air Condi-
tioning, Alarm, Power Folding Outside
Mirrors, USB Port
F37 10 Amp Red System Power Forward Collision Warn-
ing Plus, All Wheel Drive (AWD), IPC
F38 20 Amp Yellow Central Locking
F42 7.5 Amp Brown Power Under Lock and Key
F43 20 Amp Yellow Bi-directional Pump Washer
F47 20 Amp Yellow Power Rear Window (Driver Side)
F48 20 Amp Yellow Power Rear Window (Passenger Side)
478 IN CASE OF EMERGENCY
