2016 JEEP RENEGADE Owners Manual

5. Remove the bulb from the socket
6. Insert the new bulb in the socket.7. Reinstall the bulb and socket into the lamp assembly
by turning it clockwise, making sure it is locked into
place.
8. Reconnect the electrical connector.
9. Reinstall the lamp assembly on the car, making sure it
is locked into place.
Side Indicators on External Rear View Mirrors – (If
Equipped)
CAUTION!
The procedure is described as a guideline. For the
replacement of the lamp it is recommended that you
contact your authorized dealer.
Bulb8
IN CASE OF EMERGENCY 455

To replace the bulb proceed as follows:
1. Remove the mirror cap on the outside rear view
mirror.
Mirror Cap
Removing the mirror cap
456 IN CASE OF EMERGENCY

2. Remove the transparent lens assembly as shown. 3. Remove the bulb socket and bulb from the transparent
lens assembly by rotating the socket counterclockwise.
Transparent Lens
Transparent Lens Assembly
8
IN CASE OF EMERGENCY 457

4. Remove the bulb from the bulb socket by pulling the
bulb straight out.5. Insert the new bulb, making sure that it is locked into
place
6. Reinstall the socket in to the transparent lens assembly.
7. Reinstall the cover on the outside rear view mirror,
making sure it is locked into place.
Rear Tail Lamps
Contain the following:
•Position lights
•Stop lights
•Direction indicator
•REVERSE lights
Bulb And Socket Assembly
1 — Bulb
2 — Bulb Socket 458 IN CASE OF EMERGENCY

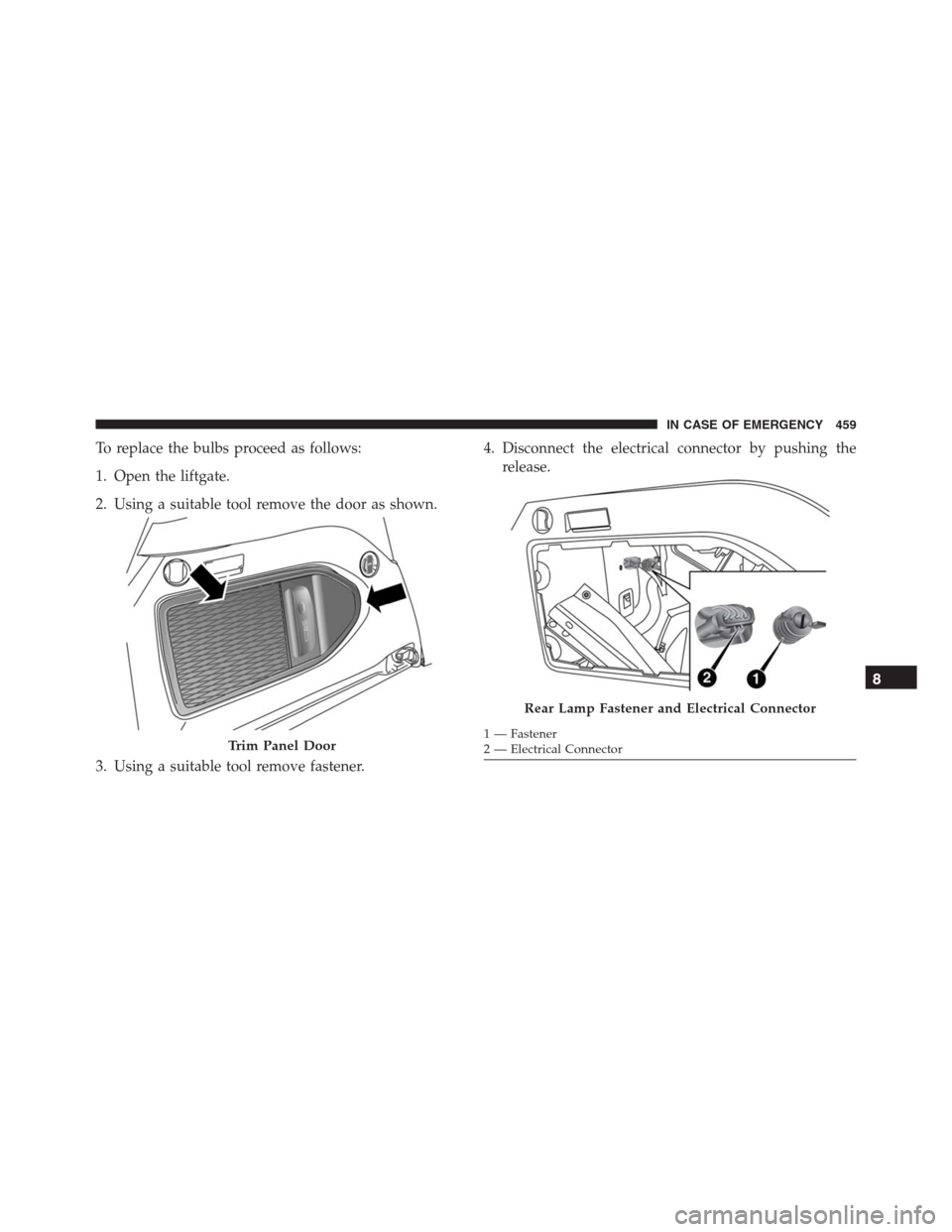

To replace the bulbs proceed as follows:
1. Open the liftgate.
2. Using a suitable tool remove the door as shown.
3. Using a suitable tool remove fastener.4. Disconnect the electrical connector by pushing the
release.
Trim Panel Door
Rear Lamp Fastener and Electrical Connector
1 — Fastener
2 — Electrical Connector
8
IN CASE OF EMERGENCY 459

5. Remove the rear tail lamp, sliding it toward the
outside as shown.6. Unscrew the screws and remove the rear tail lamp
holder.
Tail Lamp Removal
Rear Lamp Assembly
1 — Mounting Screws 460 IN CASE OF EMERGENCY

7. Replace the bulb as necessary. 8. Insert the new bulb, making sure it is properly locked;
9. Reassemble the lamp assembly on the rear tail lamp
housing, tightening the screws.
10. Reposition the rear tail lamp on the car.
11. Secure the fastener of the rear tail lamp and reconnect
the electrical connector.
12. Reinstall the door making sure of its correct locked
13. Finally close the tailgate.
3th Stop Lamp
The CHMSL is LED. For their replacement see your
authorized dealer.
Rear Tail Lamp Holder
1 — Tail Light
2 — Reverse Bulb
3 — Position Light/Stop Light/Turn Signal
8
IN CASE OF EMERGENCY 461

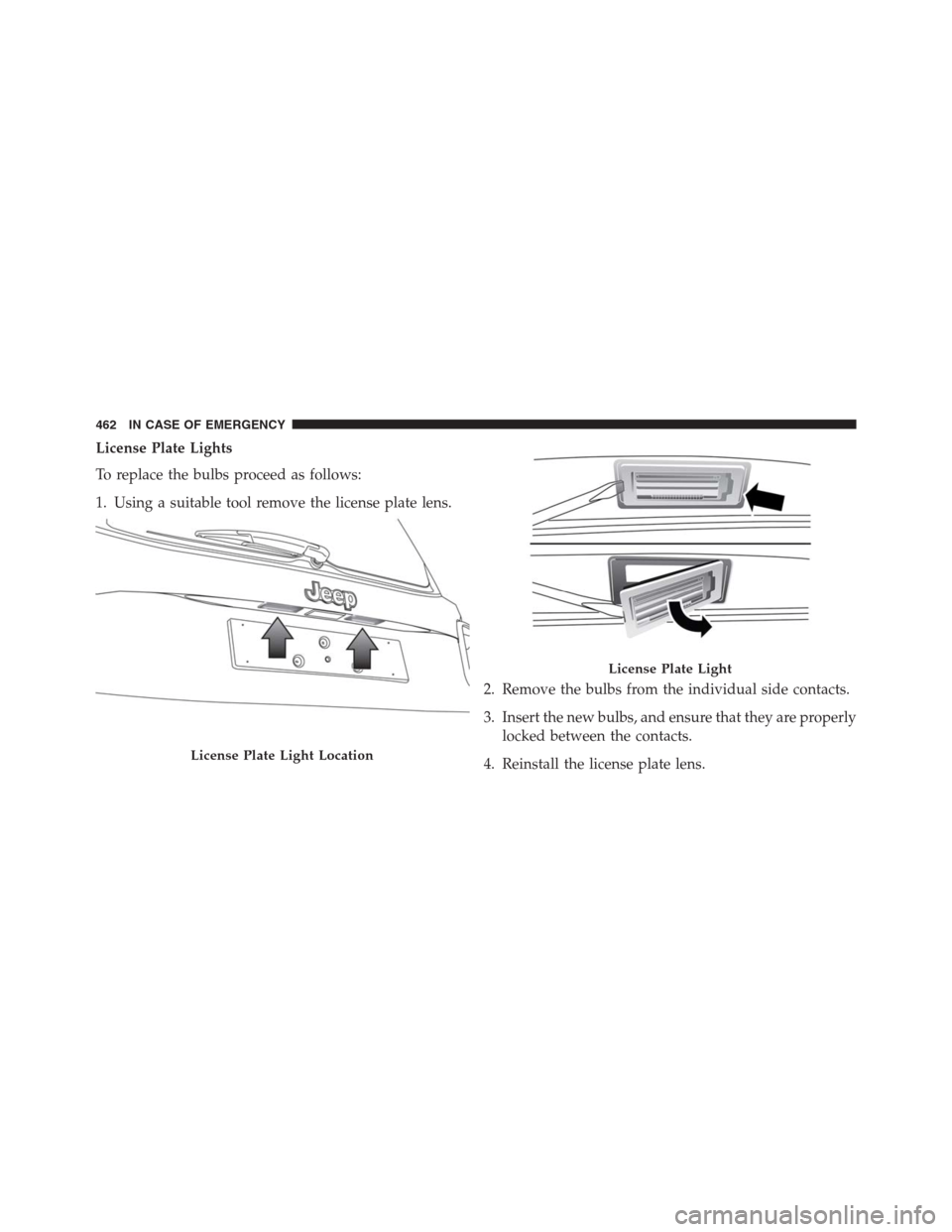

License Plate Lights
To replace the bulbs proceed as follows:
1. Using a suitable tool remove the license plate lens.
2. Remove the bulbs from the individual side contacts.
3. Insert the new bulbs, and ensure that they are properly
locked between the contacts.
4. Reinstall the license plate lens.
License Plate Light Location
License Plate Light
462 IN CASE OF EMERGENCY
