6. Place the panel(s) inside of the provided bag for
storage in the cargo area.
NOTE:An air deflector is available on the Jeep accessory
line. This deflector may be used to avoid the “tunnel
effect” inside the vehicle, if the front panel is removed.Installing Panel

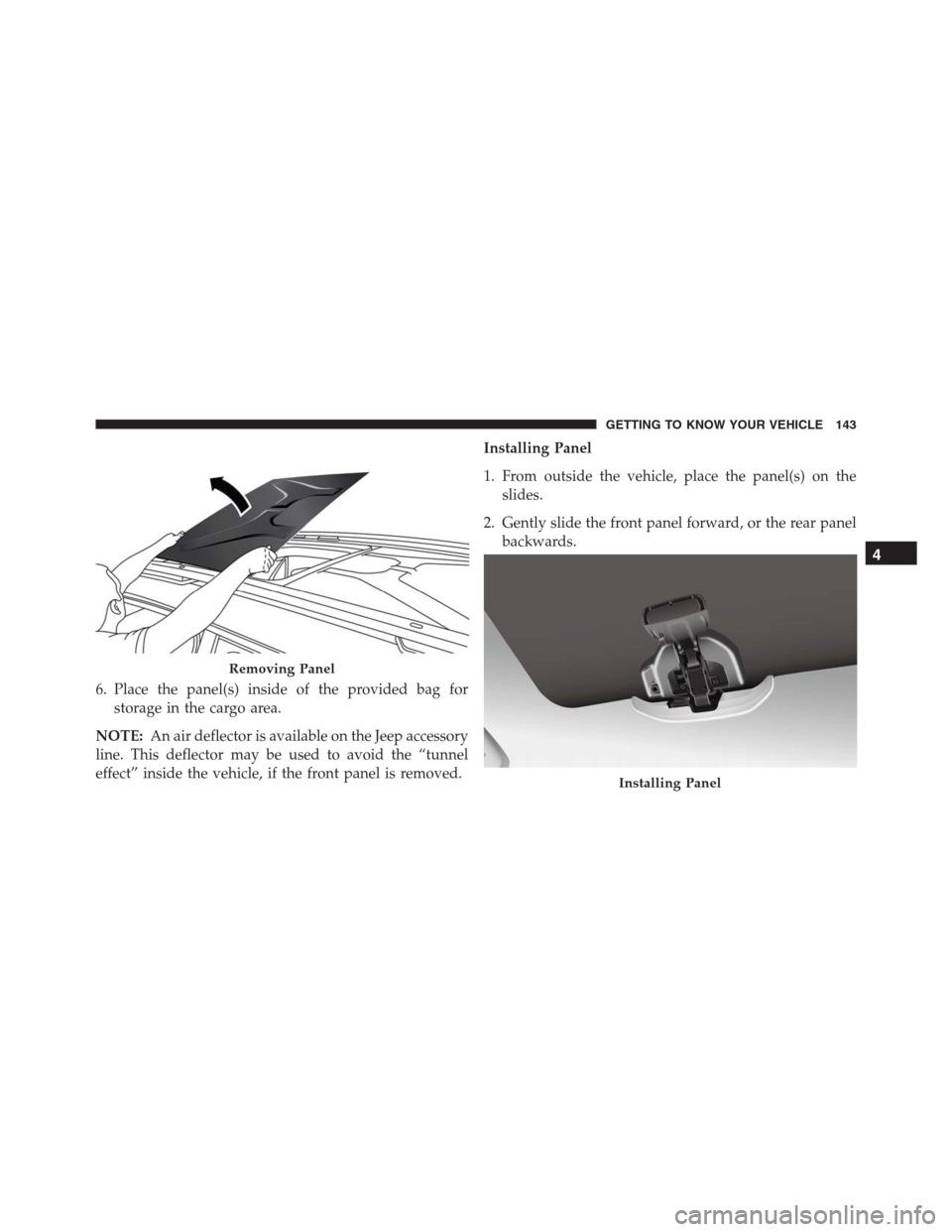

1. From outside the vehicle, place the panel(s) on the
slides.
2. Gently slide the front panel forward, or the rear panel
backwards.
Removing Panel
Installing Panel
4
GETTING TO KNOW YOUR VEHICLE 143

3. Align the colored guide tabs to ensure the panel(s)
close properly. Front panel is labeled with yellow
guide tabs. Rear panel is labeled with blue guide tabs.4. From inside the vehicle, pull the handle down and
toward the stowed position, locking it into place.
Guide Tabs
Closing Panel Handle
144 GETTING TO KNOW YOUR VEHICLE

5. Make sure that the panel has been properly refitted.
From inside the passenger compartment, push up-
ward on the panel from the bottom, in order to verify
that it is properly latched to the clamping locks.Bag For Housing Panels — If Equipped
After the panels have been removed, store the roof panels
inside of the bag located inside the storage compartment.
NOTE:It is recommended to do this procedure outside of
the car.

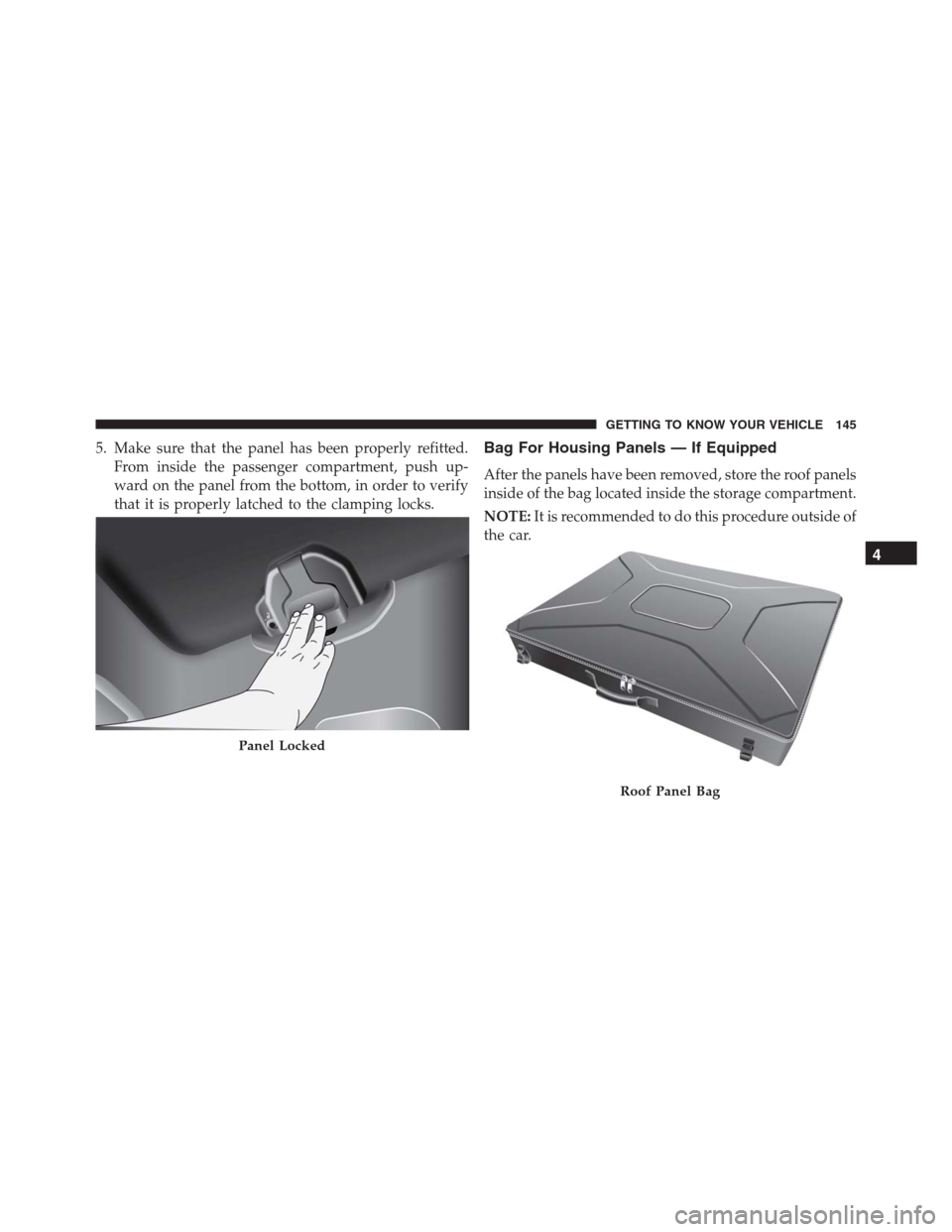

Panel Locked
Roof Panel Bag
4
GETTING TO KNOW YOUR VEHICLE 145

For proper housing, proceed as follows:
1. Open the Roof Panel Bag and lift the panel dividers
toward the outside.2. Place the first panel into the bag, fold the panel
dividers and place the second panel into the bag.
Panel Dividers
First Panel In Storage Bag
146 GETTING TO KNOW YOUR VEHICLE

3. Close the bag and place it on the inside the cargo area.
4. Open the Velcro straps provided on the bag. Anchor
them firmly at the tie-down hooks located in the cargo
area.

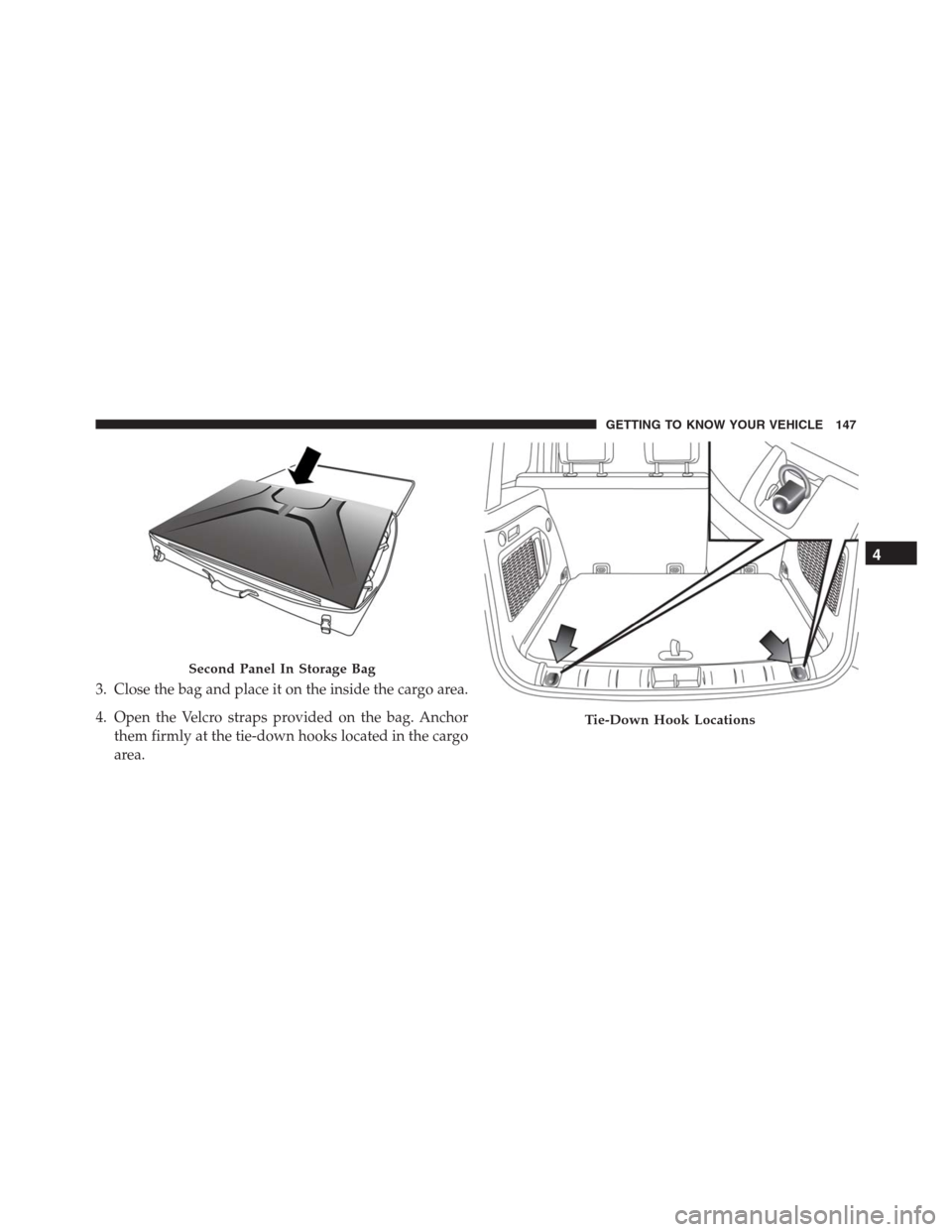

Second Panel In Storage Bag
Tie-Down Hook Locations
4
GETTING TO KNOW YOUR VEHICLE 147

NOTE:
•Do not load objects that weigh over 165 pounds (75 kg)
on top of the roof panel bag.
•The bag is washable. Refer to the documentation that
is supplied with the bag.
Emergency Open/Close
If the Power My Sky switch fails, the retractable roof can
be operated manually as follows:
1. Remove the protective cap located on the inner lining.
2. Remove the Allen Key or My Sky Key that is supplied
in the tool bag in the cargo area.
3. Insert the Allen Key or My Sky Key into the key hole
and turn it clockwise to open the roof or counter-
clockwise to close.
Tie-Down Straps
148 GETTING TO KNOW YOUR VEHICLE

CAUTION!
•When refitting panels, be careful to avoid fingers,
scarves, ties and items of clothing from getting
caught under the panels themselves.
•Do not open the roof in the presence of snow or ice.
There is risk of damage.
Emergency Key And Key Hole
1 — Key Hole
2 — Allen Key
4
GETTING TO KNOW YOUR VEHICLE 149

HOOD
Opening
Two latches must be released to open the hood.
Pull the hood release lever located under the drivers side
of the instrument panel.Move to the outside of the vehicle and push the safety
latch release lever toward the passenger side of the
vehicle. The hood release lever is located behind the
center front edge of the hood.
Hood Release Lever
Safety Latch
