2016 JEEP RENEGADE Owners Manual

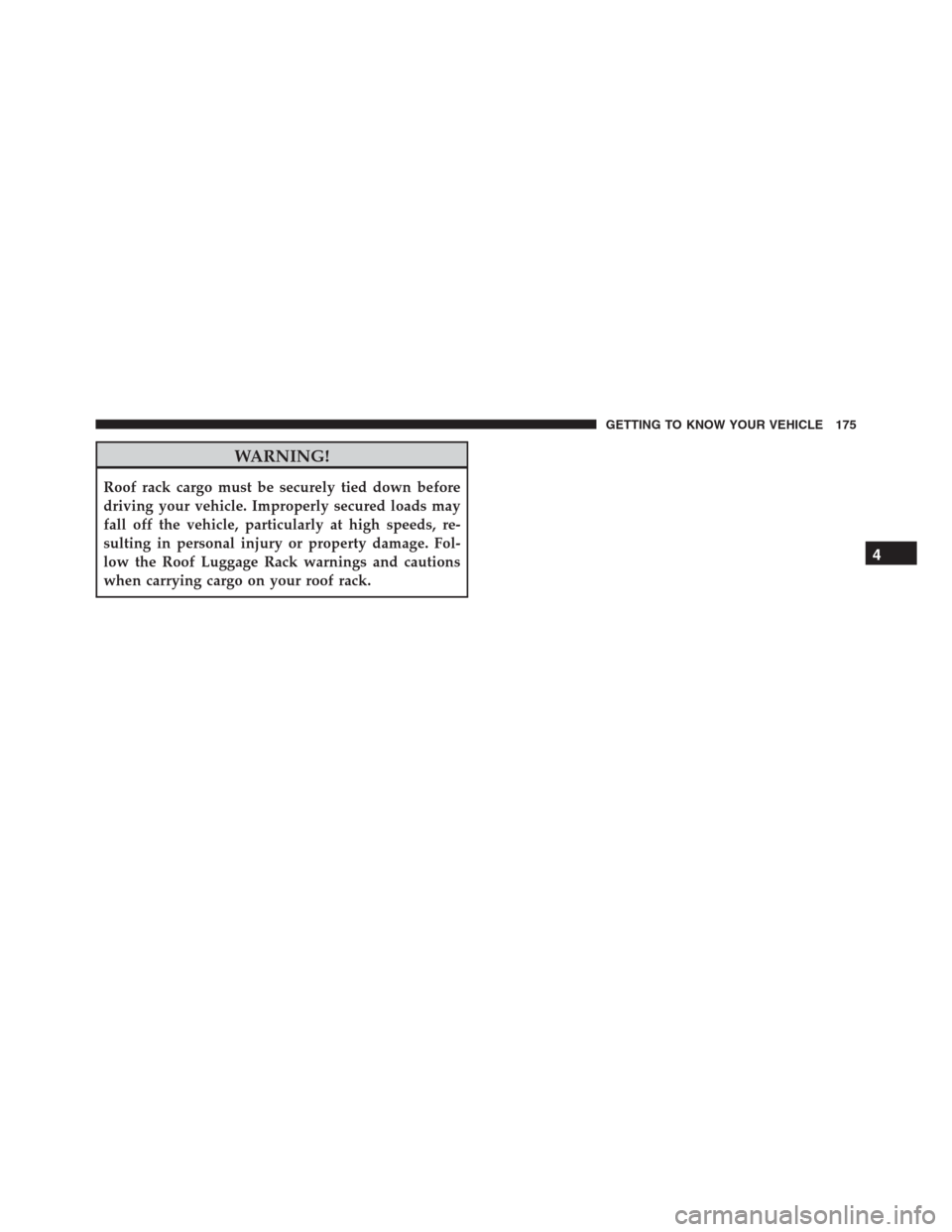

WARNING!
Roof rack cargo must be securely tied down before
driving your vehicle. Improperly secured loads may
fall off the vehicle, particularly at high speeds, re-
sulting in personal injury or property damage. Fol-
low the Roof Luggage Rack warnings and cautions
when carrying cargo on your roof rack.
4
GETTING TO KNOW YOUR VEHICLE 175

GETTING TO KNOW YOUR INSTRUMENT CLUSTER
CONTENTS
INSTRUMENT CLUSTER.................179
▫Instrument Cluster With Multi-Functional
Display (EVIC).......................179
▫Instrument Cluster With Reconfigurable
Multi-Functional Display (DID)............180
▫Speedometer (EVIC)....................181
▫Speedometer (DID)....................182
▫Odometer...........................183
▫Tachometer..........................183
▫Fuel Gauge..........................183▫Engine Coolant Temperature Gauge.........184
WARNING AND INDICATOR LIGHTS.......185
▫Red Telltale Indicator Lights..............186
▫Yellow Telltale Indicator Lights............198
▫Green Telltale Indicator Lights............211
▫Blue Telltale Indicator Light..............213
▫White Telltale Indicator Light.............214
ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .215
▫Onboard Diagnostic System (OBD II)
Cybersecurity........................215
5

ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) / DRIVER INFORMATION
DISPLAY (DID)........................216
▫EVIC/DID Description..................216
▫Mapping And Reconfigurable Zone Display
(EVIC) — If Equipped..................217
▫Mapping And Reconfigurable Zone Display
(DID) — (If Equipped)..................219▫Oil Change Reset.....................221
▫EVIC/DID Control Buttons...............222
▫EVIC/DID Main Menu.................223
TRIP COMPUTER......................234
▫Quantities Displayed...................235
▫OK Button..........................235
178 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

INSTRUMENT CLUSTER
Instrument Cluster With Multi-Functional Display (EVIC)
Electronic Vehicle Information Center (EVIC) Cluster
A — Tachometer
B — Digital Indicator Engine Coolant Temperature Warning Light
With Maximum Temperature
C — Multi-functional DisplayD — Digital Indicator Fuel Level Indicator With The Reserve (the
triangle symbol pointing toward the right indicates where the
fuel filler door is located)
E — Speedometer (speed indicator)
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 179

Instrument Cluster With Reconfigurable Multi-Functional Display (DID)
Driver Information Display (DID) Cluster
A — Tachometer
B — Digital Indicator Engine Coolant Temperature
C — Multi-functional DisplayD — Digital Indicator Fuel Level (the triangle symbol pointing
toward the right indicates where the fuel filler door is located)
E — Speedometer (speed indicator) 180 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

Speedometer (EVIC)
Indicates the speed of the vehicle in MPH or km/h.
Adjusting Instrument Panel Illumination (Light Sen-
sor)
Inside the speedometer, a light sensor detects ambient
light conditions and adjusts the brightness of the instru-
ment cluster.
Instrument Panel Light Sensor Zone
1 — Instrument Panel Light Sensor Zone
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 181

The instrument works as follows:
•Indaymode the display, the graphics, and all indexes
for the instrument cluster are fully illuminated and are
not adjustable
•Innightmode the display, the graphics, and the
indexes are adjusted accordingly. Even the light inten-
sity of the automatic dual zone climate control system
and the Uconnect system display
Speedometer (DID)
Indicates the speed of the vehicle in MPH or km/h.
Adjusting Instrument Panel Illumination (Light Sen-
sor)
Inside the speedometer, a light sensor detects ambient
light conditions and adjusts the brightness of the instru-
ment cluster.
Instrument Panel Light Sensor Zone
1 — Instrument Panel Light Sensor Zone 182 GETTING TO KNOW YOUR INSTRUMENT CLUSTER
