2016 JEEP RENEGADE Owners Manual

Cavity Mini Fuse Description
F49 7.5 Amp Brown Supply ParkSense, Spot Lights Front
Dome, Mirror, Electric Motor Retract-
able Roof, Heated Front Seats, Stabi-
lizer Battery, ESC System, ESL
F50 7.5 Amp Brown Supply Air Bag
F51 7.5 Amp Brown Alarm Power, Front Courtesy Light,
Air Conditioning Compressor, Brake
Pedal Switch (NC), Plaque Automatic
Transmission, Compass, Rear Camera,
Leveling Headlights, Air Conditioning
F53 7.5 Amp Brown Supply IPC/Starter Device/System
Keyless Enter-N-Go
F94 15 Amp Blue Power Socket
8
IN CASE OF EMERGENCY 479

Rear Cargo Fuse/Relay Distribution Unit
To access the fuses, remove the access door from the left
rear panel of the rear cargo area.
The fuses may be contained in two units. fuse holder No.
1 is located closest to the rear of the vehicle and fuse
holder No. 2 (if equipped with trailer towing) is located
closest to the front of the vehicle.
Rear Cargo Fuse Cavities
1 — Fuse Holder No. 1
2 — Fuse Holder No. 2 480 IN CASE OF EMERGENCY

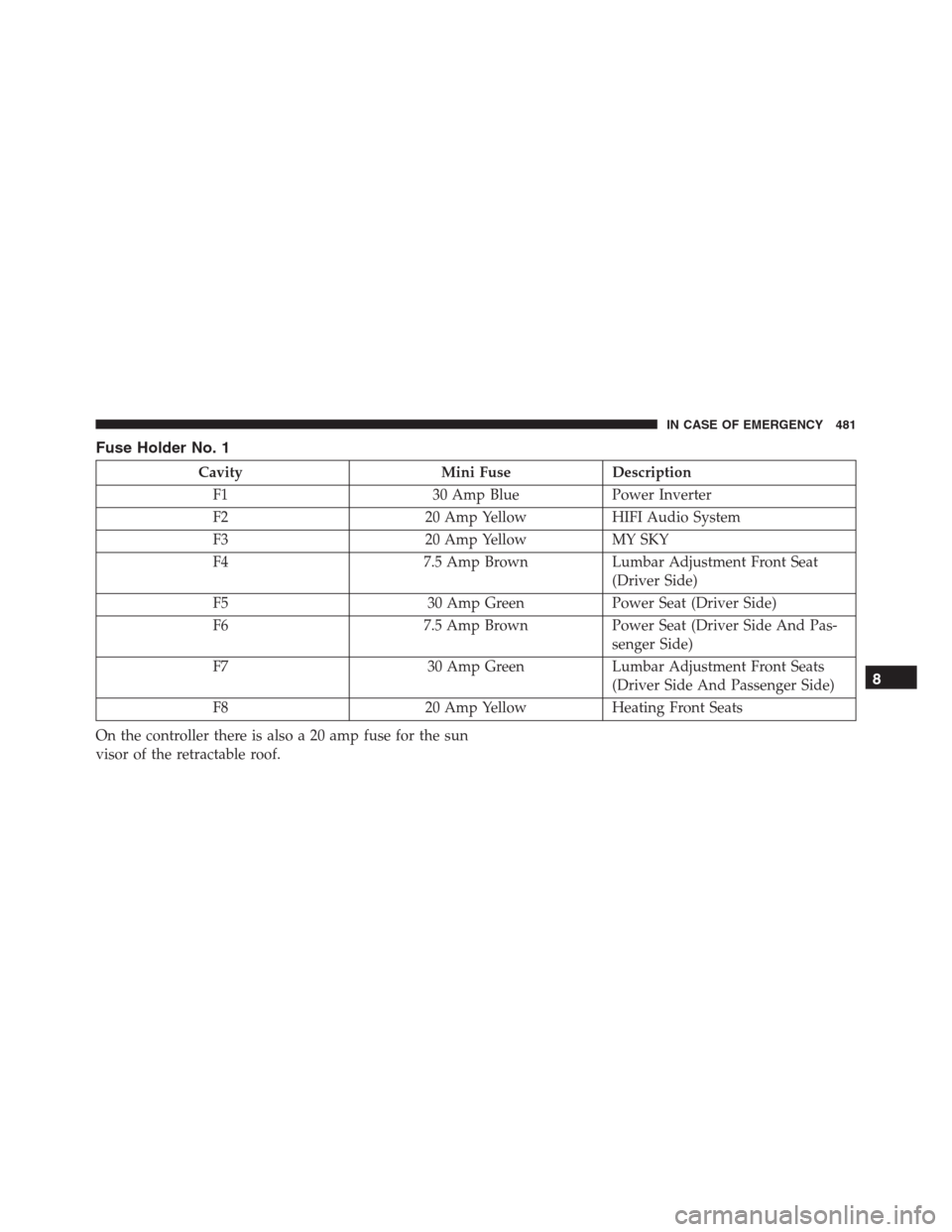

Fuse Holder No. 1
Cavity Mini Fuse Description
F1 30 Amp Blue Power Inverter
F2 20 Amp Yellow HIFI Audio System
F3 20 Amp Yellow MY SKY
F4 7.5 Amp Brown Lumbar Adjustment Front Seat
(Driver Side)
F5 30 Amp Green Power Seat (Driver Side)
F6 7.5 Amp Brown Power Seat (Driver Side And Pas-
senger Side)
F7 30 Amp Green Lumbar Adjustment Front Seats
(Driver Side And Passenger Side)
F8 20 Amp Yellow Heating Front Seats
On the controller there is also a 20 amp fuse for the sun
visor of the retractable roof.
8
IN CASE OF EMERGENCY 481

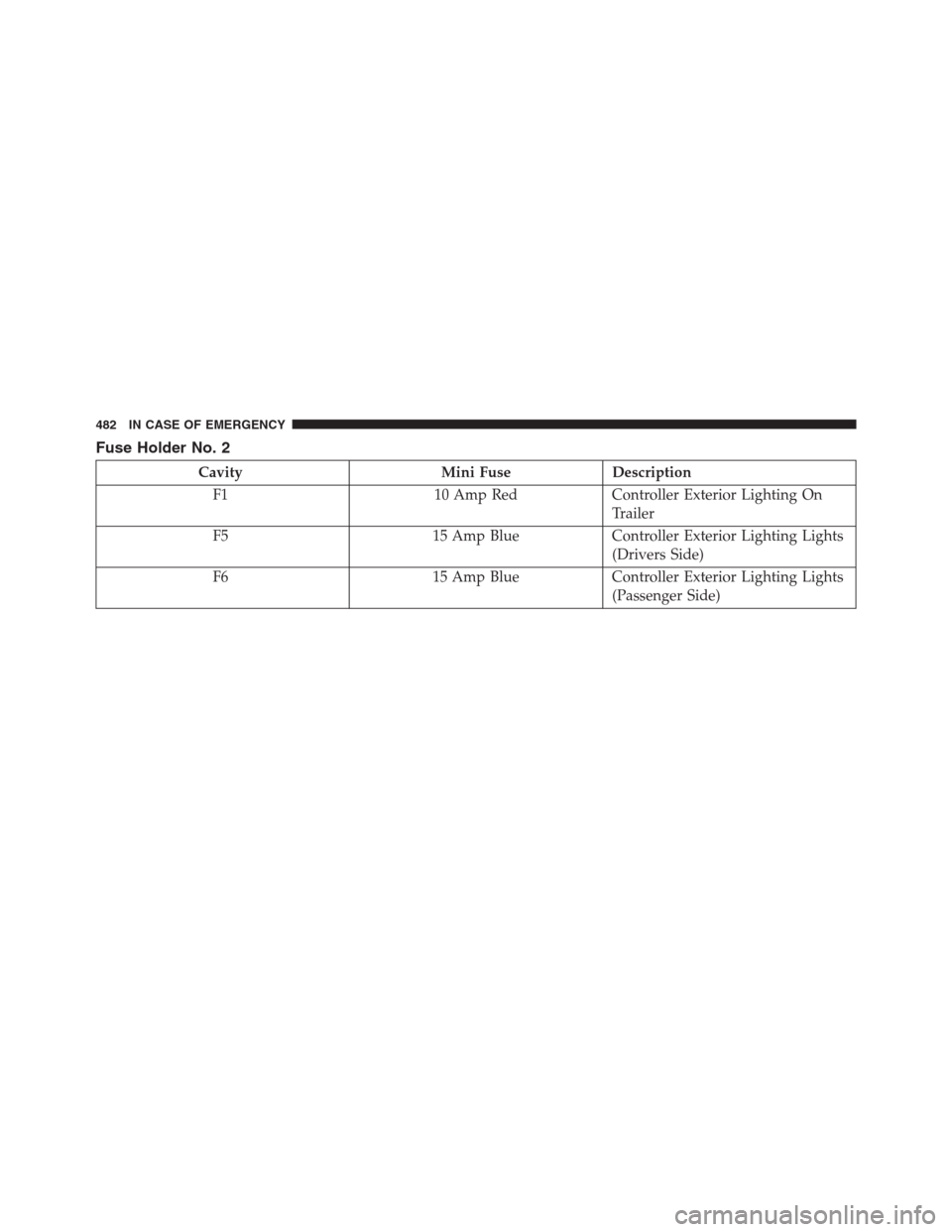

Fuse Holder No. 2
Cavity Mini Fuse Description
F1 10 Amp Red Controller Exterior Lighting On
Trailer
F5 15 Amp Blue Controller Exterior Lighting Lights
(Drivers Side)
F6 15 Amp Blue Controller Exterior Lighting Lights
(Passenger Side)
482 IN CASE OF EMERGENCY

JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
(Continued)
WARNING!(Continued)
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
•Never start or run the engine while the vehicle is
on a jack.
•The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only.
Avoid ice or slippery areas.
8
IN CASE OF EMERGENCY 483

Jack Location/Spare Tire Stowage
The jack and tools are located in the rear storage com-
partment if equipped, inside a special container.
Jack And Tools
1 — Wheel Bolt Wrench
2 — Jack
3 — Emergency Funnel
4 — Wheel Chocks
5 — Screwdriver
6 — Emergency Allen Key 484 IN CASE OF EMERGENCY

1. Open the liftgate.
2. Lift the access cover using the load floor pull strap.3. Remove the fastener securing the spare tire.
4. Remove the chocks.
5. Remove the jack and wheel bolt wrench.
6. Remove the spare tire.
WARNING!
A loose tire or jack thrown forward in a collision or
hard stop could endanger the occupants of the ve-
hicle. Always stow the jack parts and the spare tire in
the places provided. Have the deflated (flat) tire
repaired or replaced immediately.
Load Floor Pull Strap
8
IN CASE OF EMERGENCY 485

Preparations For Jacking
1. Park the vehicle on a firm level surface as far from the
edge of the roadway as possible. Avoid icy or slippery
areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid being hit when operating the jack
or changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the Electric Park Brake.
4. Place the shift lever into PARK (automatic transmis-
sion) or REVERSE (manual transmission).
5. Turn the ignition off to the STOP/OFF position.6. Chock both the front and rear of the wheel diagonally
opposite of the jacking position. For
example, if changing the right front
tire, chock the left rear wheel.
NOTE:Passengers should not remain in the vehicle
when the vehicle is being jacked.Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
•Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
(Continued)
