2016 JEEP RENEGADE interior lights

BLIND SPOT MONITORING (BSM) —
IF EQUIPPED..........................87
▫Rear Cross Path (RCP)..................93
▫Mode Of Operation.....................94
▫Blind Spot Monitoring Fault Warnings.......95
▫General Information....................96
EXTERIOR LIGHTS......................97
▫Headlights...........................97
▫Automatic Lighting — If Equipped.........98
▫Daytime Running Lights (DRL) —
If Equipped..........................98
▫Front Fog Lights — If Equipped...........99
▫Parking Lights........................99
▫Headlight Delay.......................99▫Flash-To-Pass........................100
▫High Beams.........................101
▫Turn Signals.........................101
INTERIOR LIGHTS.....................102
▫Front Lights.........................102
▫Interior Lights Dimmer Switch............107
WIPERS AND WASHERS.................108
▫Front Wiper Operation..................108
▫Rear Wiper Operation..................111
▫Windshield Wiper De-Icer — If Equipped....113
WINDOWS...........................114
▫Power Windows......................114
4
GETTING TO KNOW YOUR VEHICLE 29

EXTERIOR LIGHTS
Headlights
The headlight switch is located on the left side of the
instrument panel. The headlight switch controls the
operation of the headlights, side marker lights, daytime
running lights, fog lights and the dimming of the instru-
ment cluster and interior lighting.
Turning on the headlights will illuminate the instrument
cluster and the controls located on the instrument panel.
Headlight Switch
4
GETTING TO KNOW YOUR VEHICLE 97

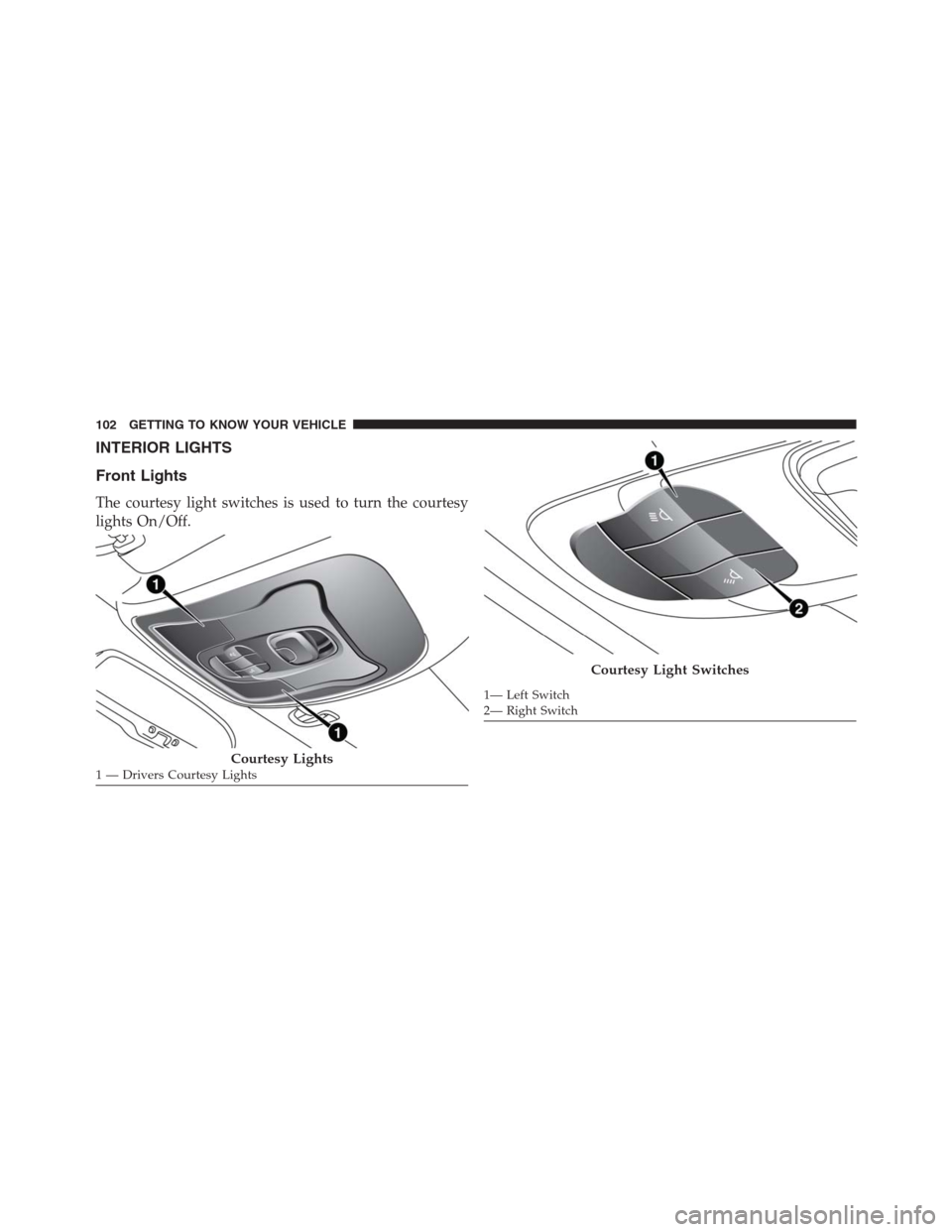

INTERIOR LIGHTS
Front Lights
The courtesy light switches is used to turn the courtesy
lights On/Off.
Courtesy Lights1 — Drivers Courtesy Lights
Courtesy Light Switches
1— Left Switch
2— Right Switch 102 GETTING TO KNOW YOUR VEHICLE

To operate the courtesy lights, push either the drivers or
passenger light switch.
NOTE:
•Before exiting the vehicle, make sure that the interior
lights are turned off. This will prevent the battery from
discharging once the doors are closed.
•If a light is left on it will automatically be turned off
after approximately 15 minutes after the ignition is in
the STOP/OFF position.Rear Lights
Push the button on the rear dome light once to turn the
light On, the light will remain On at all times. Push the
button a second time to turn the light Off, the lights will
remain Off at all times.
Rear Dome Light
4
GETTING TO KNOW YOUR VEHICLE 103

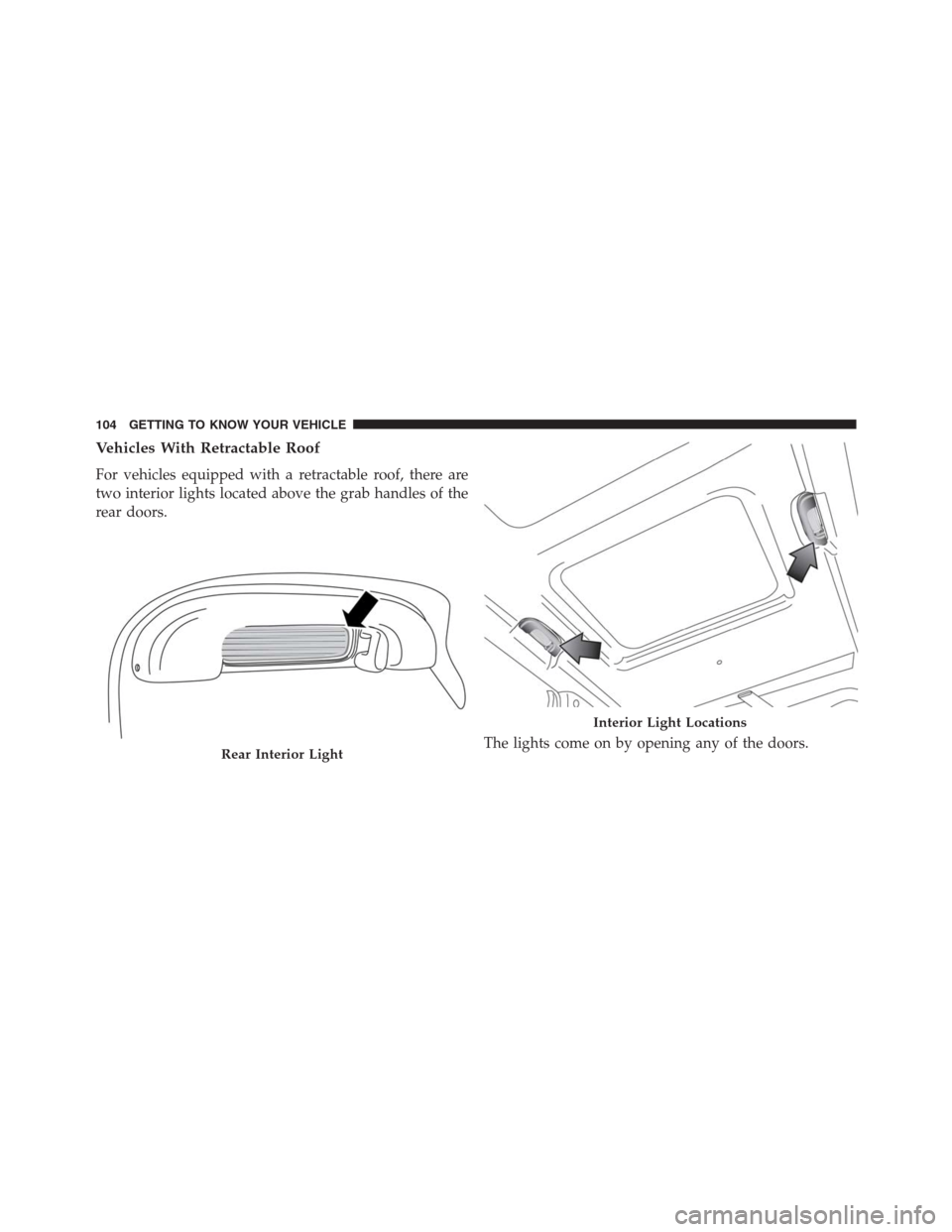

Vehicles With Retractable Roof
For vehicles equipped with a retractable roof, there are
two interior lights located above the grab handles of the
rear doors.
The lights come on by opening any of the doors.
Rear Interior Light
Interior Light Locations
104 GETTING TO KNOW YOUR VEHICLE

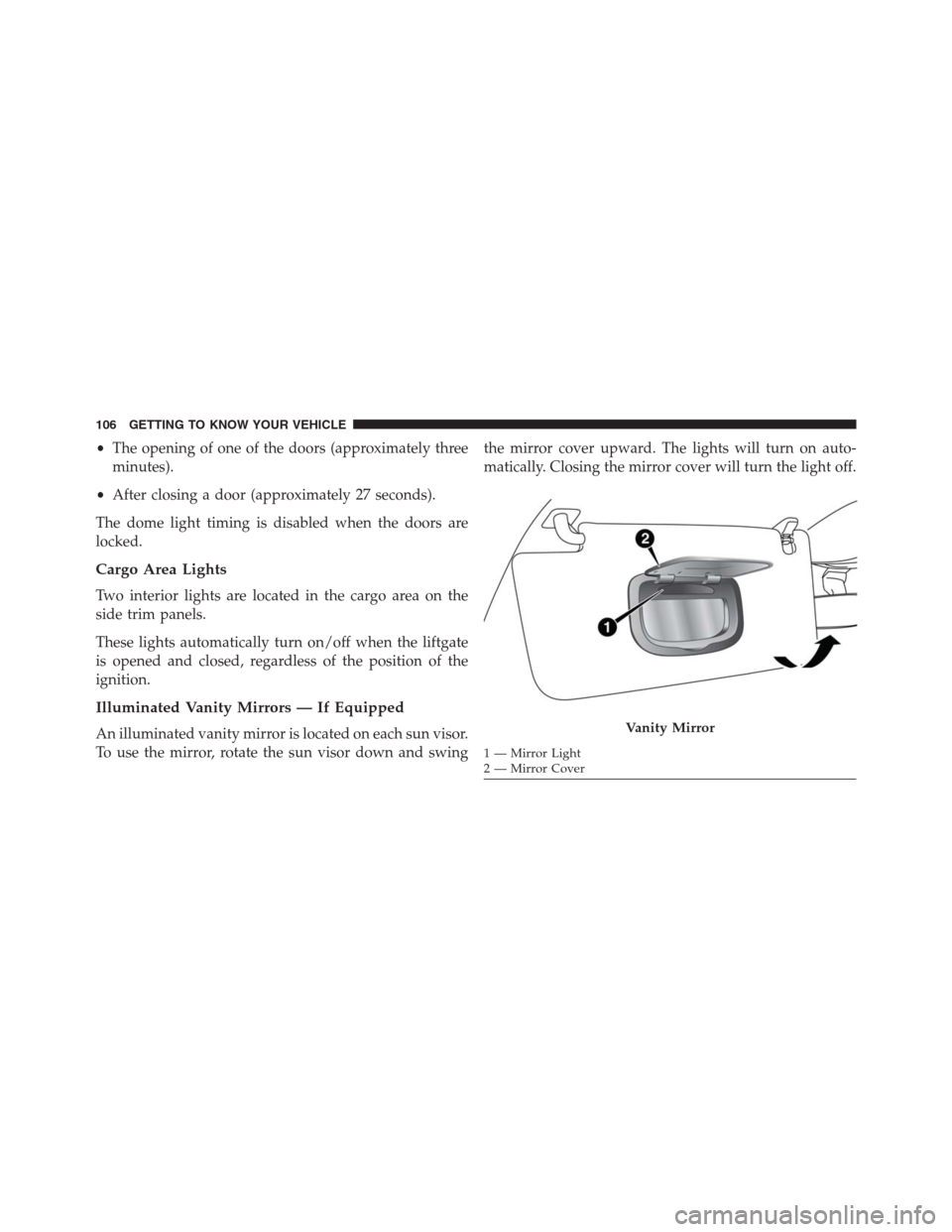

•The opening of one of the doors (approximately three
minutes).
•After closing a door (approximately 27 seconds).
The dome light timing is disabled when the doors are
locked.
Cargo Area Lights
Two interior lights are located in the cargo area on the
side trim panels.
These lights automatically turn on/off when the liftgate
is opened and closed, regardless of the position of the
ignition.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is located on each sun visor.
To use the mirror, rotate the sun visor down and swingthe mirror cover upward. The lights will turn on auto-
matically. Closing the mirror cover will turn the light off.Vanity Mirror
1 — Mirror Light
2 — Mirror Cover 106 GETTING TO KNOW YOUR VEHICLE

Interior Lights Dimmer Switch
Rotate the ambient dimmer control upward or down-
ward to increase or decrease the brightness of the ambi-
ent light located in the overhead console, door handle
lights, lower instrument panel lights, door map pocket
lights, and cubby bin lights.
With the parking lights or headlights on, rotate the
instrument panel dimmer control upward or downward
to increase or decrease the brightness of the instrument
panel. At the top detent of the instrument panel dimmer,
all the interior lights will also illuminate. At the bottom
most setting of the thumb wheel will turn all the interior
lights to their lowest dimmable setting.
Headlight Switch
1 — Ambient Light Control
2 — Instrument Panel Dimmer
4
GETTING TO KNOW YOUR VEHICLE 107

WARNING!
Deployed air bags and seat belt pretensioners cannot
protect you in another collision. Have the air bags,
seat belt pretensioners, and the seat belt retractor
assemblies replaced by an authorized dealer imme-
diately. Also, have the Occupant Restraint Controller
System serviced as well.
NOTE:
•Air bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
•After any collision, the vehicle should be taken to an
authorized dealer immediately.
Enhanced Accident Response System
In the event of an impact, if the communication network
remains intact, and the power remains intact, dependingon the nature of the event, the ORC will determine
whether to have the Enhanced Accident Response Sys-
tem perform the following functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the hazard light button is pressed. The hazard
lights can be deactivated by pressing the hazard light
button.
•Turn on the interior lights, which remain on as long as
the battery has power or for 15 minutes from the
intervention of the Enhanced Accident Response Sys-
tem.
•Unlock the power door locks.
•Turn off the Fuel Pump Heater.
•Turn off the HVAC Blower Motor.
•Close the HVAC Circulation Door.
6
SAFETY 285
