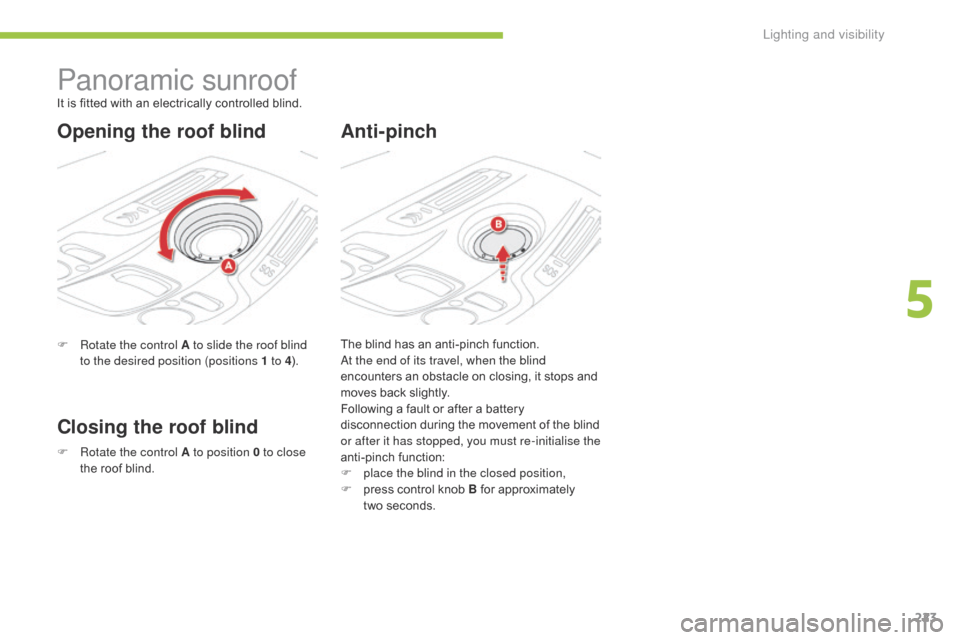

Panoramic sunroof
F Rotate the control A to slide the roof blind to the desired position (positions 1 to 4 ).
Closing the roof blindAnti-pinch
It is fitted with an electrically controlled blind.
Opening the roof blind
F Rotate the control A to position 0 to close
the   roof   blind. The
  blind   has   an   anti-pinch   function.
At the end of its travel, when the blind
encounters   an   obstacle   on   closing,   it   stops   and
m

oves   back   slightly.
Following   a   fault   or   after   a   battery
d

isconnection   during   the   movement   of   the   blind  o
r after it has stopped, you must re-initialise the
anti-pinch f unction:
F

p
lace the blind in the closed position,
F

p
ress   control   knob   B   for   approximately
t

wo seconds.
5
Lighting and visibility

224
C4-Picasso-II_en_Chap06_securite_ed01-2016
Hazard warning lamps
Visual warning with all of the direction i
ndicators   flashing   to   alert   other   road   users   to   a
v

ehicle   breakdown,   towing   or   accident.
F

P
ress this button, all of the direction
indicators
 f

lash.
They
  can   operate   with   the   ignition   off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on the   deceleration,   the   hazard   warning   lamps
c

ome   on   automatically.
They switch off automatically the first time you
accelerate.
F

Y
ou   can   also   switch   them   off   by   pressing
t

he   button.
Horn
F Press   the   central   part   of   the   steering  w
heel. This
  system   allows   you   to   make   an   emergency
o

r   assistance   call   to   the   emergency   services   or
t

o   the   dedicated   CITROËN   service.
Emergency or
a

ssistance call
For more information on the use of this
function, refer to the "Audio and telematics"
section.
Safety

225
C4-Picasso-II_en_Chap06_securite_ed01-2016
Electronic stability control (ESC) incorporating the   following   systems:
-

a
nti-lock   braking   system   (ABS)   and
e

lectronic   brake   force   distribution   (EBFD),
-

e
mergency   braking   assistance   (EBA),
-

w
heel   anti-slip   regulation   (ASR)   or   traction
c

ontrol,
-

d
ynamic   stability   control   (DSC).
Electronic stability control (ESC)
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
This system improves the stability and
manoeuvrability  of   your   vehicle   when   braking
a

nd contributes towards improved control on
corners, in particular on poor or slippery road
surfaces.
The
  ABS   prevents   wheel   lock   in   the   event   of
em

ergency
 b
raking.
The
  EBFD   manages   the   braking   pressure
w

heel   by   wheel.
Emergency braking assistance
(EBA)
In an emergency, this system enables you to reach   the   optimum   braking   pressure   more
q

uickly   and   therefore   reduce   the   stopping
di

stance.
It
  is   triggered   according   to   the   speed   at   which
t

he   brake   pedal   is   pressed.   This   is   felt   by   a
r

eduction in the resistance of the pedal and an
increase
  in   the   effectiveness   of   the   braking.
Anti-slip regulation (ASR)
The ASR system (also known as Traction Control) optimises traction in order to limit
wheel
  slip   by   acting   on   the   brakes   of   the   driving
w

heels   and   on   the   engine.   It   also   improves
t

he directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically
  acts   on   the   brake   of   one   or   more
w

heels   and   on   the   engine   to   return   the   vehicle
t

o the required path, within the limits of the laws
of
  physics.
6
Safety

226
C4-Picasso-II_en_Chap06_securite_ed01-2016
Intelligent traction control
system ("Snow motion")
When this warning lamp comes on, coupled with the STOP  and   ABS   warning
l

amps,   accompanied   by   an   audible   signal
a

nd   a   message,   it   indicates   that   there
i

s   a   fault   with   the   electronic   brake   force
di

stribution
 (
EBFD).
Anti-lock braking system (ABS) and electronic brake force
distribution (EBFD)
The fixed illumination of this warning lamp indicates that there is a fault
with
  the   ABS. Depending
  on   version,   your   vehicle   has   a  s
ystem   to   help   driving   on   snow:   intelligent
traction control.
This system detects situations of difficult
sur face
  adhesion   that   could   make   it   difficult   to
m

ove   off   or   make   progress   on   deep   fresh   snow
o

r   compacted   snow.
In these situations, the intelligent traction
control limits the amount of wheel slip to
provide
  the   best   traction   and   trajectory   control
f

or   your   vehicle.
The
  use   of   snow   tyres   is   strongly
r

ecommended   on   sur faces   offering   low   levels
o

f   adhesion.
When
  changing   wheels   (tyres   and
r

ims), ensure that these are approved
for
  your   vehicle.
Normal
  operation   of   the   ABS   may   make
i

tself   felt   by   slight   vibrations   of   the   brake
ped

al.
In emergency braking, press ver y
firmly and maintain this pressure.
You must stop as soon as it is safe to do so.
In

both

cases,   have   the   system   checked   by   a
C

ITROËN   dealer   or   a   qualified   workshop   as
s

oon

as

possible.
The

vehicle   retains   conventional   braking.   Drive
c

arefully

at   moderate   speed.
Safety

227
C4-Picasso-II_en_Chap06_securite_ed01-2016
Anti-slip regulation (ASR)
Activation
This system is activated automatically each
time  the   vehicle   is   started.
It comes into operation in the event of a
problem
  of   grip.
Deactivation
In exceptional conditions (starting a vehicle which   is   bogged   down,   stuck   in   snow,   on   soft
g

round...),   it   may   be   advisable   to   deactivate
t

he DSC and ASR, so that the wheels can turn
freely
  and   regain   grip.
This

is

indicated

by

the

flashing

of

t

his

warning

lamp

in

the

instrument

pan

el. Reactivate the systems as soon as the level of
grip
  permits.
F

I
n the Driving menu, select the " Driving
assistance " tab, then "Anti-slip
regulation ".
This indicator lamp comes on in the
instrument
 pan

el.
The
  ASR   system   will   no   longer   act
o

n   the   operation   of   the   engine   and
o

n   the   brakes   in   the   event   of   an
i

nvoluntary   change   of   trajectory.
After

an

impact,

have

the

system

checked

by

a
 C
ITROËN

dealer

or

a

qualified

workshop.
Operating fault
Reactivation
The system is reactivated automatically every
time
  the   ignition   is   switched   back   on   or   from
3

0 mph   (50   km/h).
Below
  30   mph   (50   km/h),   you   can   reactivate   it
m

anually:
F

I
n the Driving menu, select the " Driving
assistance " tab, then "Anti-slip
regulation ".
Illumination
  of   this   warning   lamp,
a

ccompanied   by   an   audible   signal
a

nd   a   message,   indicate   a   fault   with
t

he   system.
Contact a CITROËN dealer or a qualified
workshop
  to   have   the   system   checked.
6
Safety

228
C4-Picasso-II_en_Chap06_securite_ed01-2016
Seat belts
Front seat belts
The front seat belts are fitted with a
pretensioning  and   force   limiting   system.
This system improves safety in the front
seats
  in   the   event   of   a   front   or   side   impact.
D

epending   on   the   severity   of   the   impact,   the
p

retensioning   system   instantly   tightens   the   seat
b

elts   against   the   body   of   the   occupants.
The
  pretensioning   seat   belts   are   active   when
t

he   ignition   is   on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving
  their   protection.
Front seat belt anchorage height
adjustment
F To  adjust   the   height   of   the   anchorage   point,  s
queeze the control and slide it up or down
to
  the   desired   notch.
Fastening
F Pull  the   strap,   then   insert   the   tongue   in   the  buc
kle.
F

C
heck   that   the   seat   belt   is   fastened
c

orrectly   by   pulling   the   strap.
Unfastening
F Press  the   red   button   on   the   buckle.
F  G uide   the   seat   belt   as   it   reels   in.
Safety

229
C4-Picasso-II_en_Chap06_securite_ed01-2016
2nd row seat belts
The rear seats are each fitted with a seat belt,
three-point  anchorages   with   inertia   reel   and
f

orce   limiter   (except   for   the   centre   rear   seat).Guide the belt as it reels in and place the
tongue
  on   the   magnet   at   the   side   anchorage
po

int.
2nd row outer seat belts
(stowing)
6
Safety

230
C4-Picasso-II_en_Chap06_securite_ed01-2016
2nd row centre seat belt
The seat belt for the centre rear seat is built into the roof.
Fastening
F Pull  the   strap   and   insert   the   tongue   A into
the   right   hand   buckle.
F

I
nsert   tongue   B   into   the   left   hand   buckle.
F

C
heck   that   each   buckle   is   correctly
f

astened   by   pulling   on   the   belt   webbing.
Unfastening
F Press  the   red   button   in   buckle   B, then
buckle A .
F

G
uide the seat belt as it reels in and place
the
  tongue   B and then A   on   the   magnet   in
t

he   roof   anchorage   point.
Before any operation of the rear seats,
to
  avoid   damage   to   the   seat   belts
c

heck   that   there   is   no   slack   in   the   outer
b

elts   and   secure   their   tongues   on   the
a

nchorage   points.   The   centre   seat   belt
m

ust   be   fully   reeled   in.
3rd row seat belts
Fastening
F Detach  the   seat   belt   strap   from   its   retaining  l
oop   located   on   the   side   trim   of   the   boot.
F

P
ull   on   the   strap   and   insert   the   tongue   into
t

he   buckle.
F

C
heck   that   the   buckle   is   correctly   fastened
b

y   pulling   on   the   belt   strap.
Unfastening and stowing
F Press  the   red   button   in   buckle.
F  G uide   the   seat   belt   strap   as   it   reels   in.
F

S
ecure   the   strap,   flat   in   the   retaining   loop.
Ensure that the seat belts are secured
when
  not   in   use.
Safety
