2016 AUDI A6 Owners Manual

exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected immediately by your Audi dealer .
A WARNING
-Forward-facing child seats installed on the
front passenger seat may interfere with the deployment of the airbag and cause serious
personal injury to the child.
- If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat , the child's safety
and well-being require the following special
precautions to be taken:
- Always make sure that the forward -facing
seat has been designed and certified by its manufacturer for use on a front passenger
seat with a front and side airbag.
- Always carefully follow the manufacturer's instructions provided with the child seat
or infant carrier.
- Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer's instructions
require the top tether strap to be used.
- Never put the forward-facing child re­
straint up against or very near the instru­
ment panel.
- Always set the safety belt upper anchor­
age to the adjustment position that per­
mits proper installation in accordance
with the child restraint manufacturer's in­
structions.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing the
child restraint. The backrest must be ad­
justed to an upright position .
- Always make sure that nothing prevents
the front passenger's seat from being moved to the rearmost position in its fore
and aft adjustment range .
Child safety
-Never place objects on the seat (such as a
laptop, CD player, electronic games de­
vice, power inverter or seat heater for
child seats) . These may influence the elec­
trical capacitance measured by the capaci­
tive passenger detection system and can
also fly around in an accident and cause serious personal injury.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heat­
er for child seats) on the front passenger
seat if the device is connected to the 12-
volt socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passenger
seat, never install any child restraint sys­
tem on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or oth­
er liquids on the front passenger seat cushion.
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays on
all the time whenever the ignition is
switched on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immediate ­
ly install the forward-facing child seat in a
rear seating position and have the airbag
system inspected by your authorized Audi
dealer.
- Always buckle the child seat firmly in
place even if a child is not sitting in it. A
loose child seat can fly around during a
sudden stop or in a collision.
- Always read and heed all WARNINGS
whenever using a child restraint in a vehi­
cle
r=;, page 134, Safety belts, r=;, page 142,
Airbag system
and ¢ page 166, Impor­
tant informat ion .
(D Tips
Always replace child restraints that were in­
stalled in a vehicle during a crash. Damage to
a child restraint that is not visible could cause it to fail in another collision situation.
167

Child safety
Advanced front airbag system and children
Your vehicle is equipped with a front "Advanced
Airbag System" in compliance with United States Federal Motor Vehicle Safety Standard (FMVSS)
208, as well as Canada Motor Vehicle Safety
Standard (CMVSS) 208 as applicable at the time
your vehicle was manufactured.
The Advanced Airbag system in your vehicle has
been certified to meet the "low-risk" require­
ments for 3- and 6-year old children on the pas­
senger side and small adults on the driver side.
The low risk deployment criteria are intended to
reduce the risk of injury through interaction with
the airbag that can occur, for example, by being
too close to the steering wheel and instrument panel when the a irbag inflates. In addition, the
system has been certified to comply with the
"suppression " requirements of the Safety Stand­
ard, to turn off the front airbag for infants up to
12 months who are restrained on the front pas­
senger seat in child restraints that are listed in
the Standard.
Even though your vehicle is equipped with an Ad ·
vanced Airbag system, all children, especially
those 12 years and younger, should always ride in the back seat properly restrained for their age
and size. The airbag on the passenger side makes
the front seat a potentially dangerous place for a
child to ride . The front seat is not the safest place
for a child in a forward-facing child safety seat . It
can be a very dangerous place for an infant or a
larger child in a rearward-facing seat.
The vehicle's Advanced Airbag System has a ca­
pacitive passenger detection system in the front
passenger seat cushion that can detect the pres­
ence of a baby or a child in a child restraint sys ­
tem on this seat .
The capacit ive passenger detection system regis­
ters the changes that result in an electrical field
when a child, a child restraint, and a baby blanket
are on the front passenger seat. The change in
the measured capacitance due to the presence of
a child, a child restraint, and a baby blanket on
the front passenger seat is related to the child restraint system resting on the seat. The meas ­
ured capacitance of a child restraint system var-
168
ies depending on the type of system and specific
make and model.
The electrical ca pacita nee of the various types,
makes, and models of child restraints specified
by the U.S .National Highway Traffic Safety Ad­
ministration (NHTSA) in the relevant safety
standard are stored in the Advanced Airbag Sys­
tem control unit together with the capacitances
typical of infants and a 1-year old child. When a
child restraint is used on the front passenger
seat w ith a typical 1 year-old infant, the Ad­
vanced Airbag System compares the capacitance measured by the capacitive passenger detection
system with the data stored in the electronic con­
trol unit.
Child restraints and Advanced front airbag
system
Regardless of the child restraint that you use,
make sure that it has been certified to meet Safe­
ty Standards and has been certified by its manu ­
facturer for use with an airbag . Always be sure
that the child restraint is properly installed at
one of the rear seating positions. If in exception ­
al circumstances you must use it on the front
passenger seat, carefully read all of the informa­
tion on child safety and Advanced Airbags and heed all of the applicable WARNINGS. Make cer­
tain that the child and child restraint are correct­ ly recognized by the capacitive passenger detec­
tion system in the front passenger seat, that the
front passenger airbag is turned off, and that the airbag status is always correctly signaled by the
PASSENGER AIR BAG OFF light .
Many types and models of child restraints have
been available over the years, new models are in­
troduced regularly incorporating new and im­
proved designs and older models are taken out of
production. Child restraints are not standardized.
Child restraints of the same type typically have
different weights and sizes and different "foot­
prints", the size and shape of the bottom of the
child restraint that sits on the seat, when they
are installed on a vehicle seat. These differences make it virtually impossible to certify compliance
with the requirements for advanced airbags with
each and every child restraint that has ever been .,..

sold in the past or will be sold over the course of
the useful life of your vehicle.
F or this reason, the U nited States National High­
way Traffic Safety Administration has p ublished a
list of specific type, makes and models of child
restraints that must be used to certify compli­
ance of the Advanced Airbag System in your vehi­
cle with the suppression requirements of Federal
Motor Vehicle Safety Standard 208. These child
restraints are:
Subpart A - Car bed ch ild re str aint s
Model Manufactured on or
after
Ange l Guard Angel September 2S, 2007
Ride AA2403FOF
Subp art B - Re ar-f acin g child re str aint s
Model Manufactured on or
after
Century SmartFit 4543 December 1, 1999
Cosco Arriva September 25, 2007
22-013PAW and base
22-999WHO
Evenflo D iscovery Ad- December 1, 1999
just Right 212
Evenflo F irst Choice December 1, 1999
204
Graco Infant 8457 December 1, 1999
Graco 5nugride September 25, 2007
Peg Perego Primo Viag- September 25, 2007
gio SIP IMUNOOUS
Subpart C -Fo rward -facing and con vertibl e
child r est raint s
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summ it Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back Boos- September 25, 2007
ter 22-209
Ch ild safety
Model Manufactured on or
after
Evenflo Tribute V September 25, 2007
379xxxx
E venflo Meda llion 254 Decembe r 1, 1999
Evenflo Generat ions September 25, 2007
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
A WARNING
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light
comes on and stays on whenever a child re­
stra int is ins talled on the front passenger seat
and the ign it ion is swi tched on.
- Take the child restra int off the front passen­
ge r seat and install it prope rly at one of the
rear seat positions if the
PA SSENGER AIR
BAG OFF
light does not stay on .
- Have the ai rbag system inspec ted by your
author ized Audi dealer immed iate ly.
(D Tips
The child seats listed in categor ies A to C have
been statically tested by Audi only for the Ad­
vanced Airbag f unction.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially re­
duces the risk of injury in an accident!
As the dr iver, yo u are responsib le for the safety
of eve rybody in the vehicle, especia lly children:
.,. Always use the right child safety seat for each
child and always use it properly ~
page 172.
.,. Always carefully follow the chi ld safety seat
manufacturer 's instructions on how to route
the safety belt properly th rough the chi ld safe ­
ty seat.
.,. When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertib le locking retractor on the safety belt
Iii>-
169

Child safety
to prevent the child safety seat from moving
¢page 176.
~ Push the child safety seat down with your full
weight to get the safety belt really tight so that
the seat cannot move forward or sideways
more than one inch (2.5 cm) .
~ Secure unused safety belts on the rear seat
¢page 171 .
Always remember: Even though your vehicle is
equipped with an Advanced Airbag system, all
children, especially those 12 years and younger,
should always ride in the back seat properly re­
strained for their age and size.
_& WARNING
Not using a child safety seat, using the wrong
child safety seat or improperly installing a
child restraint increases the risk of serious
personal injury and death.
-All vehicle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestrained or improperly
restrained child could be injured by striking
the interior or by being ejected from the ve­
hicle during a sudden maneuver or impact.
An unrestrained or improperly restrained
child is also at greater risk of injury or death
through contact with an inflating airbag .
- Commercially available child safety seats
are required to comply with U .S. Federal
Motor Vehicle Safety Standard (FMVSS) 213
(in Canada CMVSS 213).
- When buying a child restraint, select one
that fits your child and the vehicle.
- Only use child restraint systems that fully
contact the flat portion of the seat cush­
ion. The child restraint must not tip or
lean to either side. Audi does not recom ­
mend using child safety seats that rest on
legs or tube-like frames. They do not pro­
vide adequate contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of child
safety seats and carefully follow the in­
structions provided by the manufacturer
of the seat you are using.
170
-Never allow children under 57 inches
(1.45 meters) to wear a normal safety belt.
They must always be restrained by a proper child restraint system . Otherwise, they
could sustain injuries to the abdomen and
neck areas during sudden braking maneu­
vers or accidents .
- Never let more than one child occupy a child
safety seat.
- Never let babies or older children ride in a
vehicle while sitting on the lap of another passenger.
- Holding a child in your arms is never a sub­
stitute for a child restraint system.
- The strongest person could not hold the
child with the forces that exist in an acci­
dent. The child will strike the interior of
the vehicle and can also be struck by the
passenger.
- The child and the passenger can also in­ jure each other in an accident.
- Never install rear-facing child safety seats
or infant carriers on the front passenger
seat. A child will be seriously injured and
can be killed when the passenger airbag in ­
flates -even with an Advanced Airbag Sys­
tem.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest door
,
or roof.
- Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Forward-facing child safety seats installed
on the front passenger's seat can interfere
with the airbag when it inflates and cause
serious injury to the child. Always install for­
ward-facing child safety seats on the rear
seat .
- If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety
and well-being require that the following
special precautions be taken: .._
.__ ______________ _j ...

.... N
0 CJ ' M I.Cl ......
-Make sure the forward-facing seat has
been designed and certified by its manu­
facturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier .
- Always move the front passenger seat into
the rearmost position of the passenger
seat's fore and aft adjustment range, and
as far away from the airbag as possible be­
fore installing the child restraint.
- Always make sure that nothing prevents the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
- Always make sure that the backrest is in the upright position.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heat­
er for child seats) on the front passenger
seat if the device is connected to the 12-
volt socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passenger
seat, never install any child restraint sys­
tem on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or oth­
er liquids on the front passenger seat
cushion.
- Never place objects on the seat (such as a
laptop, CD player, electronic games de­
vice, power inverter or seat heater for
child seats). These may influence the elec­
trical capacitance measured by the capaci­
tive passenger detection system and can
also fly around in an accident and cause
serious personal injury.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a collision .
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 134, Safety belts,
Child safety
¢ page 142, Airbag system and
¢ page 166, Child safety.
A WARNING
-
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light
comes on and stays on whenever a child re­
straint is installed on the front passenger seat
and the ignition is switched on .
- Take the child restraint off the front passen­ ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
authorized Audi dealer immediately.
Secure unused safety belts on the rear seat
:8
. ,. -,. i
--- CJ
Fig. 166 Sc hematic overview: keep unused safety be lts
away from ch ild ren in c hild safety seats.@· outer rear
safety belt,®· center rear safety belt*
~
If a child safety seat is used on the rear bench,
especially with LATCH universal lower anchorag­
es, the unused safety belts
must be secured so
that the child in the child restraint cannot reach
them ¢_& .
- Guide the safety belt webbings @and
@* be­
hind the head restraint of the seat where the
child restraint is installed
¢ fig. 166 . When do­
ing so, do not engage the convertible locking
retractor! You should not hear a "clicking"
sound when winding up the safety belt.
- Let the belt retractor wind up the safety belt
webbing.
171

Child safety
_& WARNING
A child in a child safety seat installed with the LA TCH lower anchorages or w ith the standard
safety belt or a child in a booster seat on the
rear seat could play with unused rear seat
safety belts and become entangled. This
could cause the child serious personal injury
and even death.
- Always sec ure unused rear seat safety belts
out of reach of ch ildren in child seats such
as by properly routing them around the
head restraint of the seat where the child
restraint is insta lled .
- Never activate the convertible locking re­
tractor when routing the safety belts around
the head restraints.
- Never let anyone sit at the cente r rear seat­
ing position if the center rear safety belt has
been routed around a rear head restraint.
Child seats
Infant seats
Babies and infants up to about one year old and
20 lbs . or 9 kg need special rearward-facing
child restraints that support the back, neck and
head in a crash.
Fig . 167 Schemat ic overv iew: r earwa rd -fa cing in fant seat,
p roperly installe d on the rea r seat
.. When using the vehicle safety be lt to install a
child safety seat, you must first activate the
convertible locking retractor on the safety be lt
to prevent the child safety seat from mov ing
q page 176 or install the seat using the LATCH
attachments .
.. Push the child safety seat down with your full
weight to get the safety belt really tight so that
172
the seat cannot move forward or sideways
more than one inch (2 .5 cm) .
.. Secure unused safety belts on the rear seat
q page 171.
Infants up to about one year (20 lbs. or 9 kg) are
b est protected in special infant carriers and child
safety seats designed for their age group. Many
experts believe that infants and small children
should ride only in special restraints in wh ich the
child faces the back of the vehicle . These infant
seats support the baby's back, neck and head in a
crash
q fig . 167.
T he airbag on the passenger side makes the front
seat a potent ially dangerous place for a child to
ride . The front seat is not the safest place for a
child in a forward-facing ch ild seat .
It is a very
dangerous p lace for an infant or a larger child in
a rearward-facing seat.
_& WARNING
Not using a child safety seat, using the wrong
chi ld safety seat or improperly installing a
chi ld restraint increases the risk of serious
personal injury and death in a crash .
- Never install rear-facing child safety seats
or infant carriers on the front passenger
seat - even w ith an Advanced A irbag System .
A child will be serious ly injured and can be
killed when the inflating airbag hits the
child safety seat or infant carrier with great
force and smashes the child safety seat and
child against the backrest, center armrest,
door or roof
q page 143, Child restraints on
the front seat -some important things to
know .
-Always install rear-facing child safety seats
or infant carriers
on the rear seat .
- Never install a rear-facing child restraint in
the forward-facing direction. Such restraints
are designed for the special needs of infants
and very small children and cannot protect
them proper ly if the seat is forward-facing.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install

.... N
0 CJ ' M I.Cl ......
the rear-facing ch ild safety seat in a rear
seating posit ion and have the airbag system
inspected by your Audi dealer.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heater
for child seats) on the front passenger seat if the dev ice is connected to the 12-volt
socket or the cigarette lighter socket .
- If a seat heater has been retrofitted or oth­
erwise added to the front passenge r seat,
never i nstall any ch ild rest raint system on
this se at.
- Make sure that there are no wet objects
(s uch as a wet towel) and no water or o ther
liquids on the front passenger seat cushion .
- Never place objects on the seat (such as a
laptop, CD player, elec tronic games dev ice,
power inverter or seat hea ter for child
seats) . These may influence the e lectr ica l
capacitance measured by the capacitive pas­
senger detection system and can also fly
around in an accident and cause serious per­
sonal injury .
- Always read and heed all WARNINGS when­
ever using a child restra ined in a veh icle is
being used
c:::> page 134, Safety belts,
¢ page 142, Airbag system and
c:> page 166, Important information .

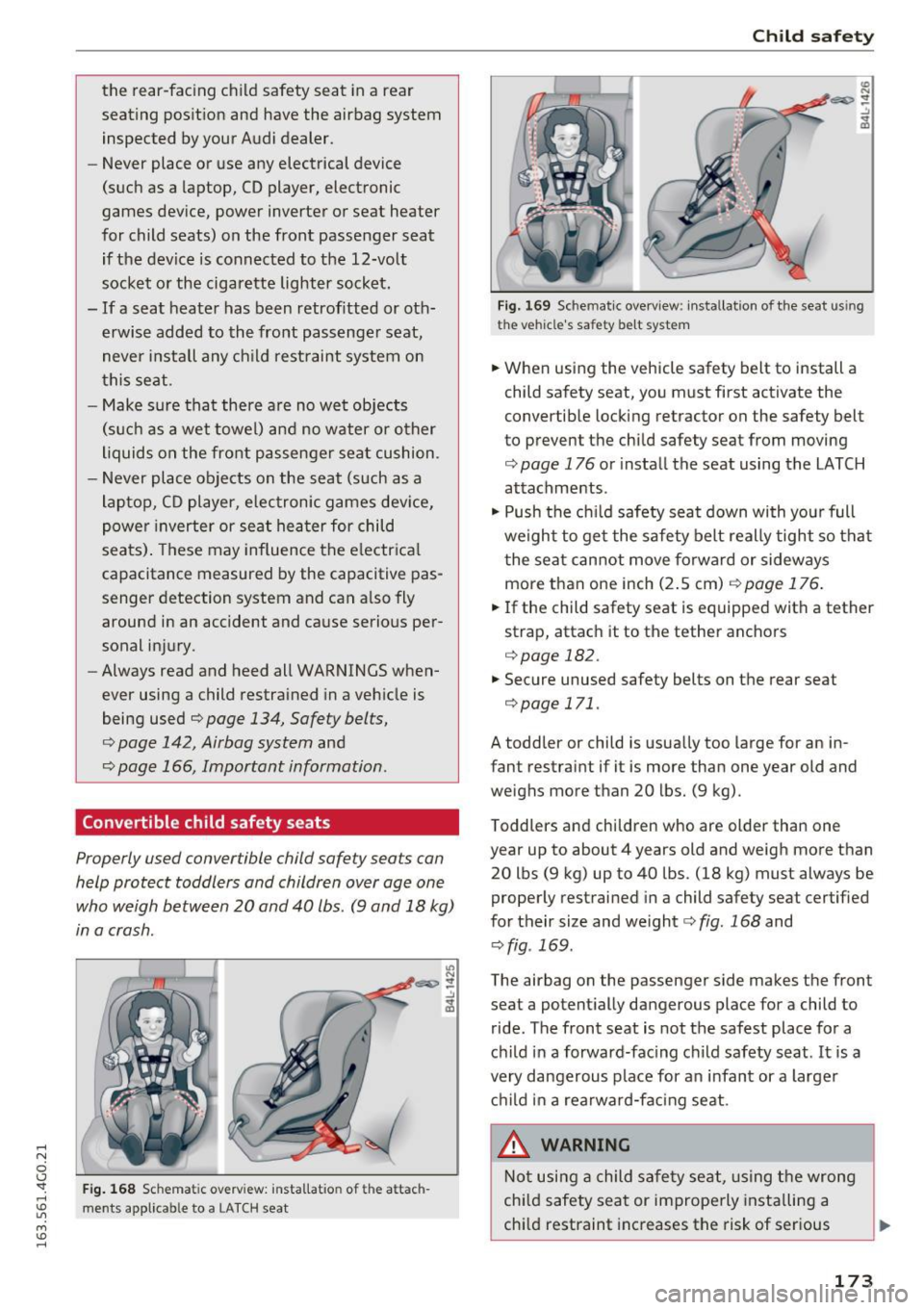

Convertible child safety seats
Properly used convertible child safe ty sea ts can
help protect toddlers and children over age one
who weigh between 20 and 40 lbs. (9 and 18 kg)
in a crash.
F ig. 16 8 Schematic overv iew: i nsta llat io n of t he a ttac h­
m ents app lica ble to a LA TCH sea t
Child sa fety
Fig. 169 Sc hemat ic overv iew : in sta llat ion of t he seat usin g
t he ve hicl e's sa fety be lt syst em
"' When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertible locking retractor on the safety belt
to prevent the child safety seat from moving
c:> page 176 or install the seat using the LATCH
attachments .
"' Push the ch ild safety sea t down with yo ur full
weight to ge t the safety belt really tight so that
t he seat can not move forward or sideways
more than one inch (2 .5 cm) ¢
page 176 .
"'If the child safety seat is equipped with a tether
strap, attach it to the tether ancho rs
c:> page 182.
"'Secure unused safety belts on the rear seat
c:> page 171.
A toddler o r child is usua lly too large for an in­
fan t restraint if it is more th an one year old and
weighs more than 20 lbs. (9 kg).
Todd lers and children who are older than one
year up to about 4 yea rs old and weigh more than
20 lbs (9 kg) up to 40 lbs. (18 kg) must always be
properly restrained in a child safety seat certified
for their size and we ight
c:::> fig . 168 and
c:> fig . 169.
The airbag on the passenger side m akes the front
seat a potent ially dangerous place for a child to
ride . T he front seat is not the safest place for a
child in a forward-fac ing ch ild safety seat. It is a
very dangerous place for an infant or a larger c hi ld in a rearward-facing seat.
_&. WARNING
No t using a child sa fe ty seat, using t he wrong
child safety sea t or improperly insta lling a
child restraint increases the risk of ser ious
~
173

Child safety
personal injury and death in a collision or oth­
er emergency situation.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates .
A child in a rearward-facing child safety seat installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center arm rest , door
or roof.
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your Audi dealer .
- The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat.
- For adjustable head restraints: adjust or re­
move the rear seat head restraint if it is dif­
ficult to install the child seat with the head
restraint in place¢
page 57. Install the
head restraint again immediately once the
child seat is removed. Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 134, Safety belts,
¢ page 142, Airbag system and
¢ page 166, Important information.
A WARNING
If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety and
174
well-being require that the following special precautions be taken:
- Make sure the forward-facing seat has been
designed and certified by its manufacturer
for use on a front seat with a passenger
front and side airbag.
- Always follow the manufacturer's instruc­ tions provided with the child safety seat or
infant carrier .
- Always move the front passenger seat into
the rearmost position of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before
installing the child restraint .
- Always make sure that nothing prevents the front passenger's seat from being moved to
the rearmost position in its fore and aft ad­
justment range .
-Always make sure the backrest is in an up­
right position .
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device , power inverter or seat heater
for child seats) on the front passenger seat
if the device is connected to the 12-volt
socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or oth­
erwise added to the front passenger seat, never install any child restraint system on
this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or other
liquids on the front passenger seat cushion.
- Never place objects on the seat (such as a
laptop, CD player, electronic games device,
power inverter or seat heater for child
seats). These may influence the electrical
capacitance measured by the capacitive pas­
senger detection system and can also fly
around in an accident and cause serious per­
sonal injury.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall the forward-facing child seat at a seat-
ing position on the rear seat and have the
~
