~ Always keep both feet in the footwell so that
you are in control of the vehicle at all times.
F or detailed information on how to adjust the
driver's seat, see
¢ page 54.
A WARNING
Drivers who are unbelted, out of position or
too close to the airbag can be seriously in­
jured by an airbag as it unfolds. To help re­
duce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breastbone
and the steering wheel.
- Always adjust the driver's seat and the
steering wheel so that there are at least
4 inches (10 cm) between the knees and the
lower part of the instrument panel.
- Always hold the steering wheel on the out­
side of the steering wheel rim with your
hands at the 9 o'clock and 3 o'clock posi­
tions to help reduce the risk of personal in ­
jury if the driver's airbag inflates.
- Never hold the steer ing wheel at the
12 o'clock posit ion or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Holding
the steering wheel the wrong way can cause
serious injuries to the hands, arms and head if the driver 's airbag inflates.
- Pointing the steering wheel toward your
face decreases the ability of the supplemen­
tal driver's airbag to protect you in a colli­ sion.
- Always sit in an upright position and never
lean against or place any part of your body
too close to the area where the airbags are
located.
- Before driving, always adjust the front seats
properly and make sure that all passengers
are properly restrained.
- For adjustable head restraints: before driv­
ing, always also adjust the head restraints
properly .
- Never adjust the seats while the vehicle is
moving. Your seat may move unexpectedly
and you could lose control of the vehicle.
-
Driving safety
-Never drive with the backrest reclined or
tilted far back! The farther the backrests are
tilted back, the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position.
- Children must always ride in child seats
¢ page 166 . Special precautions apply
when installing a child seat on the front
passenger seat¢
page 142.
Proper seating position for the front
passenger
The proper front passenger seating position is
important for safe, relaxed driving.
For your own safety and to reduce the risk of in­
jury in the event of an accident, we recommend
that you adjust the seat for the front passenger
to the fol lowing position:
~ Adjust the angle of the seatback so that it is in
an upright position and your back comes in full
contact with it whenever the vehicle is moving.
~ For adjustable head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos ­
sible, try to adjust the head restraint so that it is as close to this position as possible
¢
page 128 . Move the head restraint so that it
is as close to the back of the head as possible.
~ Keep both feet flat on the floor in front of the
front passenger seat.
~ Fasten and wear safety belts correctly
¢page 137.
For detailed information on how to adjust the
front passenger's seat, see
¢ page 53 .
A WARNING
Front seat passengers who are unbe lted, out
of position or too close to the airbag can be
seriously injured or killed by the airbag as it
unfolds . To help reduce the risk of serious
personal injury:
- Passengers must always sit in an upright po­
sition and never lean against or place any pa rt of their body too close to the area
where the airbags are located. ..,.
127

Driving safety
-Passengers who are unbelted , out of posi­
tion or too close to the airbag can be seri ­
ously injured by an airbag as it unfolds with
great force in the blink of an eye .
- Always make sure that there are at least
10 inches (25 cm) between the front pas­
senger 's breastbone and the instrument
panel.
- Always make sure that there are at least
4 inches (10 cm) between the front passen­ ger's knees and the lower part of the instru­
ment panel.
- Each passenger must always sit on a seat of
their own and properly fasten and wear the
safety belt belonging to that seat.
- Before dr iving, always adjust the front pas­
senger seat properly .
- For adjustable head restraints: before driv­
ing, always also adjust the head restraints
properly .
- Always keep your feet on the floor in front
of the seat. Never rest them on the seat, in­
strument pane l, out of the window, etc. The
airbag system and safety be lt will not be
able to protect you properly and can even in­
crease the risk of injury in a crash .
- Never dr ive with the backrest reclined or
ti lted far back! The farther the backrests are
ti lted back , the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position.
- Children must always ride in child seats
<='> page 166. Special precautions apply
when installing a child seat on the front
passenger seat
<='> page 142.
Proper seating positions for passengers in
rear seats
Rear seat passengers must sit upright with both
feet on the floor consistent with their physical
size and be properly restrained whenever the ve­
hicle is in use.
To reduce the r isk of injury caused by an incorrect
seating position in the event of a sudden braking
maneuver or an accident, you r passengers on the
rear bench seat must always observe the follow­
ing:
128
.,. For adjustab le head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos ­
sible, try to adjust the head restraint so that it
is as close to this position as possible
<='> page 128.
.,. Keep both feet flat in the footwell in front of
the rear seat .
.,. Fasten and wear safety belts properly
<='> page 137.
.,. Make sure that children are a lways properly re­
strained in a child restraint that is appropriate
for their size and age
c:::> page 166.
A WARNING
Passengers who are improperly seated on the
rear seat can be seriously injured in a crash.
- Each passenger must always sit on a seat of
their own and properly fasten and wear the safety belt belonging to that seat .
- Safety belts only offer maximum protection
when the safety belts are properly posi­
tioned on the body and securely latched . By
not sitting upright, a rear seat passenger in­
creases the risk of personal injury from im­
properly positioned safety belts!
- For adjustable head restraints: always ad­
just the head restraint properly so that it
can give maximum protection.
Proper adjustment of head restraints
Applies to vehicles: with adjustable head restraints
Correctly adjusted head restraints ore an impor ­
tant part of your vehicle's occupant restraint sys­
tem and can help to reduce the risk of injuries in
accident situations.
Fig. 144 Head restraint : viewed from t he front

The head restraints must be correctly adjusted to
achieve the best protection. .,. Adjust the head restraint so the upper edge is
as even as possible with the top of your head. If
that is not possible, try to adjust the head re­
straint so that it is as close to this position as
poss ible ¢
fig. 144. Move the head restraint so
that it is as close to the back of the head as
possible.
... If there is a passenger on the rear center seat ­
ing posit ion, slide the center head restraint up­
ward at least to the next notch.
Adjusting head restraints
c> page 56.
_& WARNING
All seats are equipped with head restraints .
Dr iving without head restraints or with head
restraints that are not properly adjusted in­
creases the risk of serious or fatal neck injury
dramatically. To help reduce the risk of injury:
- Always dr ive with the head restraints in
place and properly adjusted.
- Every person in the vehicle must have a
properly adjusted head restra int.
- Always make sure each person in the vehicle
properly adjusts their head restraint. Adjust
the head restra int so the upper edge is as
even as possible with the top of your head.
If that is not possible, try to adjust the head
restraint so that it is as close to this position
as possib le. Move the head restraint so that
it is as close to the back of the head as pos­
sible.
- Never attempt to adjust head restraint
while driving. If you have driven off and
must adjust the driver headrest for any rea­
son, first stop the vehicle safely before at­
tempting to adjust the head restra int.
- Children must always be properly restrained in a ch ild restraint that is appropriate for
their age and size
c> page 166 .
-
Driving safety
Examples of improper seating positions
The occupant restraint system can only reduce
the risk of injury if vehicle occupants are properly
seated.
Improper seating positions can cause serious in­
jury or death . Safety belts can only work when
they are properly positioned on the body . Im­
proper seat ing positions reduce the effectiveness
of safety belts and will even increase the risk of
injury and death by moving the safety belt to crit­
ical areas of the body. Improper seating positions
also increase the risk of serious injury and death
when an airbag deploys and strikes an occupant
who is not in the proper seating position. A driver
is responsible for the safety of all vehicle occu­
pants and especially for children . Therefore:
... Never allow anyone to assume an incorrect
seating position when the vehicle is being used
c> .,& .
The following bulletins list only some sample po ­
sitions that will increase the risk of serious injury
and death . Our hope is that these examples will
make you more aware of seating positions that
are dangerous .
Therefore, whenever the vehicle is moving:
-never stand up in the vehicle
- never stand on the seats
- never kneel on the seats
- never ride with the seatback recl ined
- never lie down on the rear seat
- never lean up against the instrument panel
- never sit on the edge of the seat
- never sit sideways
- never lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cushion or back
of the seat
- never ride in the footwell
- never ride in the cargo area
129

Driving sa fe ty
A WARNING
Improper seating positions increase the r isk
of serious personal injury and death whenever
a vehicle is being used.
- Always make sure that all vehicle occupants
stay in a proper seat ing position and are
properly restrained whenever the vehicle is
being used.
Driver's and front
passenger's footwell
Important safety instructions
A ppl ies to veh icles : w ith knee a ir b ags
A WARNING
Alw ays ma ke sure that the knee airbag can in­
flate without inter ference. Objects between
yourself and the airbag can increase the risk of injury in an acc ident by interfering with the
way the airbag deploys or by being pushed in­
to you as the airbag deploys.
- No persons (children) or animals shou ld ride
in the footwell in front of the passenger
seat. If the airbag dep loys, th is can result in
serious or fatal in ju ries .
- No objects of any k ind shou ld be carried in
the footwell area in front of the driver 's or
passenger's seat. Bulky objects (shopping
bags, for example) can hamper or p revent
prope r deployment of the airbag. Small ob­
jects can be th rown throug h the vehicle if
the airb ag deploys and injure you or your
passengers.
Pedal area
Pedals
The pedals must always be free to move and
must never be interfered with by a floor mat or
any other object.
Make sure that all pedals move freely without in­
terference and that noth ing prevents them from
returning to the ir origina l positions.
O nly use floor mats that leave the pedal area free
and can be secured wit h floor mat fasteners .
130
If a brake circuit fails, increased brake pedal trav ­
el is required to bring the vehicle to a fu ll stop.
A WARNING
Pedals that cannot move freely can cause loss
of vehicle contro l and increase the r isk of seri­
ous injury.
- Never p lace any objects in the drive r's foot­
well. An object could get into the pedal area
and interfere with pedal funct ion. In case of
sudden braking or an acc ident, you would
no t be able to b rake o r acce le rate!
- Always make sure that nothing can fall or
move into the driver's footwell.
Floor mats on the driver side
Always use floor mats that can be securely at­ tached to the floor mat fasteners and do not in­
terfere with the free movement of the pedals .
.,. Make sure that the floor mats are properly se­
cured and cannot move and interfere w ith the
pedals¢ .&,.
Use only floor mats that leave the peda l area un­
obstructed and that are firmly secured so that
they can not s lip out of position . You can obtai n
su itable floor mats from your author ized Audi
Dealer .
Floor mat fasteners are installed in your Aud i.
Floor mats used in yo ur vehicle must be attached
to these fasteners. Properly secur ing the floor
mats will prevent them from sliding into posi­
tions that could inte rfere with the pedals or im­
pair safe operat ion of your vehicle in other ways.
A WARNING
Pedals that ca nnot move freely can result in a
loss of vehicle contro l and increase the r is k of
serious pe rsonal injury.
- Always make sure that floo r mats are prop­
erly secured.
- Never place or install floor mats or other floor coverings in the vehicle that cannot be
properly secured in place to preven t them
from s lipping and interfer ing wi th the ped­
als or the ab ility to cont rol the vehicle.

-Never place or install floor mats or other
floor coverings on top of already installed
floor mats. Additional floor mats and other
coverings will reduce the size of the pedal
area and interfere with the pedals .
- Always properly reinstall and secure floor
mats that have been taken out for cleaning.
- Always make sure that objects cannot fall
into the driver footwell while the vehicle is
moving . Objects can become trapped under
the brake pedal and accelerator pedal caus­ ing a loss of veh icle control.
Storing cargo correctly
Loading the luggage compartment
All luggage and other objects must be properly
stowed and secured in the luggage compart­
ment.
L oose items in the luggage compartment can
shift suddenly, changing vehicle handling charac­
teristics. Loose items can also increase the risk of
serious personal injury in a sudden vehicle ma­
neuver or in a collision.
.. Distribute the load evenly in the luggage com­
partment.
.. Always place and properly secure heavy items in
the luggage compartment as far forward as
possible.
.,. Secure luggage using the tie-downs provided
¢ page 64, Luggage compartment .
.,. Make sure that the rear seatback is securely
latched in place.
A WARNING
Improperly stored luggage or other items can
fly through the vehicle causing serious per­
sonal injury in the event of hard braking or an
accident. To help reduce the risk of serious
personal injury:
- Always put objects, for example, luggage or
other heavy items in the luggage compart­
ment.
- Always secure objects in the luggage com­
partment using the tie-down hooks and
suitable straps.
Driving safety
A WARNING
Heavy loads will influence the way your vehi­
cle handles. To help reduce the risk of a loss
of control lead ing to serious personal injury:
- Always keep in mind when transporting
heavy objects, that a change in the center of
gravity can also cause changes in vehicle handling:
- Always distribute the load as evenly as
possible .
- Place heavy objects as far forward in the
luggage compartment as possible.
- Never exceed the Gross Axle Weight Rating
or the Gross Vehicle Weight Rating specified
on the safety compliance sticker on the left
door jamb. Exceeding permissible weight
standards can cause the vehicle to slide and handle differently.
- Please observe information on safe driving
¢page 125.
A WARNING
To help prevent poisonous exhaust gas from
being drawn into the vehicle, always keep the
rear lid closed while driving .
- Never transport objects larger than those
f itting completely into the luggage area be­
cause the rear lid cannot be fully closed.
- If you absolutely must drive with the rear lid open, observe the following notes to reduce
the risk of poisoning:
- Close all windows,
- Close the power roof*,
- Open all air outlets in the instrument pan-
el,
- Switch off the air recirculation,
- Set the fresh air fan to the highest speed .
A WARNING
Always make sure that the doors, all win­
dows , the power roof* and the rear lid are se­
curely closed and locked to reduce the r isk of
in jury when the vehicle is not being used.
- After closing the rear lid, always make sure
-
that it is properly closed and locked. ~
131

Driving sa fe ty

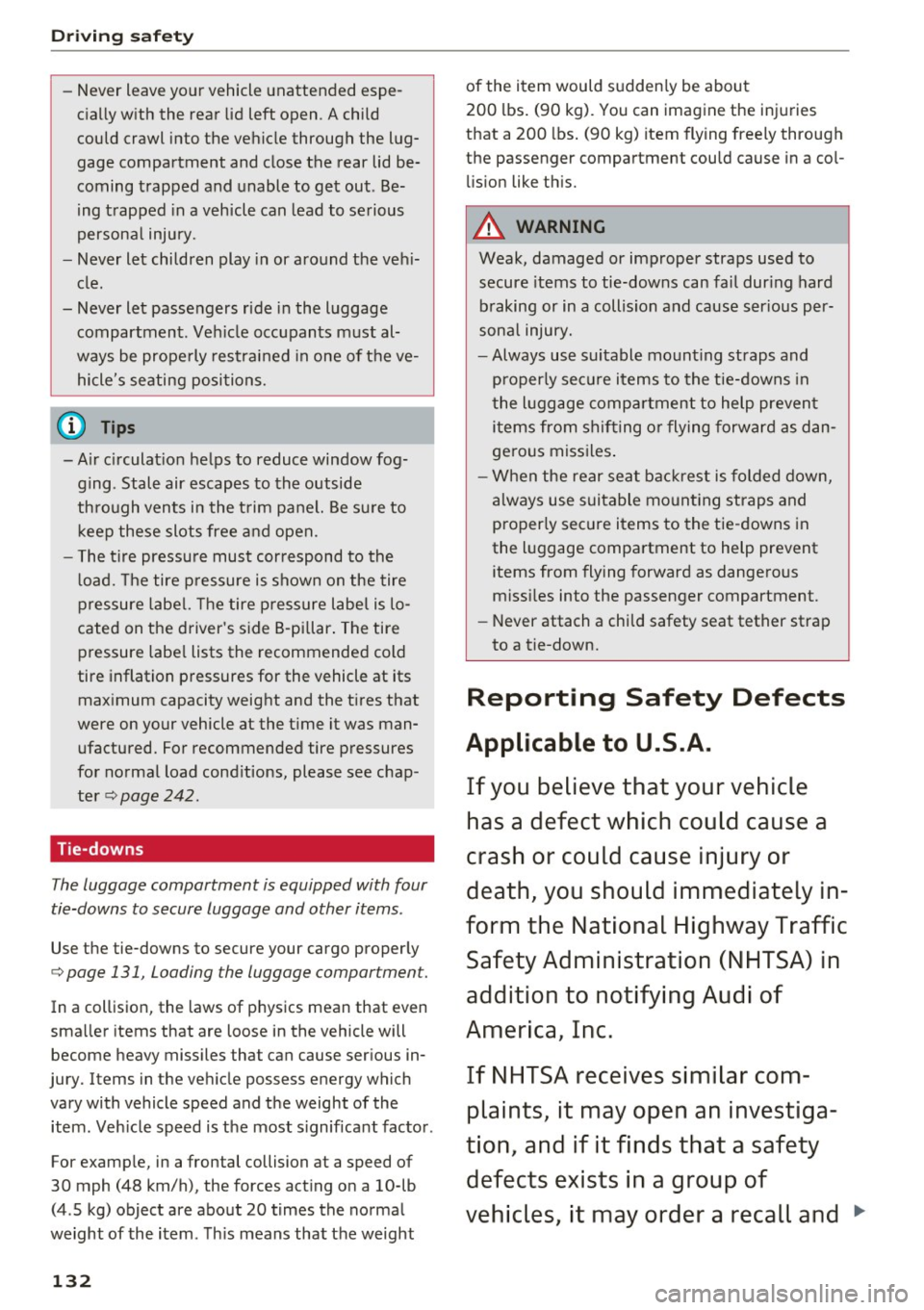

-Never lea ve yo ur vehicle unattended espe­
c ially w ith the rear lid left open. A child
could crawl into the vehicle through the lug­
gage compartment and close the rear lid be­
coming trapped and unable to get out . Be­
ing t rapped in a vehicle can lead to se rious
persona l injury.
- Never let children play in or aro und the veh i­
cle.
- Never let passe ngers ride i n the luggage
compartmen t. Veh icle occupants m ust al­
ways be prope rly restrained in one of t he ve­
hicle's seating posi tions.
- A ir c irculat ion hel ps to reduce window fog­
ging . Stale air escapes to the outside
th ro ugh vents i n the t rim panel. Be su re to
k eep these sl ots free and open.
- T he t ire pressu re mus t cor respond to the
l oad. The tire p ressure is shown on the tire
pressure l abe l. T he tire p ressure label is lo­
cated on the driver 's s ide B-pi llar . The tire
pressure labe l lists the recommended cold
tire inflation p ressures for the vehicle at its
maximum capacity weight and the t ires that
were on your vehicle at the t ime it was man­
ufactured. For recommended tire pressures
for normal load cond itions, please see chap­
ter ¢
page 242 .
Tie-downs
The luggage compartment is equipped with four
tie-downs to secure luggage and other items .
Use the tie-downs to secure your cargo properly
¢ page 131, Loading the luggage compartment .
In a collision, the laws of p hysics mean that even
sma ller items that are loose in the vehicle will
become heavy missiles that can cause ser ious in­
jury . Items in t he ve hicle possess energy wh ich
vary with vehicle speed and t he weight of the
item . Veh icle speed is the most s ignifica nt facto r.
For examp le, in a frontal collision at a speed of
30 mph (48 km/h) , the forces act ing o n a 10-lb
(4 . 5 kg) object are abo ut 20 times the normal
weight of the item . T his means that the weight
132
of the item would s udden ly be about
200 lbs . (90 kg) . You can imagine the inj uries
that a 200 lbs . (90 kg) item flying freely through
the passenger compartment could cause in a col­
li sion like th is.
A WARNING
Weak, damaged or improper straps used to
secure items to tie-downs can fail dur ing hard
b raking or in a collision and cause ser ious per­
sonal injury.
- Always use suitable mo unt ing straps and
pro perl y secure i tems to the tie-downs in
t he l uggage comp artmen t to help preven t
items from shi fting o r flying forwa rd as dan ­
ge rous miss iles .
- W hen the rear sea t bac krest is folded down,
a lways use suitable mo unti ng straps and
pro per ly secure items to the tie -downs in
the l uggage compa rtment to help prevent
items from flying forward as dangerous
m iss iles into the passenger compartment.
- Never attach a child safety seat tether strap
to a tie-down.
-
Reporting Safety Defects
Applicable to U.S.A.
If you belie ve that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immedi ately in­
form the National Highway Traffic Safet y Administration (NHTSA) in
a ddition to notifyin g Audi of
Ame rica, Inc.
If NHTSA re ceives s imilar com­
plaints, it m ay open an in vestiga­
tion , and if it finds that a safety
defe cts exist s in a group of
v e hicles, it m ay order a re call and ..,.

remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or Audi of America ,
Inc.
To contact the NHTSA , you may
either call:
Tel.: 1-888-327-4236 (TTY: 1 -800-424-9153) or
1-800-424-9393
or you may wr ite to :
NHTSA
U .S. Department of Transporta ­
tion 1 200 New Jersey Ave., S.E .
West Building
Washington, DC 20590
You can also obtain other infor ­
mation about motor vehicle safe­
ty from:
http:/ /www.safercar.gov
Applicable to Canada
I f you live in Canada and you be ­
lieve that your vehicle has a de­
fect that could cause a crash, in­
jury or death, you should immedi ­
ately inform Transport Canada ,
Defect Investigations and Recalls.
;::: You should also notify Audi Cana­
o
~ da . ...
'° V,
"' '° ...
Driving safety
Canadian customers who wish to
report a safety-related defect to
Transport Canada , Defect Investi ­
ga tions and Recalls , may either
call Transport Canada toll -free at :
Tel.: 1 -800 -333-0510 or
T el. : 1-819-994-3328 (Ottawa re­
gion and from other countries)
TTY for hearing impaired: Tel. :
1-888-675-6863
or contact Transport Canada by mai l at :
T ranspo rt Canada
Motor Vehicle Safety Investiga­
tions Laboratory
80 Noel Street
Gatineau , QC
J8 Z 0Al
For addit ional road safety infor­
mation, please vis it the Road
Safety website at :
http:/ /www.tc.gc.ca/eng/
roadsafety/menu.htm
1 33

Safety belt s
Safety belts
General information
Always wear safety belts!
Wearing safe ty belts correctly saves lives!
This chapte r explains why safety be lts a re neces­
sary, how they work and how to adjust and wear
them correct ly.
.. Read all the information that follows and heed
all of the instructions and WARNINGS.
&_ WARNING
Not wea ring safety belts or wearing them im­
properly increases the risk of ser ious personal
injury and dea th .
- Safety belts are the s ingle most effective
mea ns ava ilab le to reduce the risk of serious
injury and dea th in automob ile accidents .
For yo ur protect ion and that of your passe n­
gers, alw ays co rre ctly wea r sa fety be lt s
when the veh icle is moving .
- Pregnant wom en, in ju re d, o r physically i m­
paired persons mus t also use s afety be lts.
L ik e all vehi cle o ccu pants, they are mo re
li kely to be serio usly injure d if th ey do no t
wea r safety be lts. The best way to protect a
fetus is to protect the mothe r -th roughout
the ent ire pregnancy .
Number of seats
Your Audi has a total of five seating positions:
two in the front and three in the rear. Each seat­
i n g position has a safety belt.
&_ WARNING
N ot wea ring safety bel ts or weari ng them im­
properly increases th e r isk of ser ious personal
inju ry and dea th.
- N ever st rap more tha n one perso n, includ­
ing small ch ildren, into a ny be lt .
It is espe­
ci ally dan gerous to pla ce a sa fety bel t over a
c hild s itting on you r lap.
- N ever le t mo re people ride in t he vehicle
t h an t he re are saf ety bel ts availab le.
134
-Be sure everyone riding in the vehicle is
properly restrained with a separate safety
be lt or ch ild restraint.
~ Safety belt warning light
Your vehicle has a warning system for the driver
and front seat passenger (on USA models only)
to remind you about the importance of buckling­
up .
Fig. 14S Safety be lt wa rning lig ht in the inst rument clu s­
ter -en larged
Before driving off, alway s:
.. Fasten your sa fety belt and make sure you are
wearing it prope rly .
(0
"'
"' 9
"' .. Make sure that your passengers a lso buckle up
and proper ly wea r th eir safety belts .
.. Protec t ch ild ren w ith a c hild restraint system
app ropr iate for the size and age .
The wa rning lig ht . in the inst rument cluste r
li ghts up w hen the ig nition is o n as a rem inder to
fasten the safety belts. In addition , you w ill hear
a war ning tone for a cert ain period of time.
Fasten your safety belt and make sure that your
passengers also properly put on their safety
belts.
&_ WARNING
-
- Safety belts are the sing le most effective
means av ailable to re duc e the ris k of ser ious
in jur y and de ath in a utomo bile acciden ts.
F or your protection and that o f yo ur p assen ­
ge rs, a lways cor rect ly wear safety belts
when t he vehicle is moving .
- Fa ilure to pay atte ntion to the wa rning light
that come on, cou ld lead to personal in jury.
