2015 TOYOTA CAMRY HYBRID Owners Manual

3295-11. Using the voice command system
5
Audio system
CAMRY_HV_U (OM33A87U)

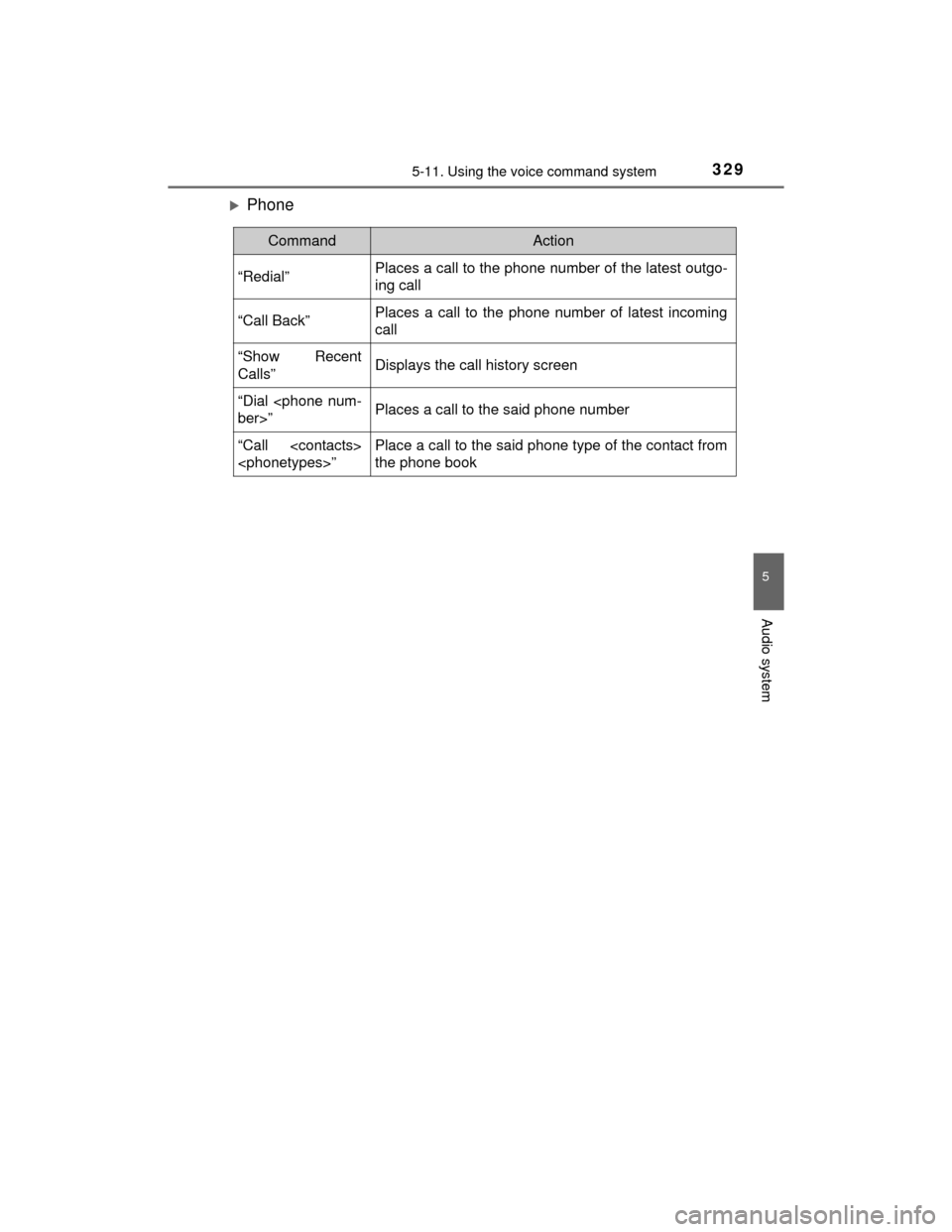

Phone
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent
Calls”Displays the call history screen
“Dial ber>”Places a call to the said phone number
“Call
”Place a call to the said phone type of the contact from
the phone book

3305-11. Using the voice command system
CAMRY_HV_U (OM33A87U)

331
6Interior features
CAMRY_HV_U (OM33A87U)6-1. Using the air
conditioning system
and defogger
Automatic air conditioning system............................. 332
Seat heaters ...................... 339
6-2. Using the interior lights
Interior lights list ................ 340
• Interior lights ................. 341
• Personal lights .............. 341 6-3. Using the storage
features
List of storage features ..... 343
• Glove box...................... 344
• Console box .................. 344
• Coin holder ................... 345
• Bottle holders ................ 345
• Cup holders .................. 346
• Auxiliary boxes.............. 347
• Open tray ...................... 352
Trunk features ................... 353
6-4. Other interior features Other interior features ....... 354
• Sun visors ..................... 354
• Vanity mirrors................ 354
• Clock ............................. 355
• Ashtray.......................... 356
• Power outlets ................ 357
• Armrest ......................... 358
• Assist grips ................... 358
• Coat hooks.................... 359
Garage door opener.......... 360
Safety Connect ................. 365
Compass ........................... 370

332
CAMRY_HV_U (OM33A87U)
6-1. Using the air conditioning system and defogger
■Adjusting the temperature setting
To adjust the temperature setting, turn clockwise to increase
the temperature and counterclockwise to decrease the tempera-
ture.
■Fan speed setting
To adjust the fan speed, press “” on to increase the fan
speed and “ ” to decrease the fan speed.
Press to turn the fan off.
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

3336-1. Using the air conditioning system and defogger
6
Interior features
CAMRY_HV_U (OM33A87U)■
Change the airflow mode
To change the airflow mode,
press .
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
Press .
The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Adjust the temperature setting.
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
■Adjusting the temperature for driver and passenger seats sep-
arately (“SYNC” mode)
To turn on the “SYNC” mode, perform any of the following proce-
dures:
● Press .
● Adjust the passenger’s side temperature setting.
The indicator comes on when the “SYNC” mode is on.
While in “SYNC” mode, the temperatur e of the rear air outlets is set at
the driver’s side temperature setting.
1
2
3
4
Using automatic mode
1
2
3

3346-1. Using the air conditioning system and defogger
CAMRY_HV_U (OM33A87U)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on)
each time is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Other functions

3356-1. Using the air conditioning system and defogger
6
Interior features
CAMRY_HV_U (OM33A87U)■
Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
*: If equipped
■
Adjusting the position of and opening and closing the air out-
lets
Direct air flow to the left or right, up or down.
Turn the knob to open or close the vent.
Air outlets
*
FrontRear (if equipped)
1
2

3366-1. Using the air conditioning system and defogger
CAMRY_HV_U (OM33A87U)
■Operation of the air conditio ning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
● Engine speed and compressor operation c ontrolled to restrict heating/cool-
ing capacity
● Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
● Adjust the fan speed
● Turn off Eco drive mode
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Windshield fog detection function
When automatic mode is set, the humidity sensor ( P. 338) detects fog on
the windshield and controls the air conditioning system to prevent fog.
■ Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to recirculated air mode. This is effective in
preventing outside air from entering the v ehicle interior. During cooling oper-
ation, setting the recirculated air m ode will also cool the vehicle interior
effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on
● In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculat ed air mode automatically. This may also
reduce fuel consumption.
● Recirculated air mode is selected as a default mode when the power switch
is turned to ON mode.
● It is possible to switch to outside air mode at any time by pressing .
