WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

982. Instrument cluster
CAMRY_HV_U (OM33A87U)
Entune Audio system or navi-
gation system
Multi-information display
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-infor-
mation display, the Entune Audio system and/or the navigation
system.
1
2

992. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)
Entune Audio system with “CAR” button
Press the “CAR” button.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Entune Audio system or navigation system with “APPS” button
Press the “APPS” button.
Touch “Eco” on the “Apps”
screen.
If the “Trip Information” or “Past
Record” screen is displayed, touch
“Energy”.
Energy monitor
1
2

1002. Instrument cluster
CAMRY_HV_U (OM33A87U)■
Multi-information display
Press the meter control
switches on the steering wheel
several times to select the
energy monitor display.
Entune Audio system or
Navigation systemMulti-information display
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by the
gasoline engine
When the vehicle is
powered by both
the gasoline engine
and the electric
motor (traction
motor)

1012. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)■
Trip information
Entune Audio system with “CAR” button
Press the “CAR” button. ( P. 9 9 )
If the “Energy Monitor” or “Past Reco rd” screen is displayed, touch “Trip
Information”.
Entune Audio system or navigation system with “APPS” button
Press “APPS”. ( P. 9 9 )
Touch “Eco” on the information screen.
If “Energy Monitor” screen is displayed, touch “ECO”.
If “Past Record” screen is displayed, touch “Trip Information”.

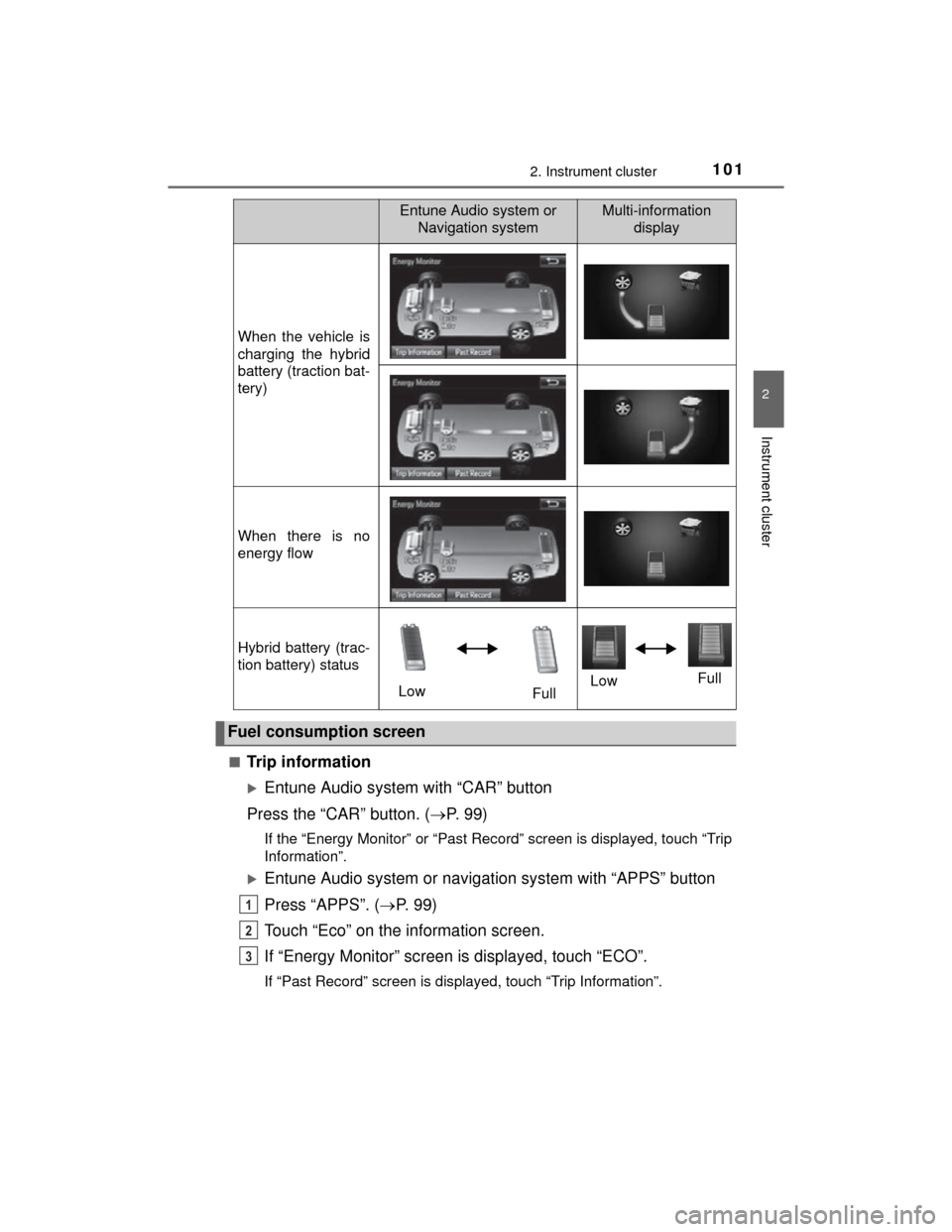

When the vehicle is
charging the hybrid
battery (traction bat-
tery)
When there is no
energy flow
Hybrid battery (trac-
tion battery) status
LowFullLow
Full
Fuel consumption screen
Entune Audio system or
Navigation systemMulti-information display
1
2
3

1022. Instrument cluster
CAMRY_HV_U (OM33A87U)
Resetting the consumption
data
Displays the average vehicle
speed since the hybrid sys-
tem was started
Displays the elapsed time
since the hybrid system was
started
Fuel consumption in the past 15 minutes
Cruising range
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual condi-
tions.
1
2
3
4
5
6

1032. Instrument cluster
2
Instrument cluster
CAMRY_HV_U (OM33A87U)■
Past record
Entune Audio system with “CAR” button
Press the “CAR” button. ( P. 9 9 )
If the “Energy Monitor” or “Trip Info rmation” screen is displayed, touch
“Past Record”.
Entune Audio system or navigation system with “APPS” button
Press “APPS”. ( P. 9 9 )
Touch “Eco” on the information screen.
If “Energy Monitor” screen is displayed, touch “ECO”.
If “Trip Information” screen is displayed, touch “Past Record”.
Resetting the past record
data
Best past fuel consumption
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel
consumption data
Displays a maximum of five past record of the average fuel consump-
tion.
The image is example only, and may vary slightly from actual condi-
tions.
■ Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “Past Record” screen will reset the past records and best past fuel con-
sumption. Selecting “Yes” on the following screen will confirm resetting of all
the data.
1
2
3
1
2
3
4
5

1042. Instrument cluster
